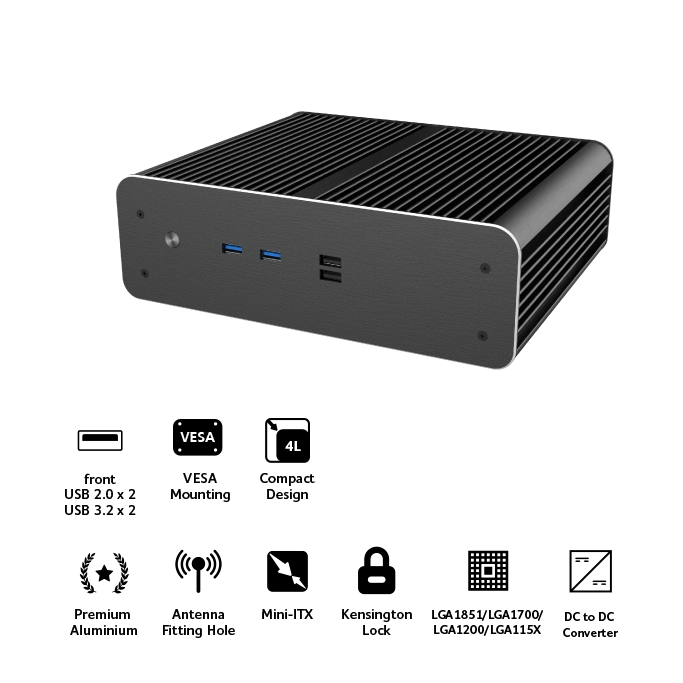

Euler CMX

Premium aluminium fanless CPU cooling design
Supports processors up to 35W TDP
Intel® LGA1851 / LGA1700 / LGA1200 / LGA115X socket support
Includes 220W DC-to-DC converter designed for stable performance under high operating temperatures
Ideal for business and industrial environments

Optimised for Mini-ITX Motherboards

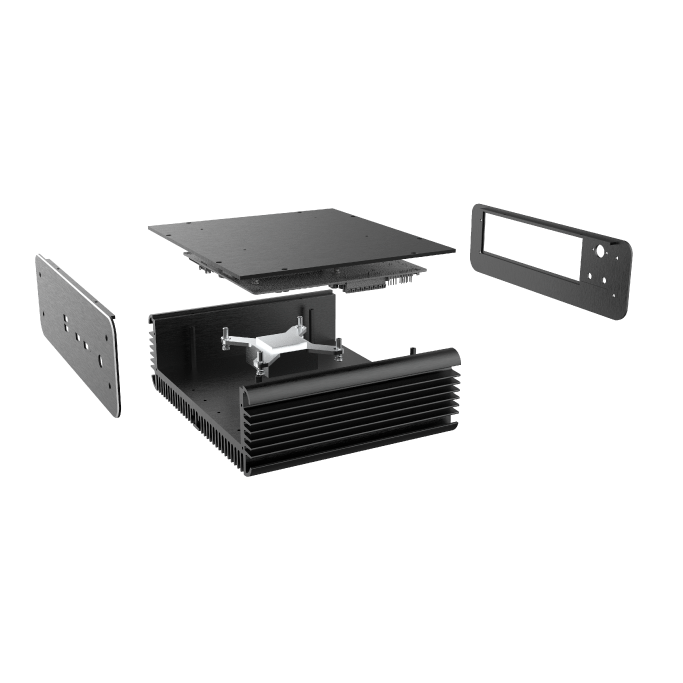

Patented spring mounting system ensures support across a diverse range of Mini-ITX form factor boards across pro-business, industrial and long-life applications.
Ideal for industrial automation, point-of-sale (POS), kiosk, digital signage, education, surveillance or transportation systems.

List of supported motherboard models can be found in the support lists.

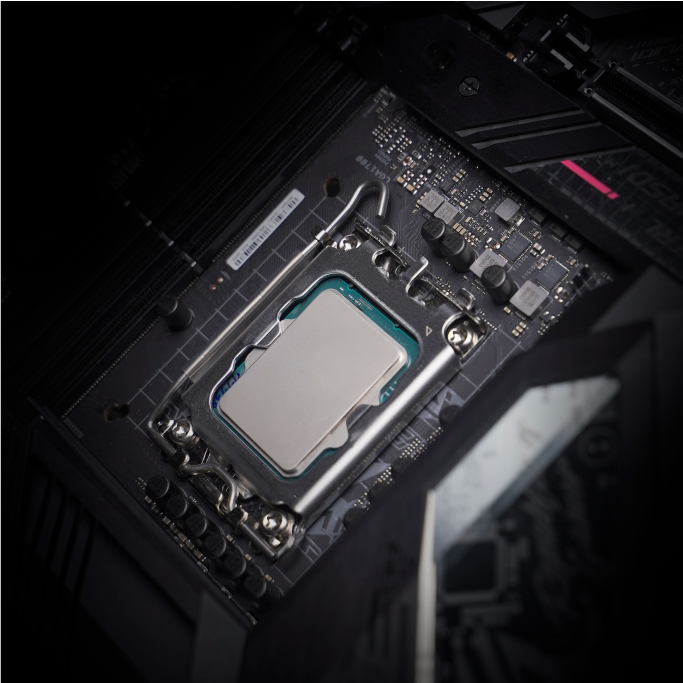

Multi-Socket & Processor Compatibility

Supports Intel® Core™ (8th-14th Gen) & Core™ Ultra (15th Gen) processors up to 35W TDP.

Compatible with Intel® LGA1851 / LGA1700 / LGA1200 / LGA115X sockets.

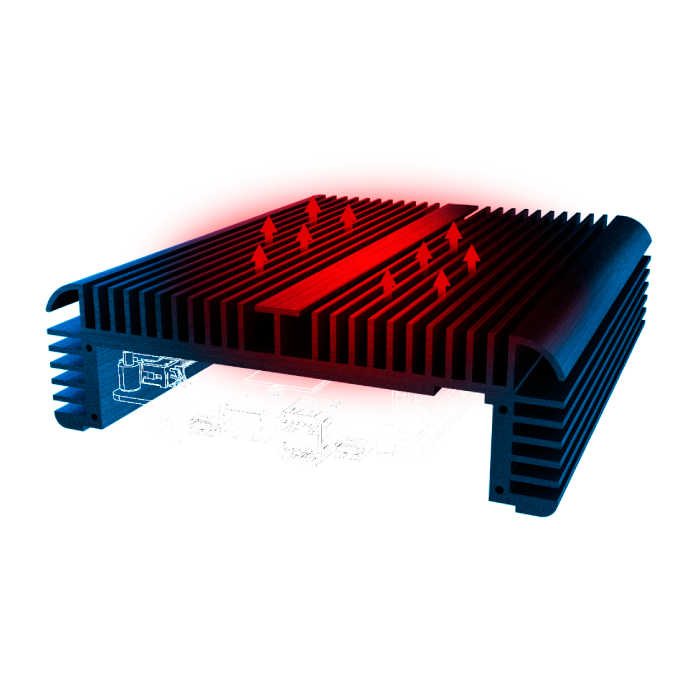

Silent Passive Cooling

Fanless aluminium design efficiently dissipates heat from the CPU through the chassis fins, while eliminating noise and mechanical failure points, ensuring stable, long-term performance.

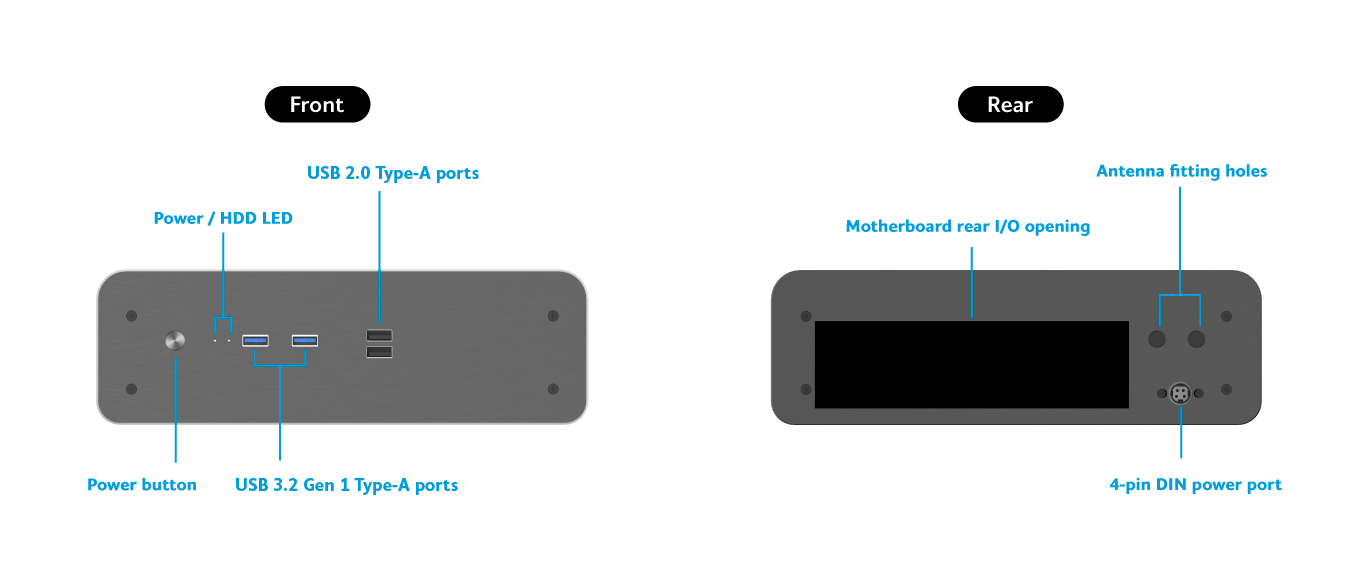

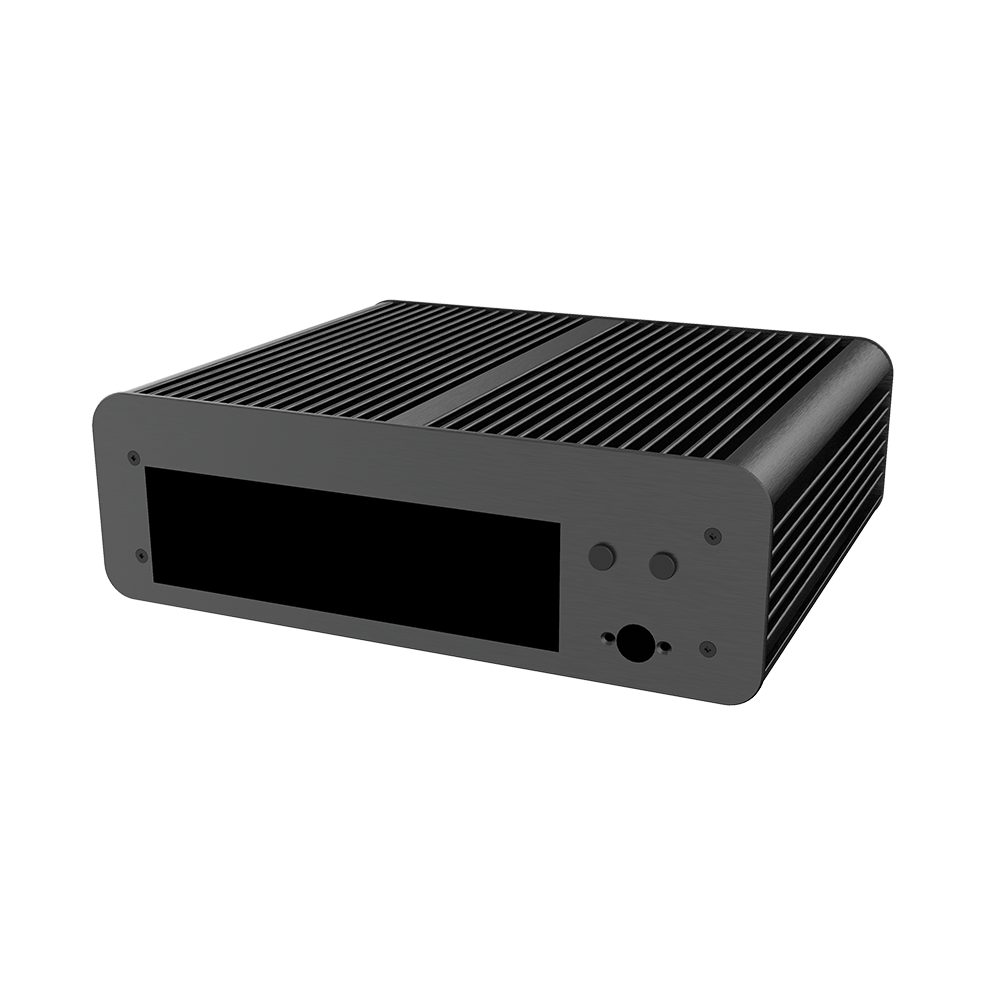

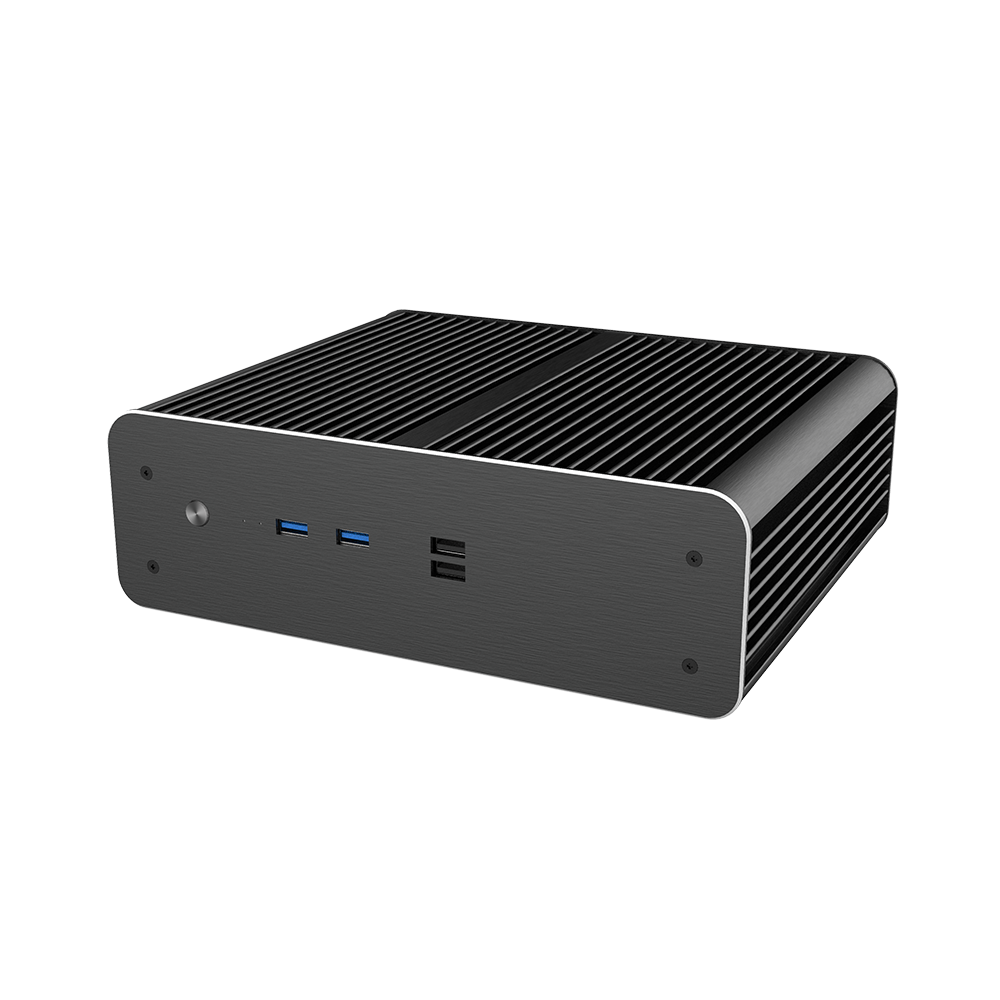

Front and Rear Panel Layout

Features two USB 3.2 Gen 1 (5 Gbps) Type-A and two USB 2.0 Type-A ports for expanded connectivity.

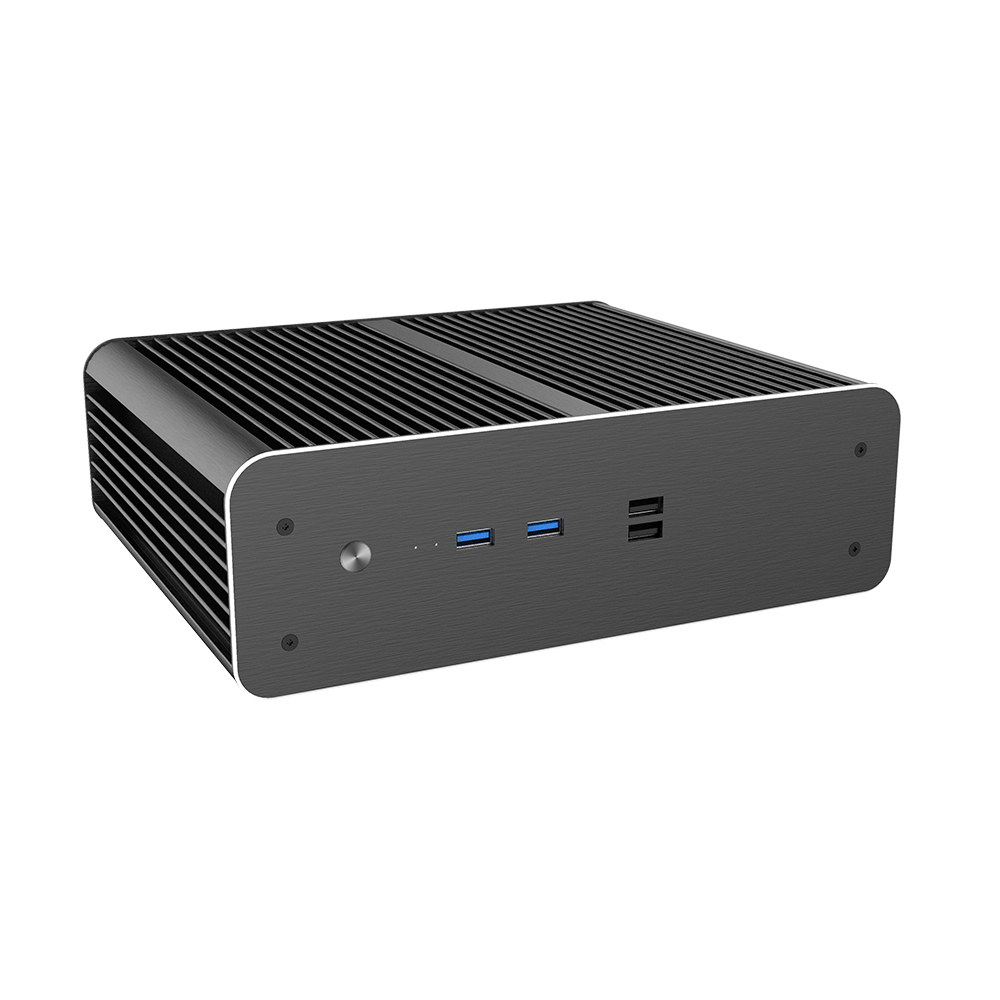

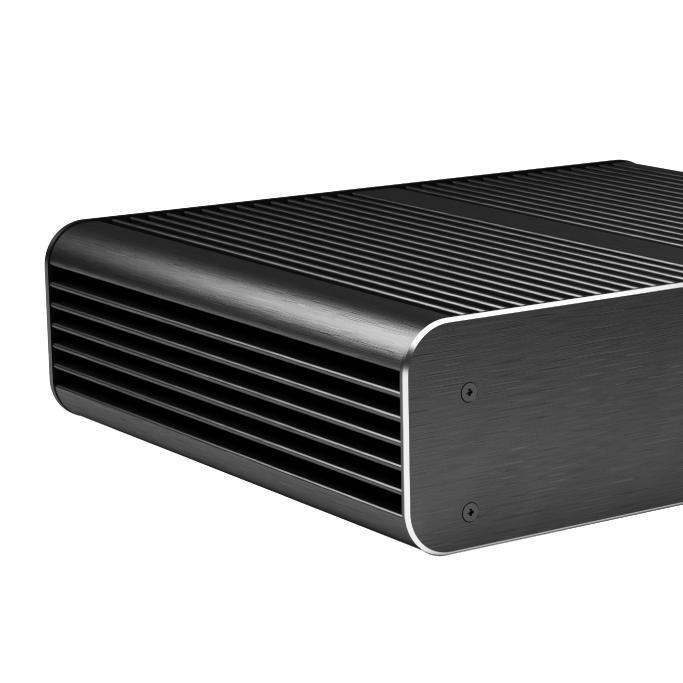

Premium Brushed Aluminium

Premium aluminium case for effective heat dissipation and increased durability. Brushed finish for a sleek and stylish look.

Compact Chassis Design

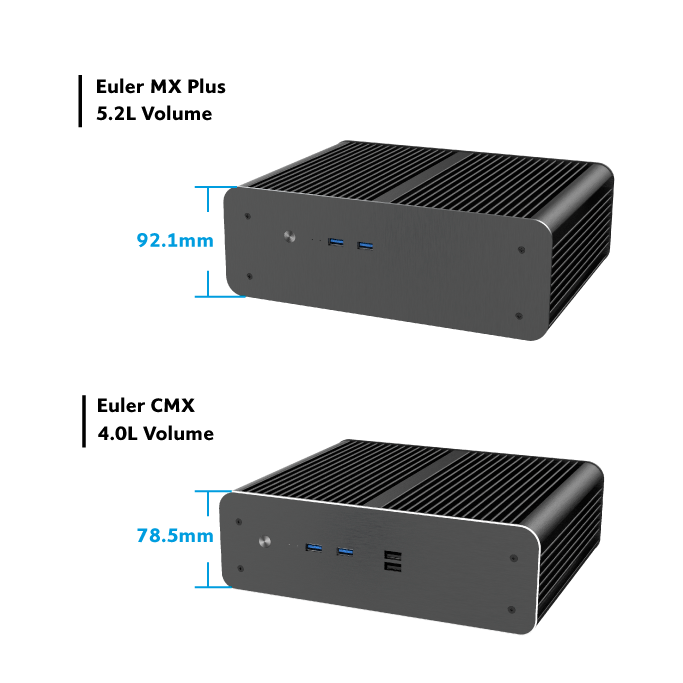

Measuring only 4.0L in volume, the Euler CMX is 23% smaller than the Euler MX2 model. Perfect for space-constrained environments, delivering powerful performance without the bulk.

Note: Euler MX2 supports up to two 2.5'' drives.

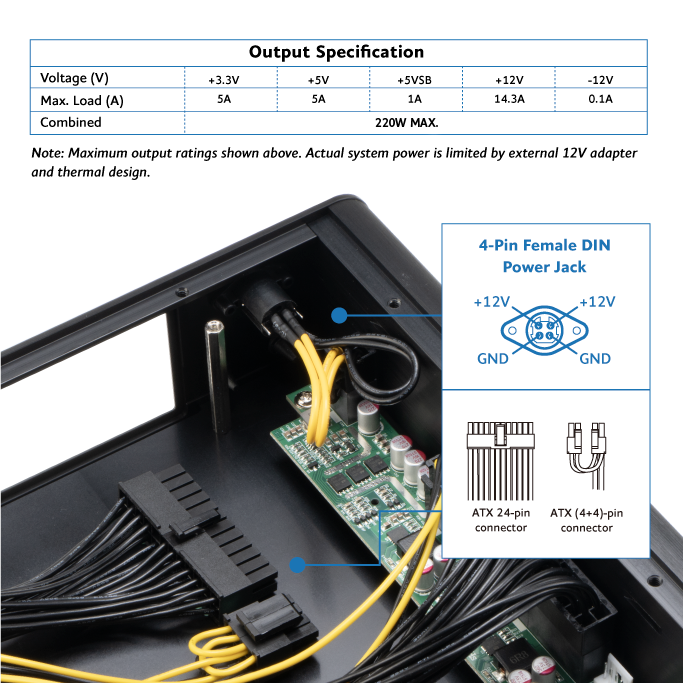

Power Adapter

Equipped with an internal 220 W DC-to-DC converter rated for high operating temperatures (-25-70°C) and featuring 4-pin DIN power input.

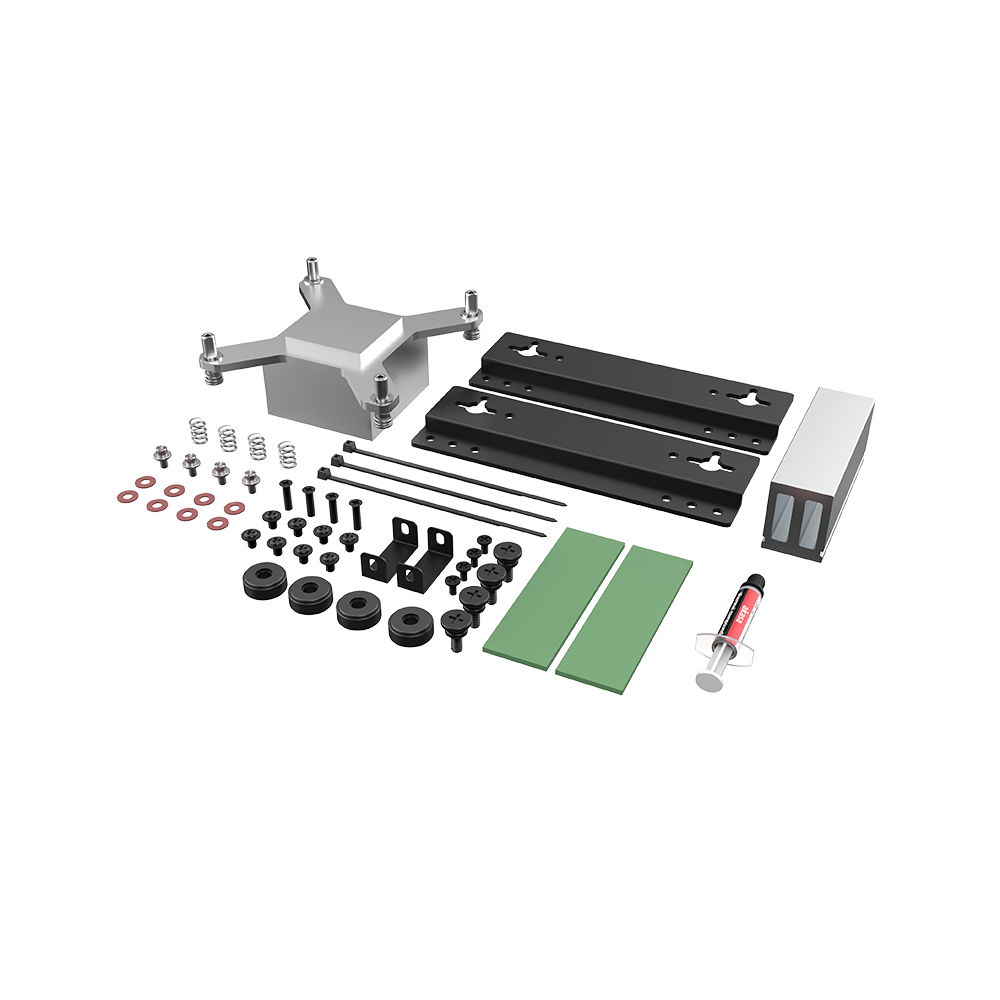

Includes 24-pin and 4+4-pin ATX power connector cables for seamless integration with standard motherboard ATX power.

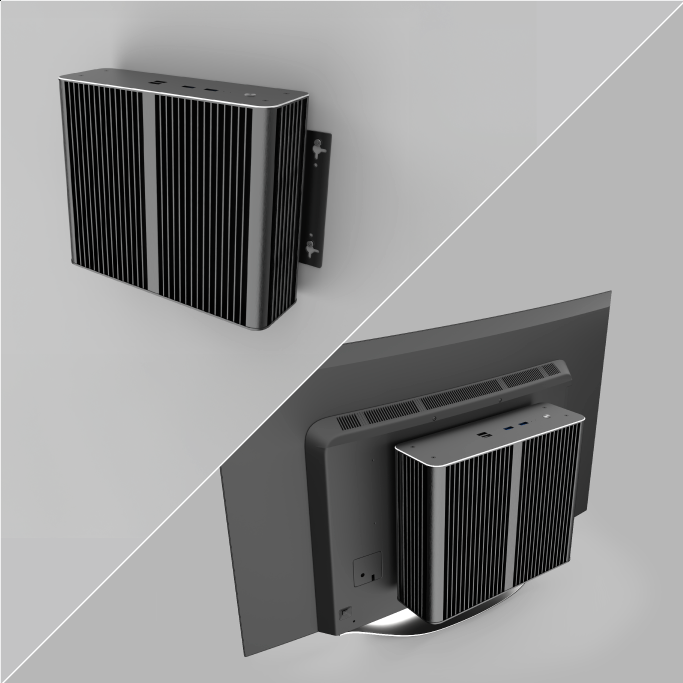

Mounting Options

Supports VESA and wall mounting with included mounting brackets, enabling secure installation and a clutter-free environment.

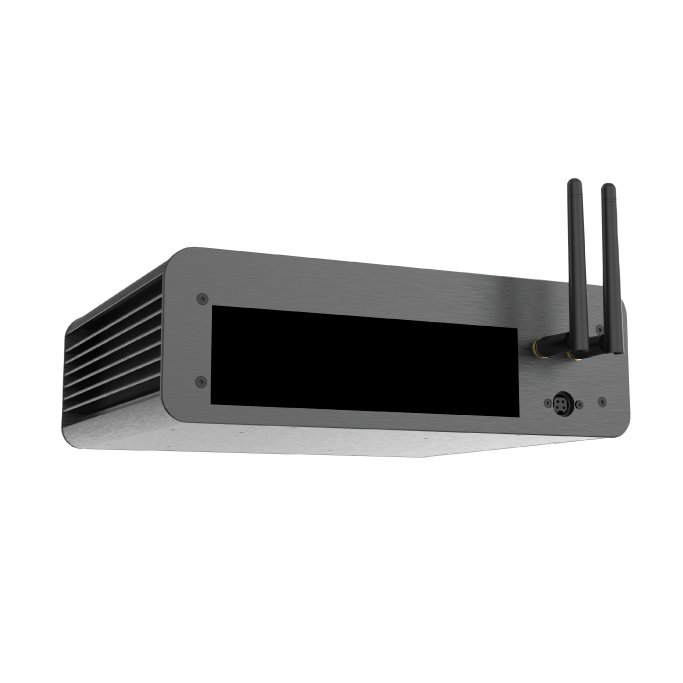

Seamless Wi-Fi Connectivity

Easily connect your fanless mini-PC to Wi-Fi with optional external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR).

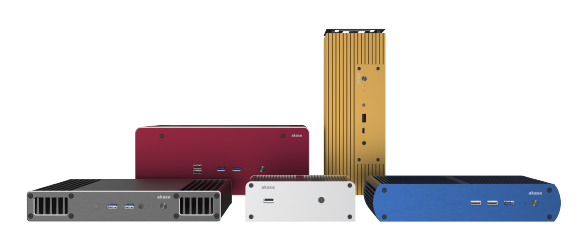

Express Your Branding & Identity

Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.

Material	Aluminium with anodised black
Panel Material	Aluminium
Thermal Module	Aluminium module
Motherboard Type	Mini-ITX
Socket Support	Intel® LGA1851, LGA1700, LGA1200, LGA115X
Maximum TDP Support	35W
Dimensions	248.6 x 205 x 78.5 mm (W x D x H)
Volume	4.0L
Drive Bays	Only suitable with M.2 SSDs
Front I/O Interfaces	USB 3.2 Gen 1 (USB 5 Gbps) Type-A x2, USB 2.0 Type-A x2, power button, power/HDD LED
Rear I/O Interfaces	Motherboard rear I/O opening, antenna fitting holes x2, 4-pin DIN power port x1,
Antenna Fitting Holes	2
VESA Mounting	Supported
Wall Mounting	Supported
Internal DC to DC Converter	Included (see specification below)
Optional External Power Adapter	AC 150W, 12V (Optional Akasa Model: AK-PD150-02K)
Product Code	A-ITX61-S1B
:: Internal DC to DC Converter Specification
Output Power	220W
Output Voltage	+3.3V, +5V, +5V standby, +12V, -12V
Input Voltage	12V DC-in
Input Connector	4-pin DIN power
Operating Temperature	-25°C to 70°C
Included Cable(s)	24-pin ATX power connector cable 4+4-pin ATX power connector cable
Protection	Over Voltage Protection Over Power Protection

Intel® Processors Support List - 35W TDP (8th-15th Gen)

Download

September 2026

Generation	Family	Socket	Model
15th Gen	Core™ Ultra (Series 2)	LGA1851	Ultra 5 225T Ultra 5 235T Ultra 5 235TA Ultra 5 245T Ultra 7 265T Ultra 9 285T
14th Gen	Core™	LGA1700	300T i3-14100T i5-14400T i5-14500T i5-14600T i7-14700T i9-14900T
13th Gen	Core™	LGA1700	i3-13100T i3-13100TE i5-13400T i5-13500T i5-13500TE i5-13600T i7-13700T i7-13700TE i9-13900T i9-13900TE
12th Gen	Celeron®	LGA1700	G6900T G6900TE
12th Gen	Pentium® Gold	LGA1700	G7400T G7400TE
12th Gen	Core™	LGA1700	i3-12100T i3-12100TE i3-12300T i5-12400T i5-12500T i5-12500TE i5-12600T i7-12700T i7-12700TE i9-12900T i9-12900TE
11th Gen	Core™	LGA1200	i5-11400T i5-11500T i5-11600T i7-11700T i9-11900T
10th Gen	Celeron®	LGA1200	G5900T G5900TE G5905T
10th Gen	Pentium® Gold	LGA1200	G6400T G6400TE G6500T
10th Gen	Pentium® Gold	LGA1200	G6405T G6505T
10th Gen	Core™	LGA1200	i3-10100T i3-10100TE i3-10105T i3-10300T i3-10305T i5-10400T i5-10500T i5-10500TE i5-10600T i7-10700T i7-10700TE i9-10900T i9-10900TE
9th Gen	Core™	LGA1151	i3-9100T i3-9100TE i3-9300T i5-9400T i5-9500T i5-9500TE i5-9600T i7-9700T i7-9700TE i9-9900T
8th Gen	Core™	LGA1151	i3-8100T i3-8300T i5-8400T i5-8500T i5-8600T i7-8700T

This list is maintained on a best-efforts basis; see the version date on each list. New and revised motherboards appear constantly, so it may be incomplete or out of date. Omission does not mean a board is incompatible. The list indicates mechanical and thermal suitability for this product only. Whether a motherboard supports a given CPU, and any BIOS version required, is determined by the motherboard manufacturer; please check their CPU support list.

Case compatibility is determined by the supported socket(s), maximum processor TDP and form factor stated in the product specification. Motherboards within those limits usually fit, but layout can still prevent installation, including heatsink keep-out areas, VRM height, connector placement and M.2 placement. TDP indicates thermal capability, not guaranteed sustained performance. Ambient temperature, workload, placement and BIOS power limits all affect a fanless system.

If in doubt, contact Akasa before purchasing, quoting the exact motherboard model and intended CPU.

All trademarks are the property of their respective owners. Brand references are for compatibility identification only and do not imply any affiliation or endorsement.

Mini-ITX Motherboard Support List (8th-15th Gen)

Download

September 2026

Brand	Model	Compatible Processor(s)	Socket
Aaeon	MIX-Q870A1	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Aaeon	MIX-H810WV1	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Aaeon	MIX-Q670A1	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Aaeon	MIX-H610A2	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Aaeon	MIX-H610A1	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Aaeon	MIX-Q370D2	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Aaeon	MIX-Q370A1	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Aaeon	MIX-H310D2	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Aaeon	MIX-H310A1	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Advantech	AIMB-2710	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Advantech	AIMB-279 B1	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Advantech	AIMB-279 A1	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Advantech	AIMB-278Q-LAB1	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Advantech	AIMB-278Q-EAB1	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Advantech	AIMB-278H-EAB1	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Advantech	AIMB-278	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Advantech	AIMB-208	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Advantech	AIMB-277G2-FLA1E	Intel® Core™ Processors (10th Gen)	LGA1200
Advantech	AIMB-277G2-00A1E	Intel® Core™ Processors (10th Gen)	LGA1200
Advantech	AIMB-277	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
Advantech	AIMB-276	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Asrock	Z690M-ITX/ax	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock	H670M-ITX/ax	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock	H670-ITX/ax R2.0	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock	H610M-ITX/eDP	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock	H610M-ITX/ac	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock	B760M-ITX/D4 WiFi	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock	B660M-ITX/eDP	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock	B660M-ITX/ac	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-1247	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Asrock Industrial	IMB-1246	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Asrock Industrial	IMB-X1238	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-X1231	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-1242	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-1241	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-1238	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-1237	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-1231	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-1230	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Asrock Industrial	IMB-X1220-L	Intel® Core™ Processors (10th Gen)	LGA1200
Asrock Industrial	IMB-1225	Intel® Core™ Processors (10th Gen)	LGA1200
Asrock Industrial	IMB-1221-L	Intel® Core™ Processors (10th Gen)	LGA1200
Asrock Industrial	IMB-1221-D	Intel® Core™ Processors (10th Gen)	LGA1200
Asrock Industrial	IMB-1220-L	Intel® Core™ Processors (10th Gen)	LGA1200
Asrock Industrial	IMB-1220-D	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
ASUS	Pro Q870I-C-CSM	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
ASUS	Prime H610I-PLUS-CSM	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS	Prime H610I-PLUS D4-CSM	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS	Prime H610I-PLUS D4	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS	Prime H610I-PLUS	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS	Prime H410I-PLUS/CSM	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
ASUS	Prime H410I-PLUS	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
ASUS	Prime B460I-PLUS	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
ASUS	Prime H310I-PLUS R2.0/CSM	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
ASUS	Prime H310I-PLUS R2.0	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
ASUS IoT	Q870I-IM-A	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
ASUS IoT	W680I-EM-A	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS IoT	W480EI-IM-A	Intel® Core™ Processors (10th Gen)	LGA1700
ASUS IoT	R680EI-IM-A	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS IoT	Q670EI-IM-A	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS IoT	H610I-IM-A D5	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS IoT	H610I-IM-A	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS IoT	H610I-EM-A	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
ASUS IoT	Q470EI-IM-A	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
ASUS IoT	Q370I-IM-A R3.0	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
ASUS IoT	Q370I-IM-A R2.0	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
ASUS IoT	H310I-IM-B	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
ASUS IoT	H310I-IM-A R3.0	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Biostar	BIH60-IHP	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
DFI	RPS100	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
DFI	CMS171/CMS173	Intel® Core™ Processors (10th Gen)	LGA1200
DFI	CMS100	Intel® Core™ Processors (10th Gen)	LGA1200
DFI	CS170-Q370/C246	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
DFI	CS170-H310	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
DFI	CS100	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Gigabyte	H610I DDR4	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Gigabyte	H610I (Rev. 1.0)	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
GigaIPC	mITX-Q870A	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
GigaIPC	mITX-H810E	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
GigaIPC	mITX-H810A	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
GigaIPC	mITX-Q67EB	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
GigaIPC	mITX-Q670B	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
GigaIPC	mITX-Q670A	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
GigaIPC	mITX-H61ED	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
GigaIPC	mITX-H61EC	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
GigaIPC	mITX-H610E	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
GigaIPC	mITX-H610B	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
GigaIPC	mITX-H610A	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Jetway	MTX-ARS2-W880	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Jetway	MTX-ARS2-Q870	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Jetway	MTX-ARS2-H810	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Jetway	MI23-R680X	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Jetway	MI23-Q670X	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Jetway	MI23-H610X	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Jetway	MI225R6800	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Jetway	MI225Q6700	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Jetway	MI225H6100	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Jetway	LI32-H6100	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Jetway	MI92V	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
Jetway	MI08	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
Jetway	LI22-Q470E	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
Jetway	LI22-H420E	Intel® Core™ Processors (10th, 11th Gen)	LGA1200
Jetway	JNF796V-Q370	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Jetway	JNF796V-H310	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Kontron	K3836-R mITX	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Kontron	K3836-Q mITX	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Kontron	K3833-Q mITX	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Kontron	K3832-Q mITX	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Kontron	D3634-S mITX	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Kontron	D3633-S mITX	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Mitac	PH14ADI	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Mitac	PH13CMI	Intel® Core™ Processors (10th Gen)	LGA1200
Mitac	PH13FEI	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
MSI-IPC	MS-CF23	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
MSI-IPC	MS-CF10	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
MSI-IPC	MS-CF02	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
MSI-IPC	MS-98L1	Intel® Core™ Processors (8th, 9th Gen)	LGA1151
Supermicro	X14SAV-LVDS	Intel® Core™ Ultra Processors (Series 2) (15th Gen)	LGA1851
Supermicro	X13SAV-PS	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Supermicro	X13SAV-LVDS	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700
Supermicro	X13SAV-D5LVDS	Intel® Core™ Processors (12th, 13th, 14th Gen)	LGA1700

If in doubt, contact Akasa before purchasing, quoting the exact motherboard model and intended CPU.

All trademarks are the property of their respective owners. Brand references are for compatibility identification only and do not imply any affiliation or endorsement.

Installation manual

GB, FR, DE, PT, ES, RU, CZ, PL, JP, CN-S, CN-T

- 2026-03-20

UPCOMING NEW LEGACY PRE-ORDER [# related.name #]

[# related.title #]

[# related.partno #]
