Low Profile CPU Cooler (30.5mm), 77mm Side Blower Fan, Screw Mount, TDP 95W, Intel

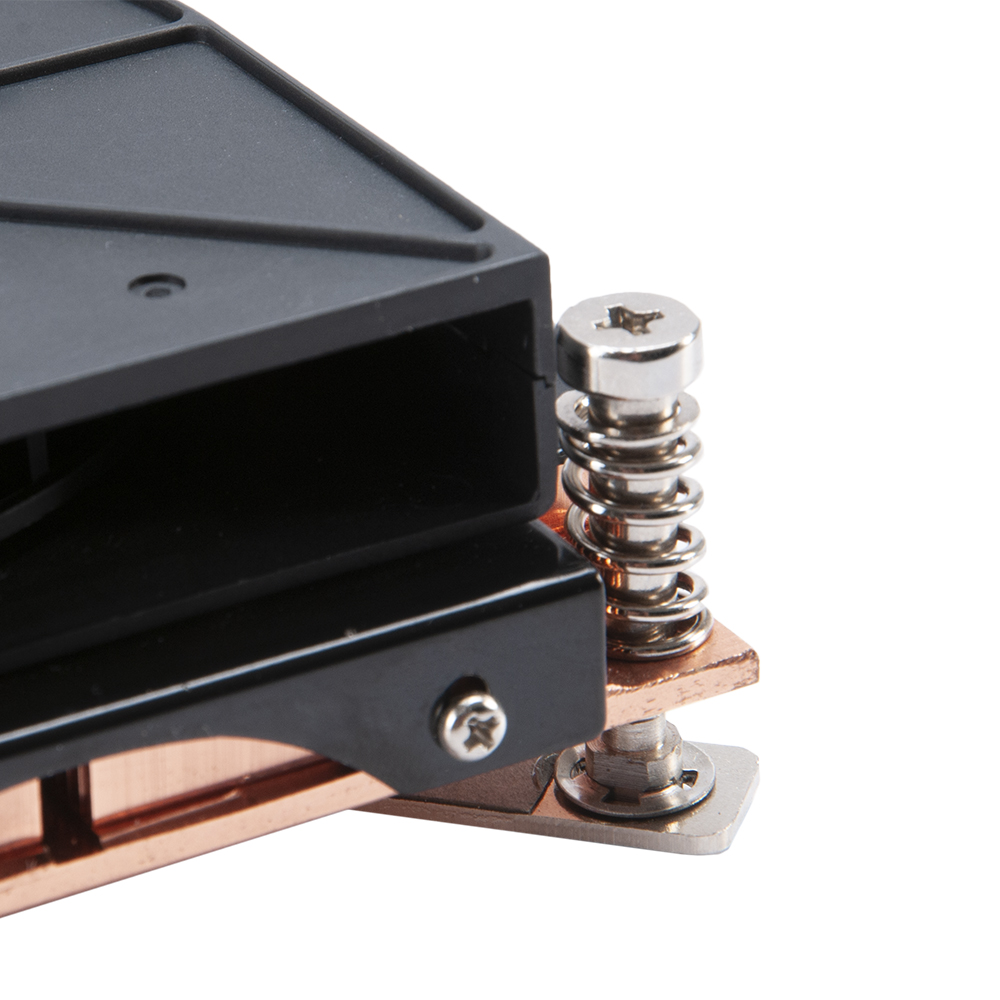

Copper cooler with skived-fins and side blow fan. Long life twin ball bearing. Dual platform mounting with secure spring-loaded screws and backplate
The long life two-ball bearing fan draws the cool air though the fins and extracts hot air to one side to support chassis airflow. Dual mounting with spring-loaded screws and motherboard backplate guarantee safe retention. Thermal compound and LGA775 / LGA115X / LGA1200 backplates are provided.
• Active LGA775 & LGA115X & LGA1200 cooling solution
• Side blow fan
• Solid copper heatsink
• Reliable and long life twin ball bearing fan
| Socket Type | Intel LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200 |
|---|---|
| Suggested TDP (W) | 95 |
| Cooler Dimensions | 89.9 x 86.2 x 30.5 mm |
| Heatsink Material | Copper |
| Installation | Metal screws and retention plate |
| Weight | 420g |
| Product Code | AK-CCE-7107BP |
| Dimensions | 77 x 75 x 15 mm |
|---|---|
| Bearing | Two Ball Bearing |
| Fan Speed | 1200 - 5500 RPM |
| Max Airflow | 11.83 CFM |
| Max Air Pressure | 20.66 mm-H2O |
| Noise Level | 18.0 - 45.99 dB(A) |
| Fan Rated Current | 0.8A |
| Fan Rated Voltage | DC 12V |
| Fan Connector | 4-pin PWM |
| Fan Life Expectancy | 80,000 hours |
| Warranty | 2 years |
