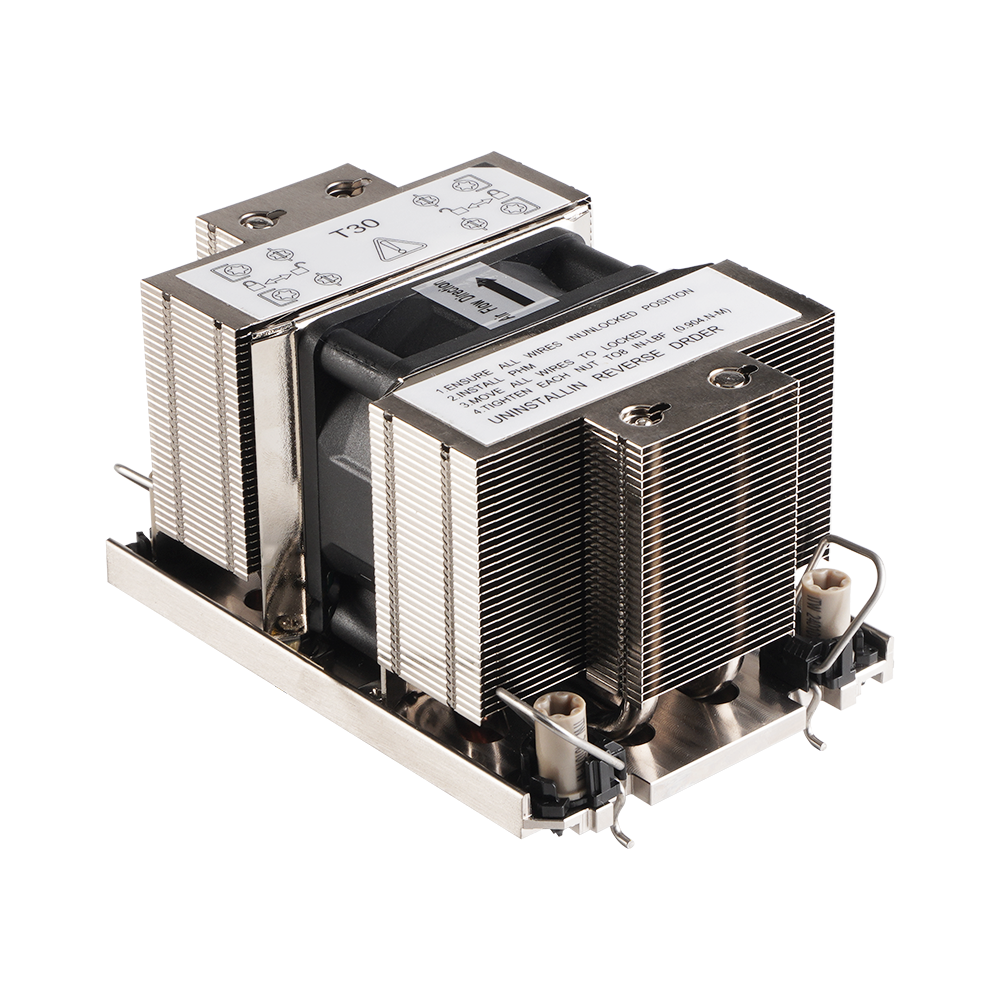

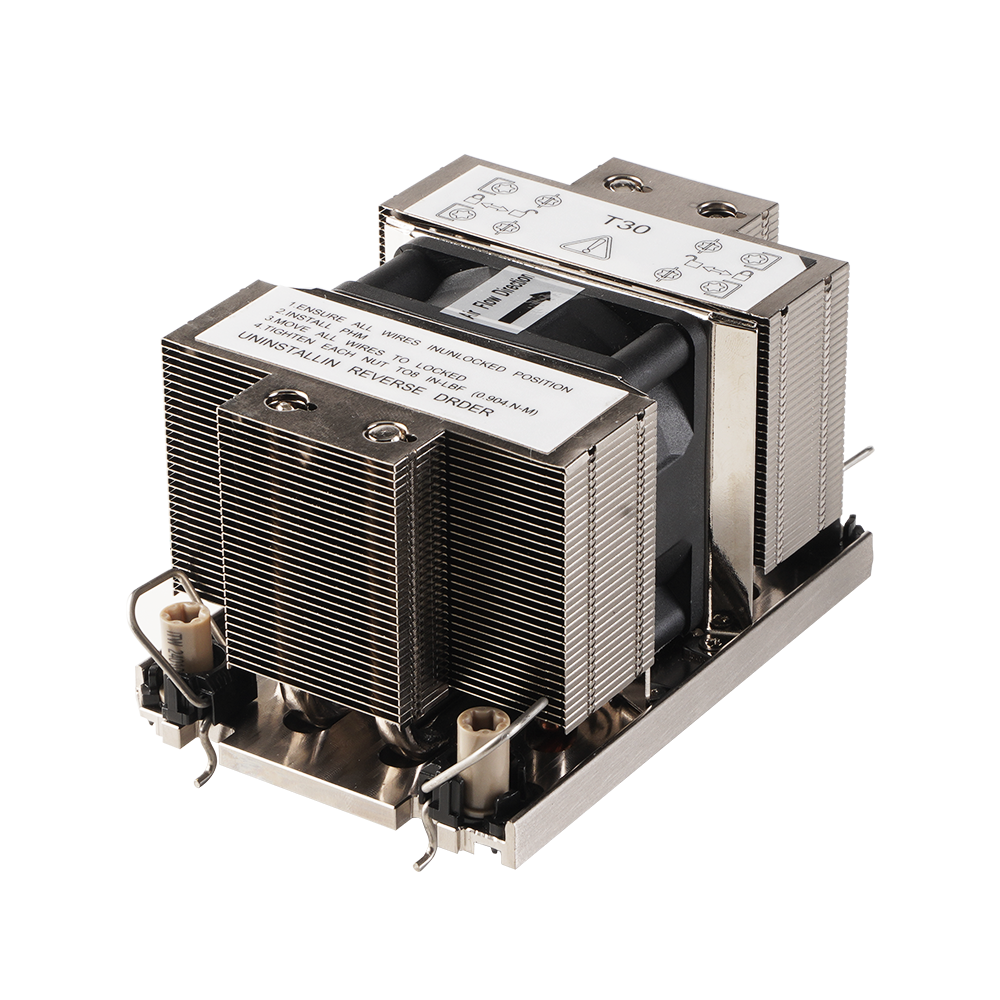

2U Server Cooler for Intel LGA4677 / 4710
64.5mm height, 60mm fan, 5 copper heatpipes, TDP 385W
High-performance 2U server cooler for Intel Xeon LGA4677 / 4710 CPUs, supporting up to 385W TDP. It features aluminium fins, five copper heatpipes, and a 60mm PWM fan for efficient cooling in demanding server environments.
High-Performance 2U Cooler for Intel Xeon (LGA4677 / 4710 Socket)
Designed for maximum efficiency in compact spaces. This 2U cooler is optimised for Intel Xeon processors on LGA4677 / 4710 sockets, delivering powerful cooling for AI and HPC like environments.
Aluminium Fins with Five Copper Heatpipes
Efficient heat transfer. The aluminium fins combined with five copper heatpipes ensure rapid heat dissipation from the CPU, keeping it cool even under heavy workloads.
385W TDP Cooling Capacity
Ideal for high-demand server tasks. Supports up to Intel Xeon Platinum CPUs with a 385W Thermal design power (TDP), providing effective cooling in demanding scenarios.
60mm x 25mm PWM Fan with Two Ball Bearings
High airflow and durability. The 60mm PWM fan operates at speeds from 3000-11,000 RPM, delivering 62 CFM airflow with a maximum pressure of 38.5 mm-H2O. Two ball bearings ensure long-lasting, reliable performance.

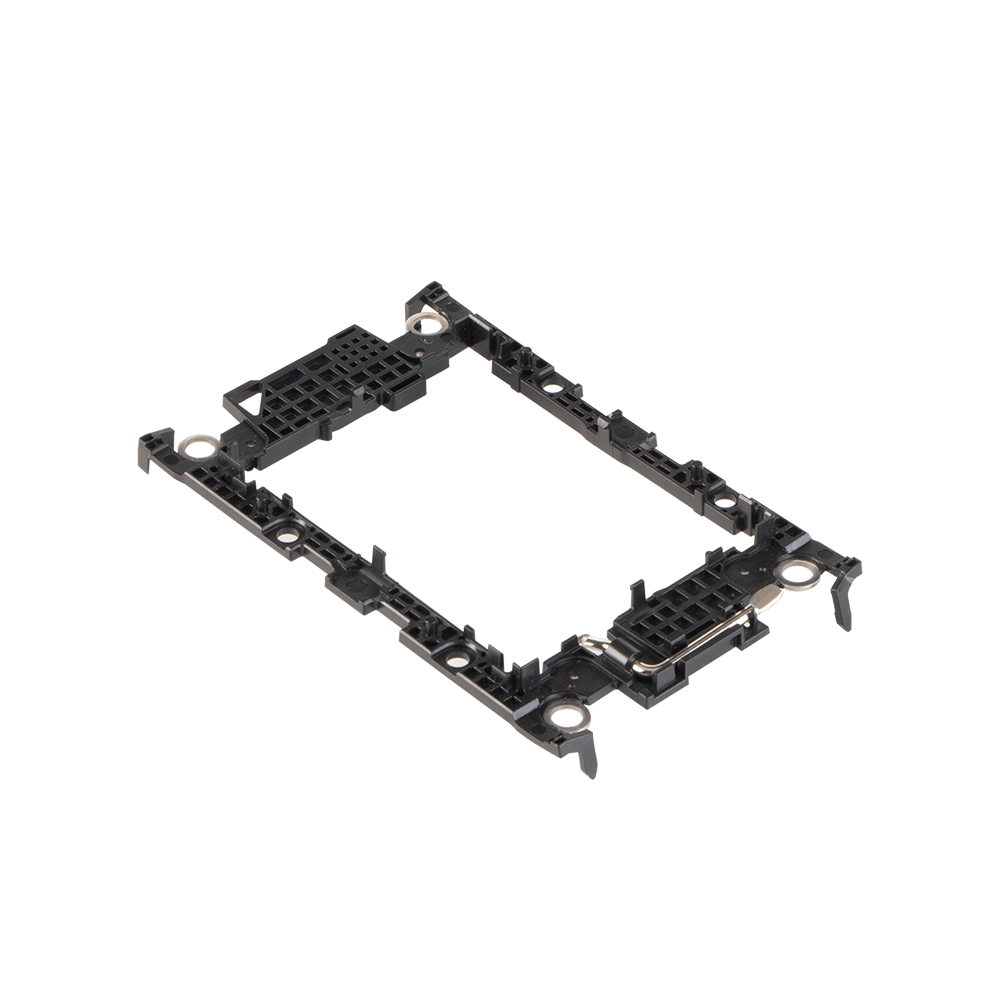

Includes E1B Carrier (LGA4677) for Easy Installation
Quick and secure setup for 2U server systems. Includes mounting screws and an E1B package carrier.
Note: LGA4677 processors with E1A/E1C carriers and LGA4710 processors with E2A/E2B carriers require separate plastic CPU carrier frames for installation (typically included with boxed processors or available separately through Intel® vendors/carrier suppliers for tray processors).
| Socket Type | LGA4677, LGA4710 |
|---|---|
| Solution | 2U Server |
| Suggestion TDP(W) | 385 |
| Cooler Dimensions | 118 x 79 x 64.5 mm |
| Material | Aluminium fin with five copper heatpipes |
| Installation | Mounting screw (include E1B CPU carrier) |
| Weight | 418g |
| Thermal Interface | Pre-apply |
| Product Code | AK-CC9501BP01 |
| Dimensions | 60 x 60 x 25 mm (Cable Length: 200 mm) |
|---|---|
| Bearing | Two ball bearing |
| Fan Speed | 3000-11000 RPM |
| Max Airflow | 62 CFM |
| Max Air Pressure | 38.5 mm-H2O |
| Noise Level | 58.5 dB(A) (Max) |
| Fan Rated Current | 1.4A (Max:1.5A) |
| Fan Rated Voltage | DC 12V |
| Connector | 4-Pin PWM (2510 connector) |
| Fan Life Expectancy | 80,000 hours |
| Warranty | 2 years |
