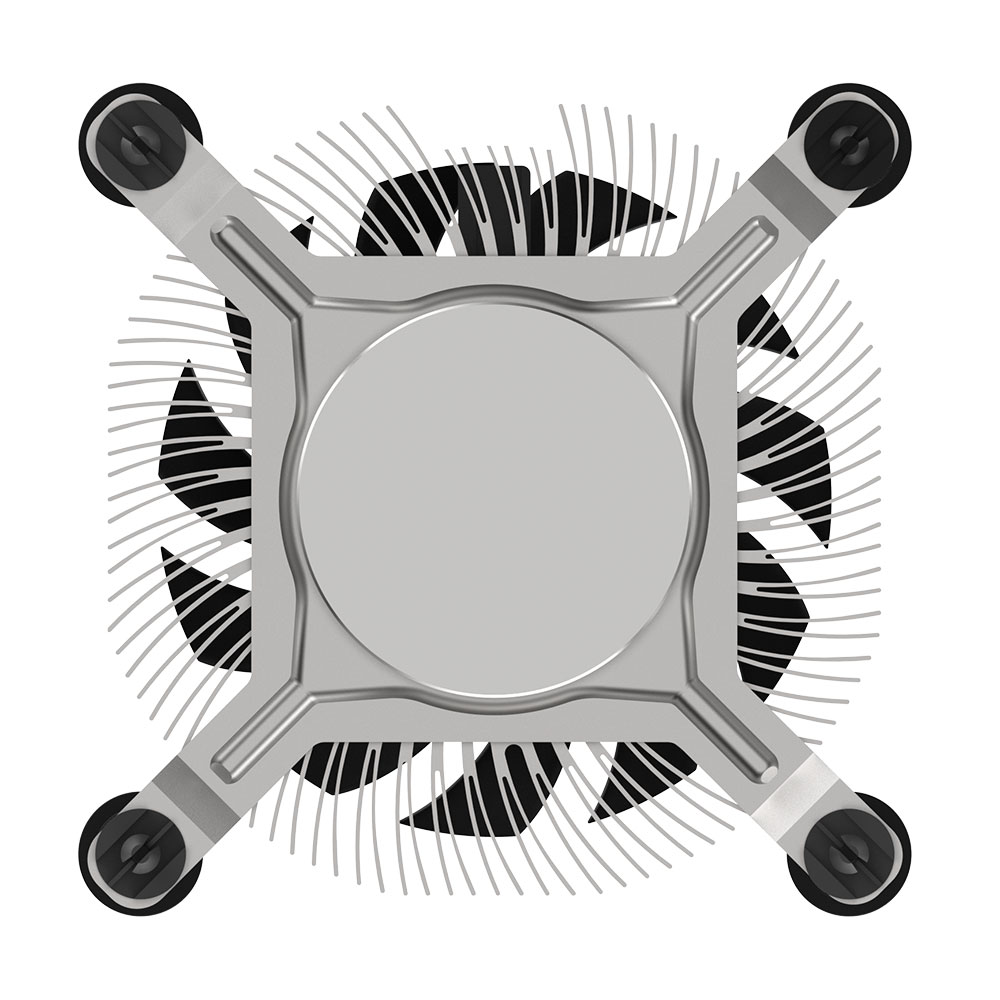

Extra Large Core Shape, More Cooling Performance
The new LGA1700 socket caters for processors with larger package sizes compared to previous desktop processor generations. To ensure maximum contact and thermal transfer, Akasa has increased the contact area between the cooler core and the processor in order to maximise heat dissipation and cooling performance.

Low-Profile and Compact

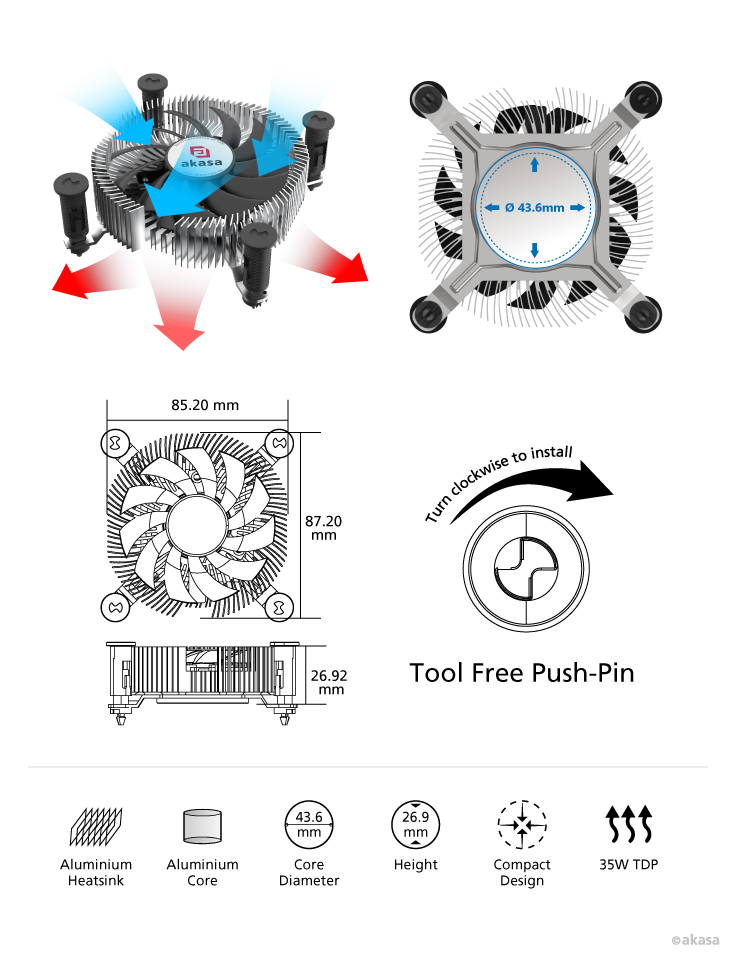

Maximum heatsink height of 26.9mm which makes it perfect for low profile systems and Small Form Factor (SFF) such as Mini-ITX, Cube and HTPC cases.

Intelligent and Optimised Design
Hi-performance aluminium heatsink and core coupled with an embedded fan that features intelligent PWM function, delivers as much air as needed at any given time to cool the CPU. Coupled with hi-grade thermal interface pre-applied. Ensuring that the cooler delivers outstanding cooling performance.

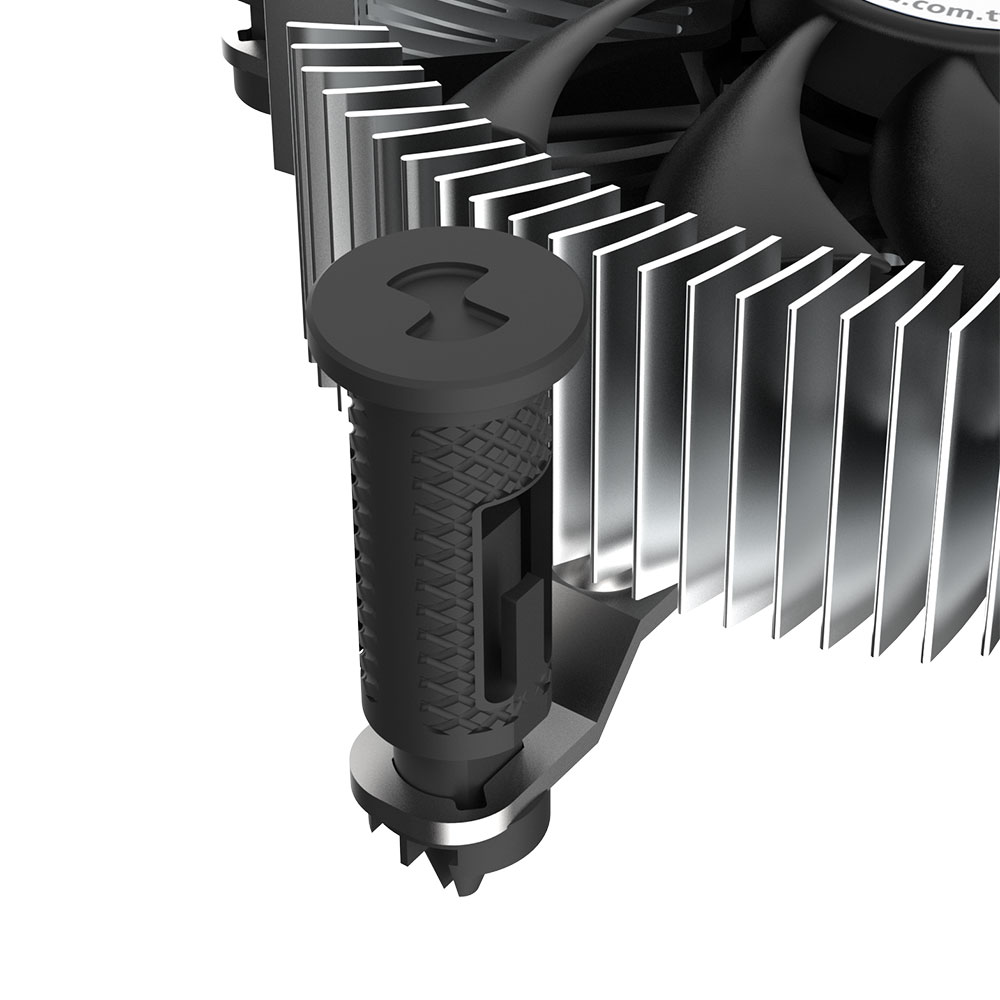

New and Easy Mounting Design
New push-pin design to cater for the Intel® LGA1700.

Array of Compatibility
Supports common desktop motherboards such as ATX, Micro-ATX, Mini-ITX, and Thin Mini-ITX.

• Height of the heatsink is only 26.9mm
• Compatible with Intel® LGA 1700
• Intelligent PWM and silent fan
• High airflow
