Pascal CTN
Compact 1.7L IP65 Waterproof Fanless Case for Intel® NUC 11 Pro Core™ i3 (Tiger Canyon)
Fully water & dust proof aluminium fanless case for Intel® 11 Generation Tiger Canyon Core™ i3. Compatible with Intel® NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3.
|
Pascal CTN

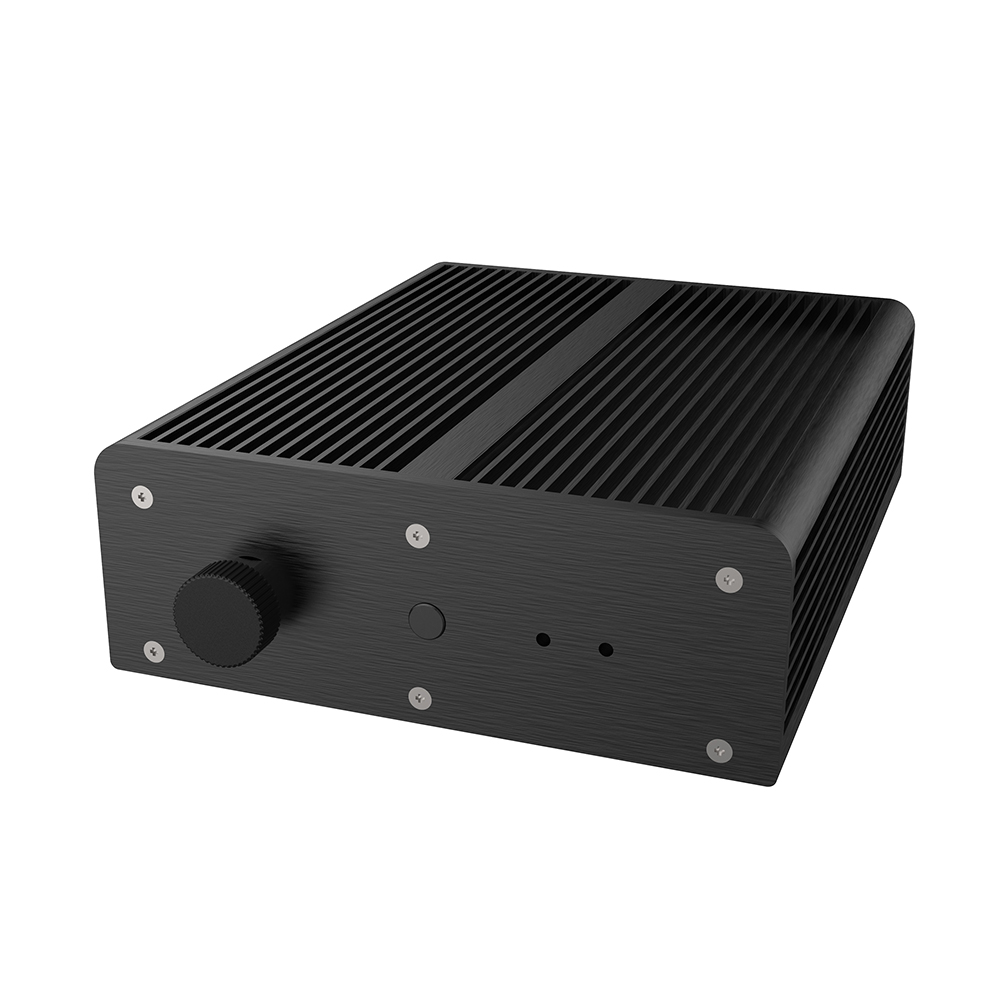

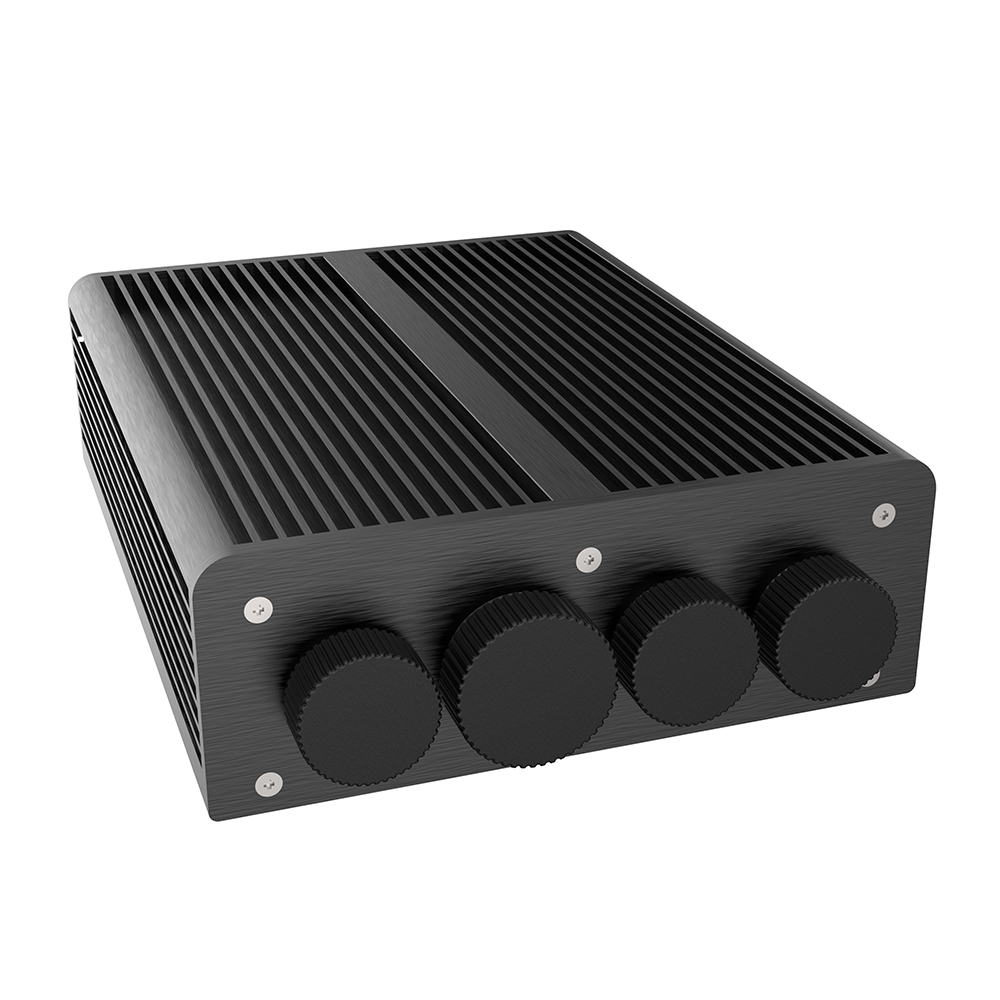

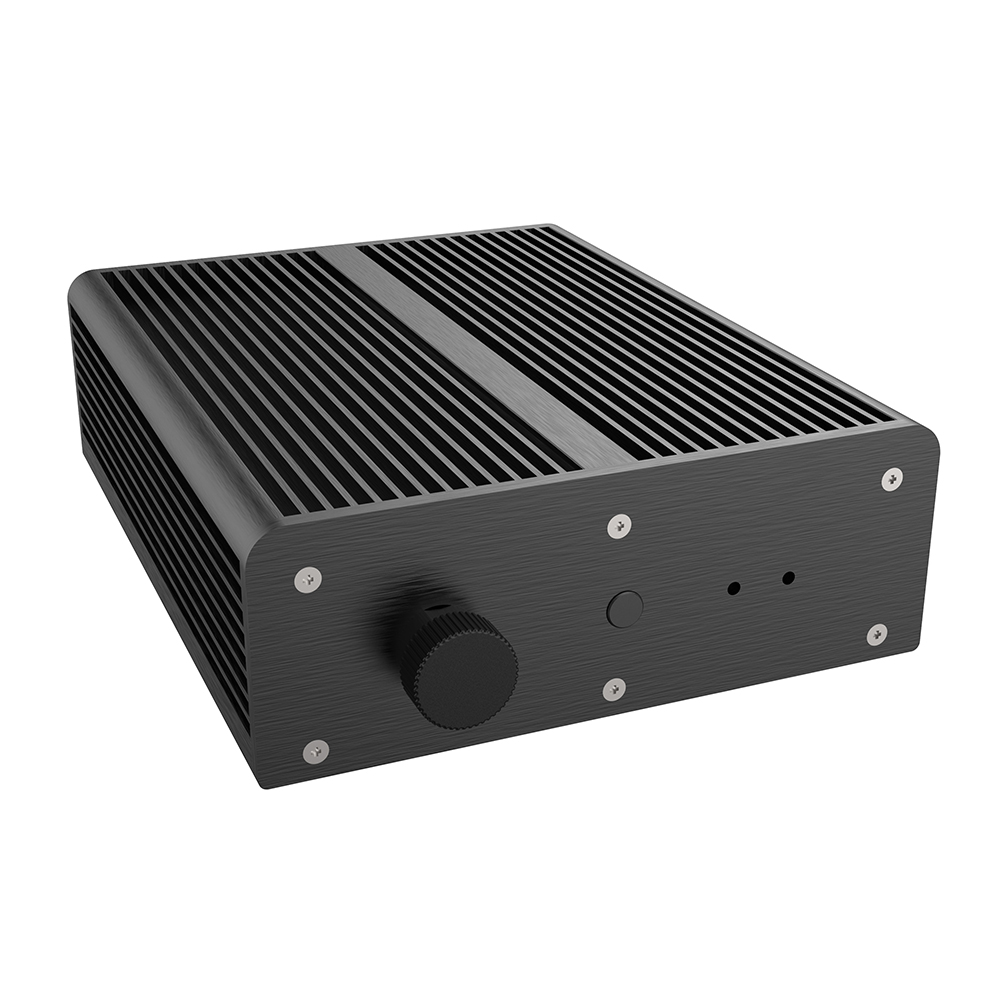

IP65 Waterproof fanless case
for the Intel® NUC 11 Pro Core™ i3 (Tiger Canyon)
Perfect For Harsh Environments
Build with Intel® NUC 11 Pro (Tiger Canyon) systems up to Core™ i3, making it perfect for harsh environments and applications such as traffic management, scientific analysis, security, factory automation.
IP65
Fully water & dust proof
Fanless
Excess heat from Core™ i3 and GPU dies are effectively transferred from the thermal module to the all-aluminium body which acts as a heatsink to dissipate the heat to the surrounding. Ensuring the system runs at optimal thermal performance.
IP65 Rated Cables
Power adapter cable, USB3.0, HDMI cable and network
cable included. (length: 2m) Perfect for the
Outdoors Pascal CTN is perfect for
navigation, multimedia, digital signage, automation, car PC, medical and outdoor fields, etc. Compact Design
1.7L aluminium chassis designed for the Tiger Canyon Core™ i3, perfect for applications where a discrete and compact IP65 system is required.
Optional Wall Mounting Kit
Wall mount your Pascal case
Product Code: (A-NUC22-WBKT) |
| Material | Aluminium |
|---|---|
| Motherboard Types & Support | UCFF 4" X 4" |
| Motherboard Support | Intel® NUC Boards: NUC11TNi3 Board/Kits: NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3 |
| Dimensions | 150 x 215.3 x 54mm (W x D x H) |
| Cables | Power adapter cable USB 3.0 cable HDMI cable Network cable |
| Cable Length | 2m |
| Front I/O Ports | Power Button, Power and HDD LEDs |
| Optional Power Adaptor | AK-PD120-04M |
| Product Code | A-NUC70-M1B |
