Plato TN
Slim Fanless Case for Intel® NUC 11/12 Pro (Tiger Canyon/ Wall Street Canyon)
Low profile fanless case for Intel® NUC 11/12 Pro (Tiger Canyon / Wall Street Canyon). Supports VESA mounting. Accommodates 2.5" SATA HDD/SSD.
|
Plato TN
Fanless case for Intel® NUC 11/12 Boards(Tiger Canyon / Wall Street Canyon) • Support 2.5" SATA HDD / SSD
• Aluminium fanless CPU cooling design • Stylish front panel diamond effect • Provides one rear serial port • Compatible with Intel® NUC 11/12 Pro boards up to Core™ i7 Perfect Features for
Commercial Applications Designed for Intel® NUC 11/12 Pro models with quad 4K displays or one 8K display outputs, making it ideal for digital signage applications or where multiple displays are required. Supports Intel's commercial board
with vPro® Technology support for array of applications including robotic assembly lines Fanless
Aluminium fanless CPU cooling design Stylish front panel
diamond edge finish Wide USB Connectivity
Front dual USB 3.2 Gen 1 and dual USB 2.0 ports Supports up to Four 4K Displays
The Plato TN case provides connector openings for connectivity for up to four 4K displays. Perfect for an array of business applications such as security and digital signage. Wide Intel® NUC Pro-Series Compatibility
Designed for the Intel® NUC Pro series including NUC 11 Pro (Tiger Canyon) and NUC 12 Pro (Wall Street Canyon) up to 28W thermal design. Supporting all interfaces* *Note, the Plato TN was originally designed for Intel® NUC 11 Pro (Tiger Canyon) which does not have an onboard audio jack. So if you install the NUC 12 Pro which has an audio jack, the audio jack from the mainboard would not be accessible on the Akasa case. For audio jack accessibility, we suggest the Plato WS.
Optional Rackmount Front Panel
1U Rackmount front panel (Product Code: A-NUC39-FP03) available to mount the Plato TN case on a wall rack, cabinet and appliance server applications |
| Material | Aluminium |
|---|---|
| Motherboards Types | UCFF 4" X 4" |
| Motherboard Support | (1) Intel® NUC 12 Pro (Wall Street Canyon) Mini PC / Board / Kit: NUC12WSHv7 / NUC12WSKv7 / NUC12WSHv70Z / NUC12WSKv70Z / NUC12WSHi7 / NUC12WSKi7 / NUC12WSHi70Z / NUC12WSKi70Z / NUC12WSBv7 / NUC12WSBi7 NUC12WSHv5 / NUC12WSKv5 / NUC12WSHv50Z / NUC12WSKv50Z / NUC12WSHi5 / NUC12WSKi5 / NUC12WSHi50Z / NUC12WSKi50Z / NUC12WSBv5 / NUC12WSBi5 NUC12WSHi3 / NUC12WSKi3 / NUC12WSHi30Z / NUC12WSKi30Z / NUC12WSBi3 (2) Intel® NUC 11 Pro (Tiger Canyon) Mini PC / Board / Kit: NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3 NUC11TNKi5 / NUC11TNHi5 / NUC11TNBi5 / NUC11TNKv5 / NUC11TNHv5 / NUC11TNBv5 NUC11TNKi7 / NUC11TNHi7 / NUC11TNBi7 / NUC11TNKv7 / NUC11TNHv7 / NUC11TNBv7 |
| Maximum TDP Support | 28W |
| Dimensions | 247 x 240 x 39 mm (W x D x H) |
| Drive Bays | 2.5" SSD/HDD (up to 9.1 mm high) |

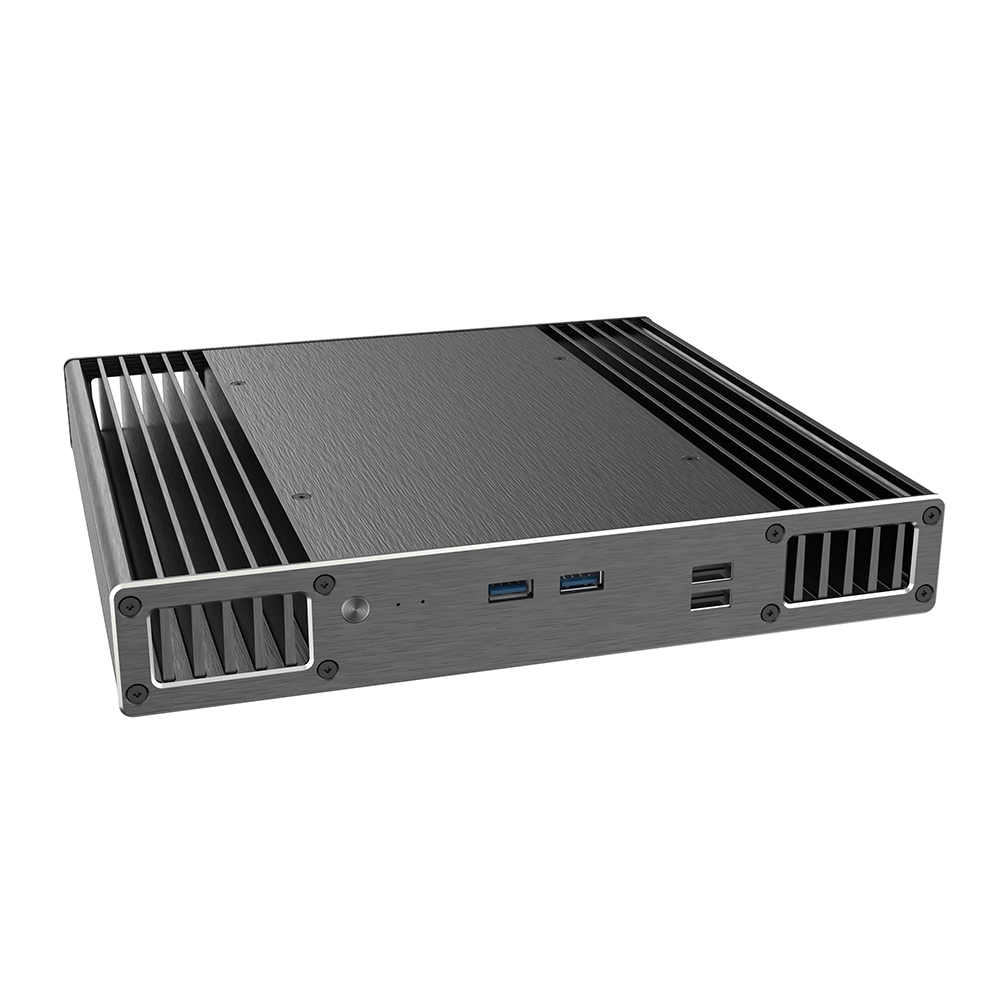

| Front I/O | Power button, power and HDD led, USB 3.2 port x2, USB 2.0 port x2 |
| Audio Jack Support | No opening is available for the audio jack if an Intel® NUC 12 Pro (Wall Street Canyon) mainboard is installed |

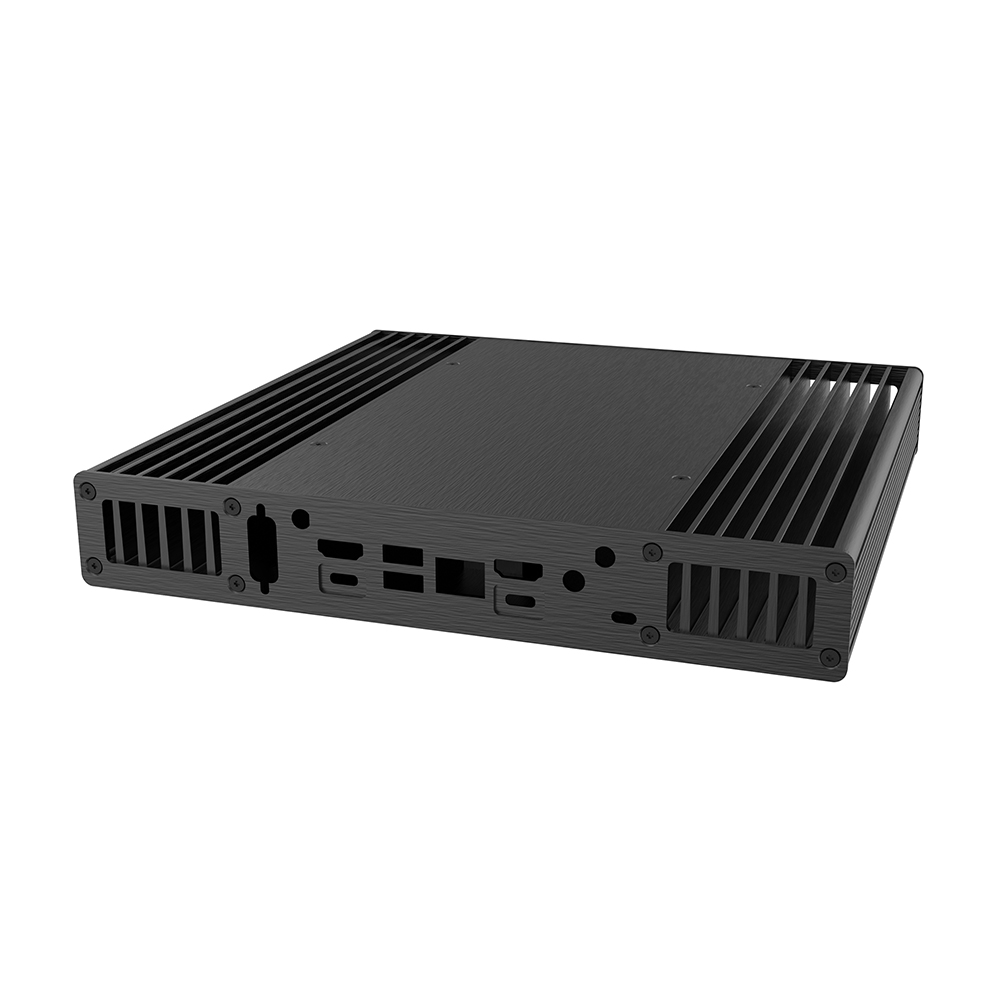

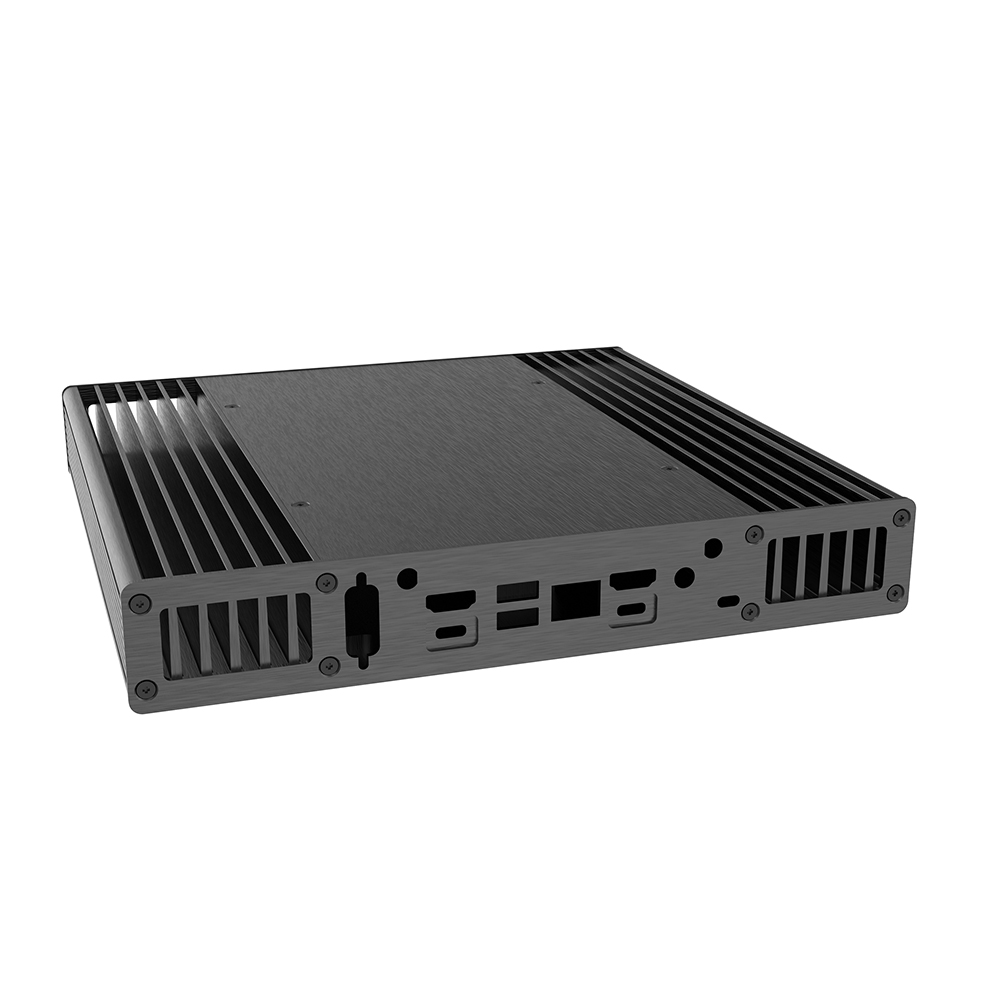

| Rear I/O | DC-In port, HDMI port x2, USB Type-A port x2, USB Type-C x2, LAN port x1, Serial port x1 |
| Serial Port Support | Only for Intel® 11 Pro (Tiger Canyon) has an internal serial port for serial cable connectivity
*Intel® 12 Pro (Wall Street Canyon) do not have an internal serial header so this interface opening will not be utilised |
| Antenna Fitting Holes | 2 |
| Security | Kensington lock |
| VESA Mounting | Support |
| Optional Power Adaptor | AK-PD065-01M |
| Product Code | A-NUC65-A1B / A-NUC65-M1B |
