Plato NE
Slim Fanless Case for the Intel® NUC Board Element (Butler Beach)
Slim aluminium fanless case for Intel® NUC Board Element (Butler Beach) and compatible Intel® NUC Compute Elements (U-Series). Perfect chassis for digital signage, kiosks, security surveillance to POS.
|
Plato NE
Fanless case for Intel® NUC Board Element (Butler Beach) and compatible Intel® NUC Compute Elements (U-Series)
• Aluminium fanless CPU cooling design
Create a Compact and Versatile System
Build with the Intel® NUC Compute Element powered by Core i7 or i5 with vPro, for a compact and upgradeable computing solution.
1U Low Profile Design
1U Low Profile Design chassis designed for the modular Intel® NUC Board Element (Butler Beach) with the corresponding Intel® NUC Compute Elements (U-Series).
Excellent Heat Dissipation Technology
Aluminium fanless cooling design
Array of Applications
Perfect chassis as a small form factor, powerful system for digital
signage, kiosks, security surveillance to POS applications.. |
| Material | Aluminium |
|---|---|
| Motherboard Types & Support | (1) Intel® NUC 12 Compute Element (U-Series) (Hard Bay): ELM12HBv7 with Intel® Core™ i7 vPro® ELM12HBi7 with Intel® Core™ i7 ELM12HBv5 with Intel® Core™ i5 vPro® ELM12HBi5 with Intel® Core™ i5 ELM12HBi3 with Intel® Core™ i3 ELM12HBC with Intel® Celeron® (2) Intel® NUC 11 Compute Element (U-Series) (Elk Bay): CM11EBv716W with Intel® Core™ i7 vPro® CM11EBi716W with Intel® Core™ i7 CM11EBv58W with Intel® Core™ i5 vPro® CM11EBi58W with Intel® Core™ i5 CM11EBi34W with Intel® Core™ i3 CM11EBC4W with Intel® Celeron® (3) Intel® NUC 8 Compute Element (U-Series) (Chandler Bay): CM8v7CB with Intel® Core™ i7 vPro® CM8i7CB with Intel® Core™ i7 CM8v5CB with Intel® Core™ i5 vPro® CM8i5CB with Intel® Core™ i5 CM8i3CB with Intel® Core™ i3 CM8PCB with Intel® Pentium® Gold CM8CCB with Intel® Celeron® |
| Maximum TDP Support | 15W |
| Dimensions | 200.4 (W) x 184(D) x 34.5(H)mm |
| Cooling System | Passive |
| Power Supply (optional) | External 19V, 100-240V AC |
| Baseboard / Carrier Board | CMB1BB (Butler Beach Board Element) |

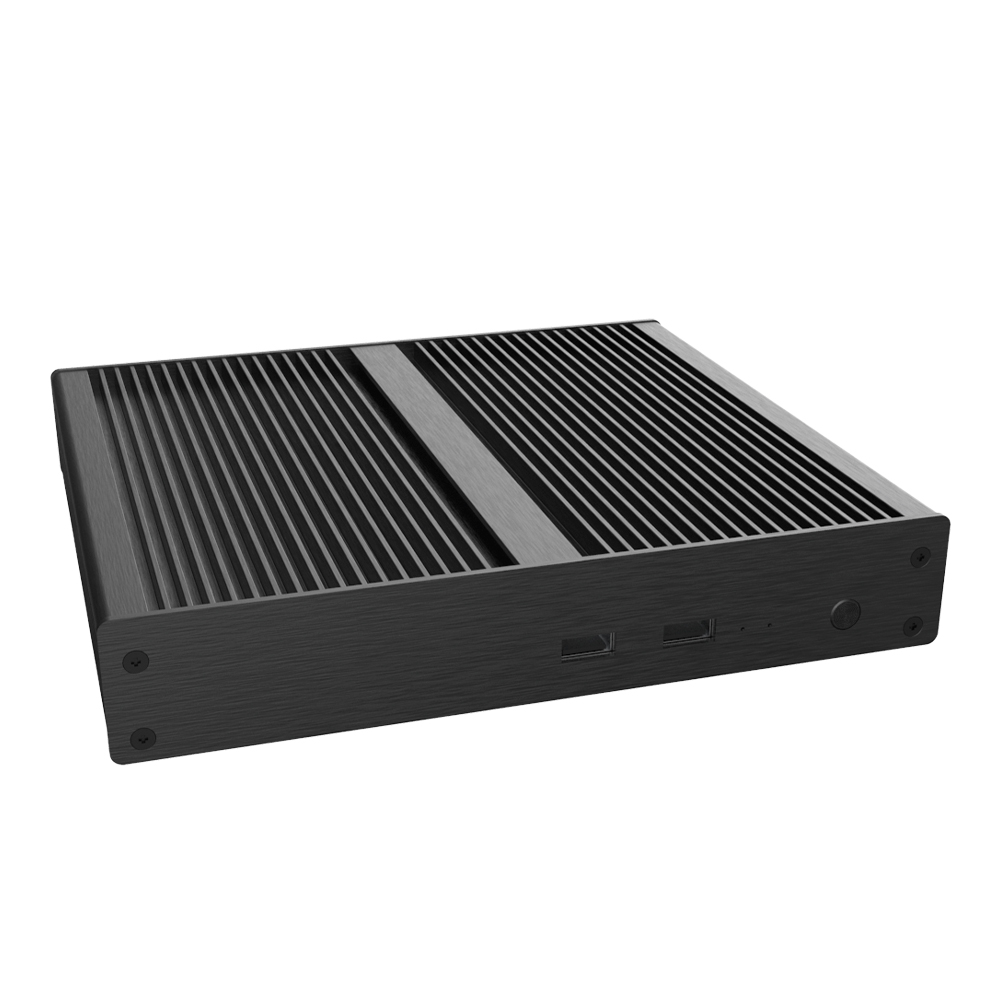

| Front I/O Opening | Power button, power and HDD LED, USB 2.0 port x 2 |

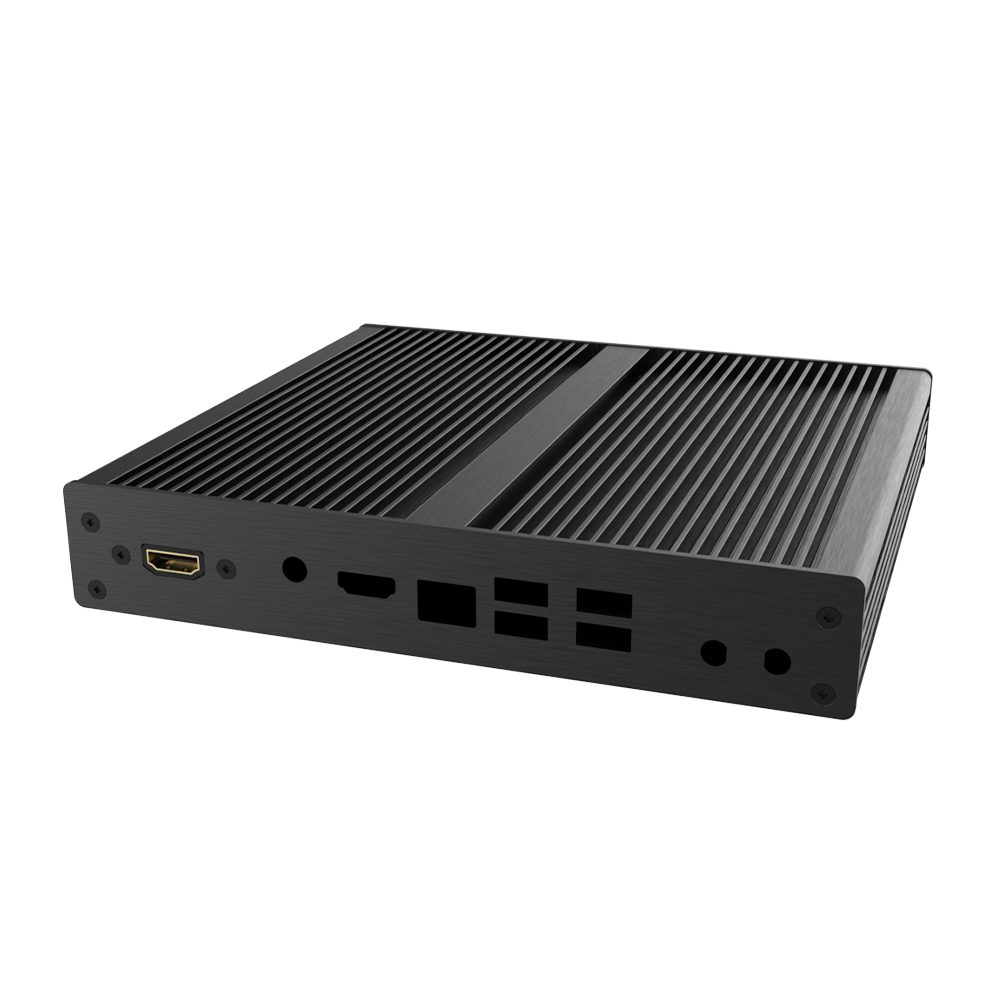

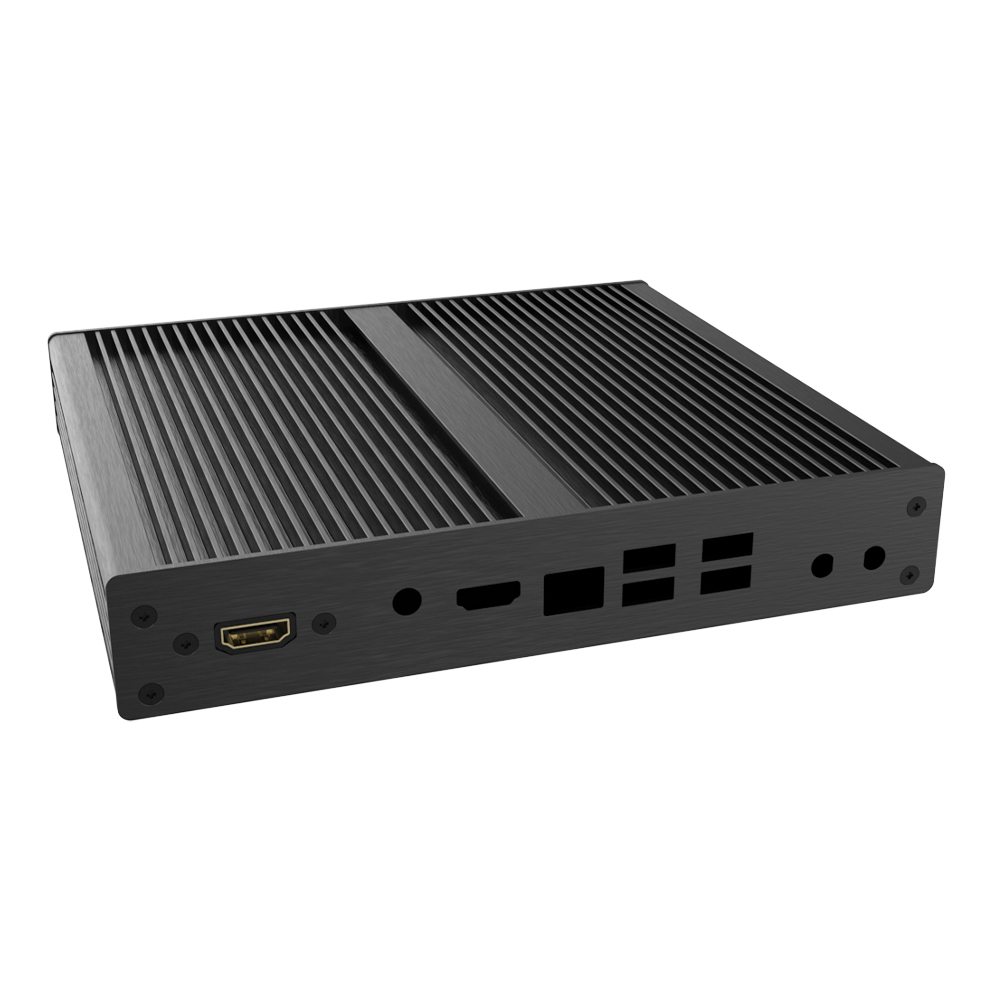

| Rear I/O | DC-In port, HDMI port x 2, USB 3.1 Type-A x4, LAN port x1 |
| Antenna Fitting Holes | 2 |
| VESA Mounting | Support |
| Product code | A-NUC59-M1B |
