Tesla H
Silent evolution for 4th Generation Intel® NUC boards
Fanless case for 4th Generation Intel® NUC boards, suitable for VESA mount monitors saves valuable desk space. Accommodates two 2.5" SATA HDD/SSD. Support IR remote function. Compatible with Intel D54250WYB / D34010WYB.
|
• Aluminium fanless CPU cooling design
• Ideal for business, education and embedded environments • Form factor: UCFF 4" X 4" • Support two 2.5" SSD/HDD • Support IR remote function • Suitable for VESA mounting • Three antenna fitting holes • Kensington lock • Serial port opening • Compatible with the following Intel® NUC motherboard D54250WYB / D34010WYB Support two 2.5" SSD/HDD
optional mSATA to SATA adapter (AK-PCCMSA-01) provides one extra SATA port. Suitable for
VESA mounting USB 3.0 port &
Support IR remote function Antenna fitting holes
Kensington lock
Serial port opening
Totally silent
fanless CPU cooling design
all aluminium body for
quick heat dissipation aluminium heatsink for
heat transfer CPU
|
| Material | Aluminium |
|---|---|
| Motherboards types | UCFF 4" X 4" |
| Motherboard support | Intel® NUC motherboard D54250WYB / D34010WYB |
| Dimensions | 240 x 150 x 48 mm (W x D x H) |
| weight | 1200 g |
| Drive bays | 2 X 2.5" SSD/HDD (up to 12.1 mm high) second drive require optional mSATA to SATA adapter |
| mSATA to SATA adapter | Optional (product code: AK-PCCMSA-01) |

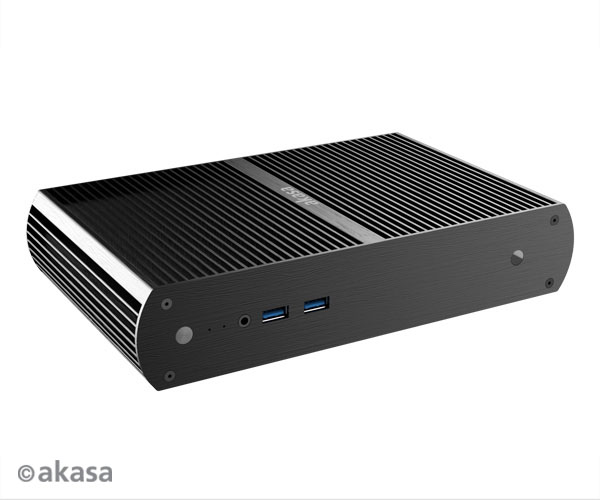

| Front panel I/O Ports | USB 3.0 port x 2, IR receiver opening, HD Audio in/out |
| Antenna fitting holes | 3 |
| Serial port opening | 2 |
| Security | Kensington lock |
| VESA mounting | Support |
| Optional Power Adaptor | AK-PD065-01M |
| Product code | A-NUC05-A1B A-NUC05-M1B |
