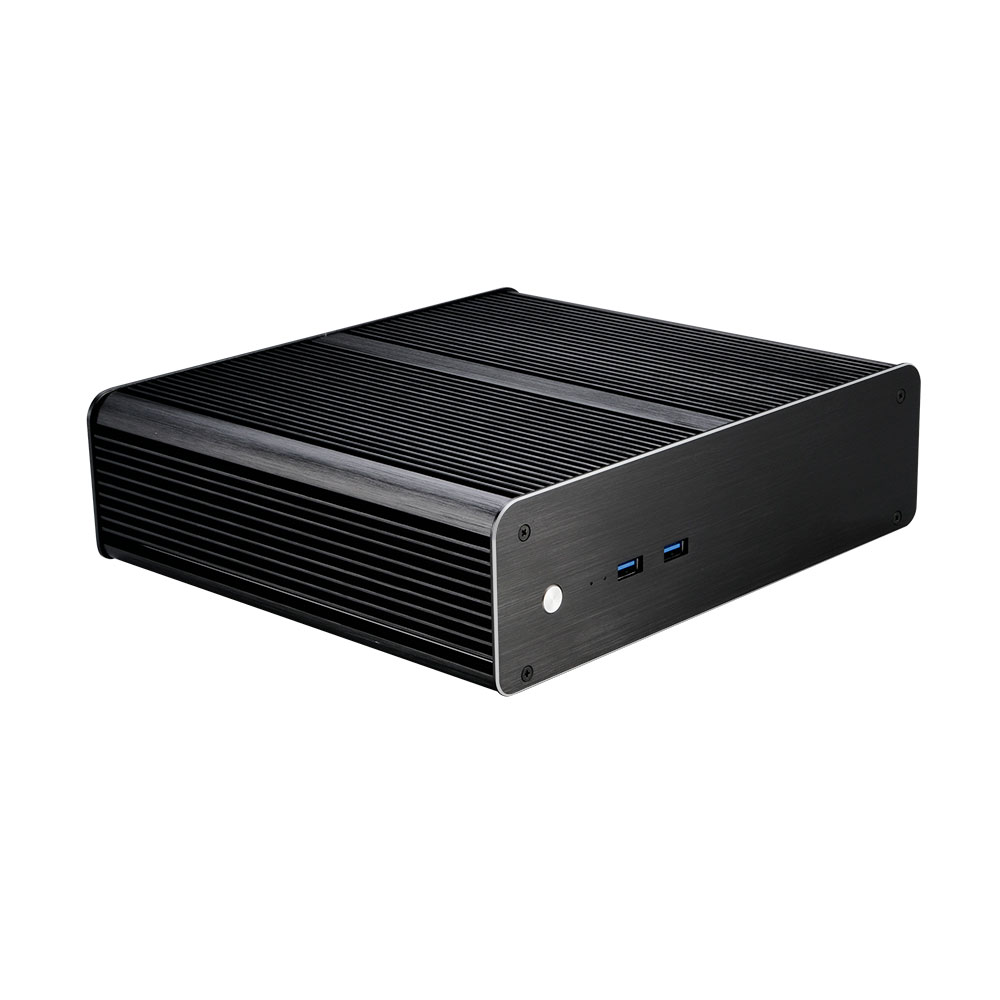

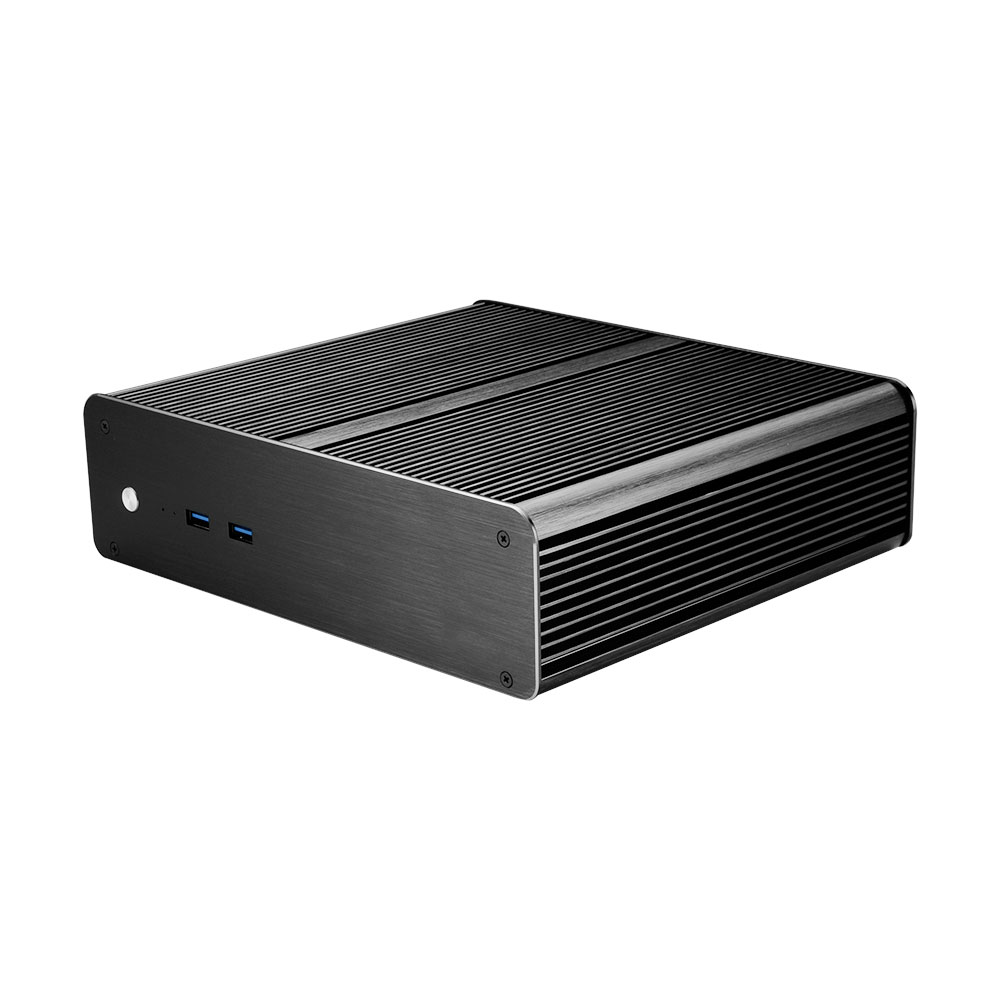

Euler T Plus
Fanless Thin Mini-ITX Case for Intel® LGA1700
Fanless thin mini-ITX case with two USB 3.2 ports and two 2.5" drive bays. Suitable for VESA mount monitors saves valuable desk space.
Product Code: A-ITX57-M1B
Euler T Plus
Fanless Thin Mini-ITX Case for Intel® LGA1700
Fanless thin mini-ITX case with two USB 3.2 ports and two 2.5" drive bays. Suitable for VESA mount monitors saves valuable desk space.

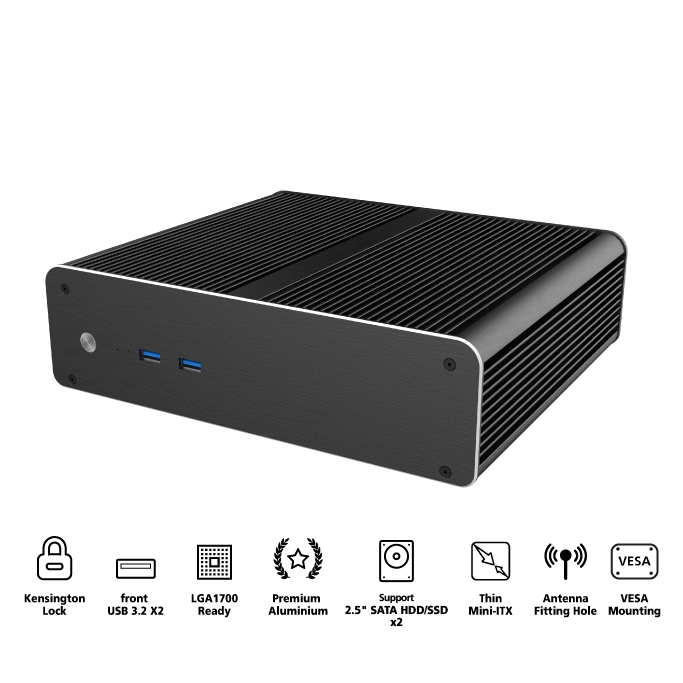

• Premium aluminium fanless CPU cooling design
• Supports one serial port
• Ideal for business and education environments
• Optional 120W, 19V external power adapter
• Suitable for VESA mounting

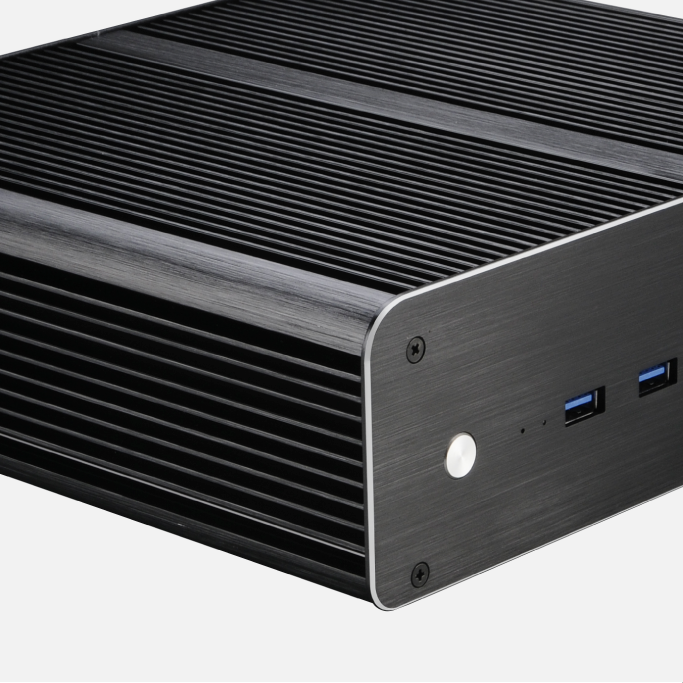

Premium aluminium case for hi-heat dissipation and durability. Brushed finish for a sleek and stylish look.

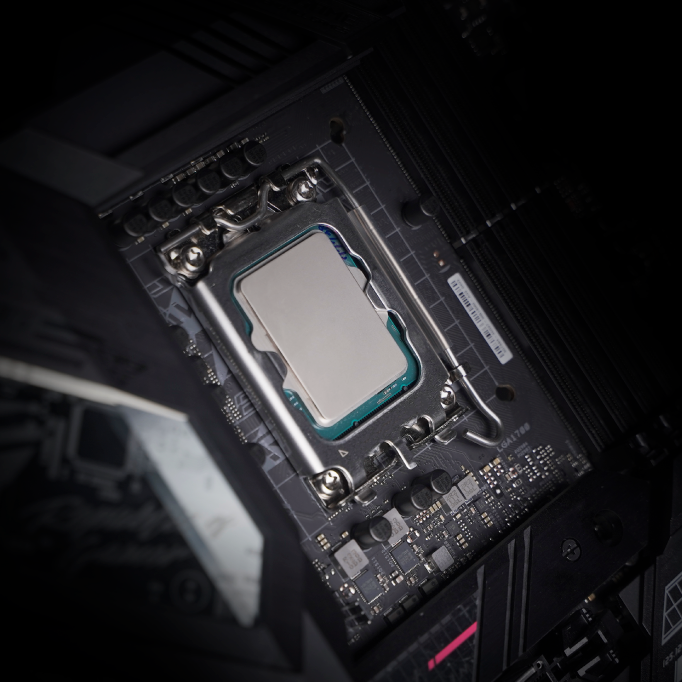

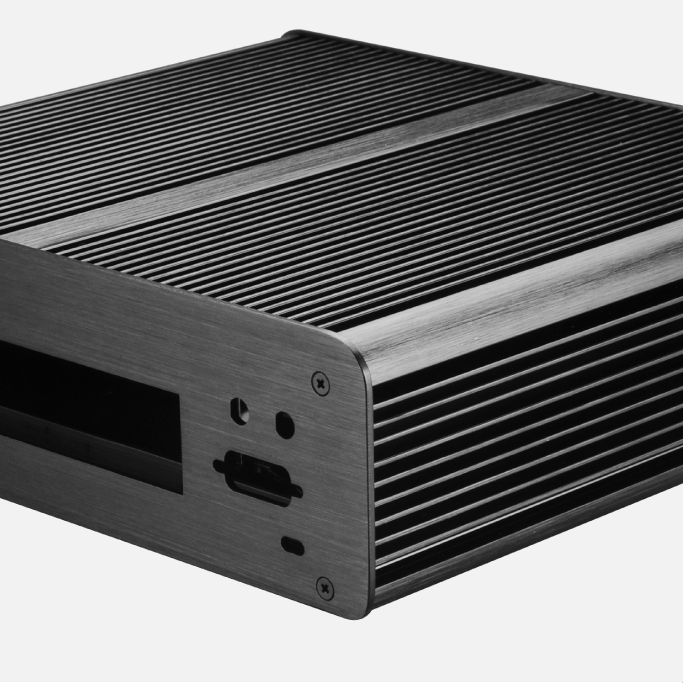

Perfect for the Intel® Raptor Lake processors up to 35W Thermal Design Point (TDP) with increased contact surface area, allowing for more heat to be dissipated at a time.

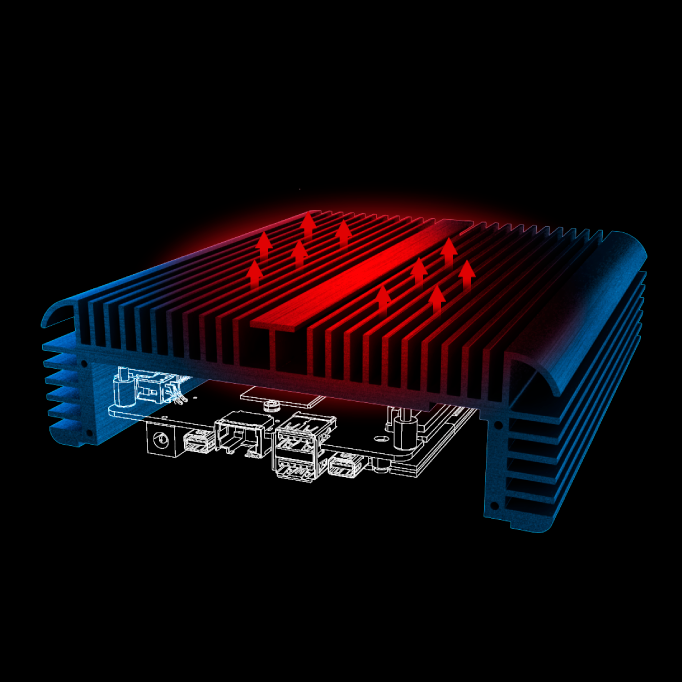

Completely silent mini PC case utilise all aluminium fanless CPU cooling design which acts as a heatsink to dissipate the heat to the surrounding.

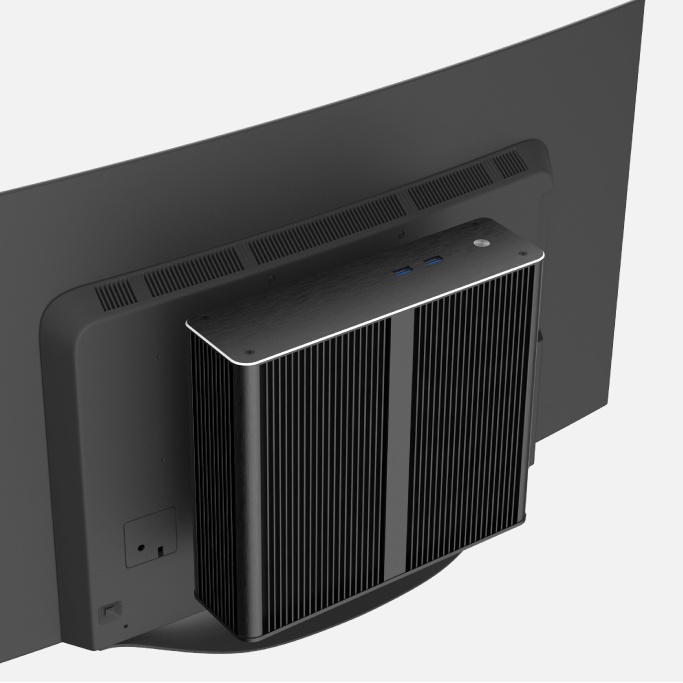

Supports Vesa mounting allowing for a more efficient use of space and neater looking environment.

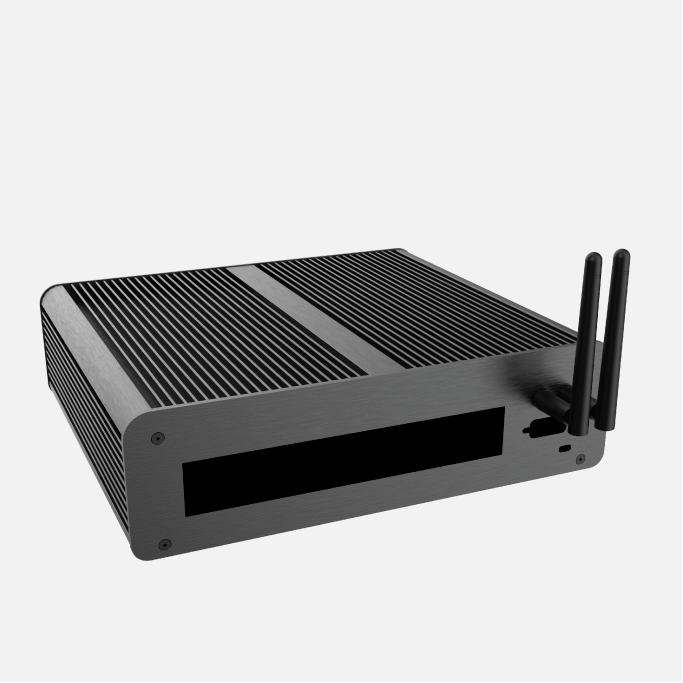

Optional hi-quality external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR) to connect the antenna to the Wi-fi connector. Perfect additions for your fanless Mini-PC build should a wireless connection be required.
Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Material | Aluminium with anodised black |
|---|---|
| Panel Material | Aluminium |
| Motherboards Types | Intel® Thin Mini ITX with DC onboard |
| Socket Support | Intel® LGA1700, 1200, 1150, 1151, 1155, 1156 |
| Dimensions | 245 x 215.5 x 68.5mm (W x D x H) |
| Internal Bays | Two for 2.5” HDD/SSD (max height 9.5mm) |
| Antenna Fitting Holes | 2 |
| Serial Port Opening | 1 |
| Security | Kensington lock |
| VESA Mounting | Support |
| Front Panel USB Ports | USB 3.2 x 2 |
| External AC Power Adapter (Optional) | 120W, 19V with 7.4mm / 5.0mm barrel plug 120W, 19V with 5.5mm / 2.5mm barrel plug |
| Product Code | A-ITX57-M1B |
