Galileo TU3 Plus MKII
1U Rackmount Fanless Thin Mini-ITX Case for Intel® LGA1700
1U rack-mountable fanless case for commercial and industrial thin mini-ITX motherboards. Massive storage with four internal 2.5'' drives. Sleek design mixed with hi-dissipation thanks to the premium aluminum.

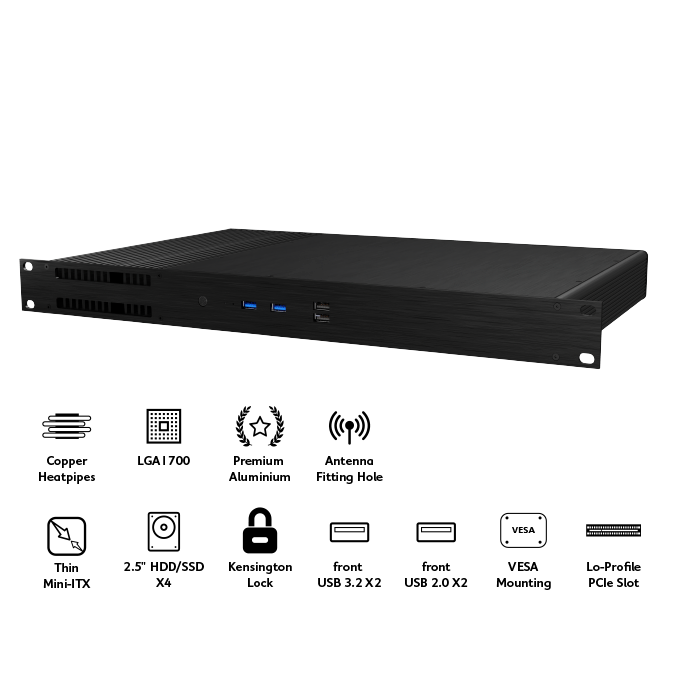

• Premium aluminium fanless CPU cooling design
• LGA1700 ready

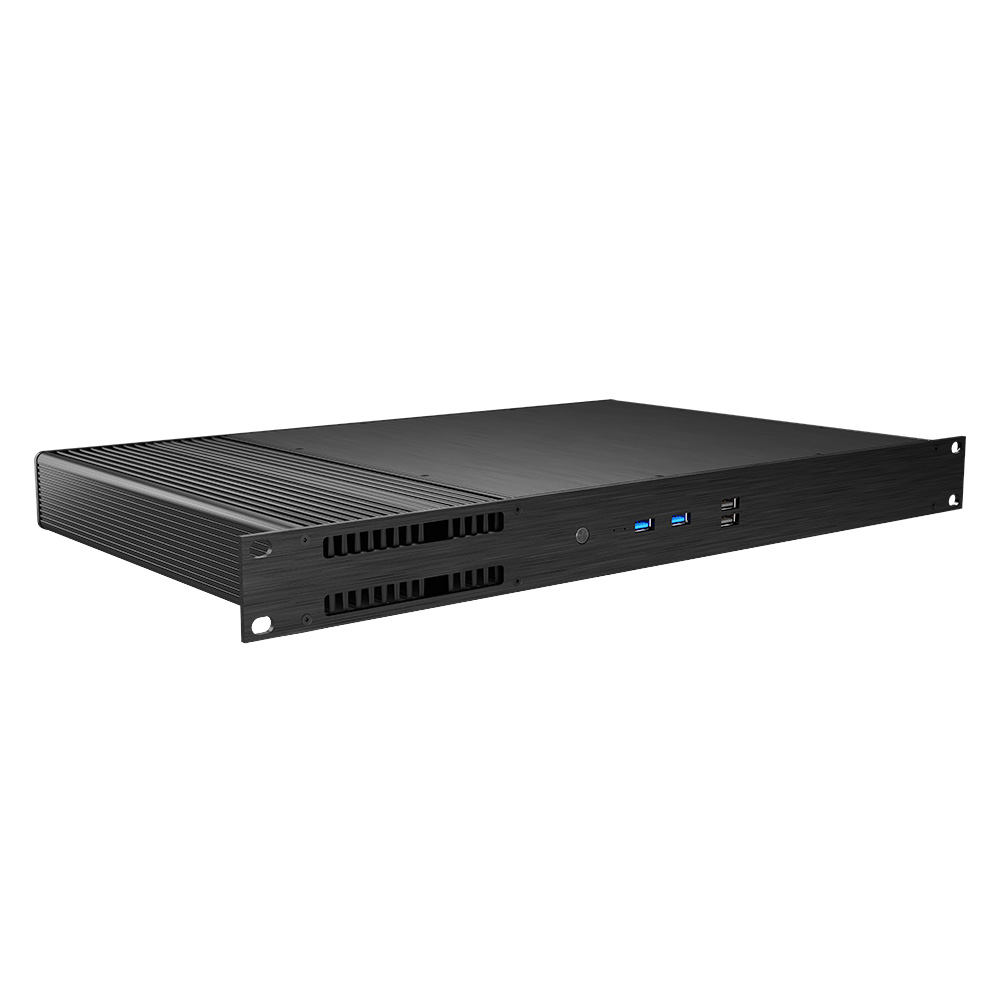

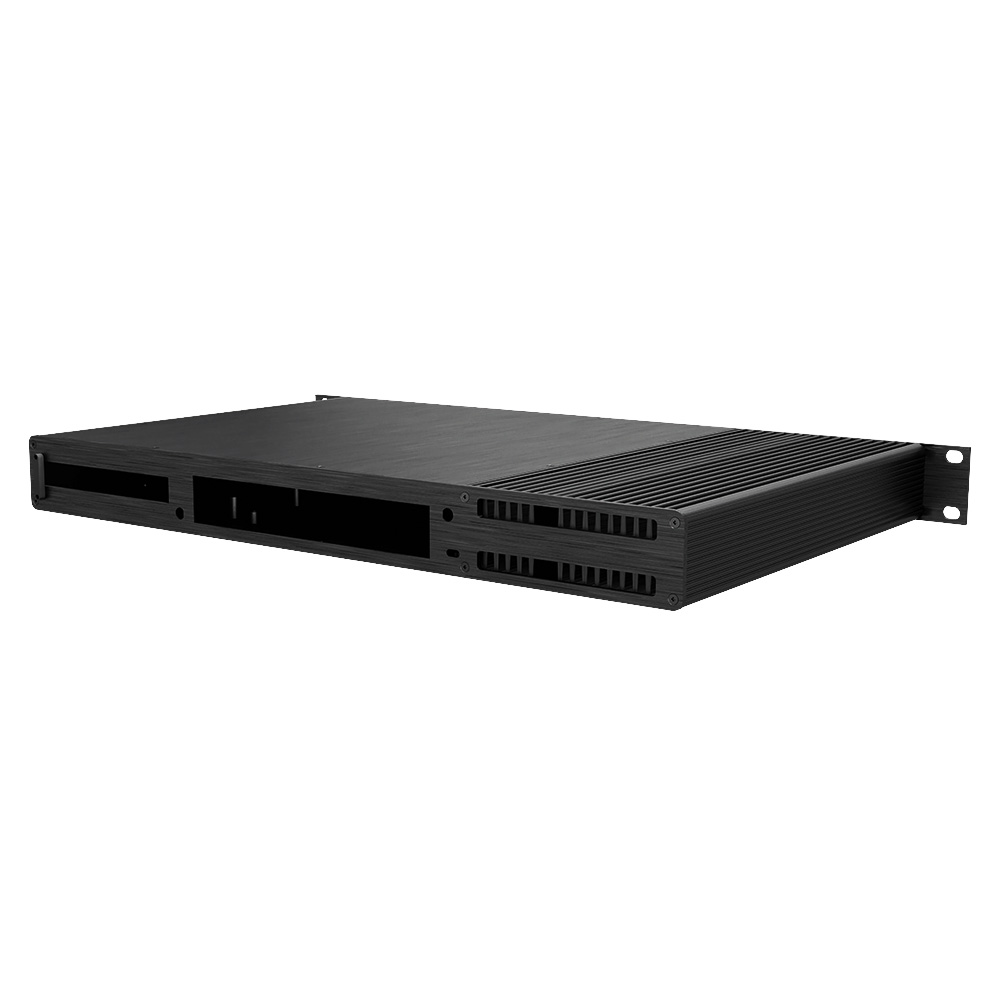

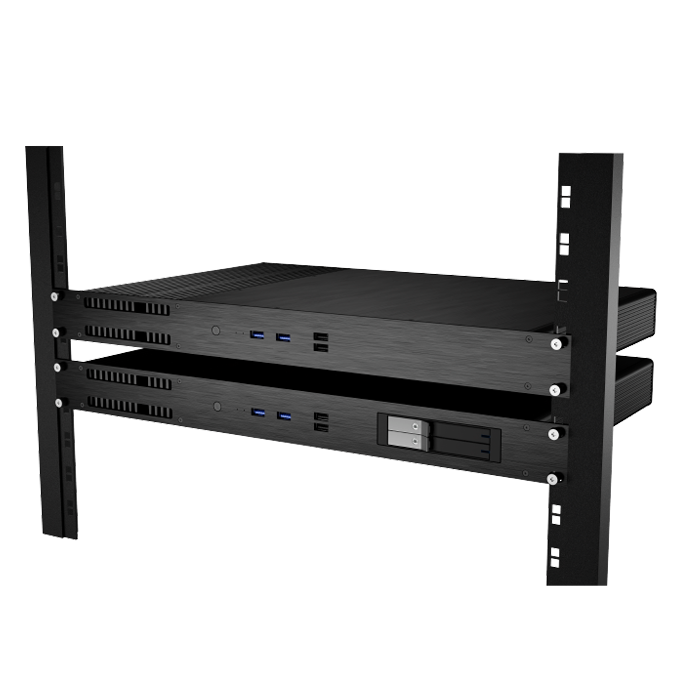

• 1U high fanless Thin Mini-ITX case
• Aluminium fanless CPU cooling design
• Four internal 2.5" HDD / SSD bay
• Support one PCI-E slot (8X)
• Added support for industrial motherboards
Supported industrial motherboards:
- Asrock IMB-1233-WV

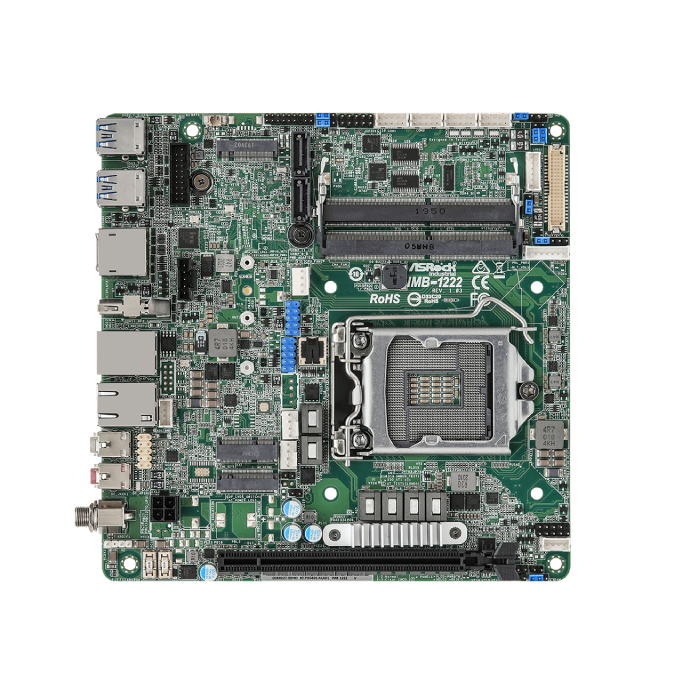

- Asrock IMB-1222
- Asrock IMB-1223
See more supported motherboards in the specification
Premium aluminium case for hi-heat dissipation and durability. Brushed finish for a sleek and stylish look.

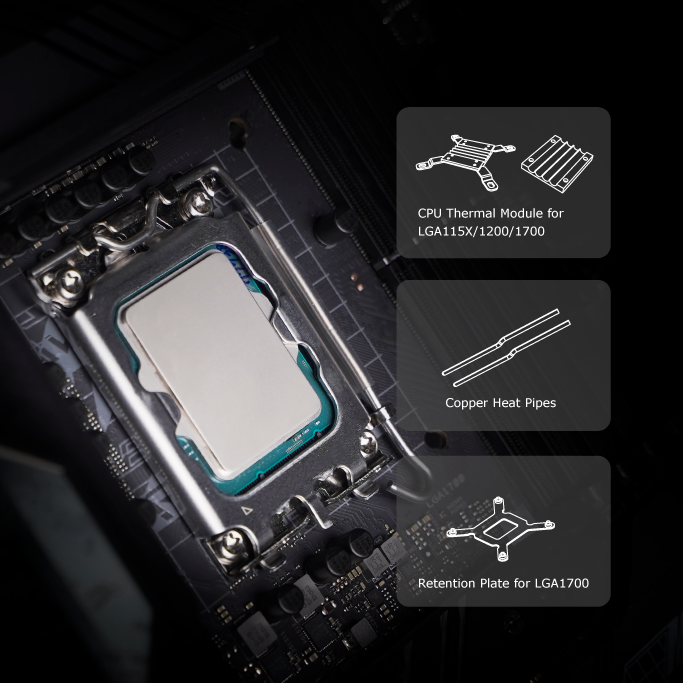

Perfect for low-powered T-series Intel® Alder Lake processors up to 35W Thermal Design Point (TDP). Featuring an upgrade thermal module to cater for increased contact surface area and mounting pattern for LGA1700.

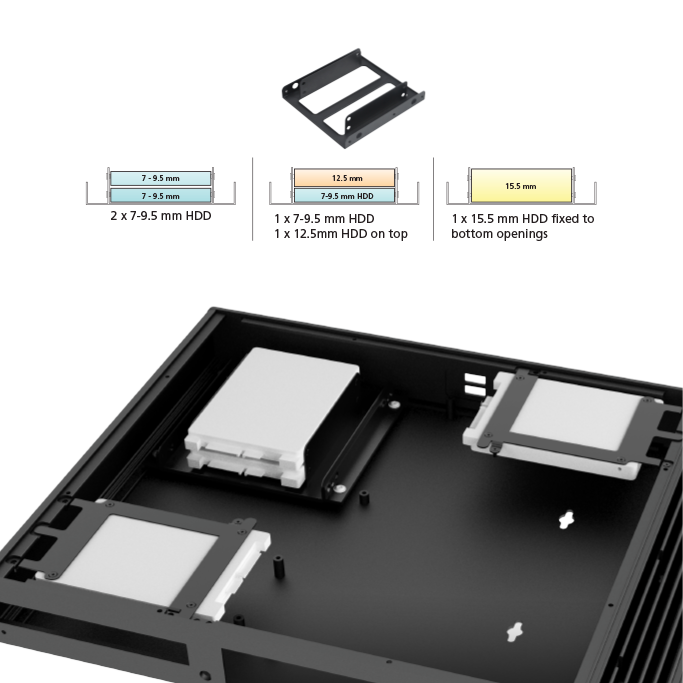

Four internal 2.5" HDD/SSD mobile bays for plentiful storage capability.

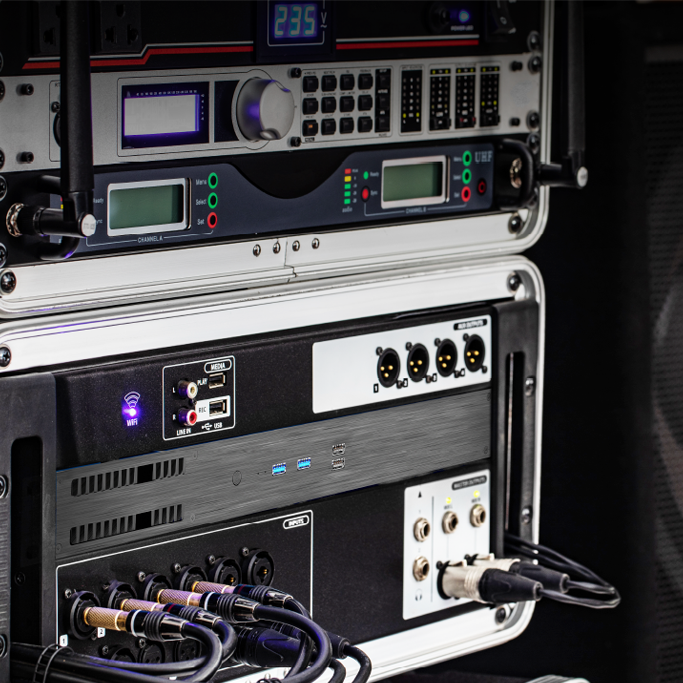

Perfect for server, broadcasting and audiophile applications.

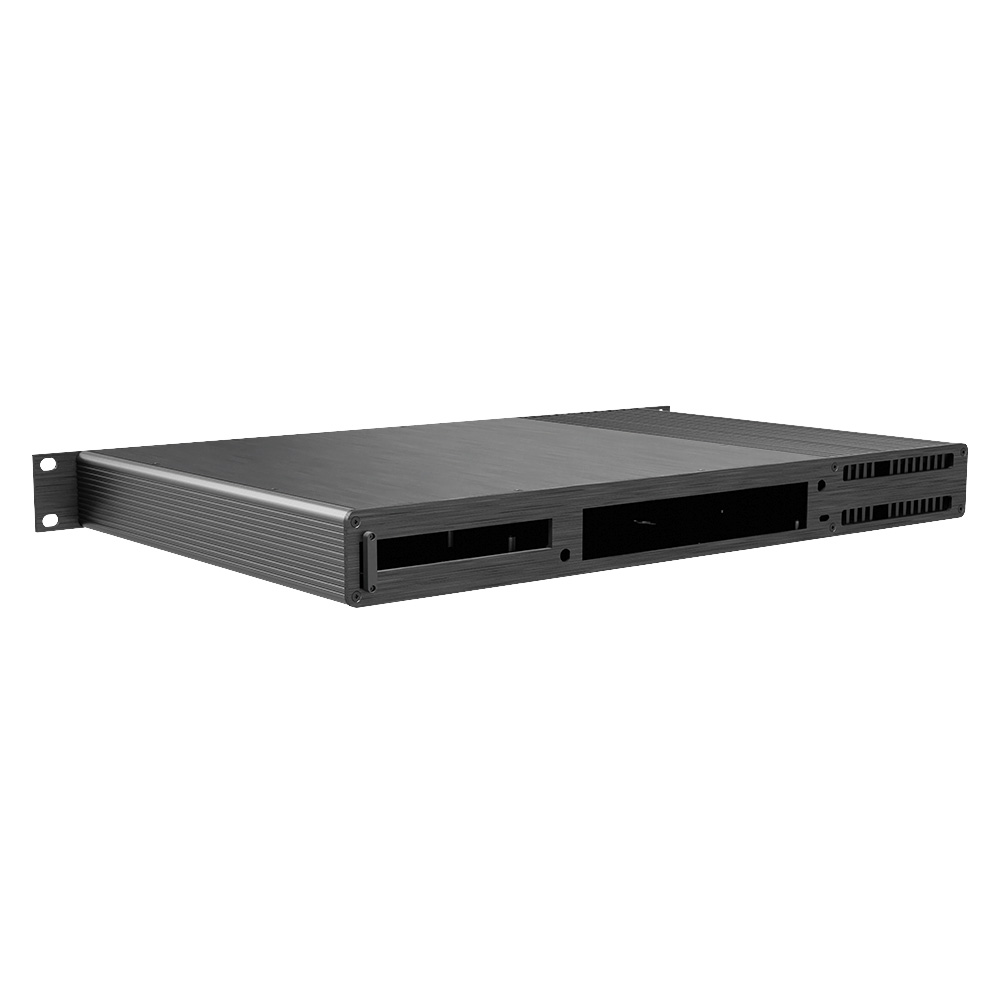

Supports one low-profile PCIe card (8x).

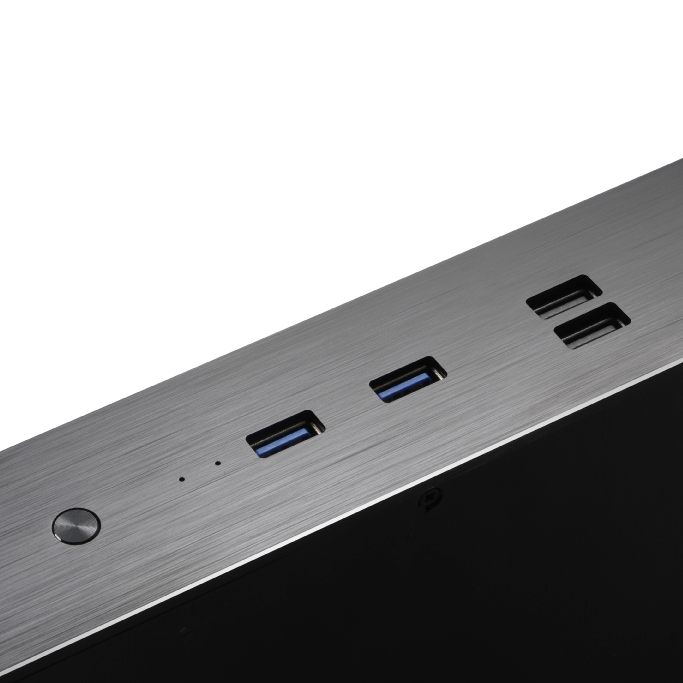

Two front panel USB 3.2 Gen 1 and two USB 2.0 ports for added connectivity.

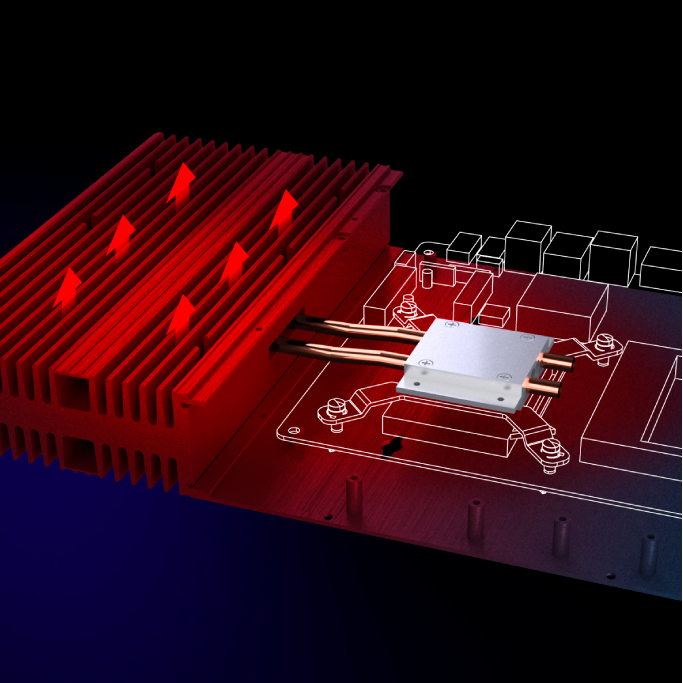

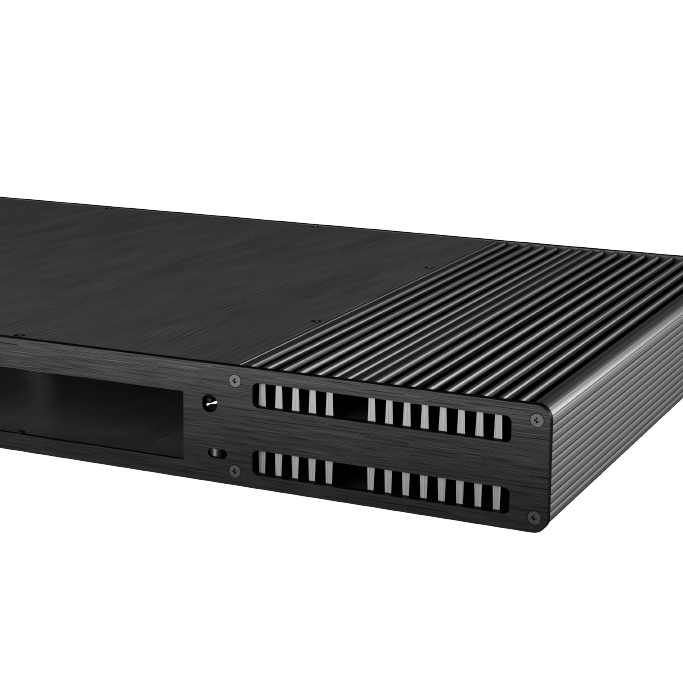

Completely silent premium aluminium Thin Mini-ITX case with hi-efficient passive thermal module and hi-performance dual copper heatpipes. Transfers the heat from the processor to the fins on the exterior of the case, in order for the heat to be dissipated to the surroundings.
1U in profile height with volume of 5.2L
Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Material | Aluminium with anodised black |
|---|---|
| Motherboard Types | Thin mini-ITX with DC onboard |
| Socket Support | Intel® LGA1700/1200/115X |
| Maximum TDP Support | 35W |
| Dimensions | 482.6 x 278 x 43.6mm ( W x D x H ) |
| Drive Bays | Four internal 2.5" HDD / SSD bays (max height of 15.5mm) |
| Front I/O | USB 3.2 Gen 1 x2, USB 2.0 x2, Power button, Power & hard drive LEDs |
| Rear I/O | Low profile PCI-E slot x1 (8X) |

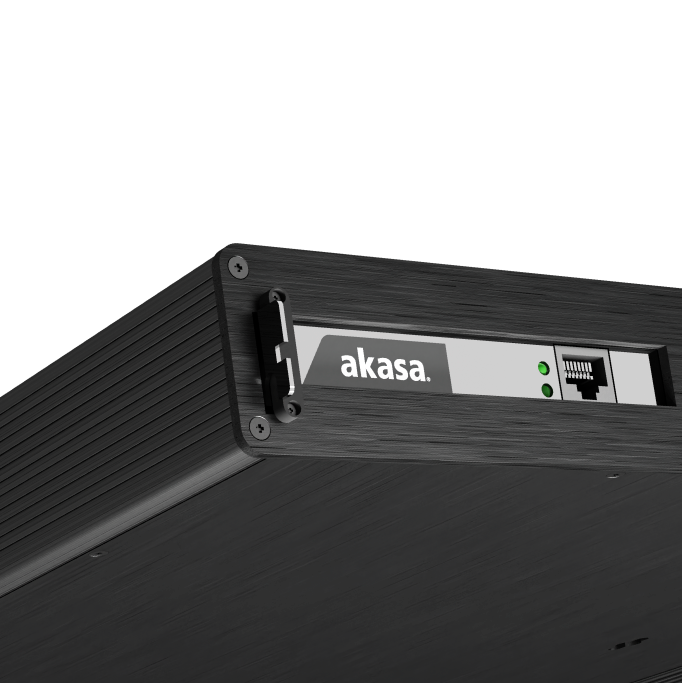

| Antenna Fitting Holes | 2 |
| Security | Kensington lock |
| VESA Mounting | Support |
| Product Code | A-ITX54-M1BV2 |
