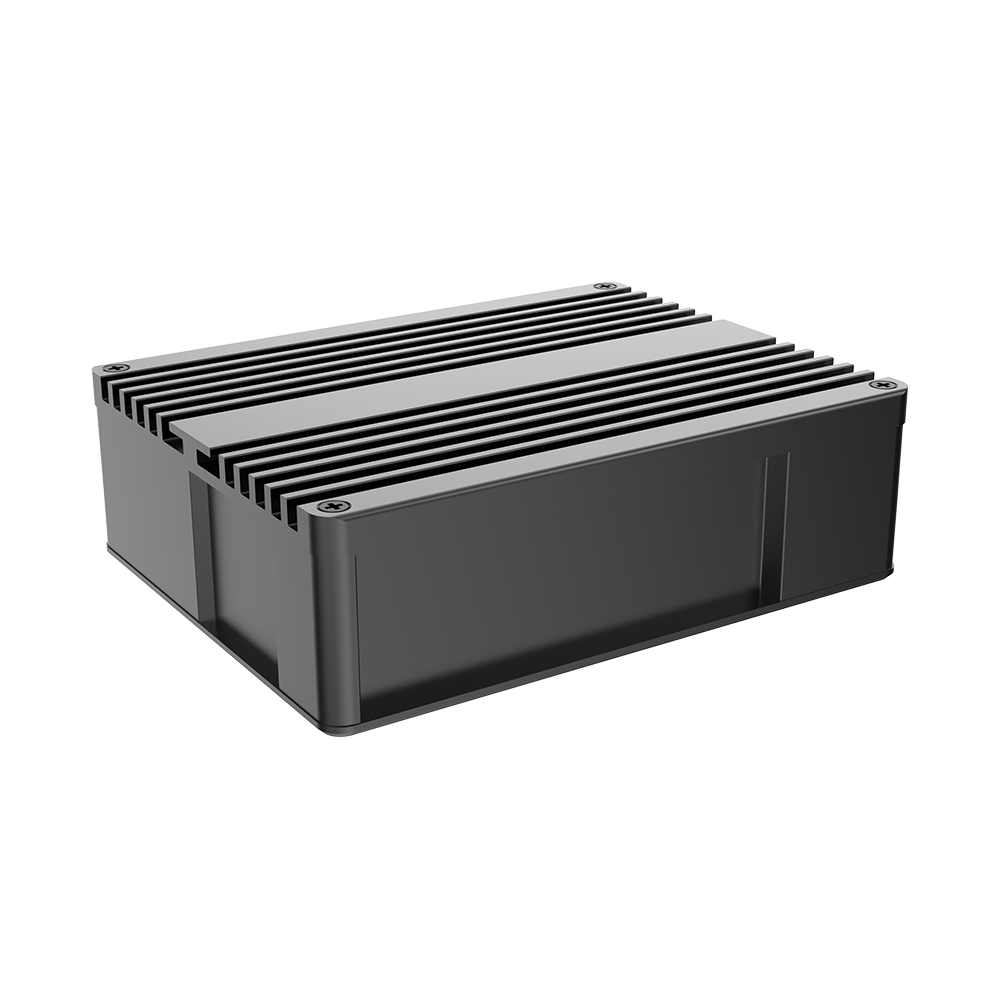

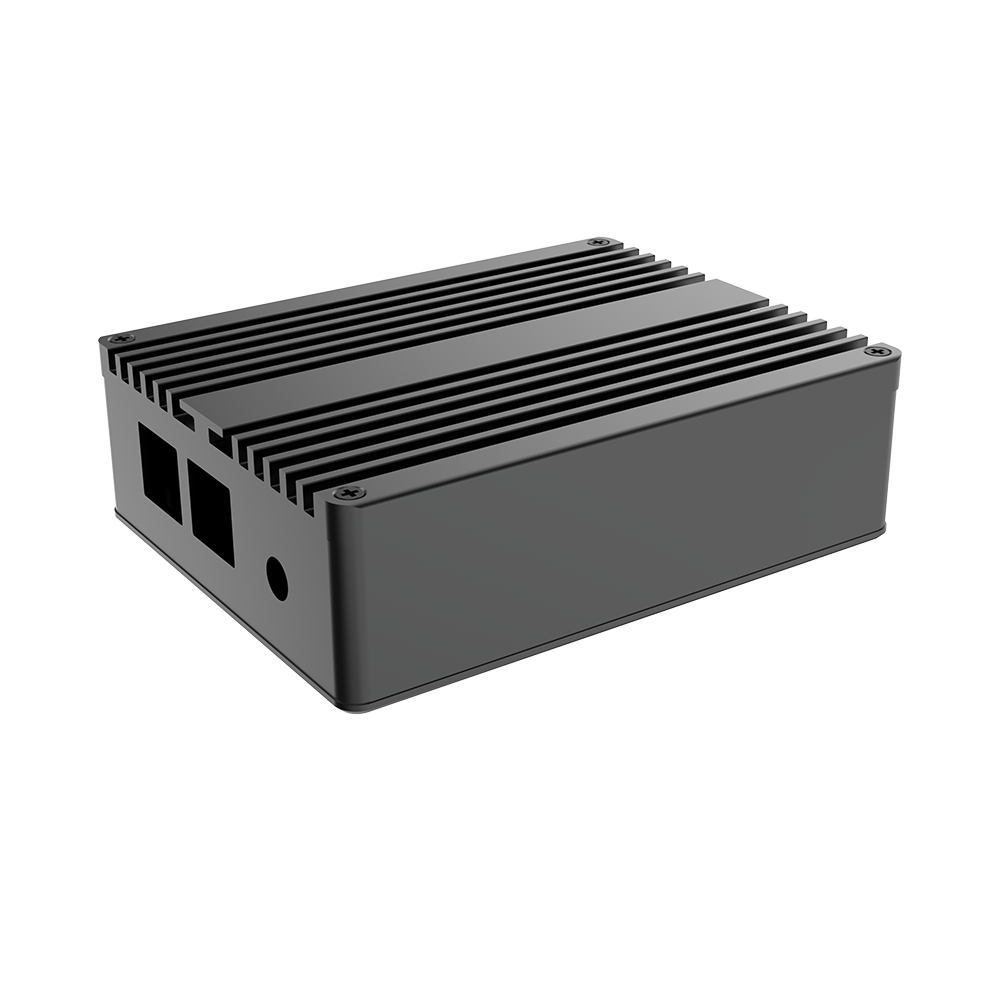

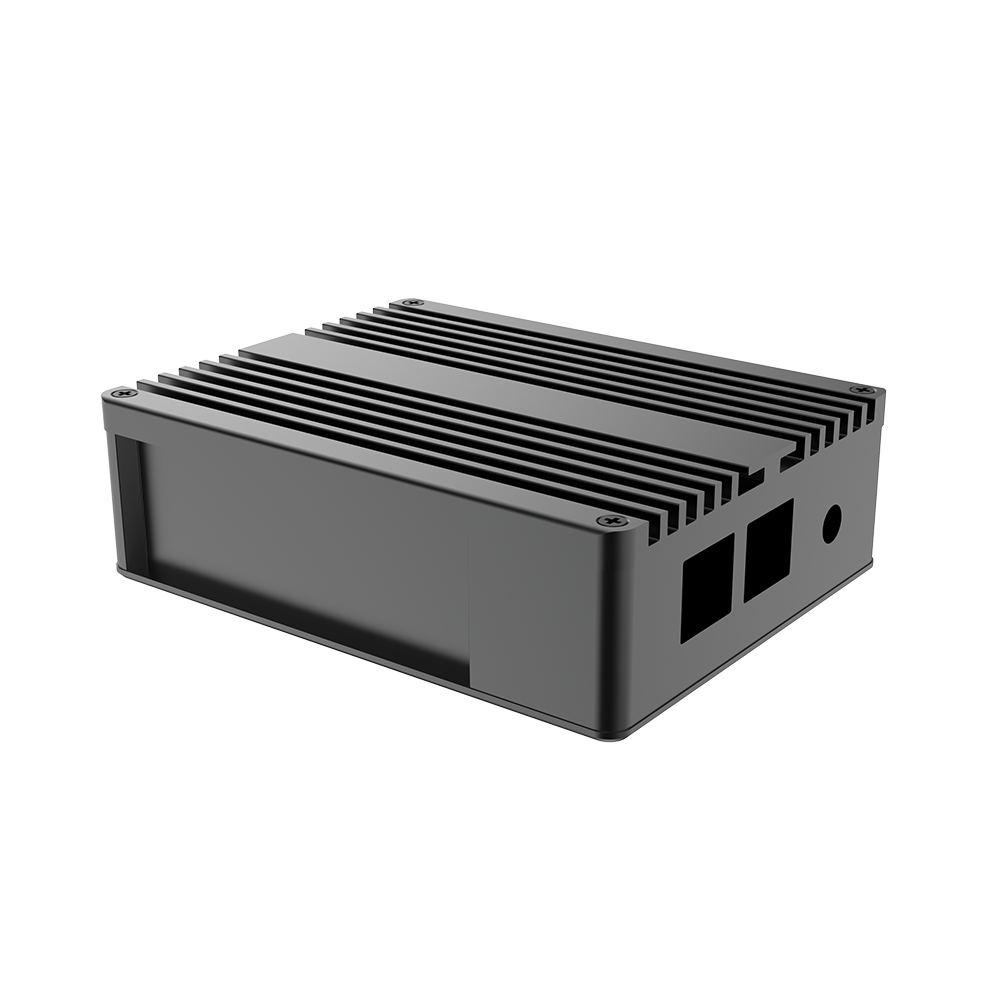

Fanless Case for ASUS Tinker V with RISC-V Processor
Fanless case for ASUS Tinker V with RISC-V processor which makes it a perfect system for space-constrained environments in industrial and IoT applications. I/O opening for CANbus, dual LAN and micro USB.
• Aluminium fanless CPU cooling design
• Designed for ASUS Tinker V (learn more about the SBC)
• Dimensions: 85.4 x 109 x 33.5mm (W x D x H)
• Compact size of sub-0.4L
• Perfect for space-constrained environments in industrial and IoT applications
• Optional wall, VESA or DIN rail mountings
• Opton to cover some of the interfaces on the SBC if they are not required
| Material | Aluminium |
|---|---|
| Motherboards Types | Pico-ITX |
| Motherboard Support | ASUS Tinker V |
| Dimensions | 85.4 x 109 x 33.5mm (W x D x H) |
| Maximum TDP Support | 10W |
| I/O Interfaces | MicroSD, MicroUSB, LAN x 2, CANbus x 2, DC-in |
| Mounting | Optional for wall, VESA or DIN |
| Product Code | A-ITC132-M1B |
