Kepler R

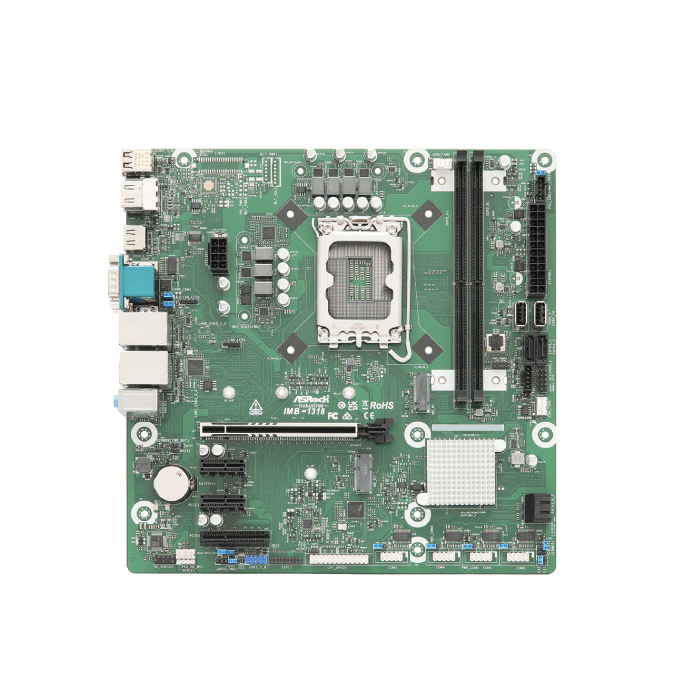

• Compatible with Micro-ATX and Mini-ITX motherboards with processors up to 35W TDP
• Intel® LGA1851 / LGA1700 / LGA1200 / LGA115X socket support
• Fanless cooling and power supply design

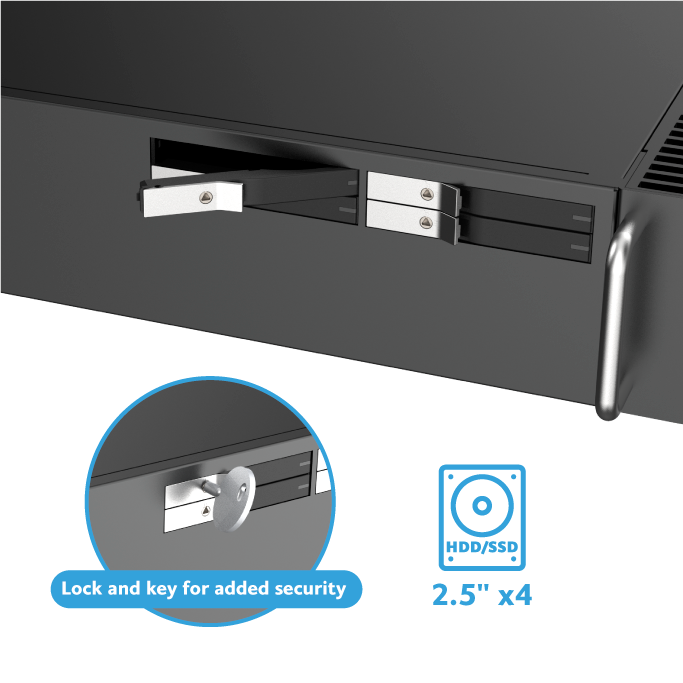

• Four-bay 2.5" SATA SSD/HDD mobile rack with secure lock and tool-free installation

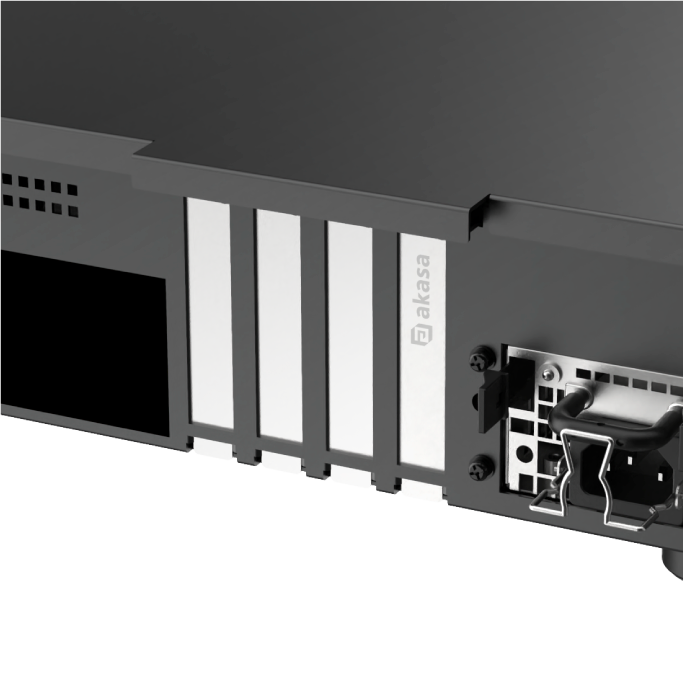

• Features four low-profile PCIe expansion slots
• Fits standard 19 inch server racks
• 120W redundant, hot-swappable fanless AC-to-DC power supply with active load sharing

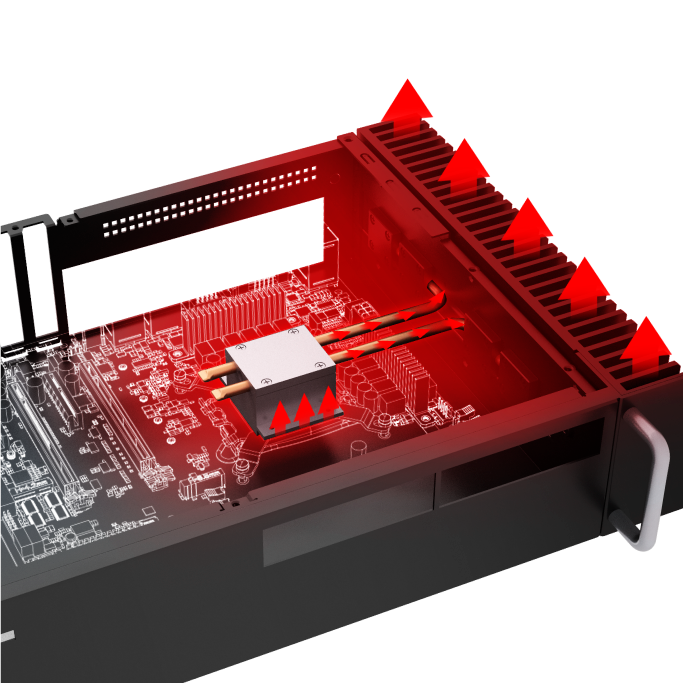

Superb Passive Cooling

High-performance aluminium thermal module and dual copper heatpipes transfer heat efficiently from the CPU to the external aluminium fins, increasing surface area for rapid dissipation into the surrounding air without any moving parts.

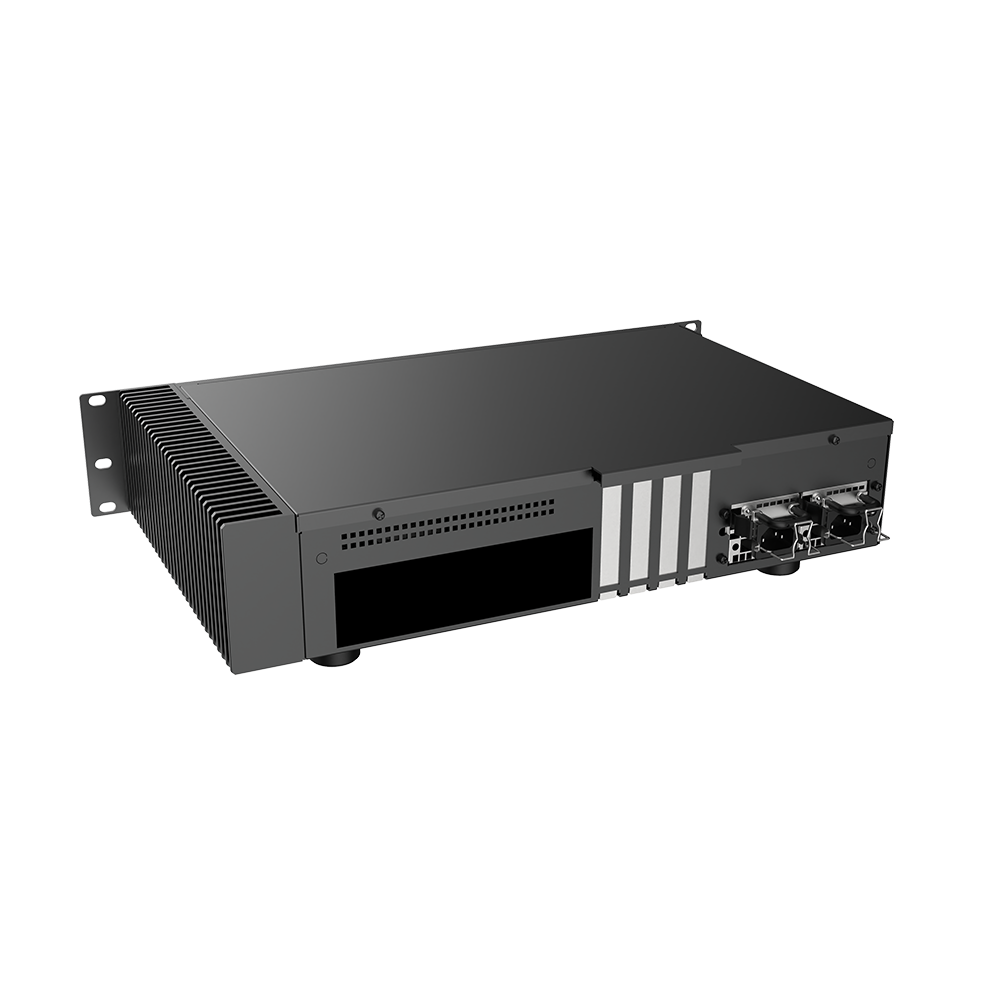

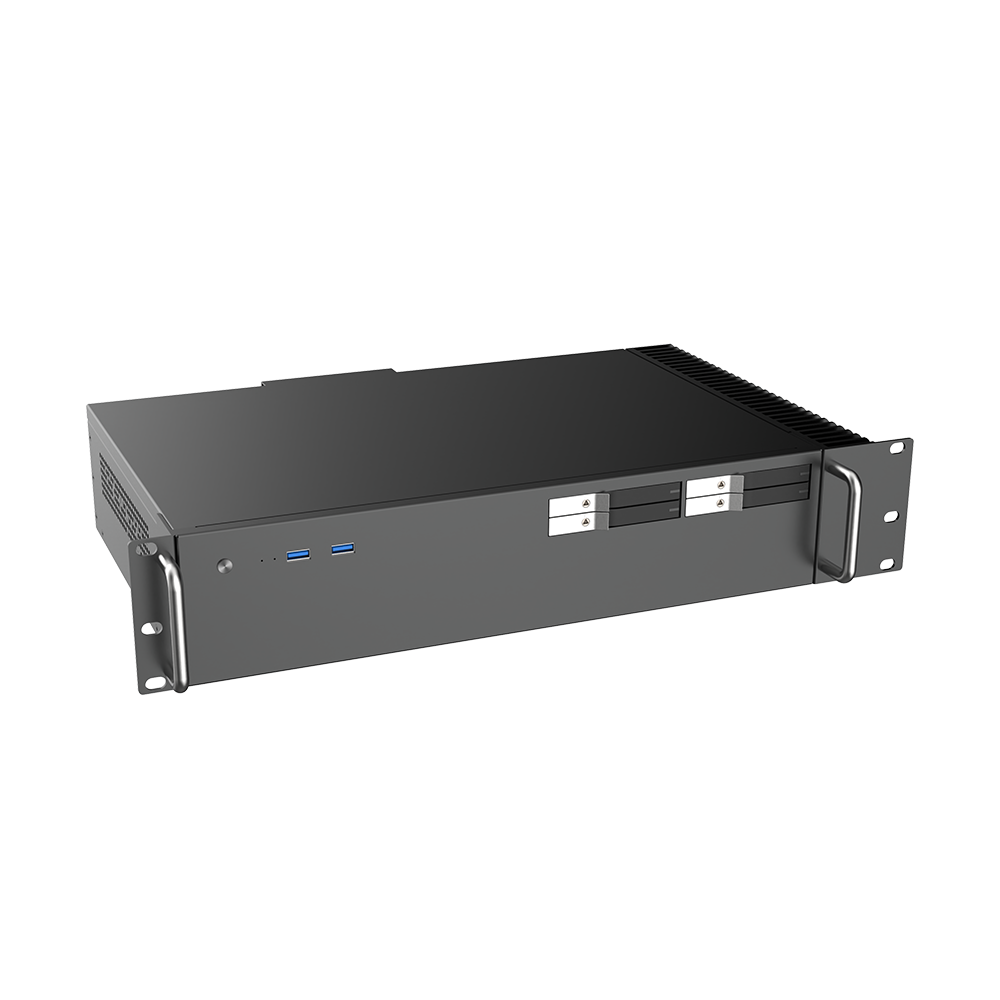

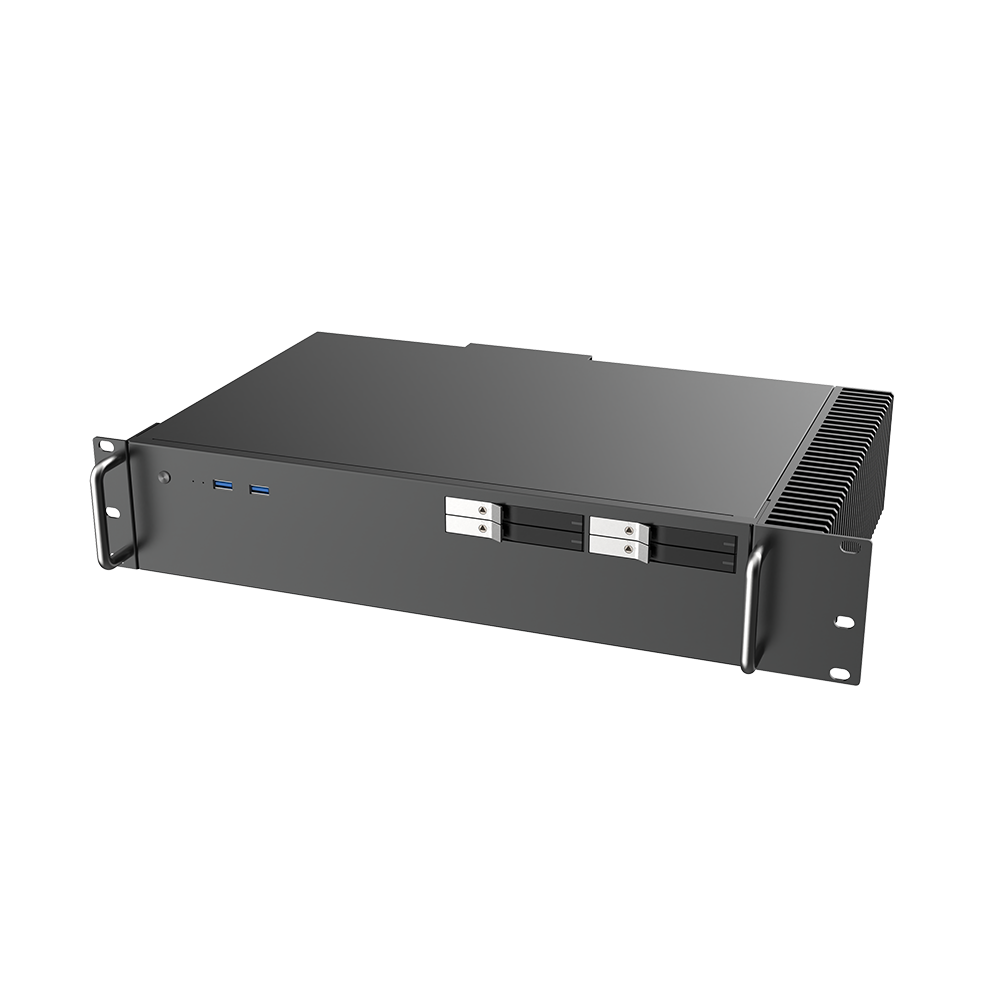

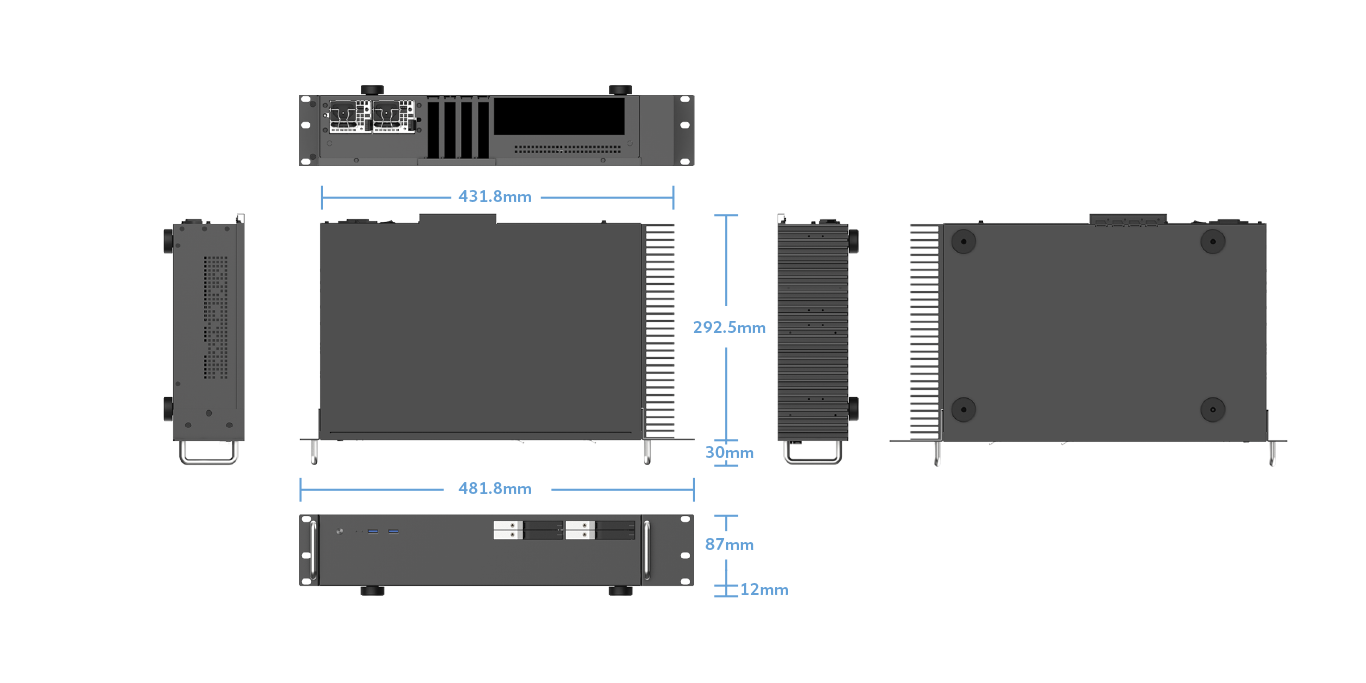

2U Rack-mountable Case

2U profile height, rackmount case with convenient pull-out handlebars. Fits in standard 19" server racks.

Perfect for critical enterprise server, embedded computing, industrial control, audiovisual, medical equipment, or NAS/RAID applications.

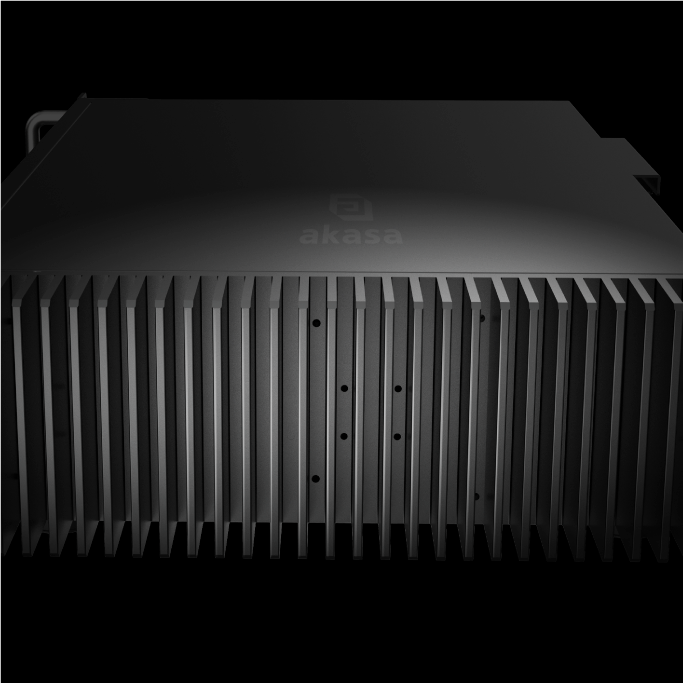

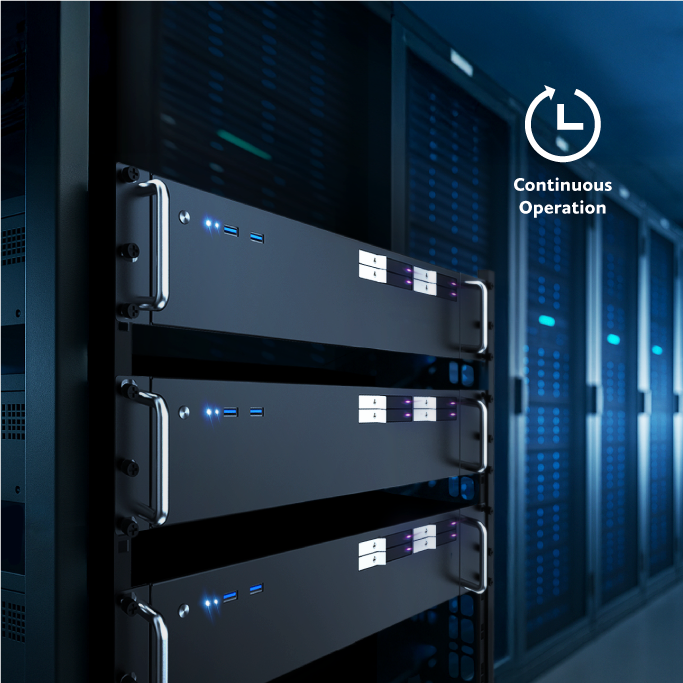

Silent Reliability

Completely fanless design eliminates noise and reduces mechanical failure points, ensuring reliability under continuous operation.

Ideal for applications sensitive to sound and vibrations.

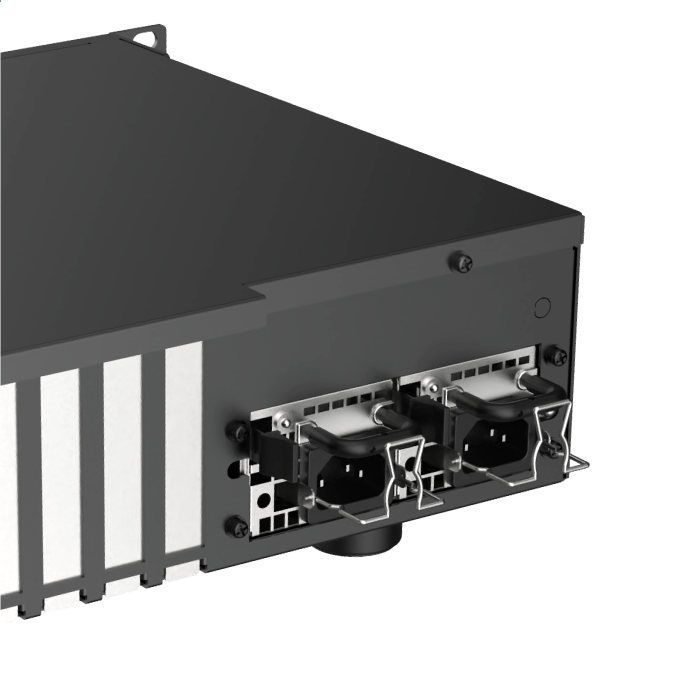

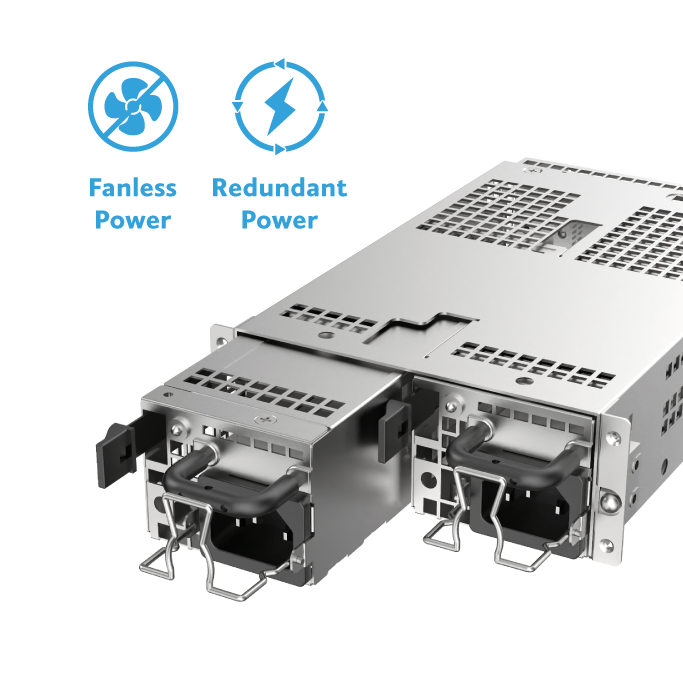

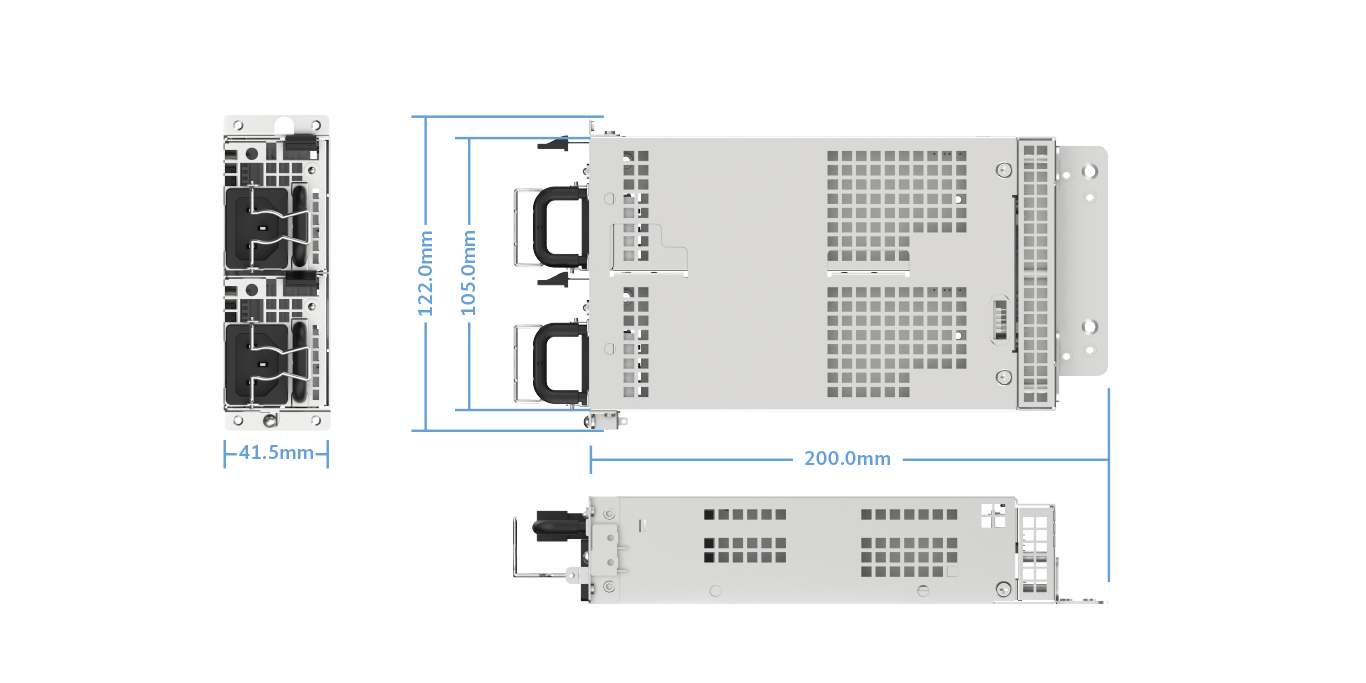

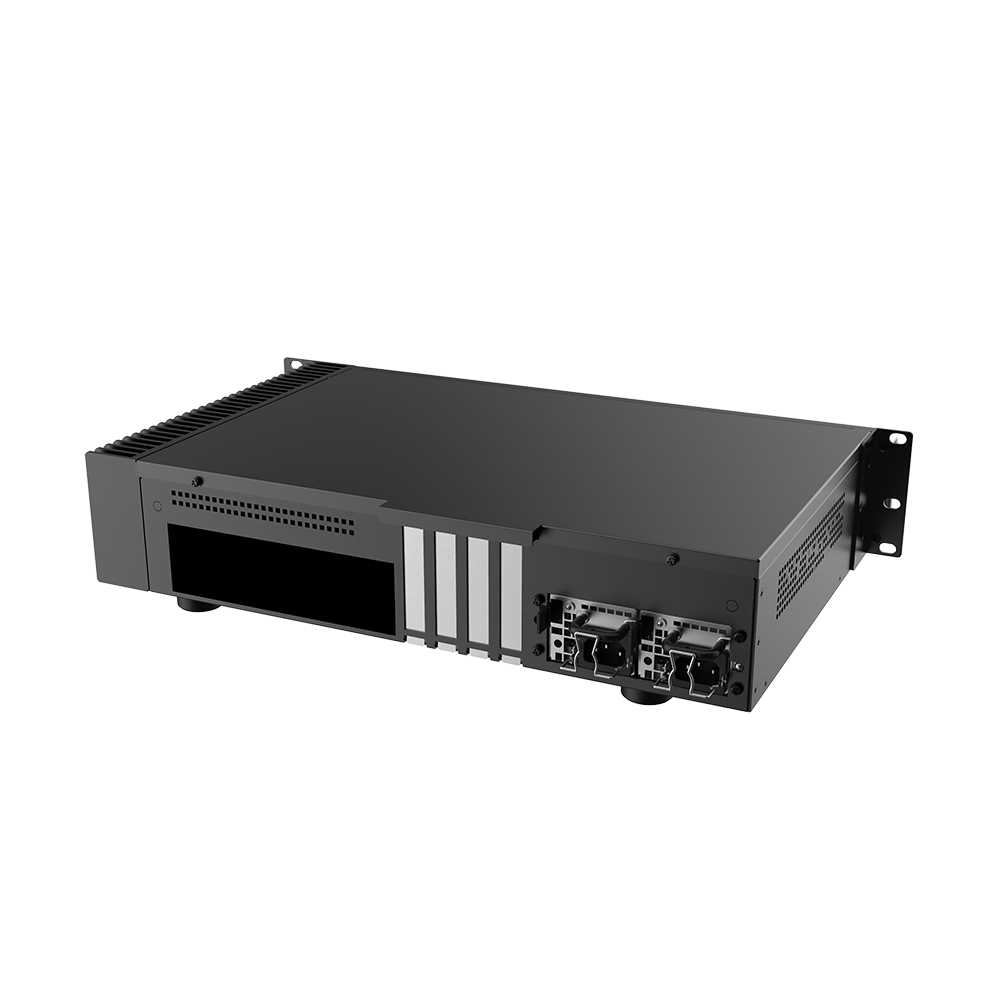

120W Redundant Hot-Swap Fanless PSU

Delivers 120W of power through two hot-swappable 1U modules with active load sharing for balanced distribution and uninterrupted operation.

With a completely fanless, convection-cooled design, it provides continuous, silent operation without any moving parts.

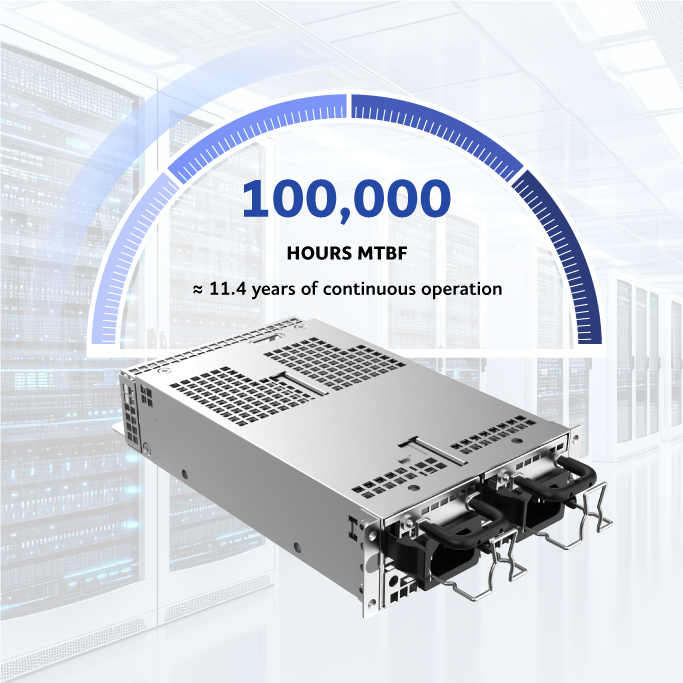

Industrial-Grade Reliability

100,000-hour mean time between failures (MTBF) rating supports continuous, long-term operation in critical industrial environments.

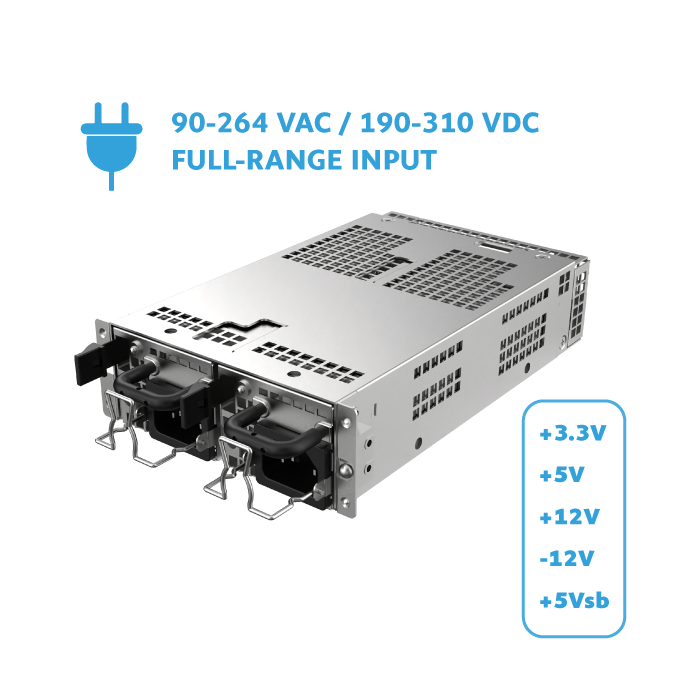

Full-Range AC and DC Input

Operates from 90 to 264 VAC and 190 to 310 VDC, compatible with mains power systems worldwide and high-voltage DC bus deployments.

Multi-Voltage Output

Provides standard ATX voltage outputs (+3.3V, +5V, +5V standby, +12V, -12V) for broad system compatibility.

Connectors

Equipped with ATX 24-pin main connector, dual 4-pin CPU, 4-pin Molex and SATA power connectors.

Available with a mains plug power cord, with EU, UK and US options currently offered. Other plug types may be available upon request.
