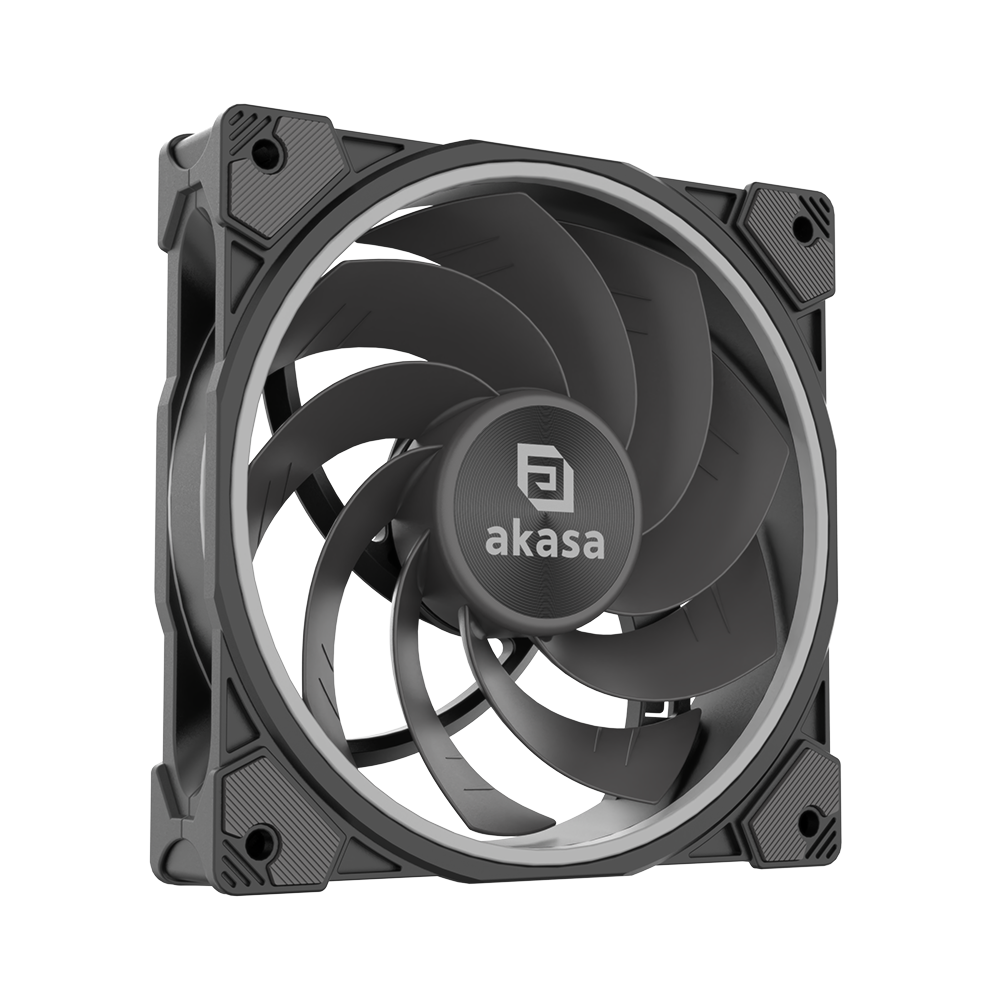

SOHO AR12: Reverse Fan Blade

Premium addressable RGB cooling fan with reverse fan blade

Revolutionise your RGB Setup

Elevate your PC's aesthetic and cooling game with our reverse blade fan. It pulls in cool outside air, optimising internal temperatures without sacrificing your RGB build's sleek design. Get the best of both worlds style and performance.

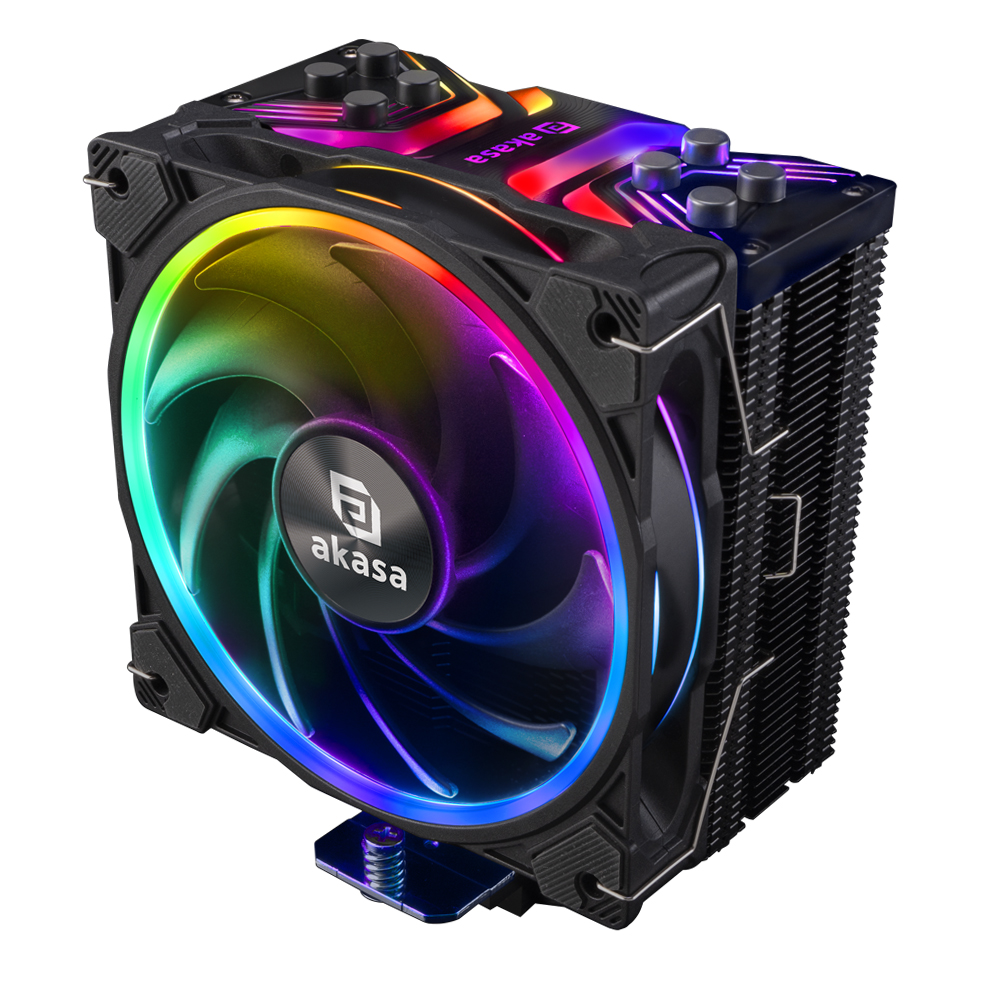

Perfect Addition to a Single Fanned Tower Heatsink

Boost efficiency by up to 7% with a reverse fan added to your standard 1-fan tower cooler setup such as our Akasa SOHO H4 Plus.

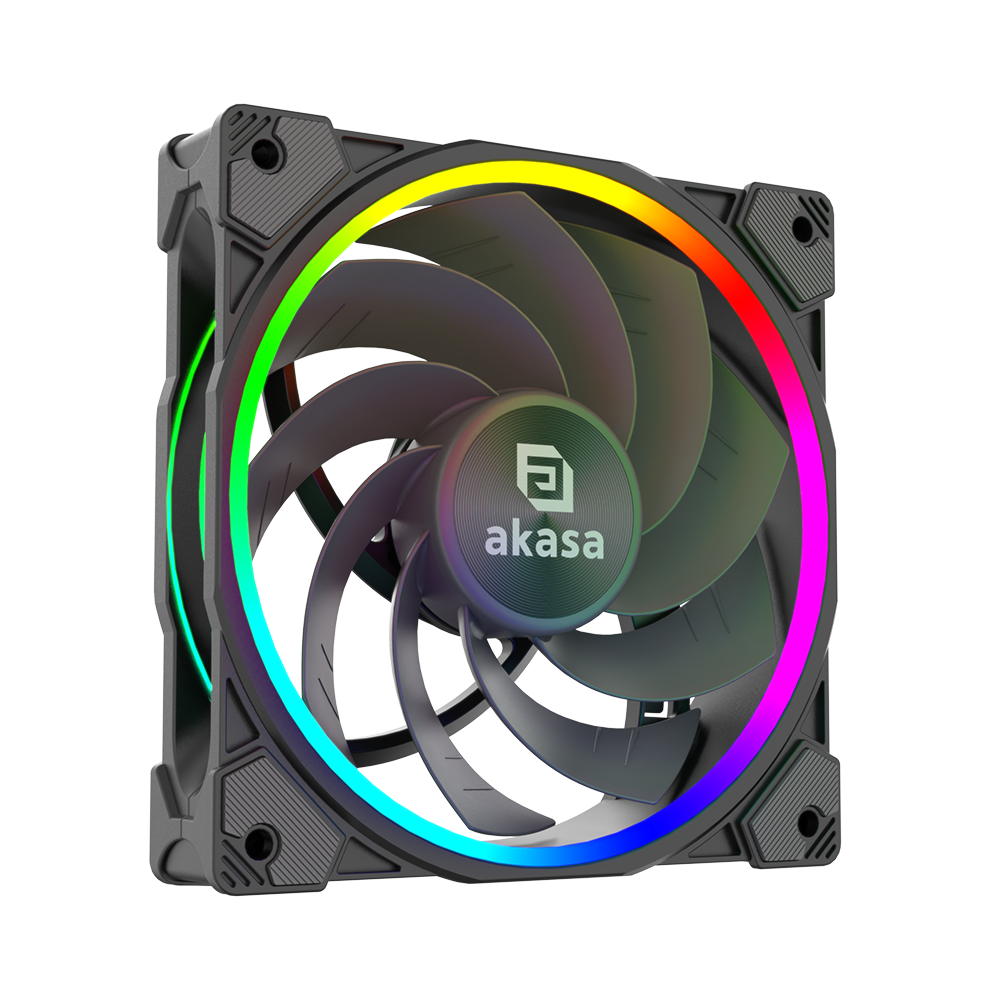

Over 16 Million aRGB Lighting Combinations

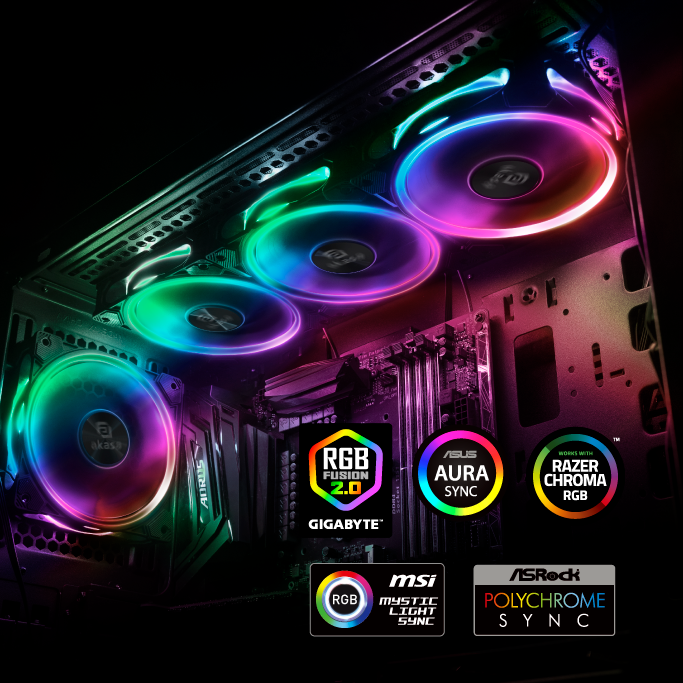

Embedded with 14 individually addressable RGB LED nodes on the frame with 3 distinctive light ring zones, which enhances the fan frame and deliver unique and futuristic radiance. Experience a multitude of visual possibilities with over 16.8 million colour combinations for totally customisable lighting. Motherboard sync with and certified by popular RGB software including Asus, ASRock, Gigabyte, MSI and Razer.

Intelligent Fan Performance Custom Airflow Direction

Intelligent Pulse Width Modulation (PWM) speed control ensures that the fan cools your system efficiently, staying quiet under lower loads and performing effectively otherwise. With a powerful airflow of up to 58 CFM (8% Increase from front blade design) and strong air pressure of up to 1.3mm-H2O, the Soho AR reverse fan is the ideal solution for a case, heatsink or radiator fan.

Advanced Hydro Dynamic Bearing

New MHD bearing features a Hydro Dynamic bearing with enhanced powder metallurgy technology. MHD Bearing technology utilises increased oil capacity which improves lubrication on the bearing, offering smoother rotation. The improved oil distribution creates the ultimate fluidity which extends fan life and reliability up to 40,000 hours and a lowering fan noise.

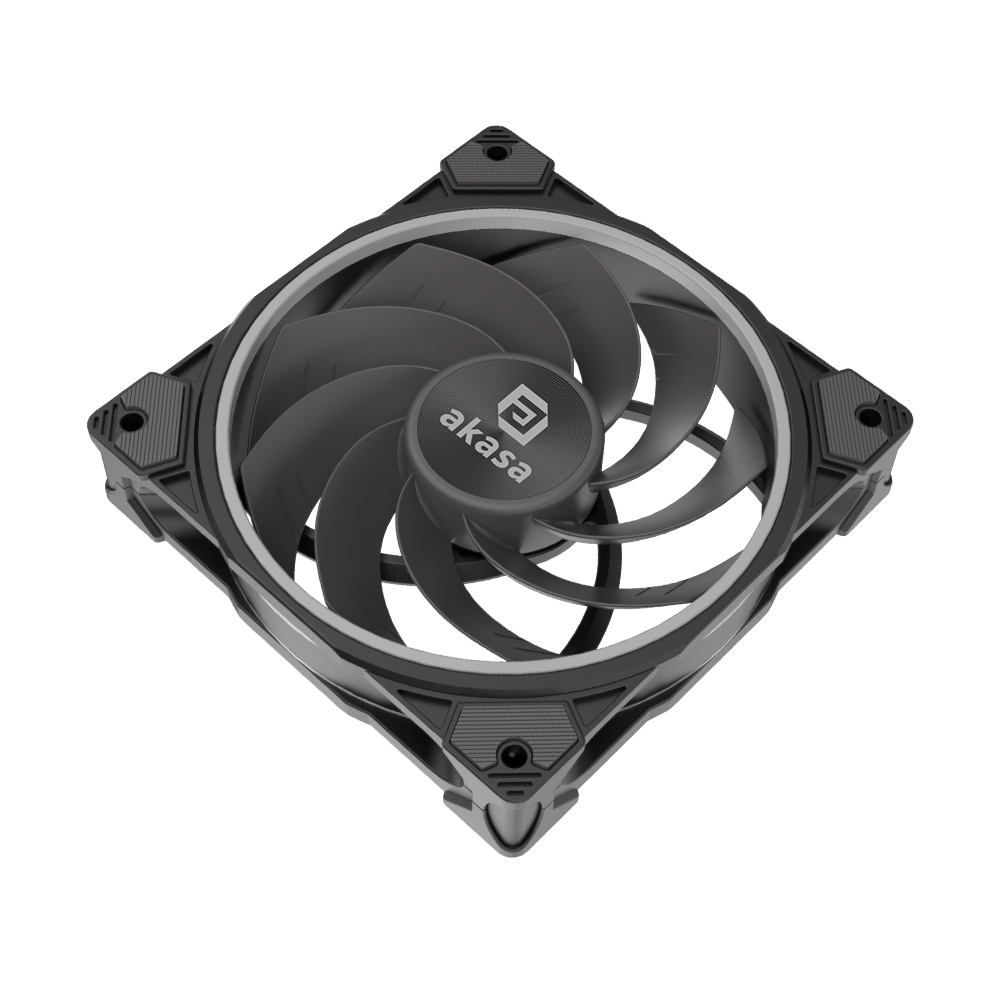

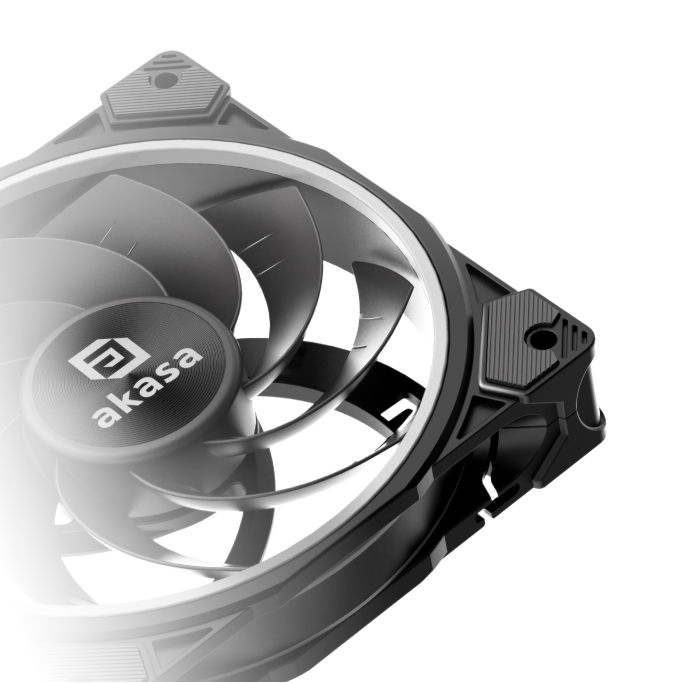

Reinforced Frame and Padding for Silent Operation

Reinforced frame adds rigidity and screams premium. Whilst functionally, reducing turbulence and noise . Coupled with discrete anti-vibration mountings attached to each corner of the fan minimise operational noise and transmission of vibrations to the PC case and other components, keeping noise in check.

Application PC case, radiator, heatsink fan
Dimension 120 x 120 x 25 mm
Bearing HD Bearing
Speed 500 - 2000 RPM
Max Airflow 58.3 CFM
Max Static Pressure 1.31 mm-H2O
Sound Level 14.2 - 31.6 dB(A)
Rated Voltage for Fan 12V DC
Rated Current for Fan 0.13 A
Voltage Rating for LED 5V DC
Current Rating for LED 0.5 A
Fan Connector 4-Pin PWM
LED Connector 3-Pin Addressable RGB
Fan Life 40,000 hours
Compatible RGB Software Gigabyte RGB Fusion, MSI Mystic Light, ASUS AURA, ASRock Polychrome, Razer Chroma RGB
Warranty 2 years
Package Dimensions 135 x 125 x 30 mm
Product Code AK-FN123
