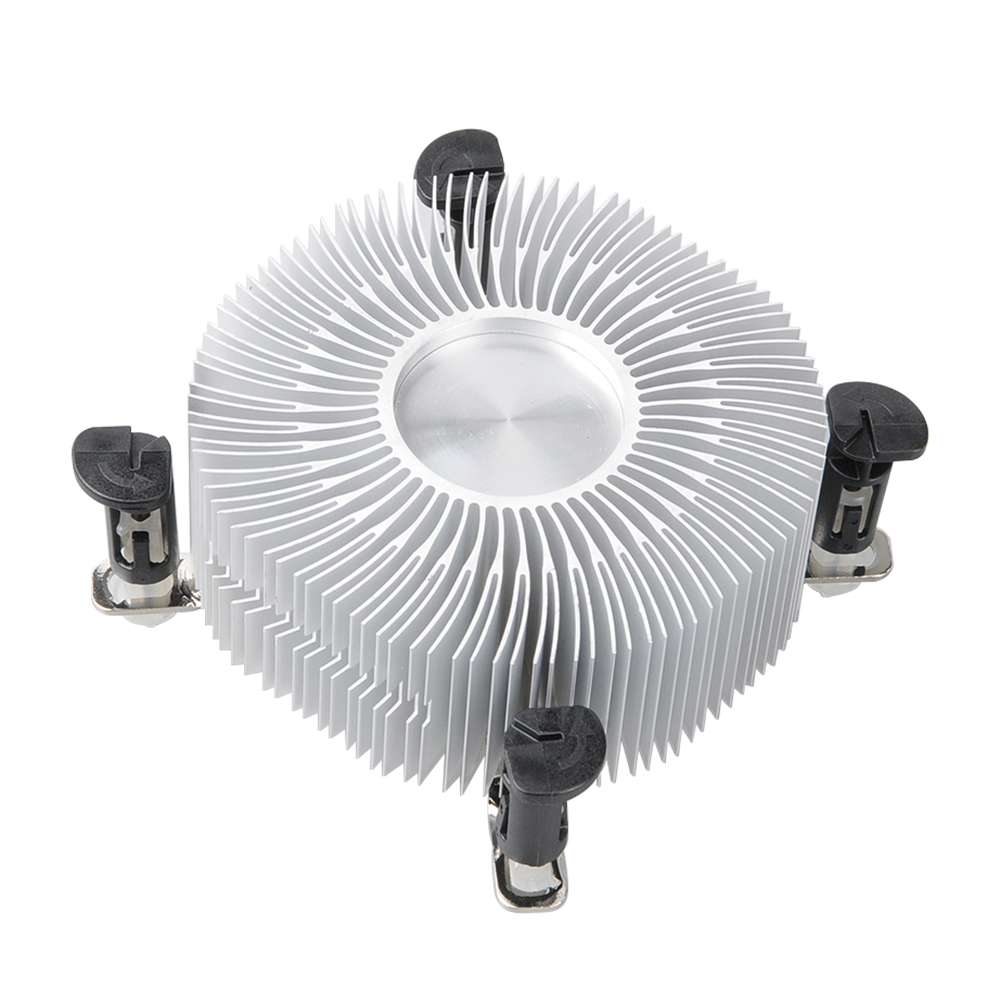

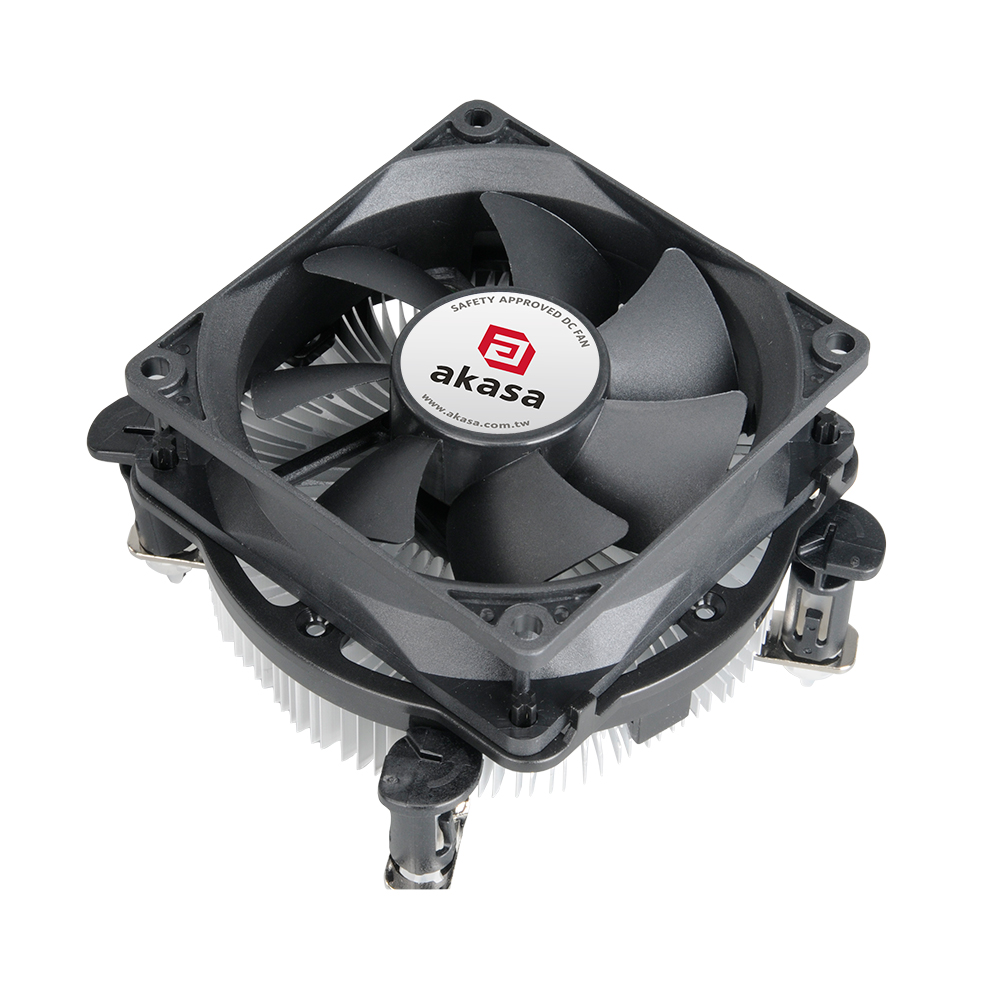

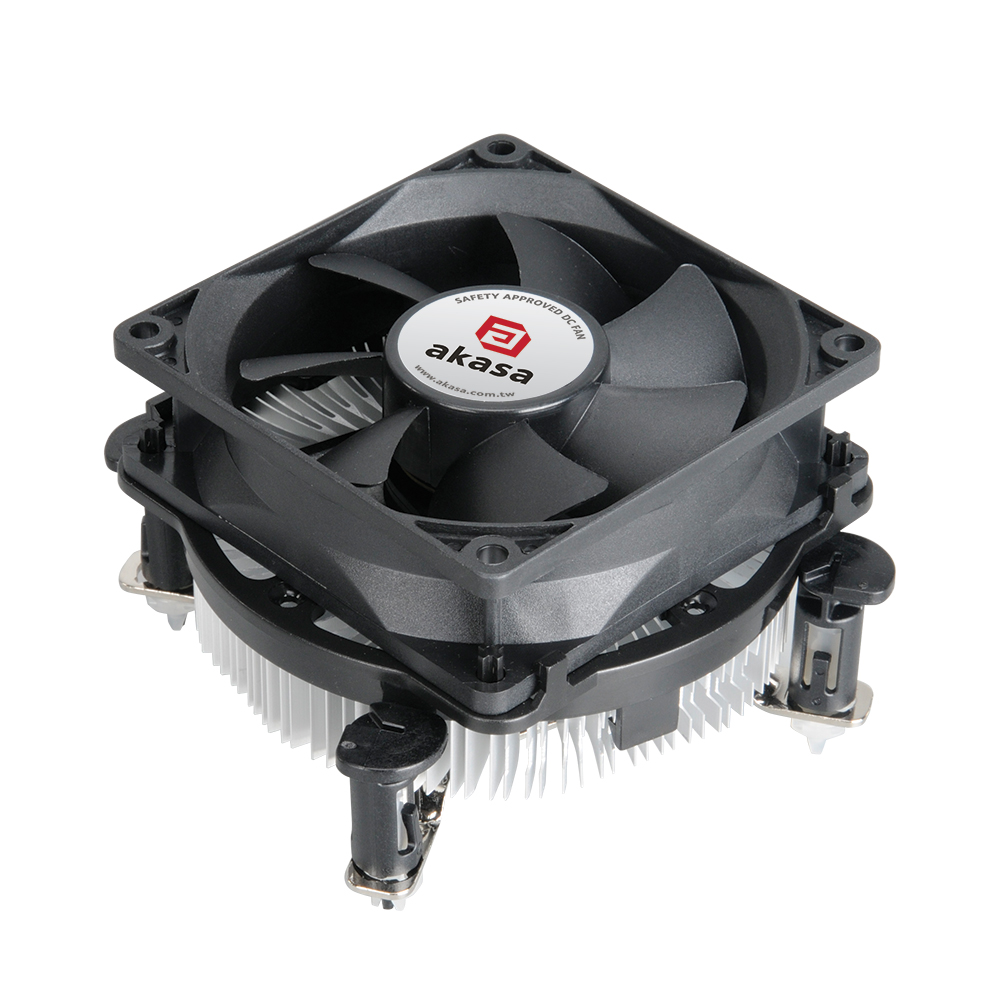

AK-CCE-7102EP is a modern design value CPU cooler offering efficient and low noise cooling. High engineered multi directional aluminium heatsink with bi-ped fins maximizes heat dissipation and provides optimal CPU and motherboard VRM cooling. Intel approved 4pin PWM fan ensures the RPM is automatically regulated by the motherboard according to CPU usage and temperature. This means under normal operating conditions, the CPU fan speed is relatively low maintaining low noise levels.

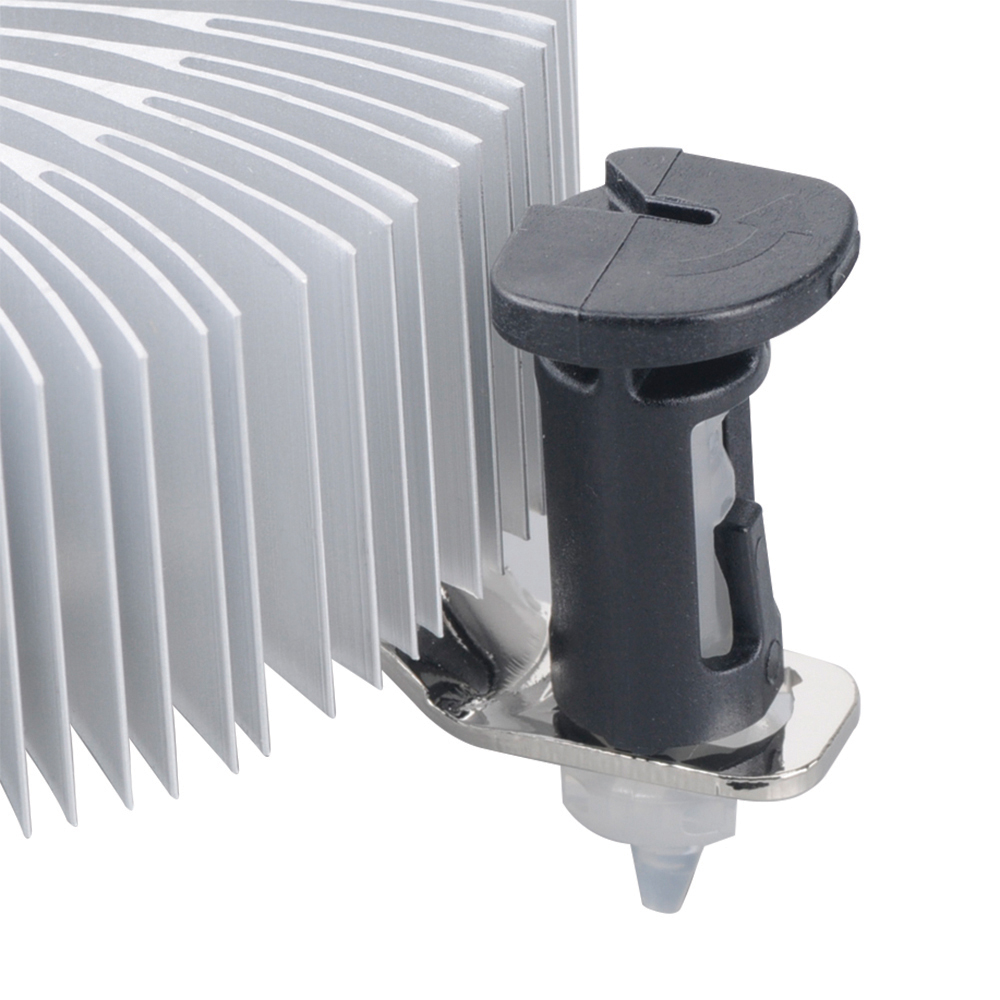

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA115X platforms without any mounting adjustment, pushpins will automatically slide into correct position.

AK-CCE-7102EP is designed to work with CPU’s up to 73W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.

• High engineered aluminium heatsink for cost effective cooling
• Bi-ped fins maximise heat dissipation
• Low noise PWM fan
• Push-pins mounting provides easy and reliable retention
 Intel LGA775, LGA115X & LGA1200 compatible

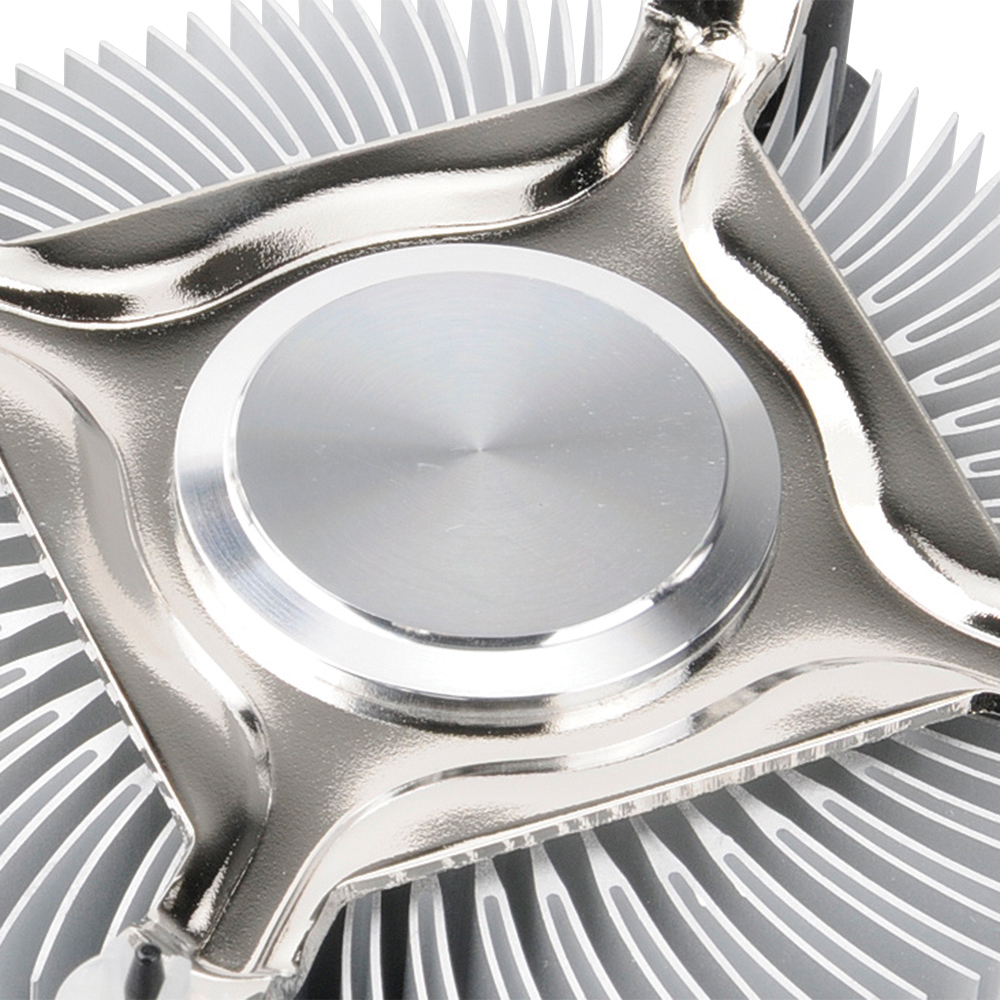

• Performance thermal interface is pre-applied
• Total height of only 53mm





Socket Type Intel LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200
Suggestion TDP (W) 73
Cooler Dimension 95 x 95 x 54 mm
Heatsink Material Aluminium fins and core
Installation Push-pins
Weight 246.6g
Product Code AK-CCE-7102EP

Dimensions 80 x 80 x 25 mm
Bearing EBR Bearing
Fan Speed 600 - 3000 RPM
Max Airflow 35.31 CFM
Max Air Pressure 4.04 mm-H2O
Noise Level 31.0 dB(A)
Current Rating for Fan 0.25A
Voltage Rating for Fan DC 12V
Connector 4-pin PWM
Fan Life Expectancy 40,000 hours
Warranty 2 years
