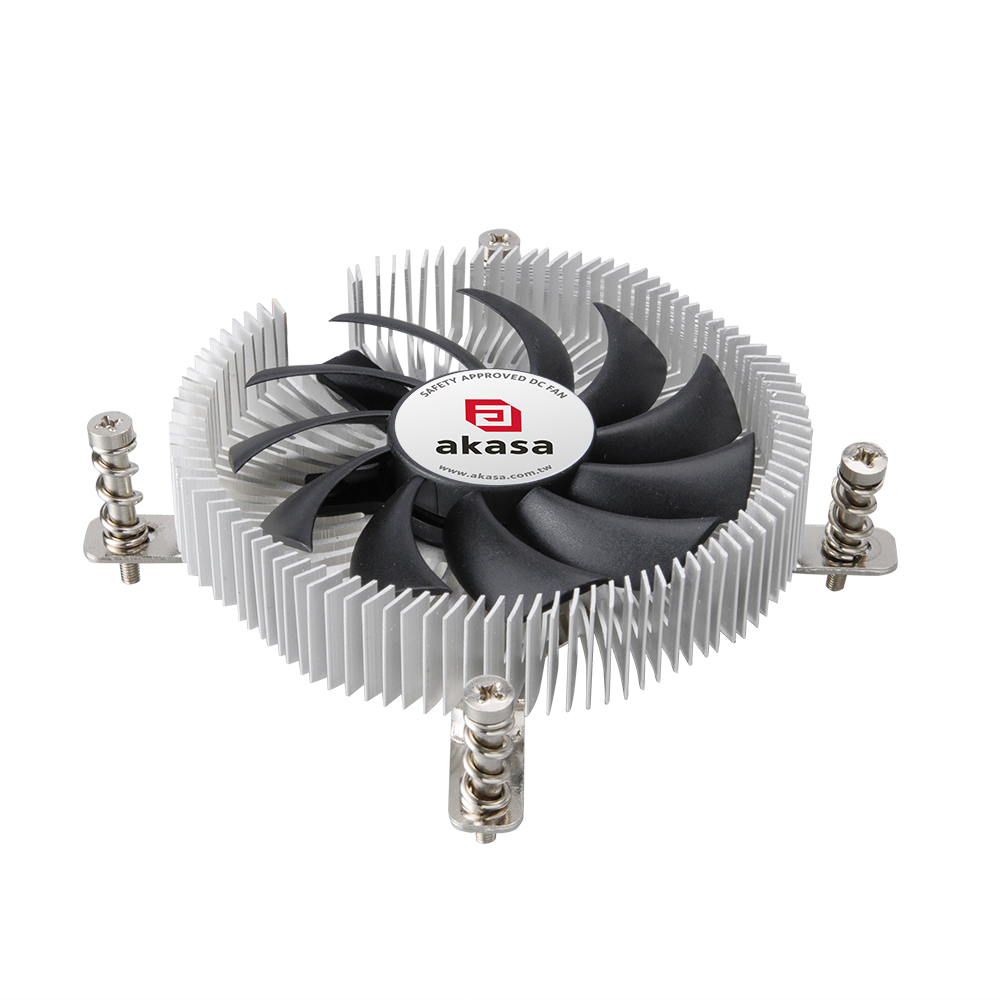

Aluminium Thin mini-ITX cooler
21mm heatsink with embedded fan provides low noise ultra compact cooling solution for Intel LGA775, LGA115X and LGA1200 processors in thin mini-ITX and mini-ITX chassis.

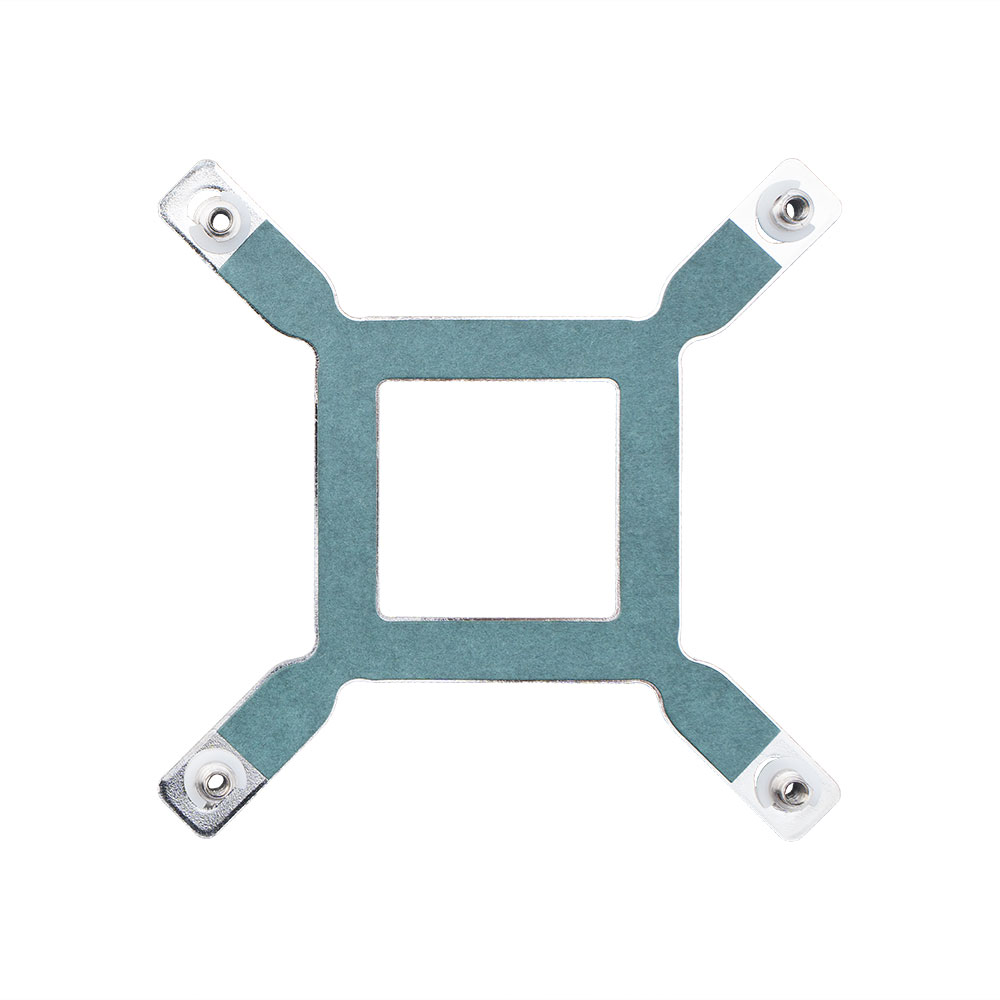

Spring-loaded screws and backplate mounting.
Ultra compact and low noise cooler for Intel Core 2 Duo and Core i3, i5 CPU’s. The low profile design with embedded fan makes it a perfect solution for Thin mini-ITX, HTPC and SFF systems.

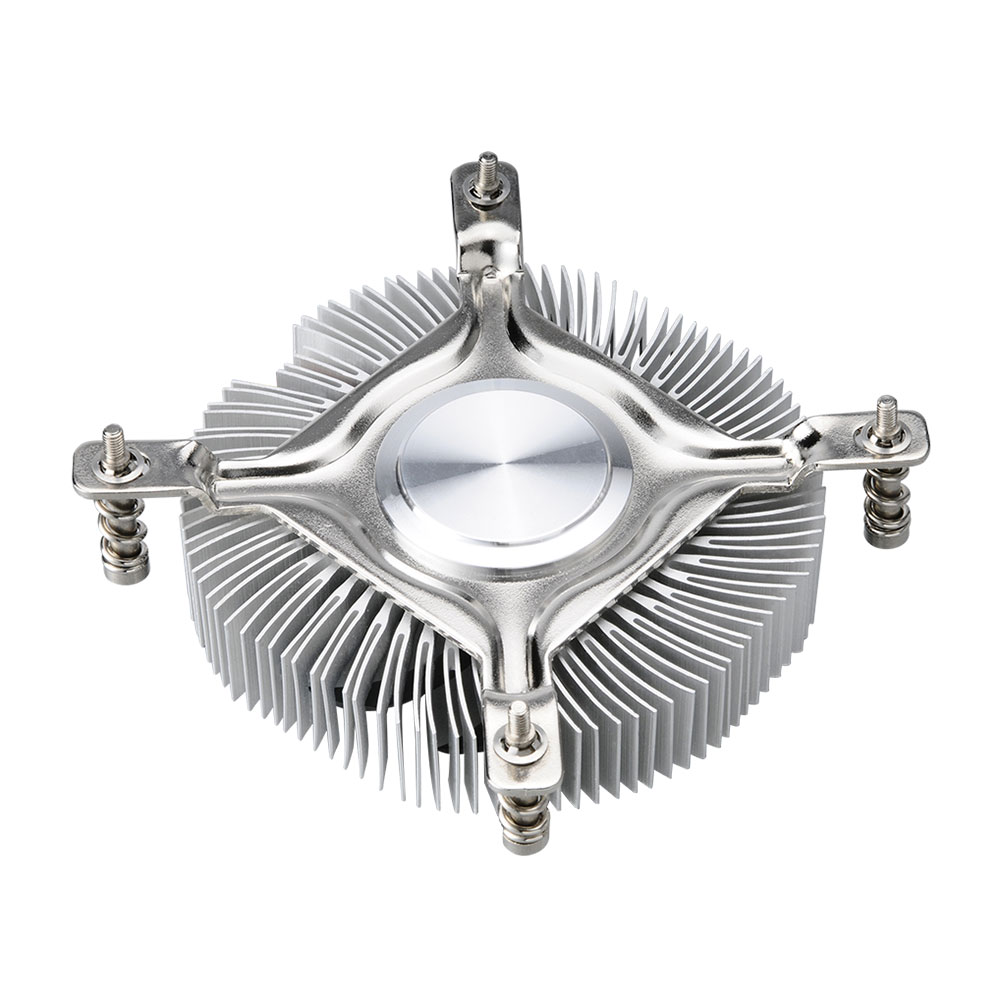

Aluminium heatsink and twin ball bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximises heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.

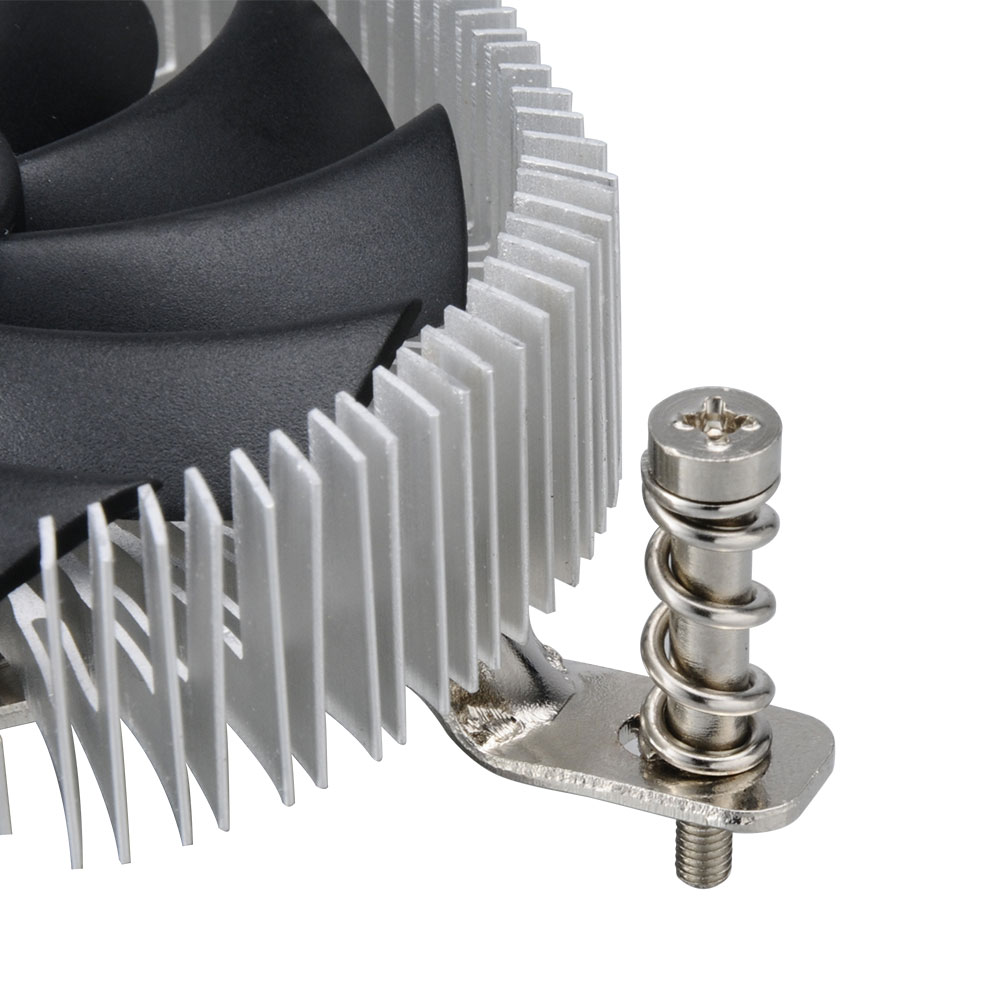

Pre-applied spring-loaded screws and motherboard backplate guarantee safe retention. Pre-applied high performance thermal compound ensures clean and easy installation.
• Hi-engineered aluminium heatsink
• Multi-directional fins for maximum system cooling

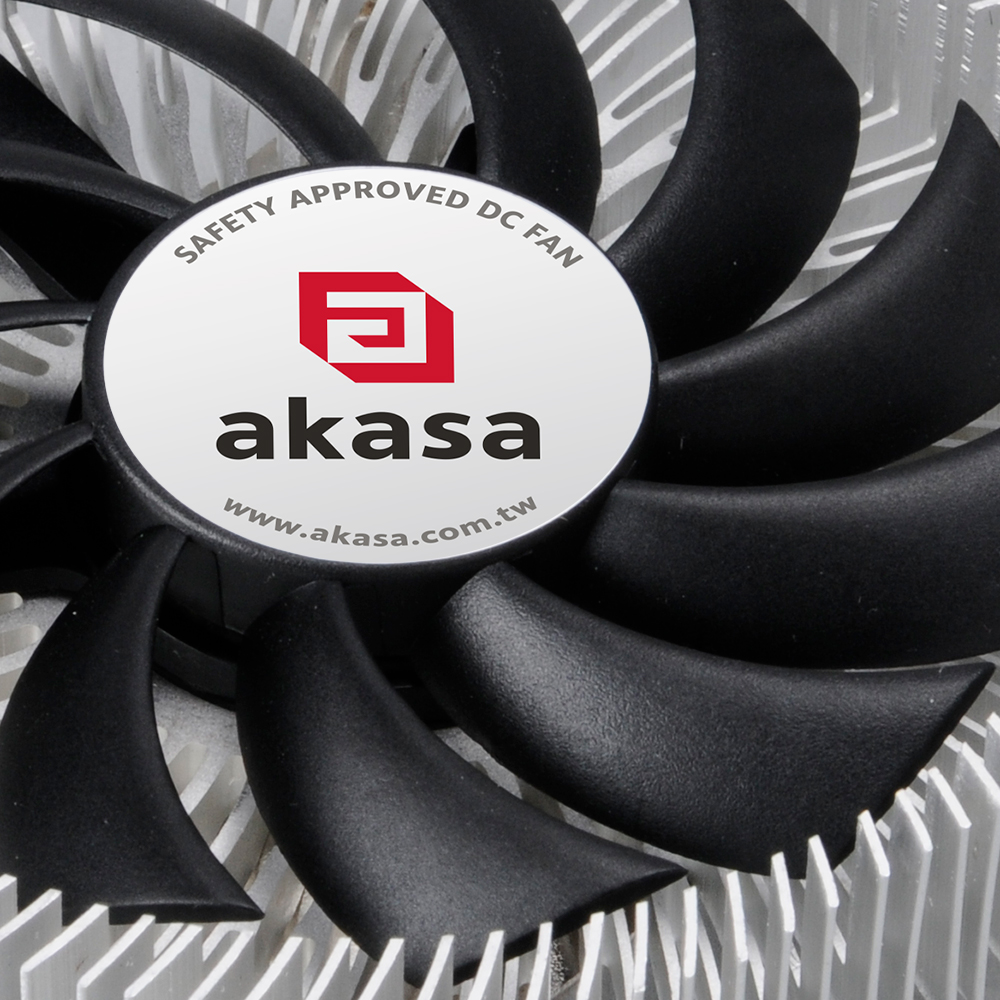

• Embedded 8cm PWM fan with long life twin ball bearing
• Pre-applied spring-loaded screws and motherboard backplate
• Dual mounting for Intel LGA775, LGA115X and LGA1200 platforms
• High performance thermal interface is pre-applied
• Total height only 21mm
| Socket Type | Intel LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200 |
|---|---|
| Suggestion TDP (W) | 35 |
| Cooler Dimension | 87.2 x 85.2 x 21 mm |
| Heatsink Material | Aluminium fins and core |
| Installation | Metal screws and retention plate |
| Weight | 154g |
| Product Code | AK-CC7129BP01 |
| Dimensions | ∅74.5 x 11 mm |
|---|---|
| Bearing | Two Ball Bearing |
| Fan Speed | 600 - 3000 RPM |
| Max Airflow | 26.53 CFM |
| Max Air Pressure | 1.81 mm-H2O |
| Noise Level | 15 - 30.1 dB(A) |
| Current Rating for Fan | 0.19A |
| Voltage Rating for Fan | DC 12V |
| Fan Connector | 4-pin PWM |
| Fan Life Expectancy | 80,000 hours |
| Warranty | 2 years |
