X4
Performance multi-platform CPU cooler
All new multi-platform CPU cooler developed from the hugely popular AK-965. New design akasa (Patented) Easy Select Clip is used for no-hassle mounting.

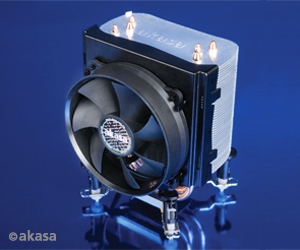

X4 is an all new multi-platform CPU cooler which has been developed from the hugely popular AK-965 heatsink. Now compatible with four different mounting types to make it suitable for all current AMD and Intel processors.

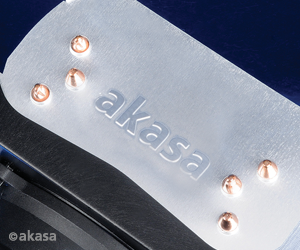

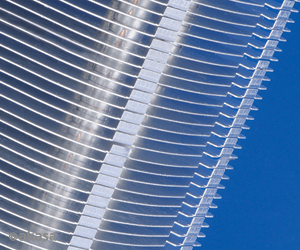

The low noise X4 utilizes three long heatpipes precision embedded in a copper base for rapid and even heat absorption and transfer to 45 aluminium fine fins. The PWM fan provides quiet controlled performance and efficient heat dissipation. X4 is designed to incorporate automatic VRM cooling (VRM - CPU Voltage Regulator Modules located on the motherboard), this is an important function that helps to keep your PC stable.

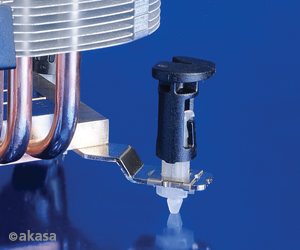

New design akasa (patent pending) Easy Select Clip with Intel reference push-pin retention is used for no-hassle mounting on Intel LGA775, LGA115X, LGA1200 and LGA1366 platforms - no backplate is needed. AMD Sockets 939, AM2, AM2+, AM3, AM4 and AM5 are catered for with a cam-lever clip for safe and easy attachment. Performance thermal compound is supplied.
• 3 long heatpipes ensure superb cooling performance
• Smart design enables VRM cooling

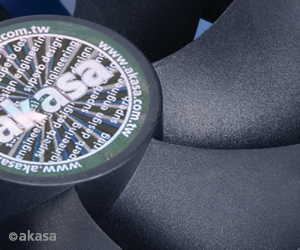

• Low noise fan with PWM control
• Quick installation with akasa Easy Select Clip
| Socket Type | Intel LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1366 AMD Socket 939, AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2 & FM2+ |
|---|---|
| Suggestion TDP (W) | 125 |
| Cooler Dimension | 135 (H) x 109 (W) x 90 (D) mm |
| Heatsink Material | Aluminium and copper |
| Heatpipe | 1 mm x 3 |
| Weight | 458g |
| Installation | Push pins (Intel) Cam-lever clip (AMD) |
| Product Code | AK-968 |
| Fan Dimension | ∅92 x 25 mm |
|---|---|
| Fan Speed | 600 - 2500 RPM (PWM controlled) |
| Max Airflow | 47.68 CFM (80.82 m³/h) |
| Max Air Pressure | 2.1 mm H2O |
| Noise Level | 17.0 - 29.5 dB(A) |
| Current Rating | 0.21A |
| Voltage Rating | DC 12V |
| Bearing Type | Sleeve |
| Fan Life Expectancy | 30,000 hours |
| Fan Connector | 4pin PWM |
