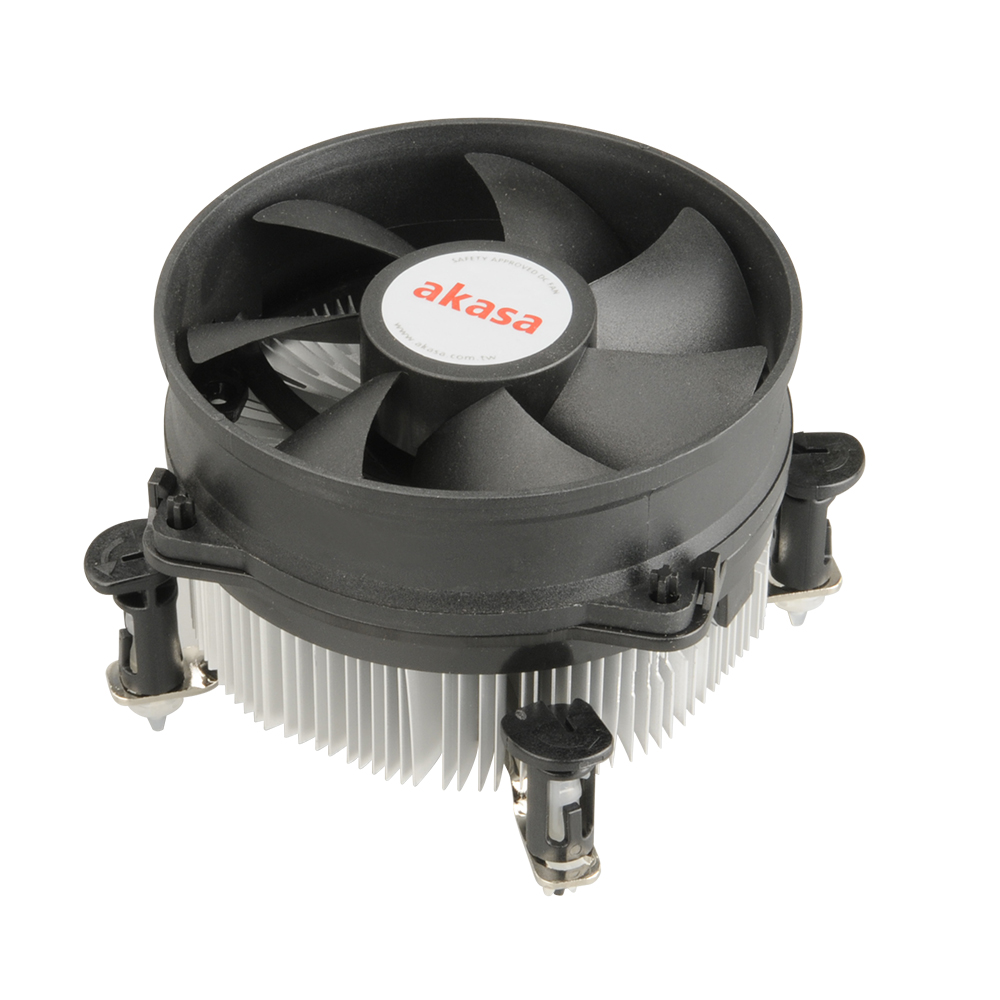

AK-959CU
Copper core Core2Quad, i5 & i7 Cooler
Low noise dual platform cooler using a high engineered multi directional heatsink with bi-ped fins for cost effective and efficient cooling. PWM controlled fan and easy push pins mounting. Up to 115W.
The low noise AK-959 uses a high engineered multi directional heatsink with copper core and bi-ped fins providing cost effective efficient CPU and motherboard cooling. The PWM fan is regulated automatically by CPU usage so under normal PC work load the fan speed is low ensuring quiet computing but extra performance is available when needed.
Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775, LGA115X and LGA1200 platforms without any mounting adjustment, pushpins will automatically slide into correct position.
AK-959CU is designed to work with CPU’s up to 115W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.

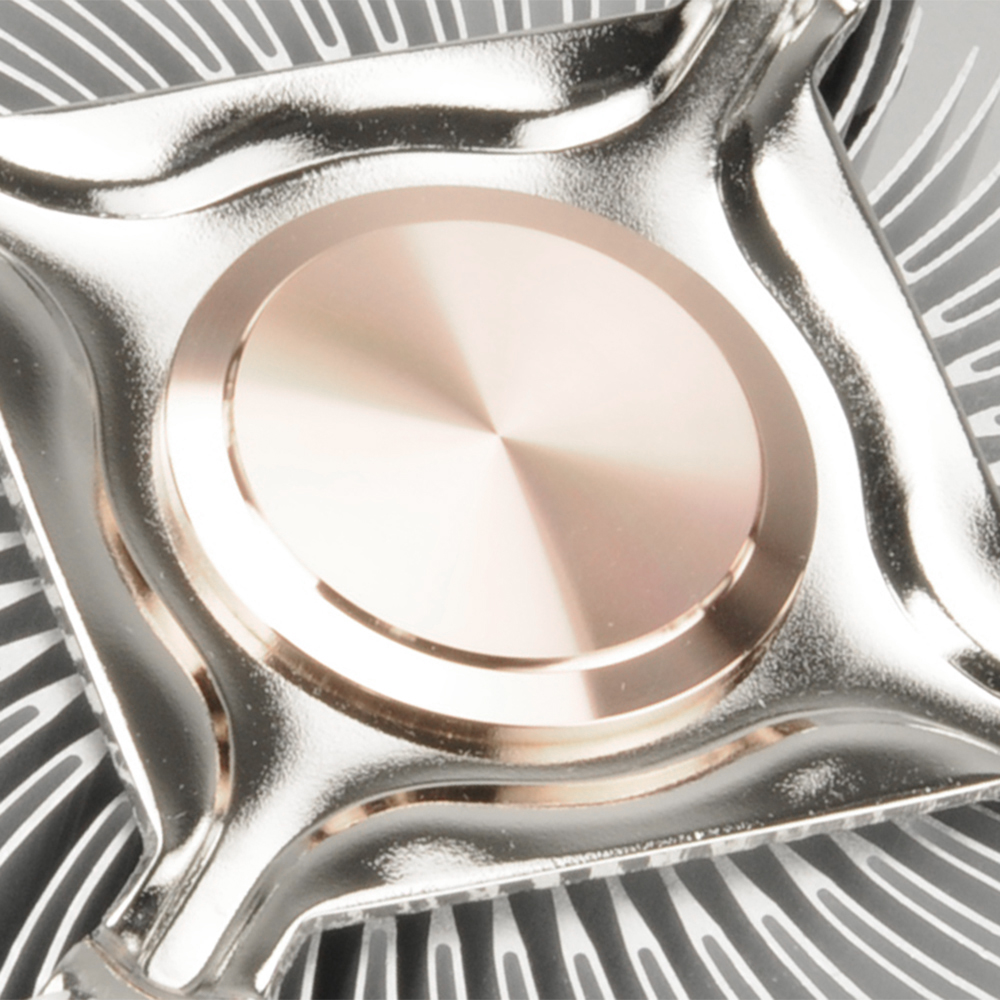

• High engineered aluminium heatsink with copper core
• Dual Intel mounting
• Bi-ped fins maximise heat dissipation

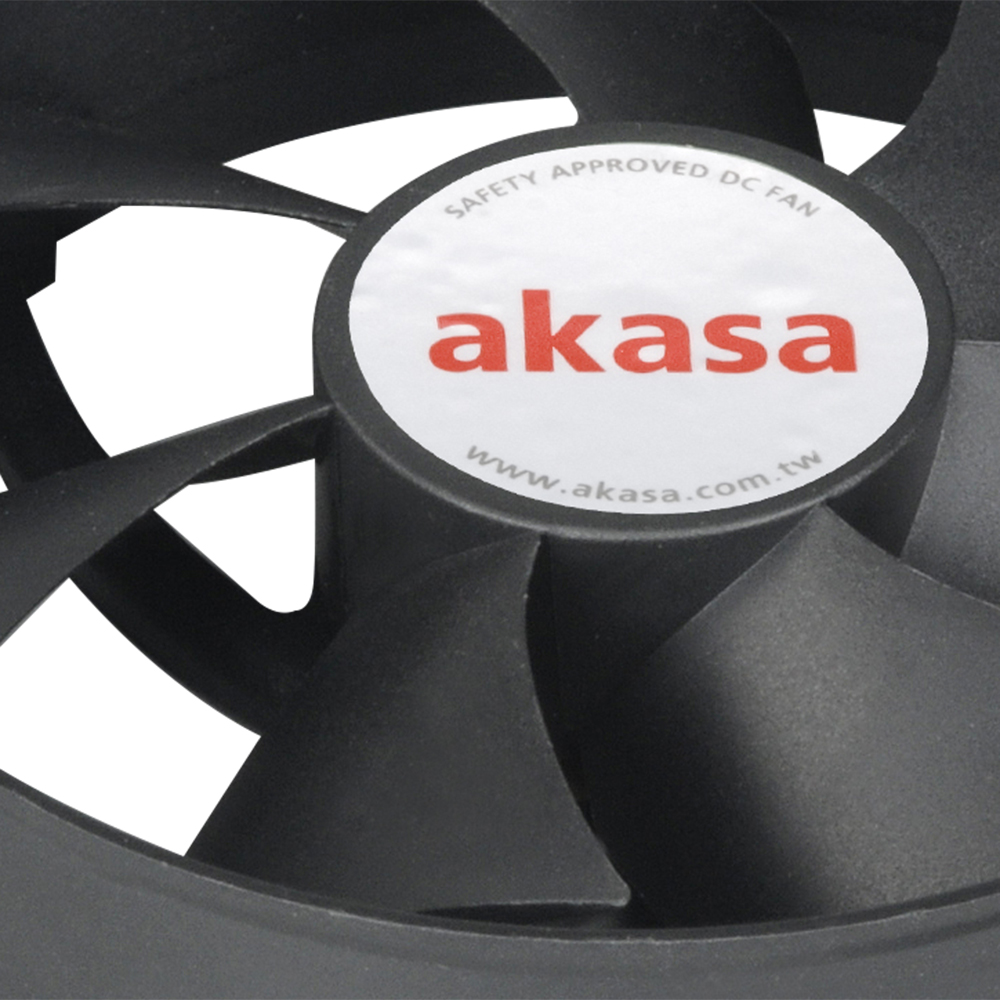

• Low noise PWM fan

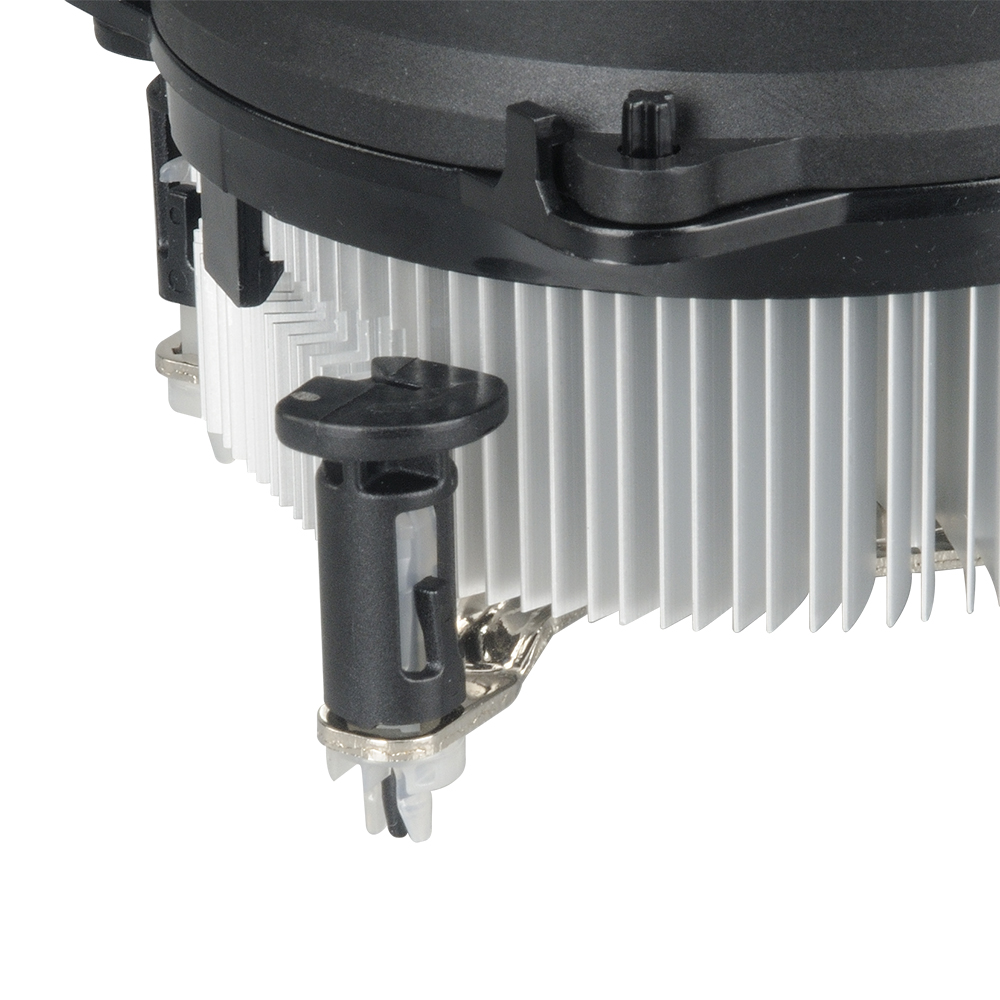

• Push pins provide reliable retention and easy mounting
• High performance thermal interface pre-applied
Socket Type | Intel LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200 |
---|---|
Suggestion TDP (W) | 115 |
Cooler Dimension | 95 x 95 x 62 mm |
Heatsink Material | Aluminium fins with copper core |
Installation | Push-pins |
Weight | 317g |
Product Code | AK-959CU |
Dimensions | ∅92 x 25 mm |
---|---|
Bearing | EBR Bearing |
Fan Speed | 600 - 3000 RPM |
Max Airflow | 56.81 CFM |
Max Air Pressure | 4.05 mm-H2O |
Noise Level | 17.2 - 30.54 dB(A) |
Current Rating for Fan | 0.26A |
Voltage Rating for Fan | DC 12V |
Connector | 4-pin PWM |
Fan Life Expectancy | 40,000 hours |
Warranty | 2 years |
