Newton S7
Silent evolution for 7th Generation Intel® NUC boards

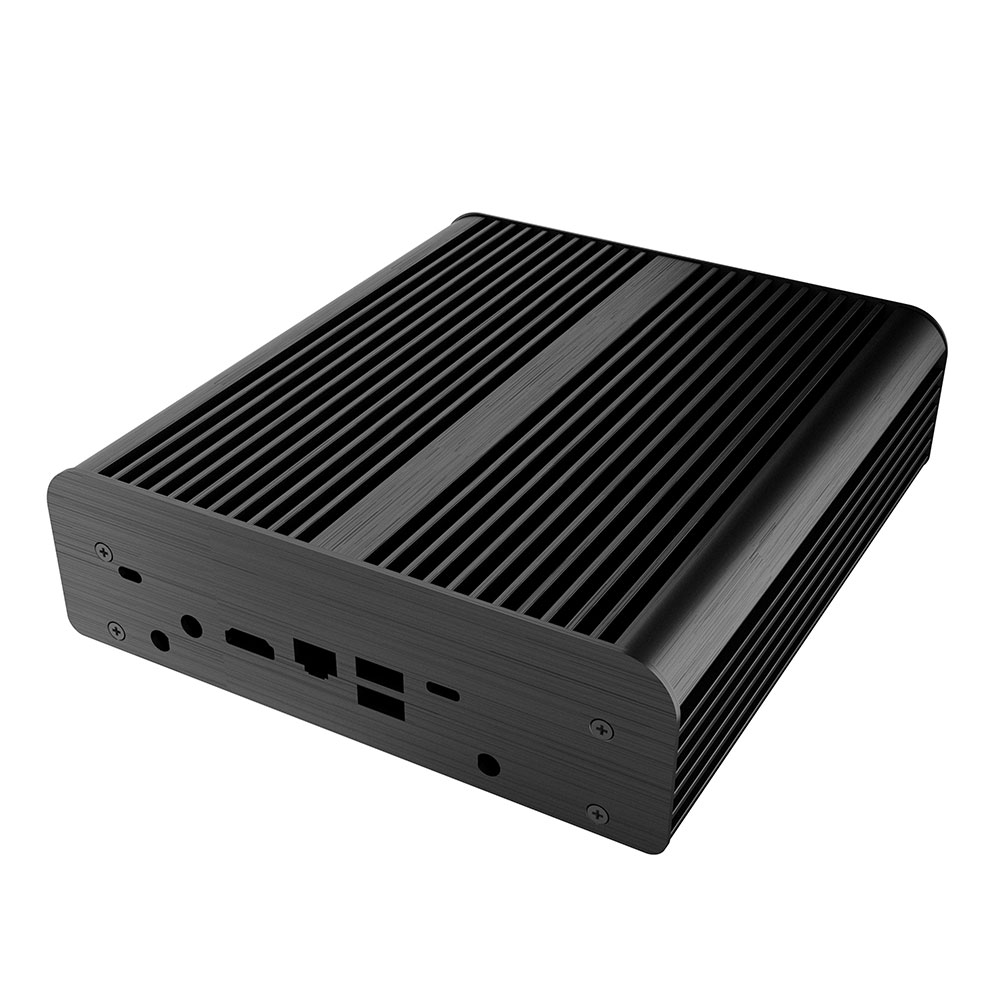

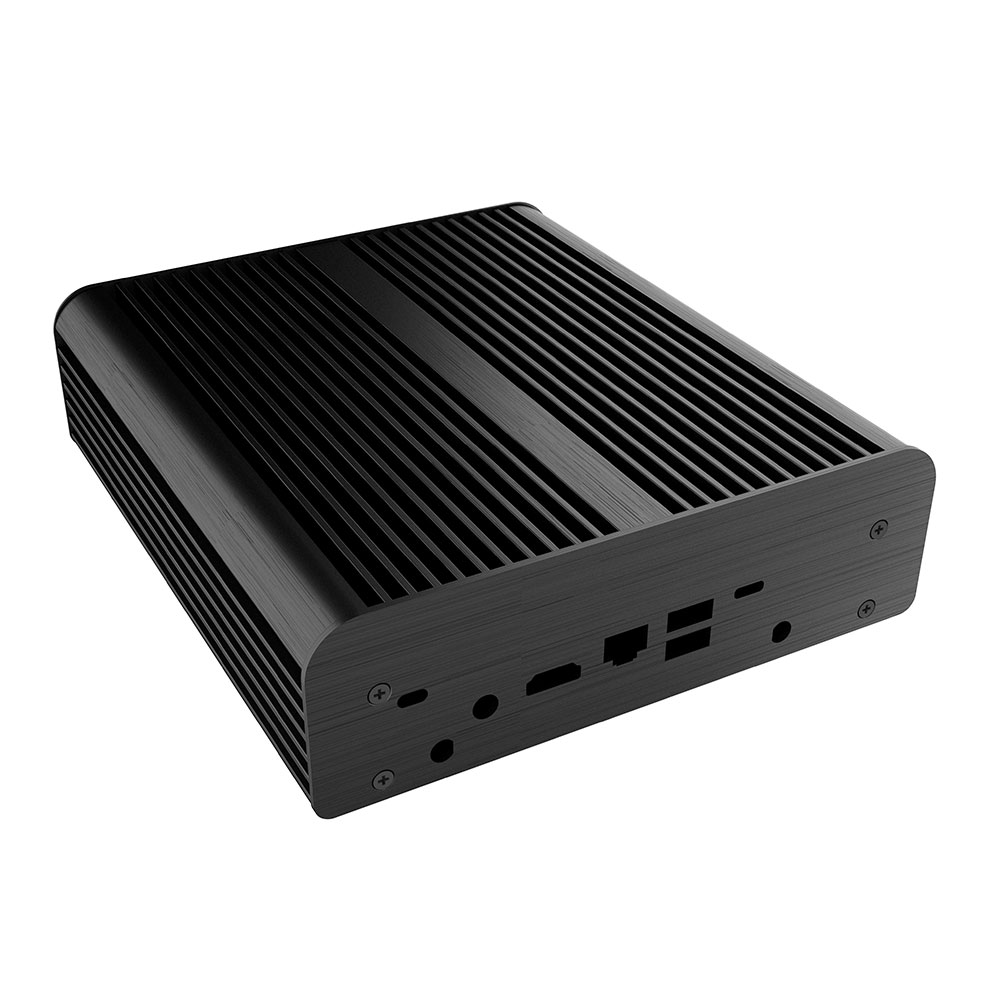

Fanless case for 7th Generation Intel® NUC boards, supports VESA mount. Accommodates 2.5" SATA HDD/SSD. Compatible with Intel NUC7i5BNH / NUC7i5BNK / NUC7i3BNH / NUC7i3BNK.
|
Fanless case
for Intel® 7th Generation NUC support 2.5" SATA HDD / SSD
• Aluminium fanless CPU cooling design

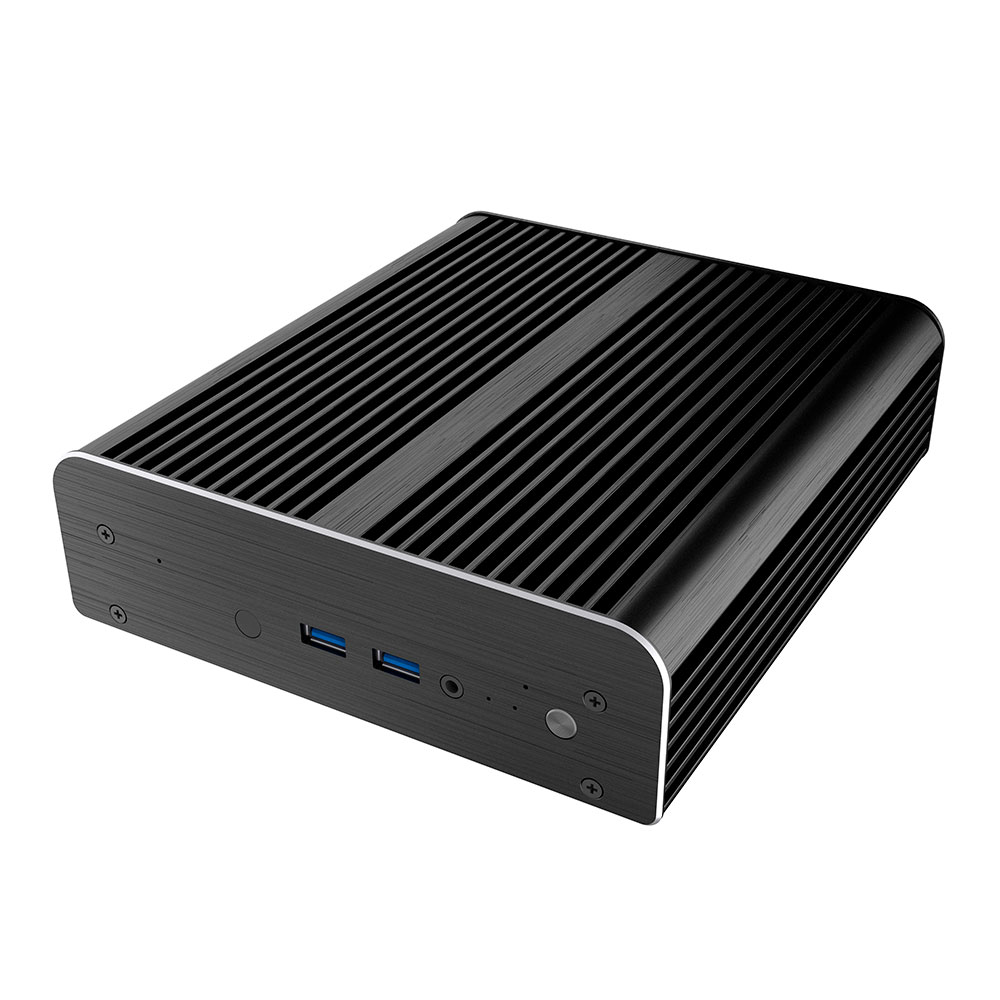

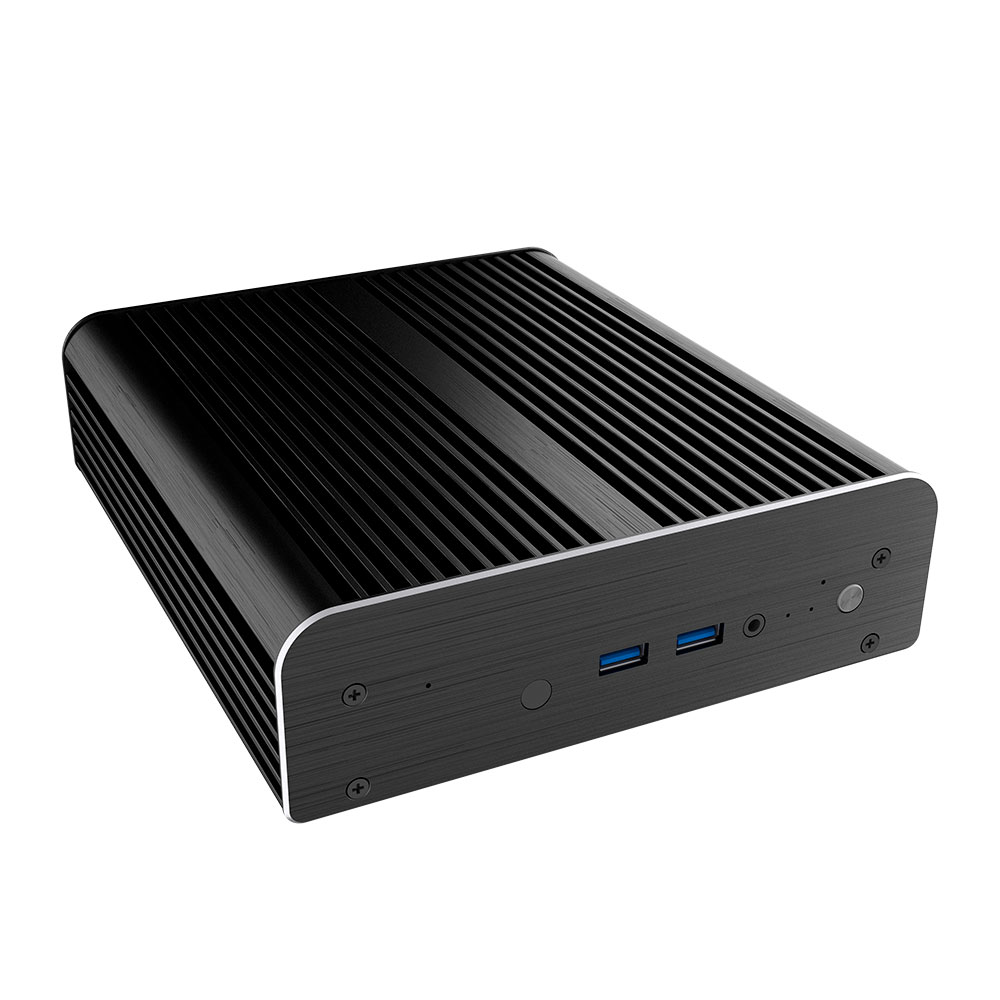

• Stylish front panel diamond effect • Support IR remote function • Support microphone array • Compatible with the following Intel® NUC Board NUC7i5BNH / NUC7i5BNK / NUC7i3BNH / NUC7i3BNK Stylish front panel
diamond edge finish Two front panel
USB 3.0 ports Support IR
remote function Support microphone array
Fanless
Aluminium fanless CPU cooling design |
| Material | Aluminium |
|---|---|
| Motherboards types | UCFF 4" X 4" |
| Motherboard support | Intel® NUC Board (kit): NUC7i5BNH / NUC7i5BNK / NUC7i3BNH / NUC7i3BNK |
| Dimensions | 176.6 x 200 x 53.1 mm (W x D x H) |
| Drive bays | 2.5" SSD/HDD (up to 9.1 mm high) |
| Front I/O | Power button, power and HDD led, USB 3.0 port x 2, IR receiver opening, HD Audio in / out |
| Antenna fitting holes | 2 |
| Security | Kensington lock |
| VESA mounting | Support |
| Optional Power Adaptor | AK-PD065-01M |
| Product code | A-NUC35-A1B A-NUC35-M1B |
