Max MT
Silent evolution for 5th Generation Intel® NUC boards with 2 bay 2.5" SATA mobile tray

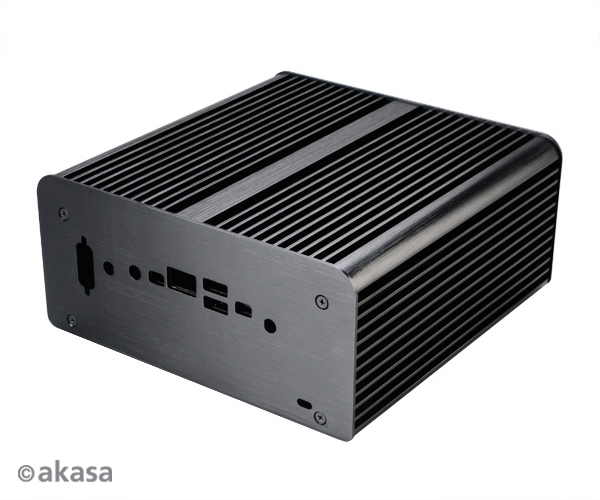

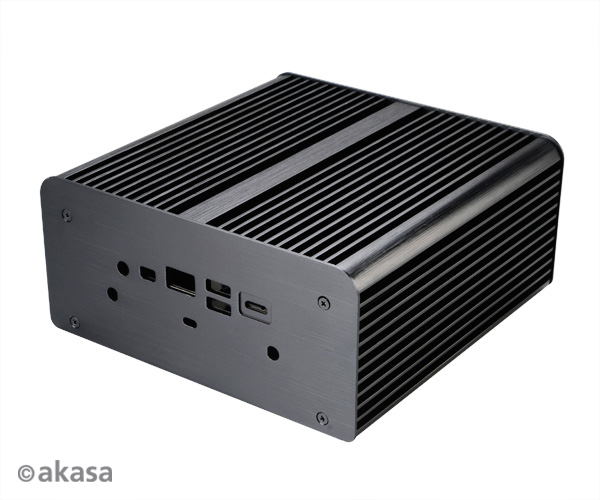

Fanless case for 5th Generation Intel® NUC boards. Supports VESA mount. Serial port support for MY boards. Compatible with Intel NUC5i5MYBE / NUC5i5MYHE / NUC5i3MYBE / NUC5i3MYHE NUC5i5RYH / NUC5i5RYK / NUC5i3RYH / NUC5i3RYK
|
with 2 bay 2.5" SATA mobile tray
• Aluminium fanless CPU cooling design

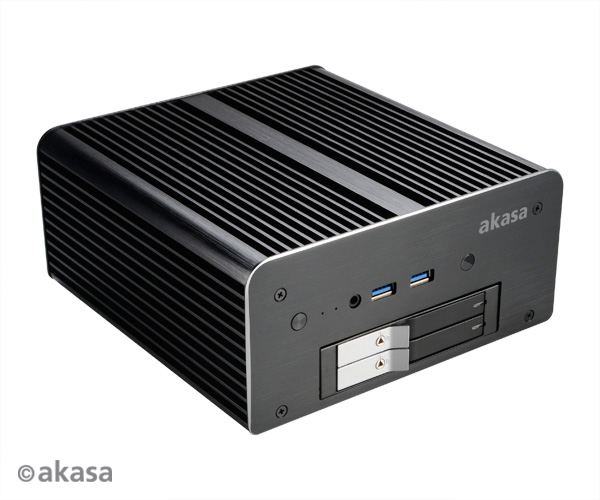

• Stylish front panel diamond effect • Two bay 2.5" SATA mobile tray • Support one serial port • Support IR remote function • Compatible with the following Intel® NUC Board NUC5i5MYBE / NUC5i5MYHE / NUC5i3MYBE / NUC5i3MYHE NUC5i5RYH / NUC5i5RYK / NUC5i3RYH / NUC5i3RYK Two bay 2.5" SATA
mobile tray Support
IR remote function & USB 3.0 port Totally silent
fanless CPU cooling design
all aluminium body for
quick heat dissipation aluminium heatsink for
heat transfer CPU
Compatible with Intel® NUC Board
NUC5i5RYH / NUC5i5RYK NUC5i3RYH / NUC5i3RYK Compatible with Intel® NUC Board
NUC5i5MYBE / NUC5i5MYHE NUC5i3MYBE / NUC5i3MYHE |
| Material | Aluminium |
|---|---|
| Motherboards types | UCFF 4" X 4" |
| Motherboard support | Intel® NUC Board (kit): NUC5i5MYBE / NUC5i5MYHE / NUC5i3MYBE / NUC5i3MYHE NUC5i5RYH / NUC5i5RYK / NUC5i3RYH / NUC5i3RYK |
| Dimensions | 174.6 x 179 x 79.6mm (WxDxH) |
| Weight | 1915g |
| Drive bays | two bay 2.5" SATA mobile tray |
| Security | Kensington lock |
| Serial port | 1 |
| Antenna fitting | 2 |
| Front I/O | Power button, power and HDD led, USB 3.0 port x 2, HD Audio in / out, IR receiver opening |
| VESA mounting | Support |
| Optional Power Adaptor | AK-PD065-01M |
| Product code | A-NUC20-A1B A-NUC20-M1B |
