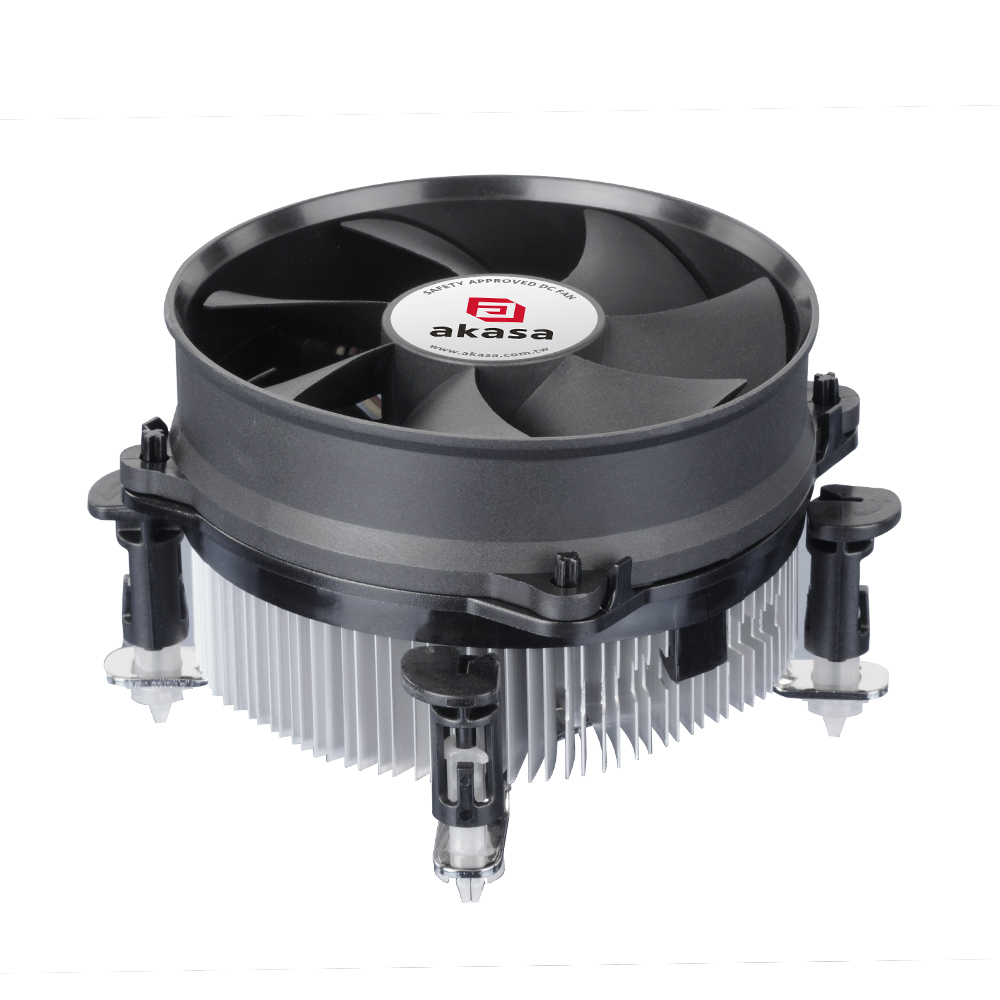

AK-CC7108EP01
Low Noise Intel Cooler
Great value Intel cooler with 92mm low noise PWM fan. Adjustable push-pins for easy mounting and reliable retention on LGA775 / 115X, high engineered aluminium heatsink ensures efficient CPU cooling up to 77W.

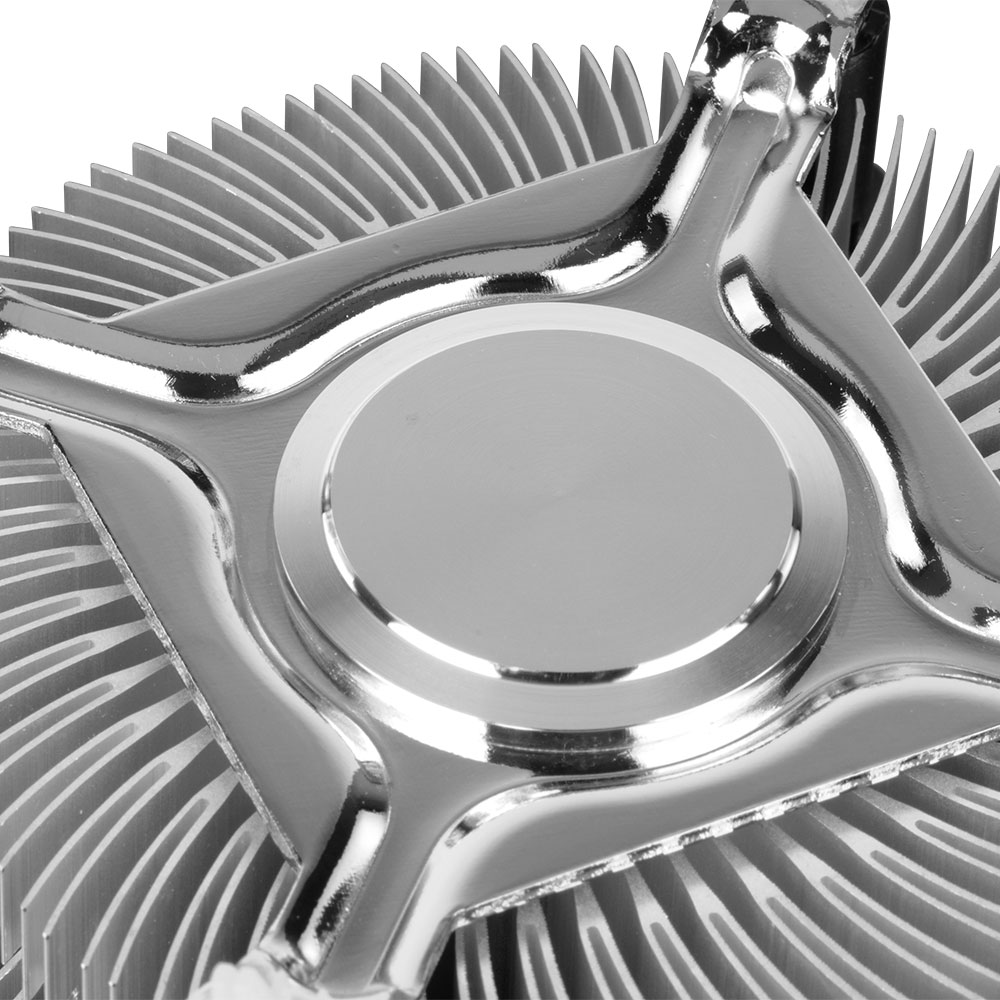

AK-CC7108EP01 is a new design OEM CPU cooler combining low noise, efficient cooling with great value. High engineered omni directional aluminium heatsink with bi-ped fins maximize heat dissipation and provides optimal CPU and motherboard VRM cooling. Low noise 9.2cm PWM fan uses Intel approved power management (PWM) where speed is regulated automatically by CPU usage. Under normal conditions the CPU fan speed is low ensuring low noise computing.

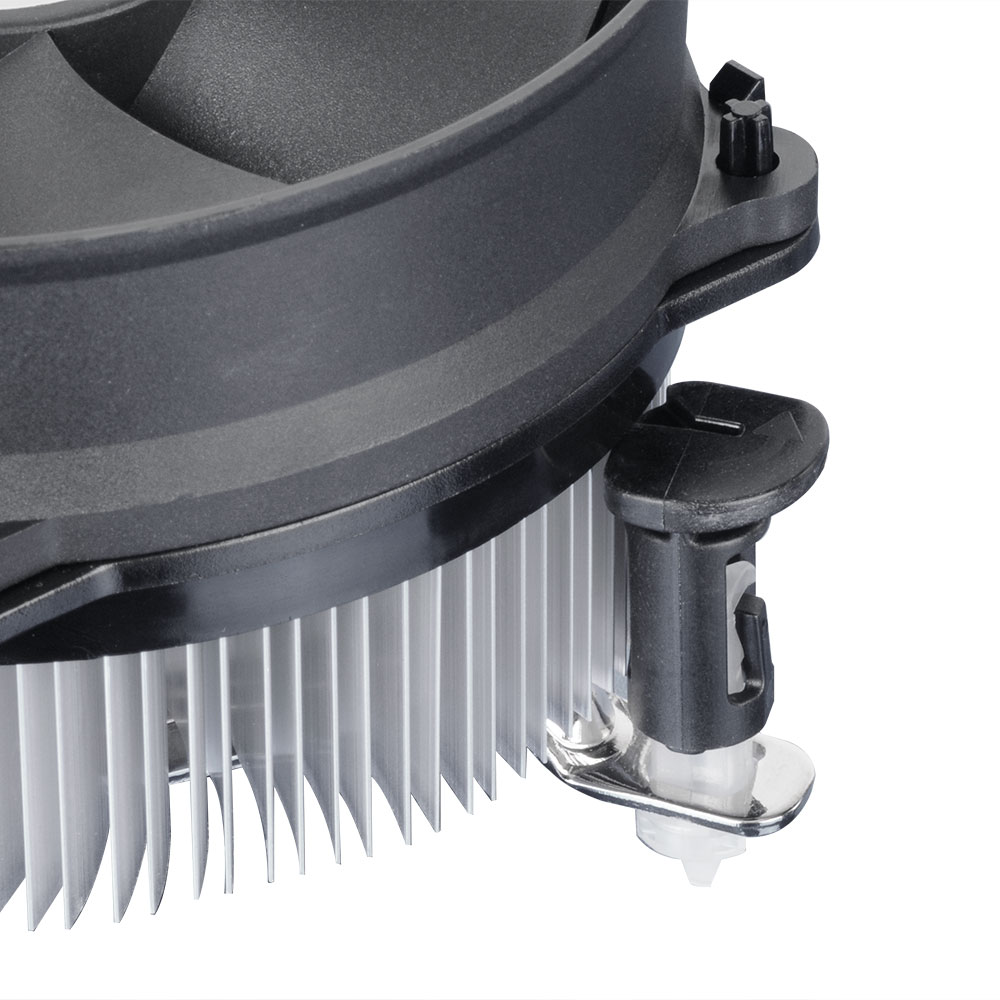

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on LGA775 / 115X / 1200 platforms without any mounting adjustment, pushpins will slide into correct position.
AK-CC7108EP01 is designed to work with CPU’s up to 77W (Ivy Bridge) but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.
• High engineered aluminium heatsink for cost effective cooling performance
• Bi-ped fins maximise heat dissipation
• Intel approved push pins provide reliable retention
• Intel LGA775 / 1150 / 1155 / 1156 and 1200 compatible

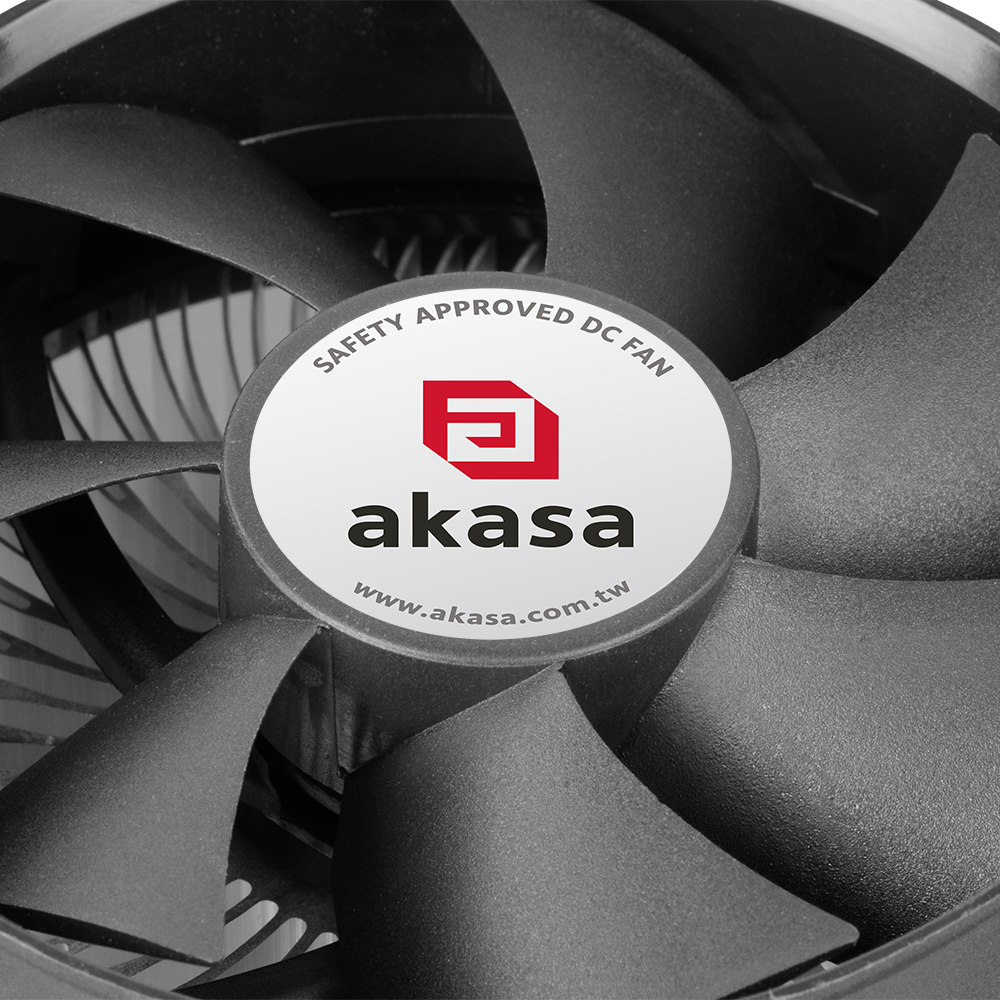

• 92mm low noise PWM fan
• High performance thermal interface is pre-applied
• Total height of 58mm from CPU level
Socket Type | Intel LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200 |
---|---|
Suggestion TDP (W) | 77 |
Cooler Dimension | 95 x 95 x 58.5 mm |
Heatsink Material | Aluminium fins and core |
Installation | Push-pins |
Weight | 292.3g |
Product Code | AK-CC7108EP01 |
Dimensions | ∅92 x 25 mm |
---|---|
Bearing | EBR Bearing |
Fan Speed | 600 - 3000 RPM |
Max Airflow | 56.81 CFM |
Max Air Pressure | 4.05 mm-H2O |
Noise Level | 17.2 - 30.54 dB(A) |
Current Rating for Fan | 0.26A |
Voltage Rating for Fan | DC 12V |
Connector | 4-pin PWM |
Fan Life Expectancy | 40,000 hours |
Warranty | 2 years |
