G-Nexus P24 PSU 12VHPWR 12+4-Pin to 3 8-Pin Adapter
600W, Right Angle, Male-to-Female

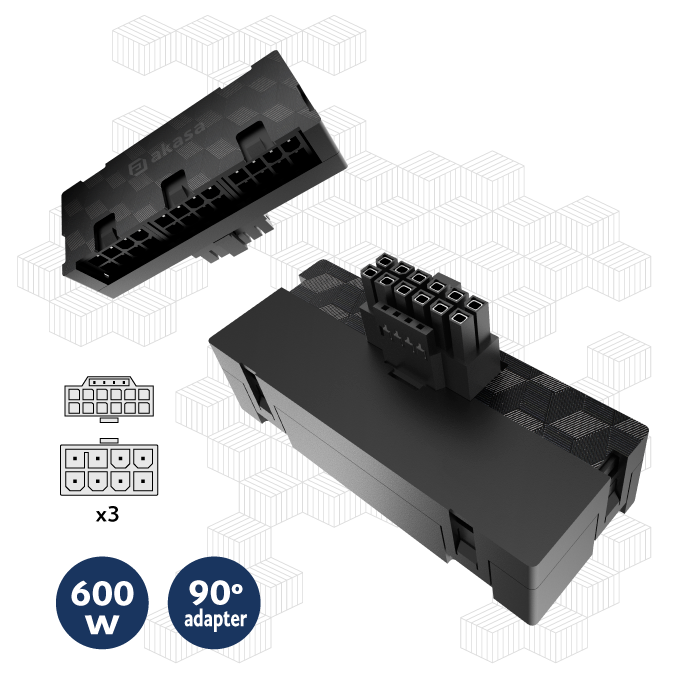

Innovative 12VHPWR connector that allows you to easily improve the aesthetic and cable management with a 90-degree 12+4-pin to three 8-pin adapter. Supporting up to 600W of power.
• 12+4-pin to three 8-pin
• 90 degree connection

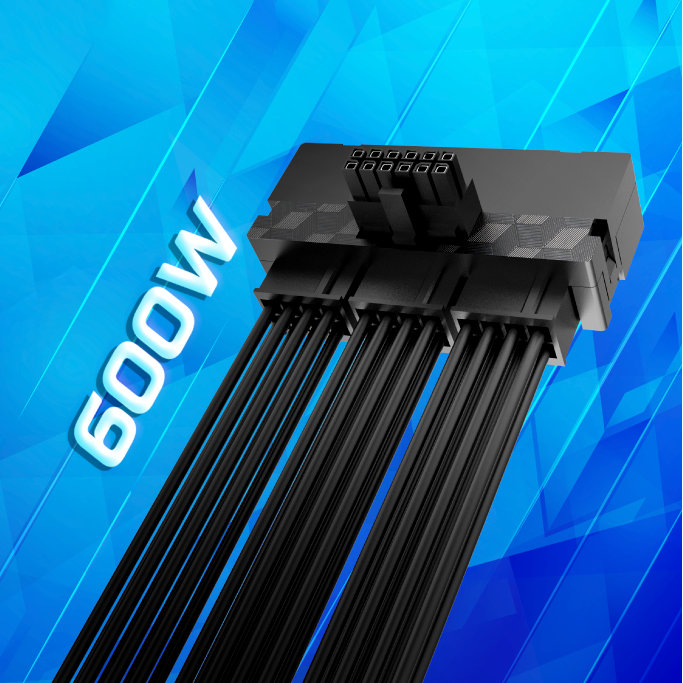

• Supports up to 600W
• Compact and aesthetic design
• Better case spacing
An angled connection eliminates the necessity for wire bending, preventing additional stress on both the cable and the graphics card connector.

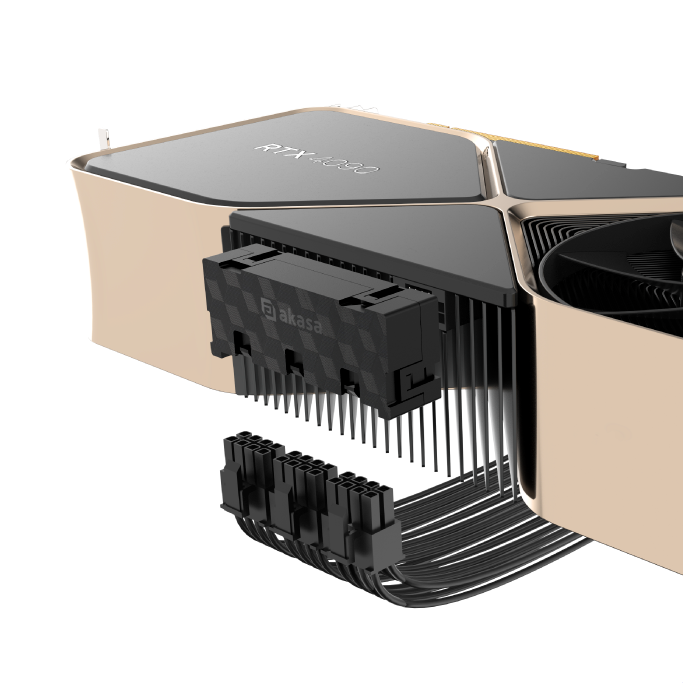

Our 12VHPWR connector follows the TYPE 1 configuration with the 4-pin on the backplate side, located above the 12-pins.
Perfect for latest NVIDIA RTX 40 Series GPUs with legacy PSU’s.
The compact design enables the use of smaller cases by providing improved panel clearance, all while maintaining an elegant appearance thanks to its stylish pattern.
The compact design not only saves space for easier cable management but also retains its elegant appearance with a stylish pattern.
- Refrain from utilising cables that are not standard configuration
- Ensure adapters and cables are kept away from heat sources
- Avoid daisy chaining or using additional adapter cables

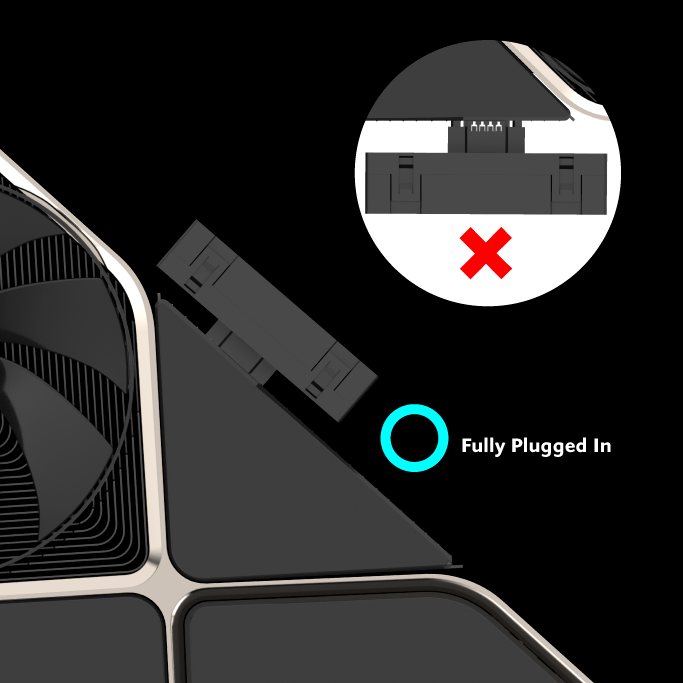

To prevent incorrect operation and the risk of the connector overheating and melting, it's essential to ensure a complete and secure connection between connectors.

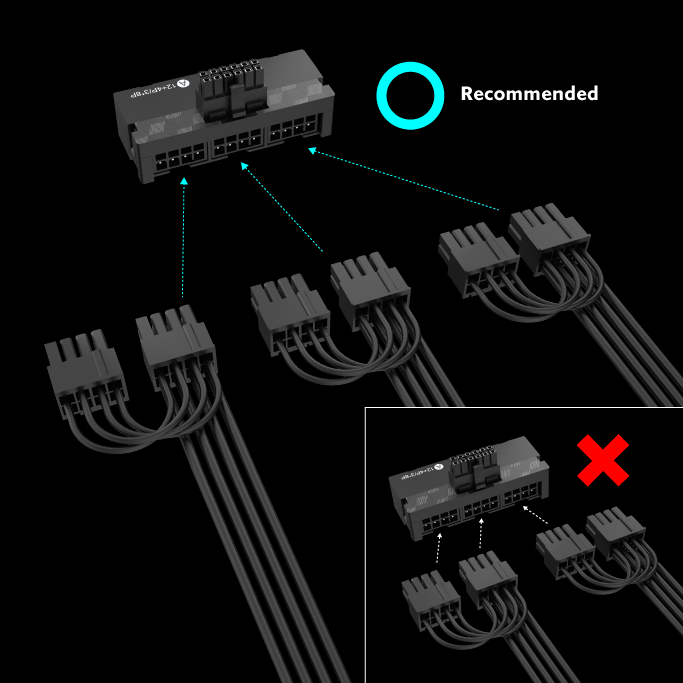

We highly recommend the use of 3 separate PCIe cables to connect with Power Supply Unit (PSU) for the best performance and safety.

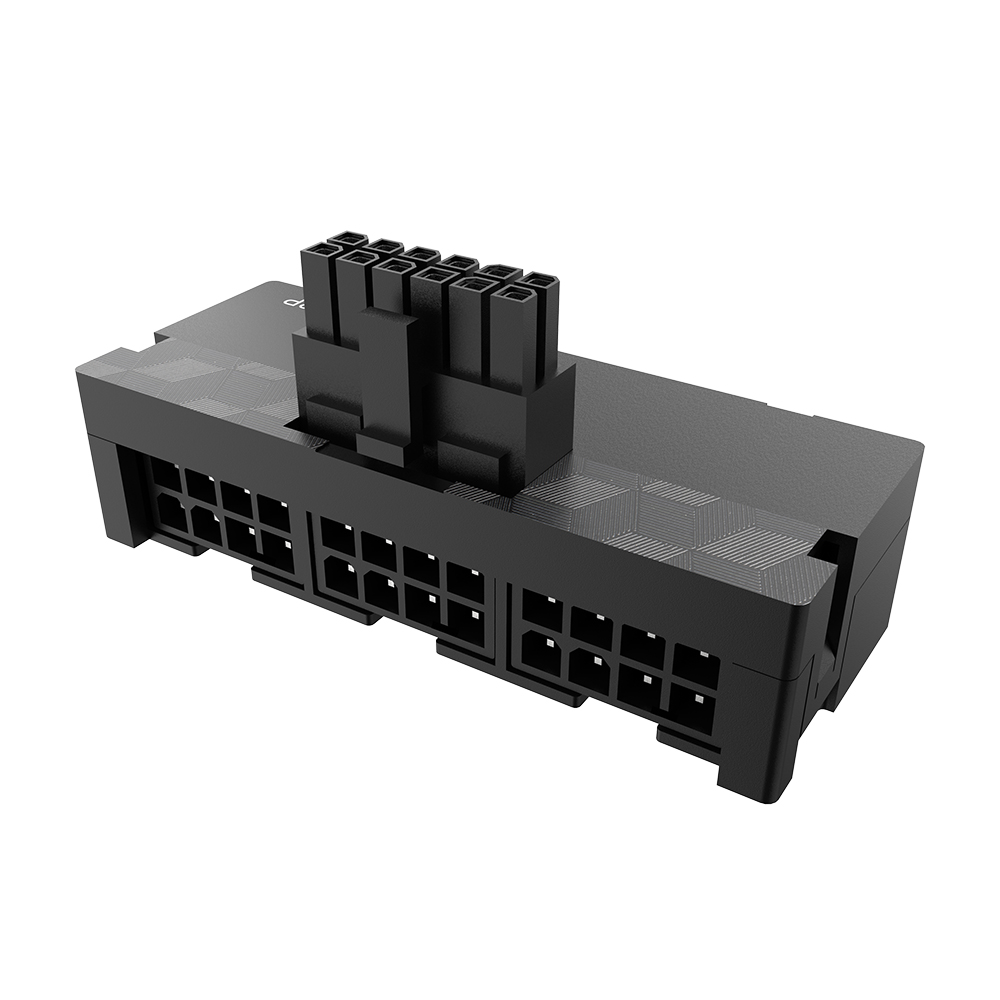

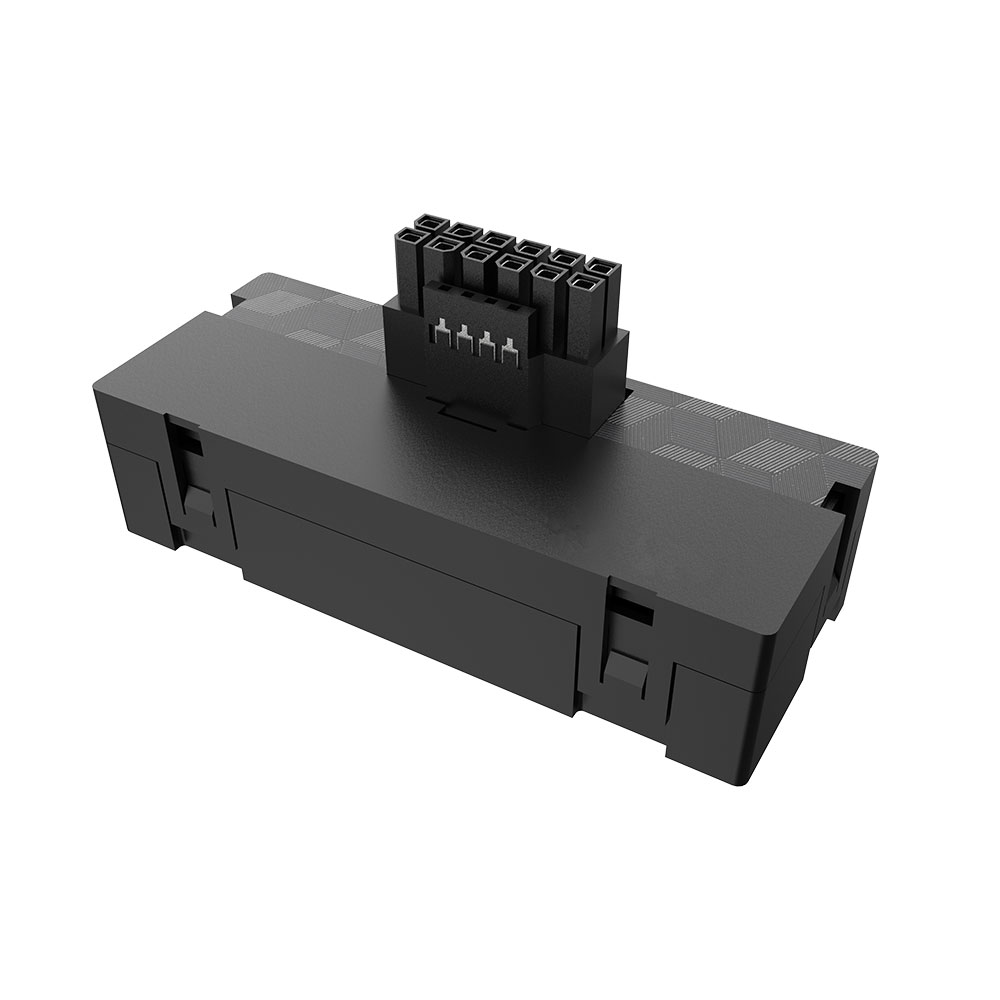

| Application | Right angle adapter for 12+4-Pin (male) connector to three 8-Pin (female) connector |
|---|---|
| Dimensions | 26.5 x 67 x 31mm |
| Connector | 12+4-Pin (male) x1 8-Pin (female) x3 |
| Max. Wattage Support | 600W |
| Product Code | AK-CBPW30-BK |
