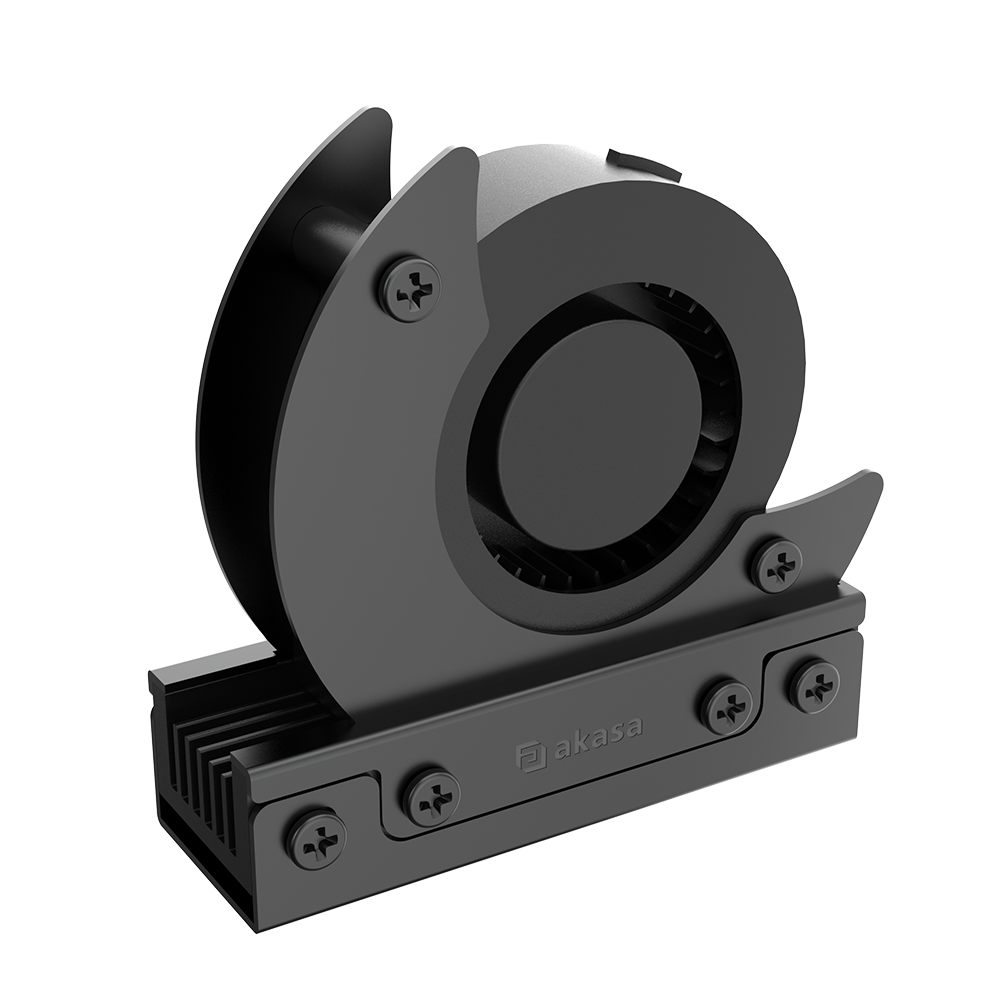

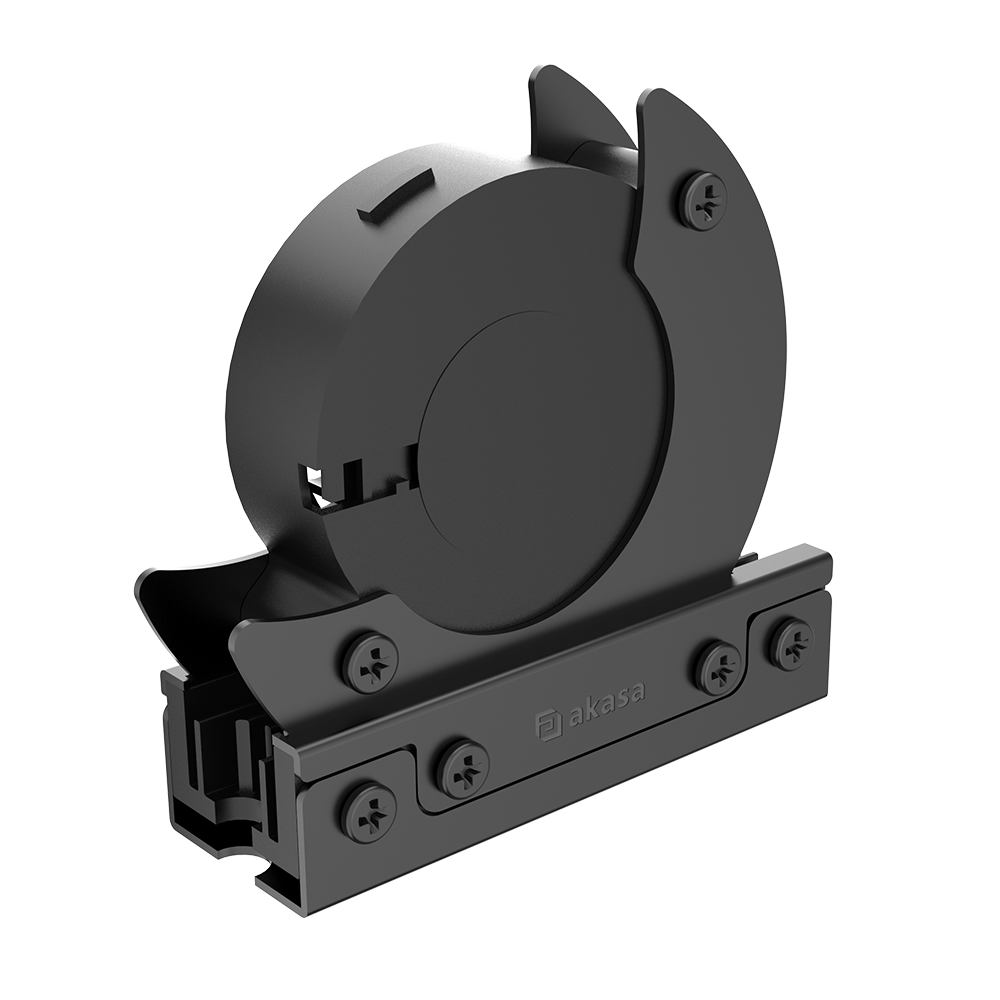

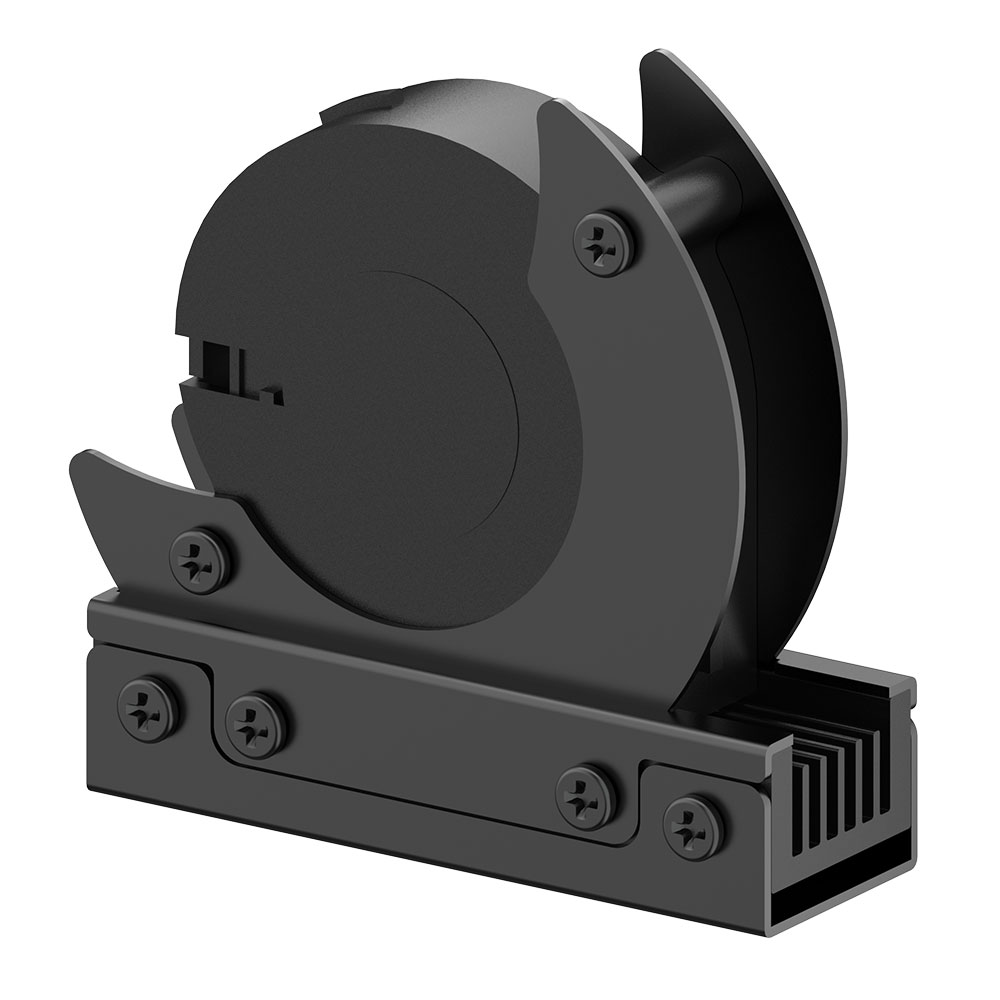

Gecko Cooler

Superior cooling for
M.2 NVMe PCIe & SATA drives
in Desktop Computers

• Active cooler for M.2 PCIe NVMe SSDs
• Aluminium heatsink for fast heat absorption
• Turbo blower fan to move max air
• Sleek black aesthetics

Stand Tall to Keep Speed

M.2 PCIe NVMe are getting faster and faster in speed performance, which means they are getting hotter. The Gecko Turbo cooler with an upright blower fan keeps your SSD cool to enhance performance. Perfect for large tower desktop gaming & overclocking systems!

Turbo Blower Fan to Expel Max Air

Turbo fast 3K RPM blower fan can quickly discharge the heat from the SSD.

Outstanding Thermal Pad

Gecko Turbo comes with its own high performance silicone thermal pads filling any air gaps. Ensuring better heat dissipation with a temperature reduction of up to 7% than common thermal pads. Much like geckos with adhesive pads on their hands.

M.2 Drive Compatibility

Designed to cool down hi-performance 80mm (2280) M.2 SSDs which produces huge heat in an extreme or gaming PC set-up.

Superior Mounting

Heatsink comes with strong mounting clips and screws for a more secure and reliable M.2 installation.

Superior Cooling for your NVMe

Increases performance and reduces temperatures by up to 58% at write/read testing. Which enhances the lifespan of the drive and performance.

Perfect for Tower Desktops

Tall size of the cooler means it perfect for large tower desktop set-ups. Please take note of the dimensions to make sure it fits in your build.

Application Active cooler for M.2 SSD
Designed for Standard M.2 2280 SSDs
Material Aluminium heatsink with steel bracket
Dimension 76.21 x 72.53 x 24.2mm
Weight 119.1 g
Colour Black
Installation Screw mounting
Warranty 2 Years
Product Code A-M2HS03-BK

Fan Dimension 50 x 50 x 15 mm
Bearing Type Twin ball bearing
Fan Speed 3000 RPM
Max Airflow 3.98 CFM
Max Air Pressure 8.2 mm-H2O
Noise Level 29 dB(A)
Voltage Rating DC 12V
Current Rating 0.02A (Max 0.03A)
Fan Connector 3-Pin
Fan Life Expectancy 80,000 hrs at 25 ̊C

Installation manual
