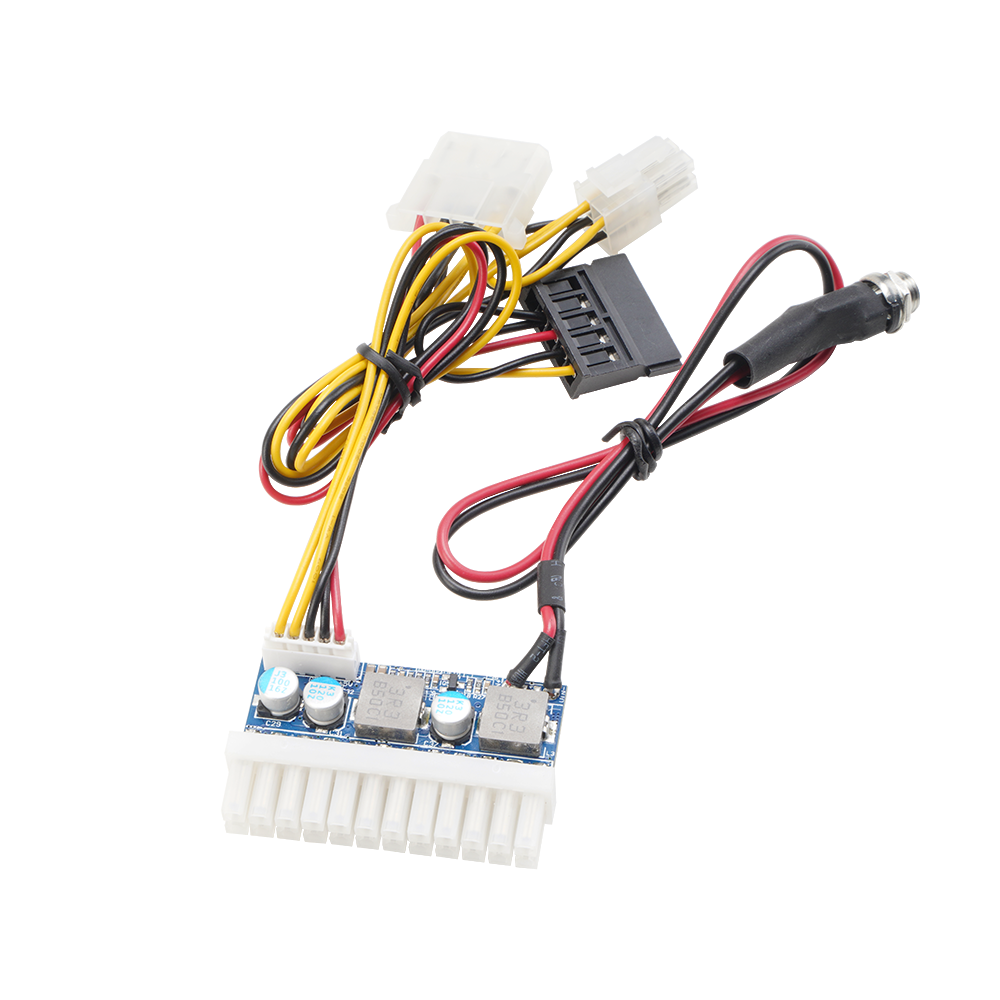

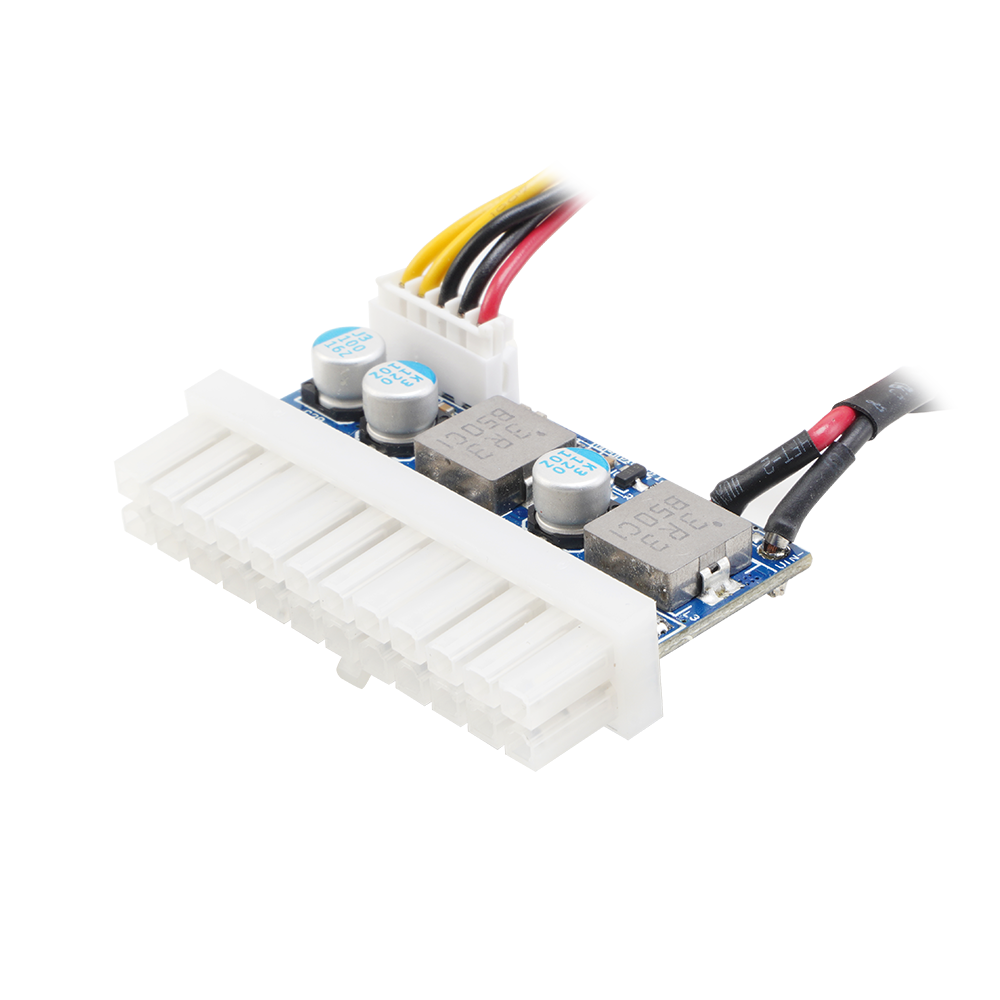

80W DC to DC ATX power supply
Compact Power
80W DC to DC ATX power supply designed for small form factor chassis. High efficient power transfer. Over power and over voltage protection.
Product Code: AK-PE080-03
80W DC to DC ATX power supply
Compact Power
80W DC to DC ATX power supply designed for small form factor chassis. High efficient power transfer. Over power and over voltage protection.
• Compact design support small form factor chassis
• Directly plug into ATX 24pin connector
• High efficient power transfer
• Over power and over voltage protection
| Application | DC to DC ATX power supply for small form factor chassis |
|---|---|
| Input voltage | DC 12V |
| Dimensions | 54.4 x 15 x 33 (L x W x H) |
| Product weight | 46g |
| DC jack | 5.5 x 2.5 x 10mm, panel mounting |
| DC Jack mounting hole cutout | Ø 7.8mm |
| Product code | AK-PE080-03 |
