LONDON, England, November 03, 2025 – Akasa, a leading provider of thermal solutions, has launched the Kepler, a 2U rack-mountable, fanless case for Micro-ATX and Mini-ITX motherboards. The Kepler provides passive cooling for Intel® Core™ (12th-14th Gen) and Core™ Ultra (15th Gen) processors up to 35W TDP and integrates a 150W fanless ATX power supply, intended for use in industrial server, control, telecommunications and broadcasting applications where silence and reliability are key.

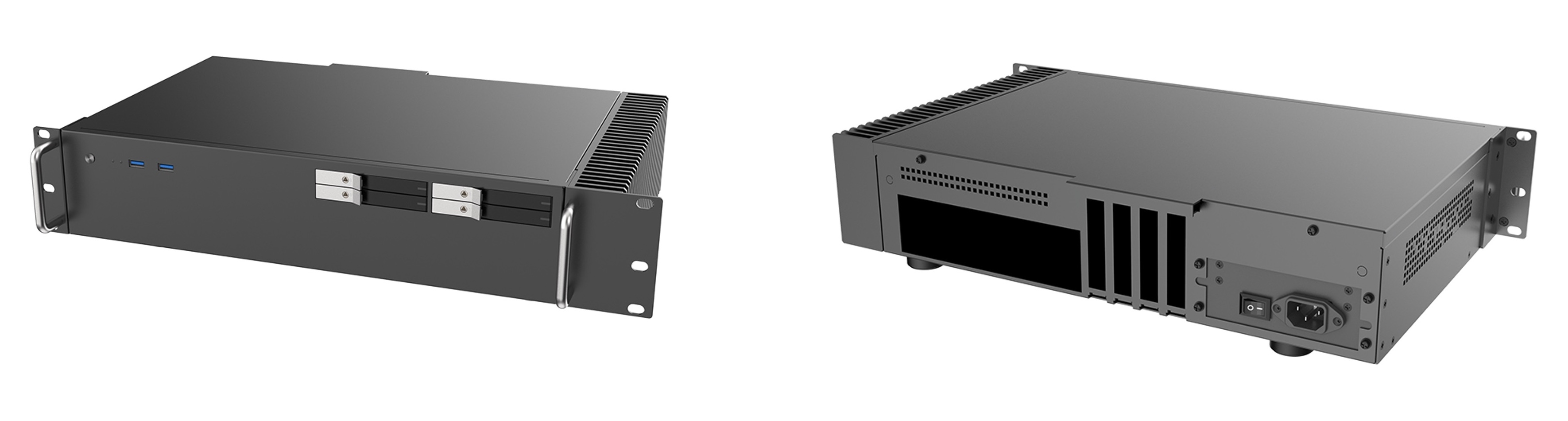

Kepler Fanless Case
The chassis is compatible with Micro-ATX and Mini-ITX motherboards with Intel® LGA1851 and LGA1700 sockets, supporting Intel® Core™ (12th/13th/14th Gen) & Core™ Ultra (15th Gen) processors with a thermal design power (TDP) of up to 35W.

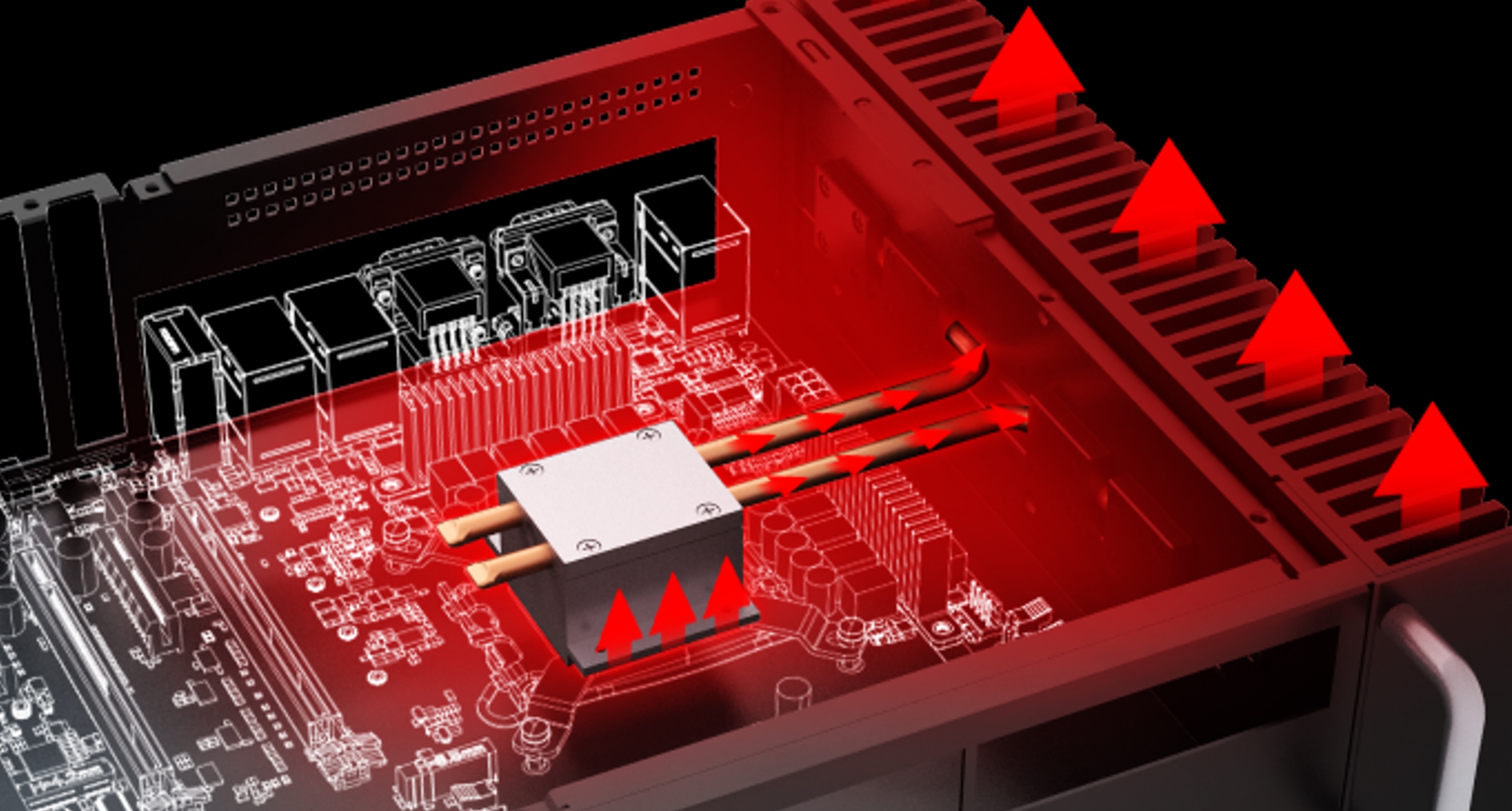

Its fully fanless design utilises a high-performance aluminium thermal module and dual copper heatpipes to transfer heat efficiently from the CPU to the external aluminium fins, increasing surface area for rapid dissipation into the surrounding air without any moving parts.
Integrated Power Supply Unit (PSU)
Applications
- Industrial automation and control systems
- Embedded computing and servers
- Audio-visual and broadcasting equipment
- Telecommunications solutions
- Medical and laboratory instrumentation
- NAS/RAID storage systems
Specification
Fanless Case
| Material | Black sandblasted steel (SGCC) with aluminium heatsink |
| Motherboard Type | Micro-ATX, Mini-ITX |
| Socket Support | Intel® LGA1851, LGA1700 |
| Maximum TDP Support | 35W |
| Dimensions | 481.8 x 307.5 x 87mm (W x D x H) |
| Drive Bays | 4 x 2.5" SATA SSD/HDD bays with door lock (maximum drive height of 9.5mm) |
| Front I/O Interfaces | 2.5" SATA SSD/HDD bays x4, USB 3.2 Gen 1 Type-A ports x2, power LED opening, HDD LED opening, power button |
| Rear I/O Interfaces | Low-profile PCIe slot x4, motherboard rear I/O opening, power AC inlet and switch |

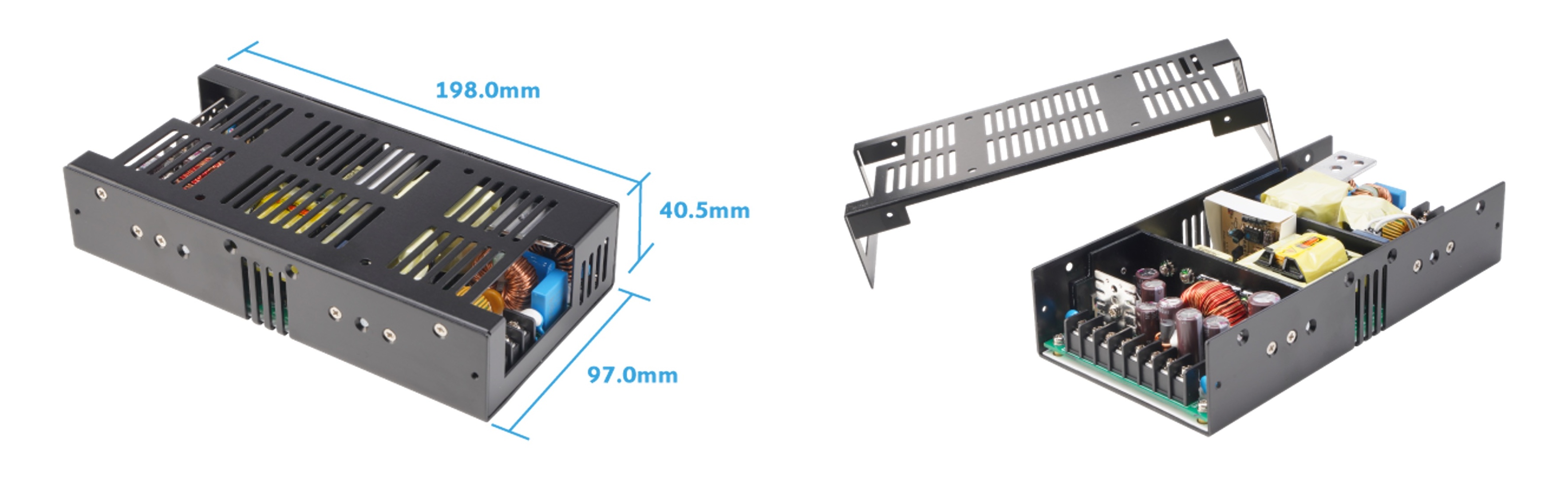

| Power Supply Unit (PSU) | 150W fanless, AC-to-DC, multi-voltage output power supply |
| Product Code | A-ATX11-M1B |
| Output Power | 150W convection cooled at 40°C |
| Output Voltage | +3.3V, +5V, +5V standby, +12V, -12V |
| Input Voltage | 90-264 VAC |
| Dimensions | 198.0 x 97.0 x 40.5 mm (D x W x H) |
| Operating Temperature | -10°C to 70°C |
| Power Efficiency | 83% |
| PFC | Active PFC Class D |
| EMI | EN 55022 Class B |
| Protection | Over Voltage Protection Short Circuit Protection Over Temperature Protection |
| Safety Standards and Directives | ITE safety standards BS IEC 62368-1, UL 62368-1 approved |
More information on CPU and motherboard compatibility can be found on the product webpage here.
Availability and Customisation
The Kepler is a made-to-order product. Akasa can provide project support and customisation based on the Kepler platform for commercial applications. Please contact the Akasa team with your specific design requirements for more information.
