Fanless 150W ATX PSU Bundle
Includes 150W AC-to-DC adapter and 200W DC-to-DC ATX adapter with 4-pin power DIN
Power supply bundle designed to power small form factor (SFF) systems. Maximum load of 12.5A. Features highly efficient power transfer with over power and over voltage protection.
• 4-pin power DIN connection
• Directly plug into ATX 24-pin connector
• Efficient power transfer
• Over power and over voltage protection
• Fanless design
External power adapter with a 4-pin male DIN connector, providing a 12V single rail output. Supports a maximum output of 150W (12.5A).
Available with a mains plug power cord, with UK and EU options currently offered. Other plug types may be available upon request.
Features the essential wires and connectors for small form factor (SFF) motherboards to perfectly fit into any compact chassis.
Provides 200W output power from a highly compact solution. Input connectivity via 4-pin power DIN.
Provides highly efficient power transfer coupled with Over Power Protection (OPP) and Over Voltage Protection (OVP)
Directly plug power into motherboard with ATX 24-pin connector, simplifying set up and reducing amount of cables needed.
Fanless design ensures zero noise, making it perfect for silent builds and professional environments.

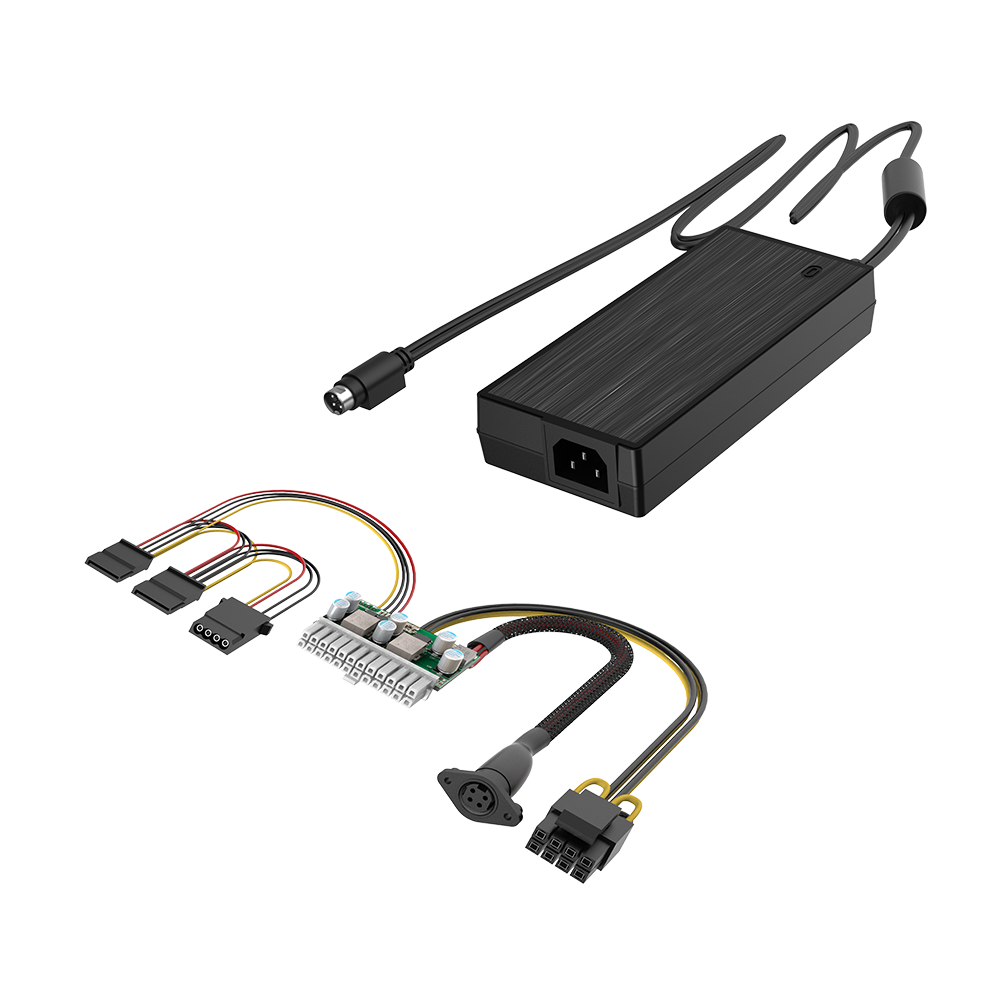

| Contents | DC power adapter x1 DC to DC ATX power supply for small form factor chassis x1 |
|---|---|
| Product Code | AK-PD150-KT |
| :: DC power adapter | |
| Input Voltage | 100 - 240V AC (auto ranging), 60-50 Hz |
| Output Voltage | DC 12V |
| Output Power | 150W |
| Max Load | 12.5A |
| Efficiency | 88% average |
| Safety | UL, CE, TUV, GS |
| Connector | 4-pin DIN Power connector |
| Product Code | AK-PD150-02K |
| :: DC to DC ATX power supply for small form factor chassis | |
| Input Voltage | DC 12V |
| Dimensions | 56 x 39 x 12.5mm (L x W x H) |
| Product Weight | 100g |

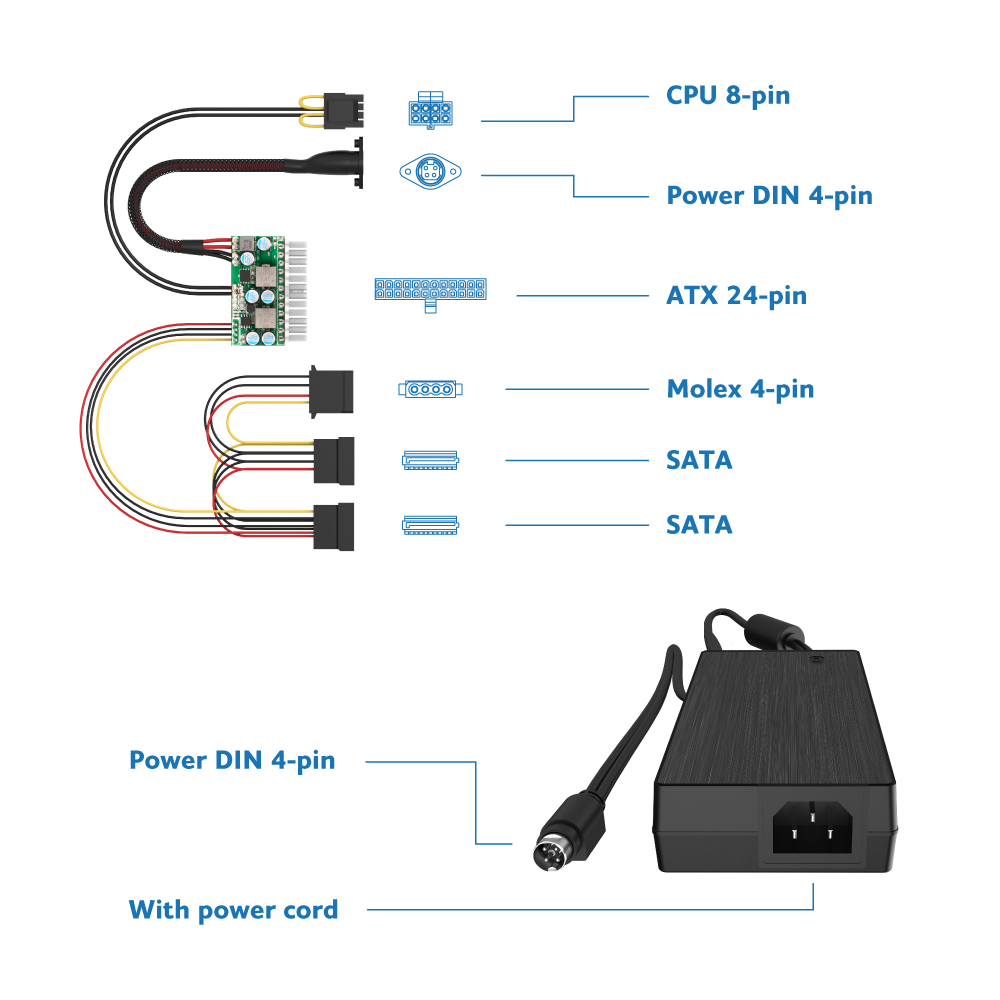

| Connectors | ATX 24-pin Power DIN 4-pin (300mm) CPU 8-pin (300mm) SATA + SATA + Molex 4-pin (265 + 170 + 150mm) |
| Product Code | AK-PE200-01 |
