Fermi CM5
1U Fanless Case for Raspberry Pi Compute Module 5 with CM5 IO Board
Slim 1U fanless case for Raspberry Pi Compute Module 5 and CM5 IO Board, supporting up to 10W TDP. Features full I/O support. Includes wall mounting brackets and Kensington lock slot. Optional 1U, 10-inch rackmount front panel available. Ideal for digital signage, edge AI and industrial applications.
Designed for the Raspberry Pi Compute Module 5 (CM5 and CM5Lite) mounted on the Raspberry Pi CM5 IO Board.
Fanless aluminium design conducts heat from the Compute Module 5 through the chassis body, supporting up to 10W TDP.
Zero moving parts ensure stable, long-term performance with no fan noise, dust intake or mechanical failure points.

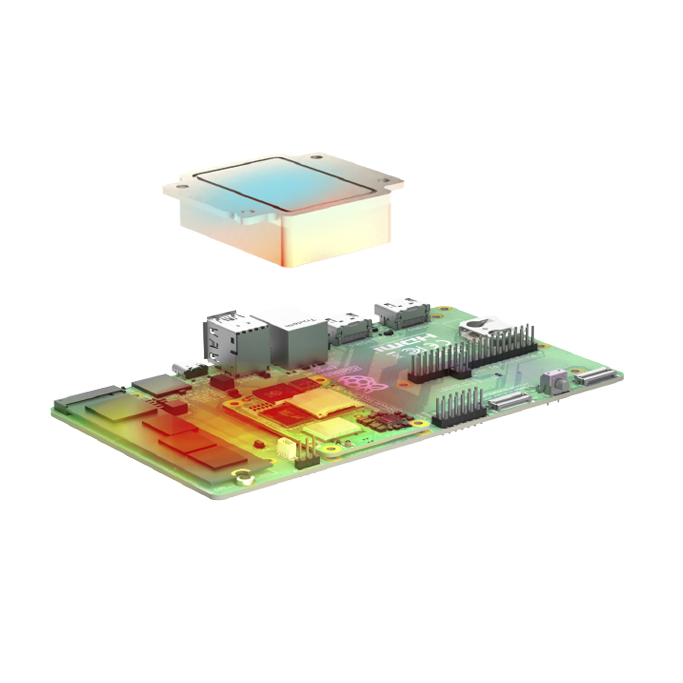

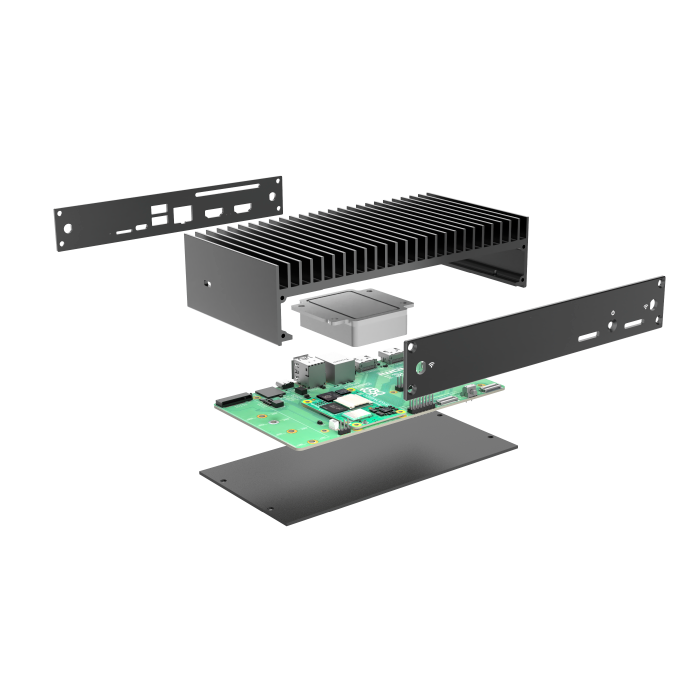

Custom aluminium thermal module and high-performance thermal pads conduct heat from the CM5 SoC and M.2 NVMe SSD respectively into the all-aluminium body, which acts as a heatsink to dissipate the heat to the surrounding. Ensures stable thermal management under continuous operation.

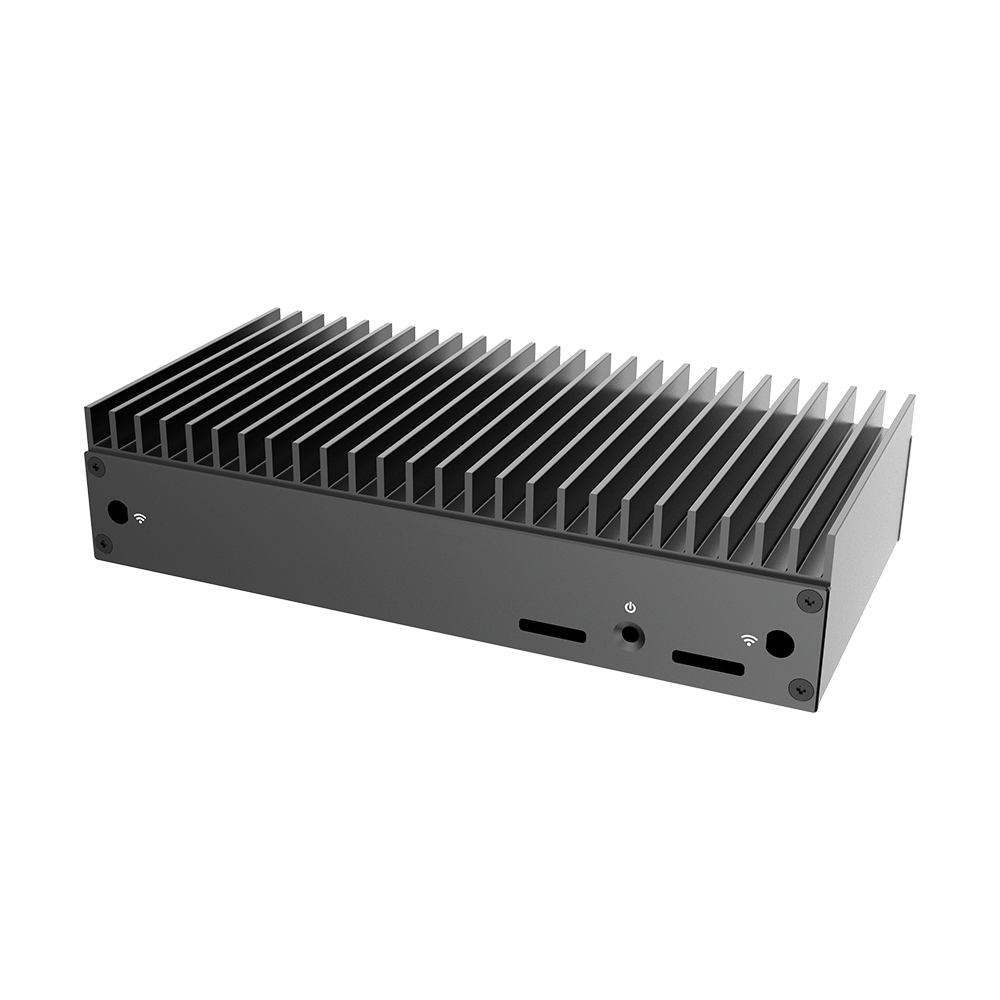

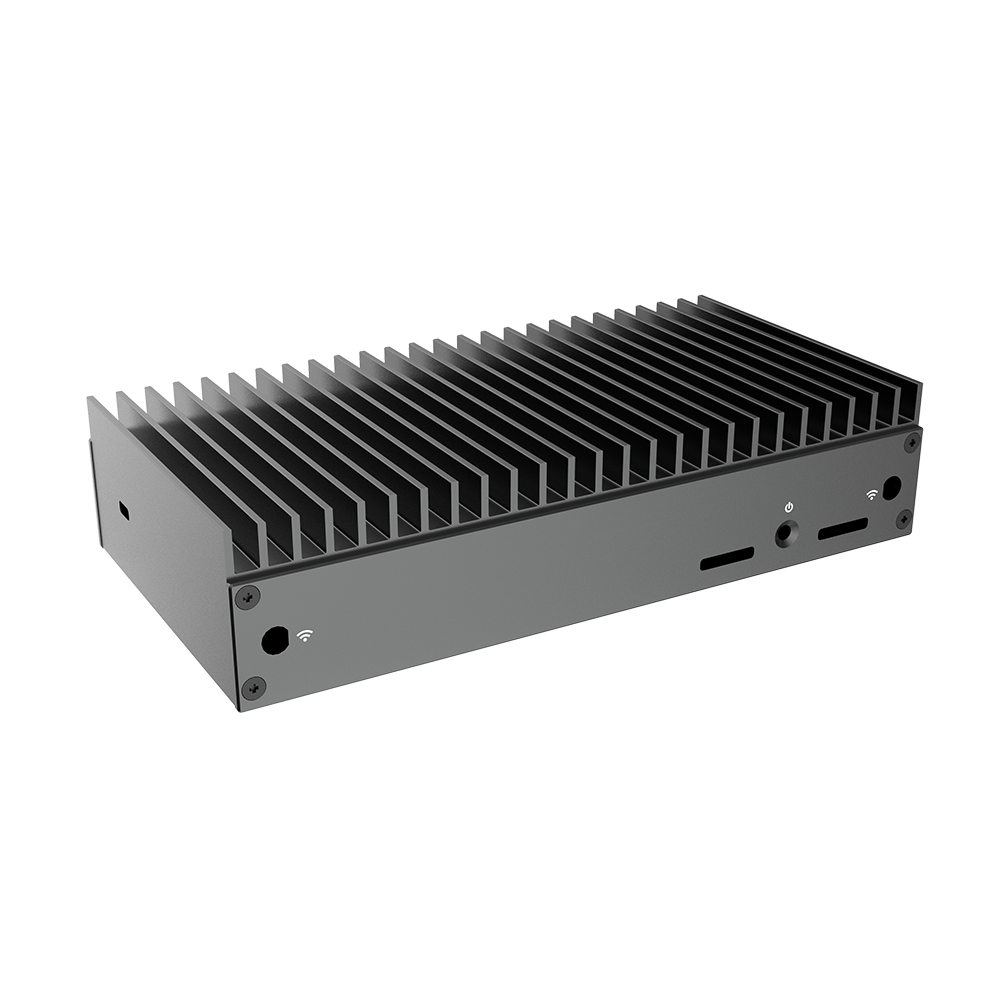

Compact 1U profile measuring 185 x 93 x 43.6mm (W x D x H). Ideal for space-constrained installations behind displays, inside AV cabinets or stacked at the network edge.

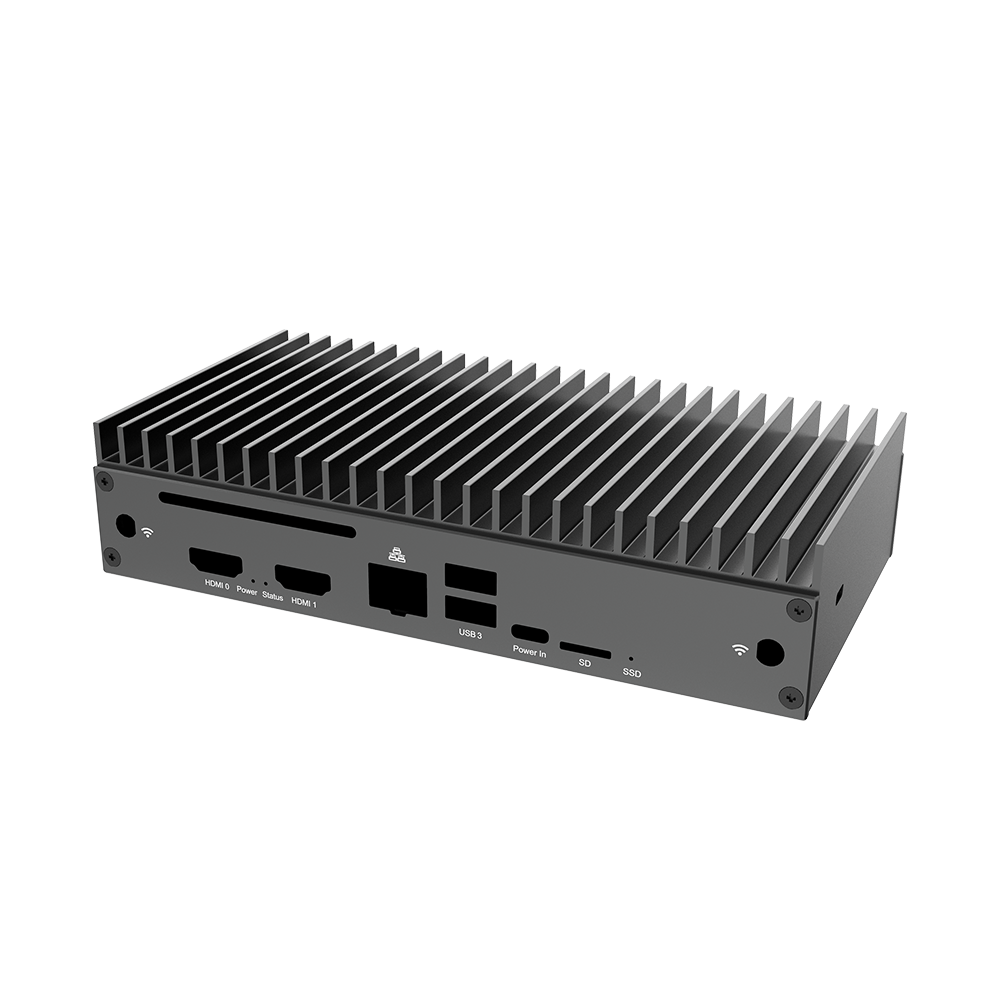

Full access to all on-board I/O including dual HDMI 2.0 (4K), dual USB 3.0 Type-A, USB-C power input, Gigabit Ethernet, MIPI CSI/DSI and microSD (CM5Lite). Features two x antenna fitting holes on both front and rear panels for flexible placement.

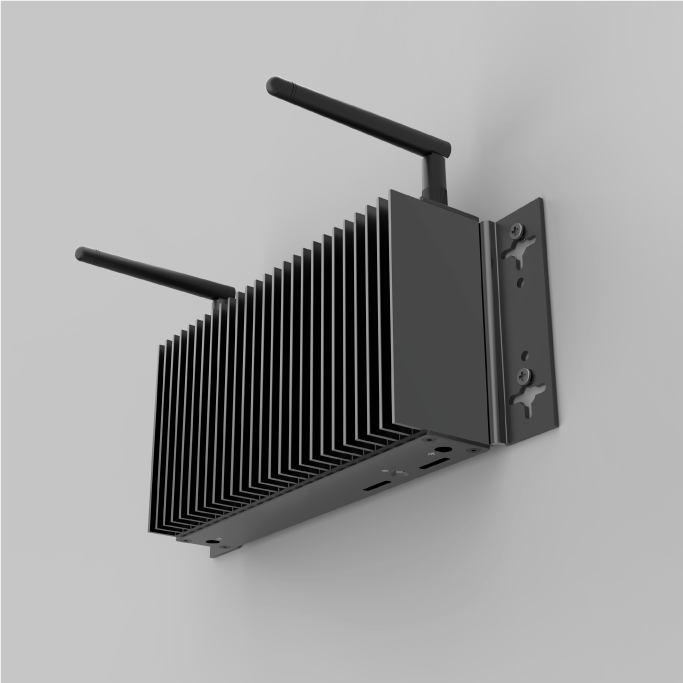

Supports wall mounting with included brackets for secure, clutter-free installation.

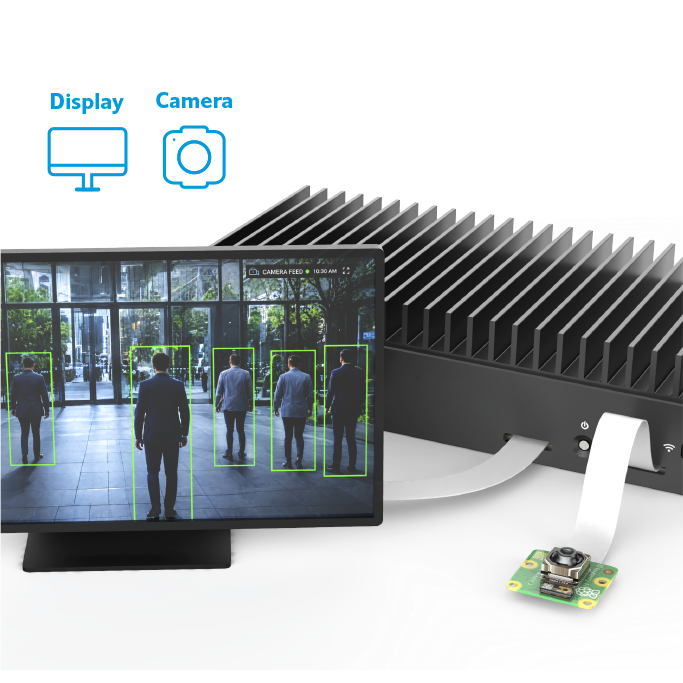

Internal clearance accommodates accessories connected to the CM5 IO Board, including Raspberry Pi-compatible cameras and displays through the MIPI CSI / DSI connectors, M.2 NVMe SSD and 40-pin Raspberry Pi HATs with PoE+ support through compatible third-party HATs. Opens up vision, signage, sensor and powered-Ethernet applications.

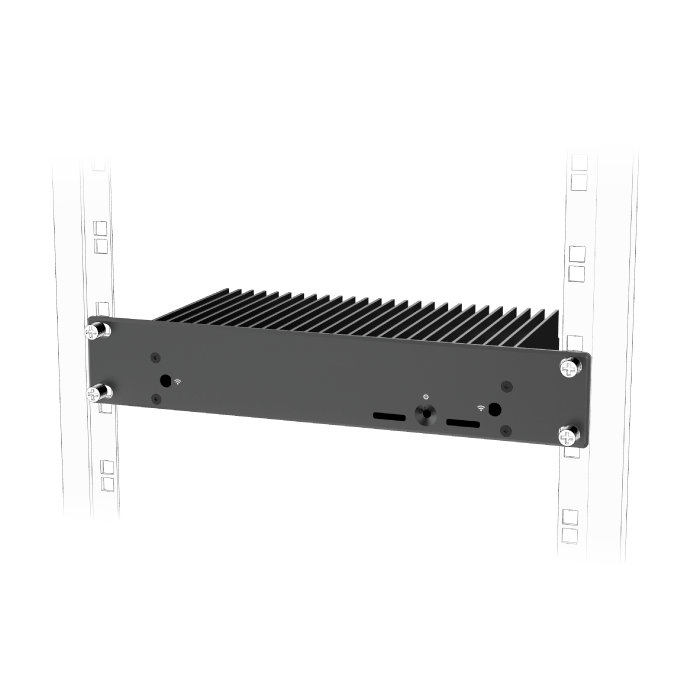

Optional 1U 10-inch rackmount front panel available for compact rack deployments in home labs, network closets and edge compute environments.

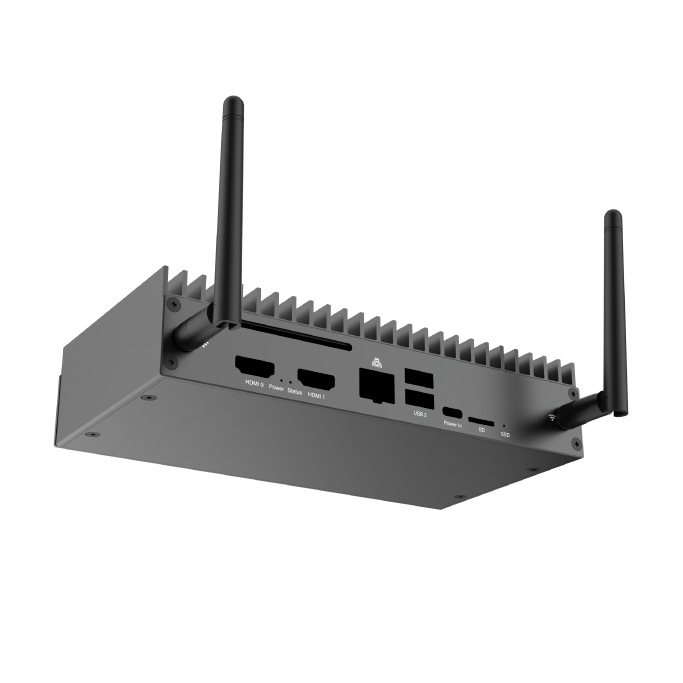

Easily connect your fanless mini-PC to Wi-Fi with optional external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR).
Suitable for a wide range of always-on deployments, including digital signage, point-of-sale (POS), kiosk systems, edge AI gateways, industrial automation, network appliances and IoT applications.
Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Material | Black sandblasted anodised aluminium |
|---|---|
| Wall Mounting | Supported |
| Dimensions | 185 x 93 x 43.6 mm (W x D x H) |
| Motherboard Support | Raspberry Pi Compute Module 5 with Raspberry Pi Compute Module 5 IO Board |
| Maximum TDP Support | 10W |
| Volume | 0.8L |

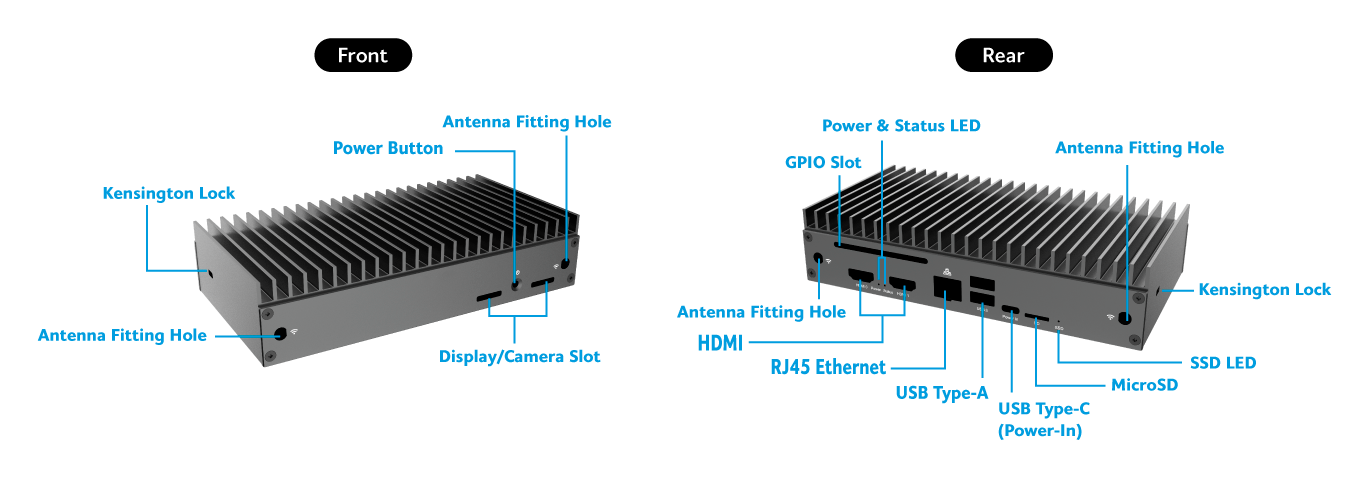

| Front I/O Opening(s) | Display/camera slot x2, antenna fitting holes x2, power button x1 |

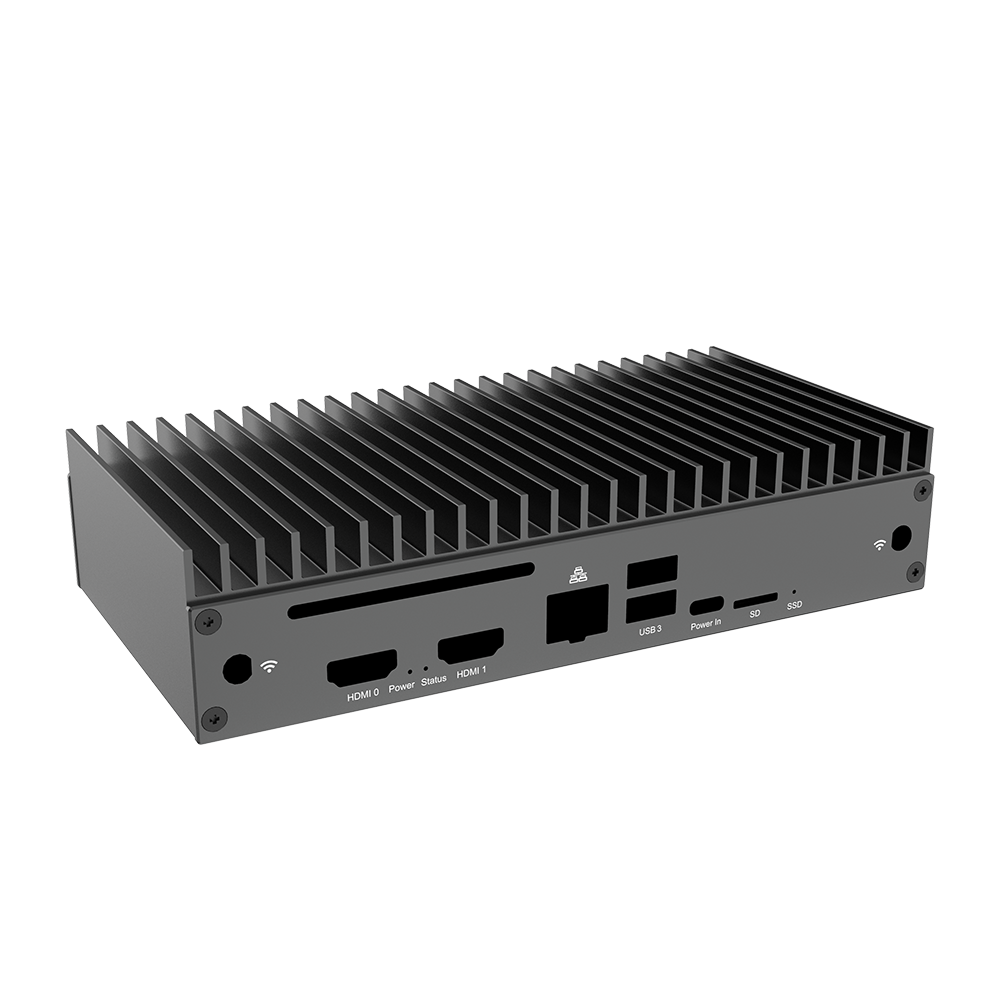

| Rear I/O Opening(s) | HDMI x2, GPIO slot x1, antenna fitting holes x2, Ethernet x1, USB Type-A x2, USB Type-C (power-in) x1, microSD slot x1, SSD LED, power LED, status LED |
| Antenna Fitting Holes | 4 |
| Security | Kensington lock |
| Product Code | A-RA18-M1B |
