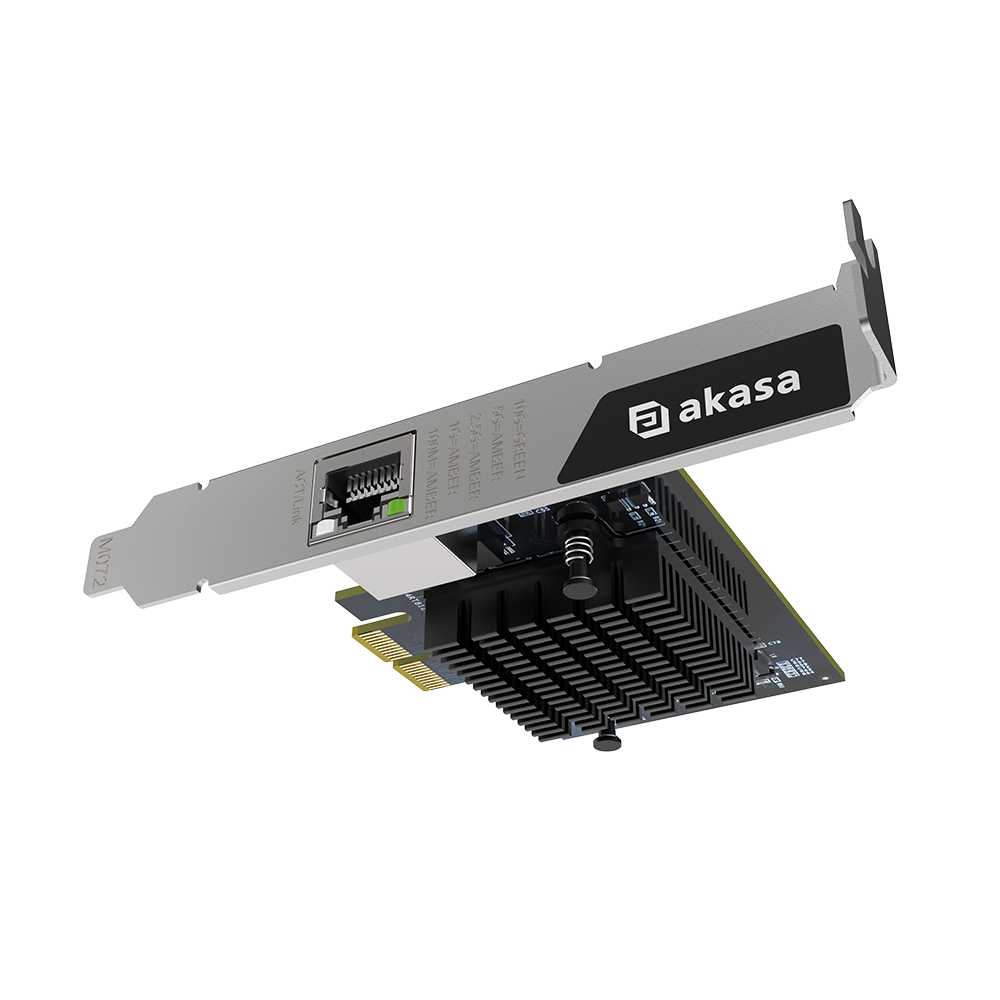

10 Gigabit PCIe Network Card

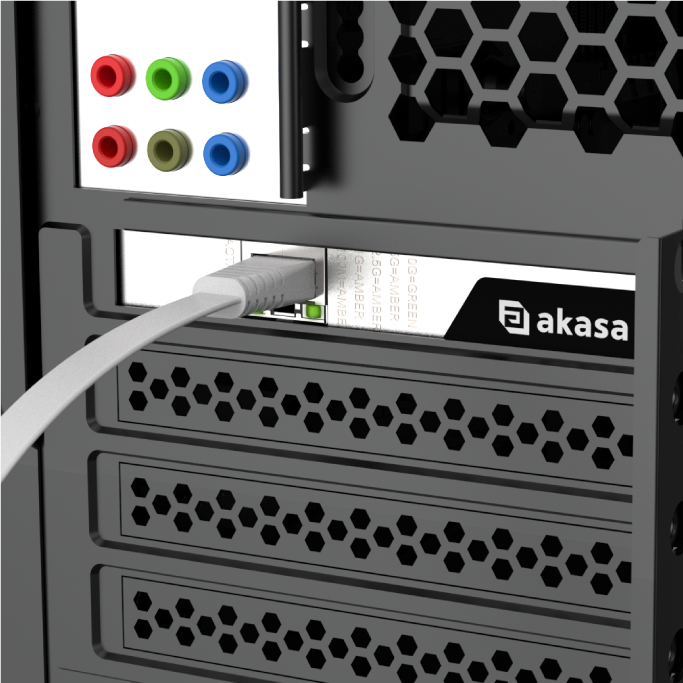

Add a single 10GbE RJ45 port to your desktop, workstation or server via a spare PCIe slot. Supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds. Features a PCIe 3.0 x2 interface for a reliable upgrade to existing systems.

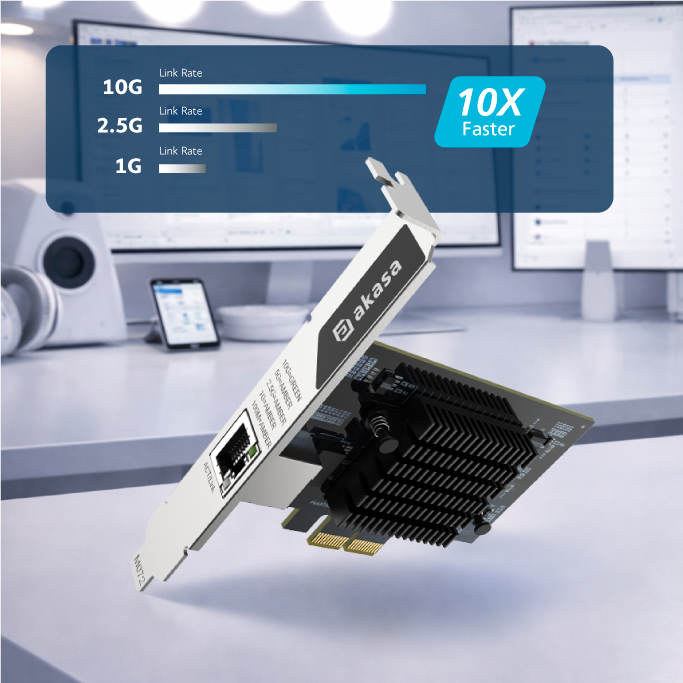

Upgrade your desktop, workstation or server to 10GbE networking with a single card installation. The Realtek RTL8127AT chipset delivers six auto-negotiating speeds: 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps and 10Mbps, maintaining compatibility with existing network infrastructure at any speed tier.
Cat6a or Cat7 cabling recommended for 10Gbps.
Uses two PCIe 3.0 lanes to provide sufficient bus bandwidth for 10 Gbps operation. Ideal for upgrading existing workstations, servers and NAS enclosures.

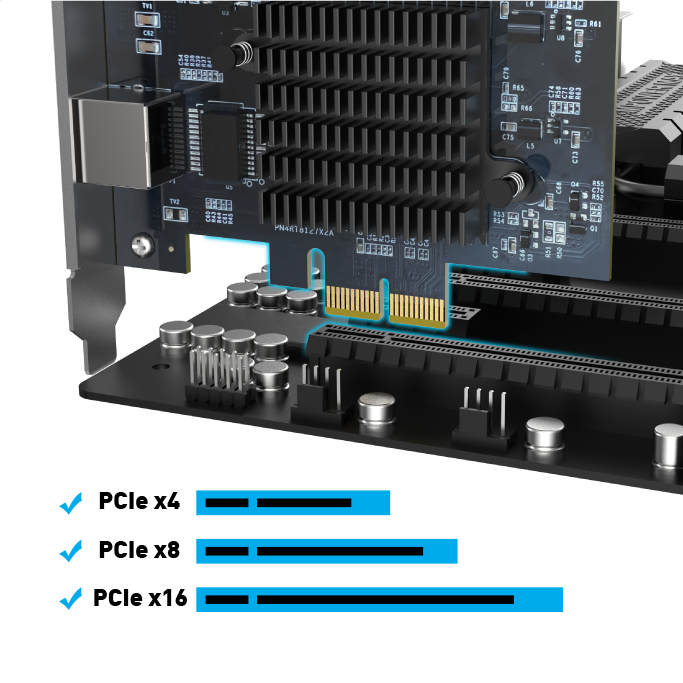

Fits PCIe x4, x8 and x16 slots; also compatible with x2 slots where present on server and workstation boards.

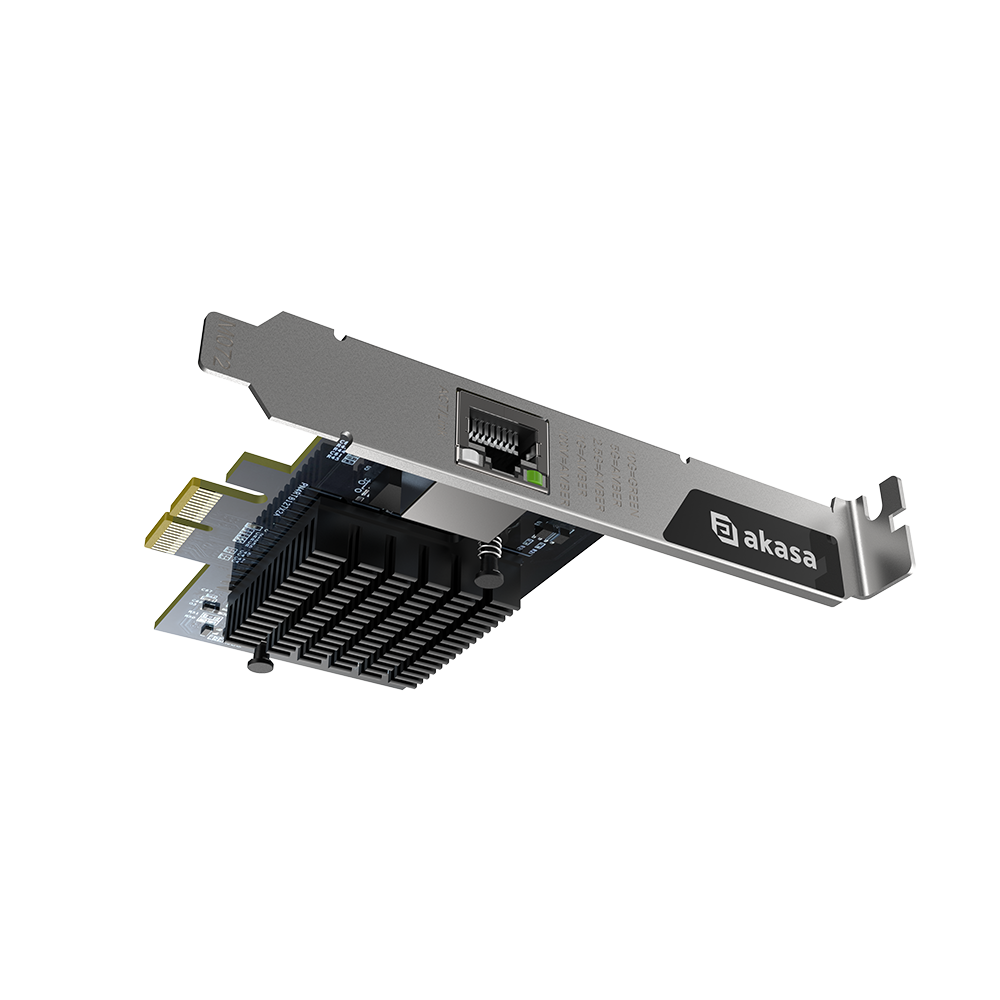

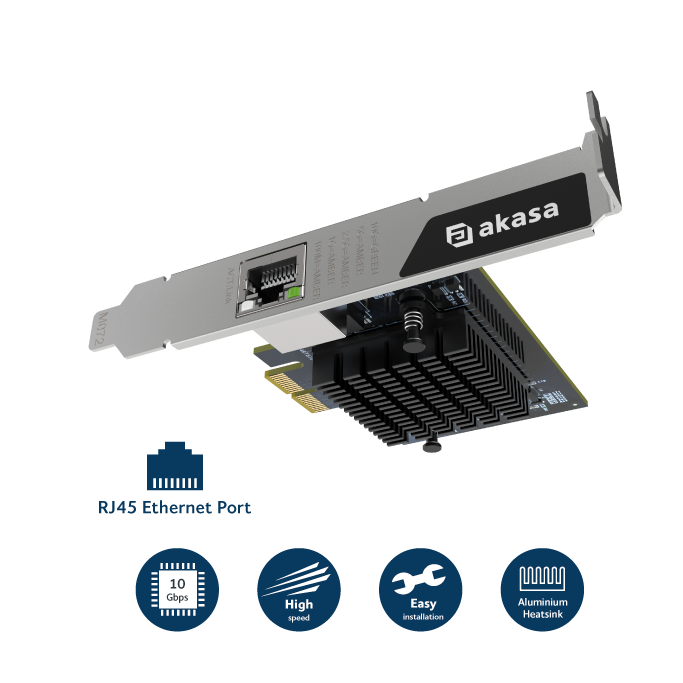

Single RJ45 port with green activity LED and dual-colour green/amber link speed LED for at-a-glance status monitoring.

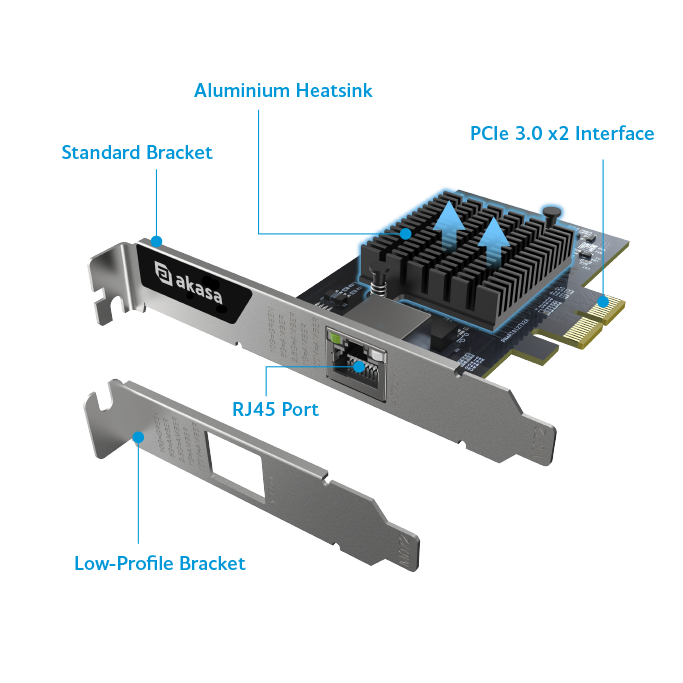

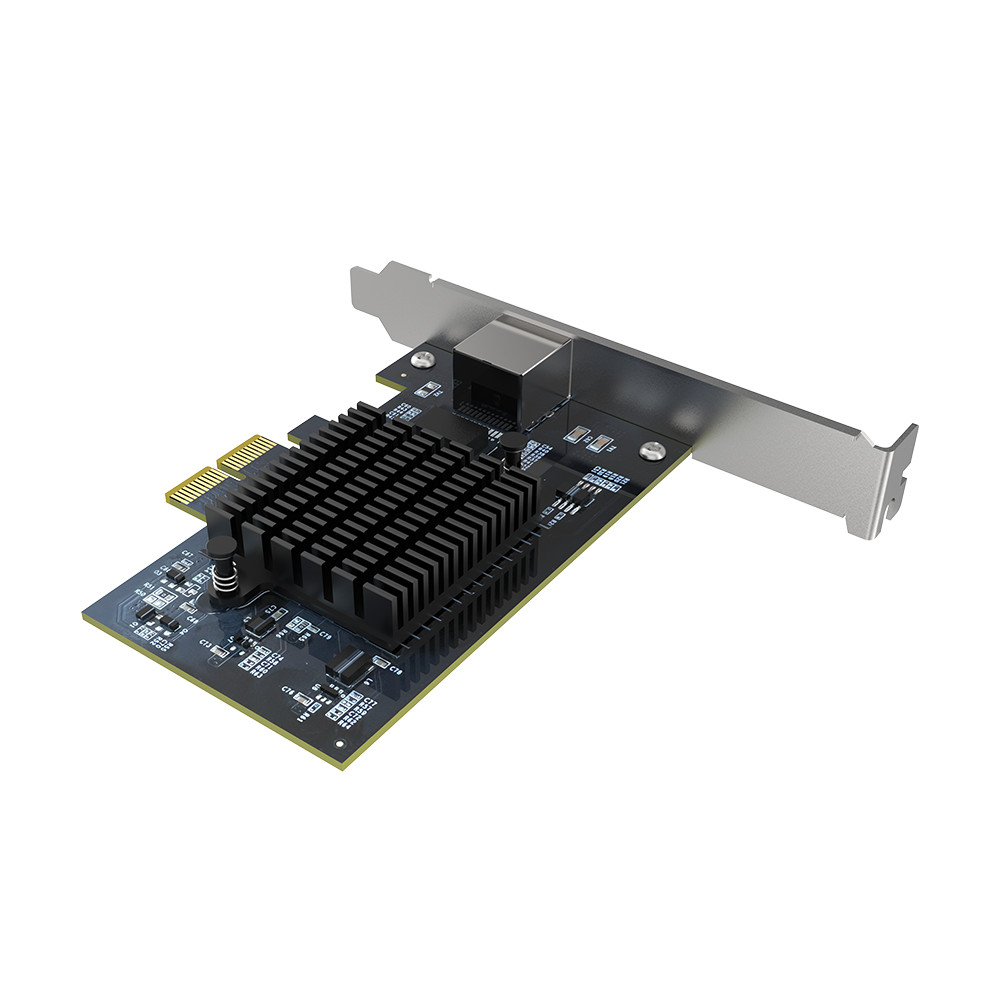

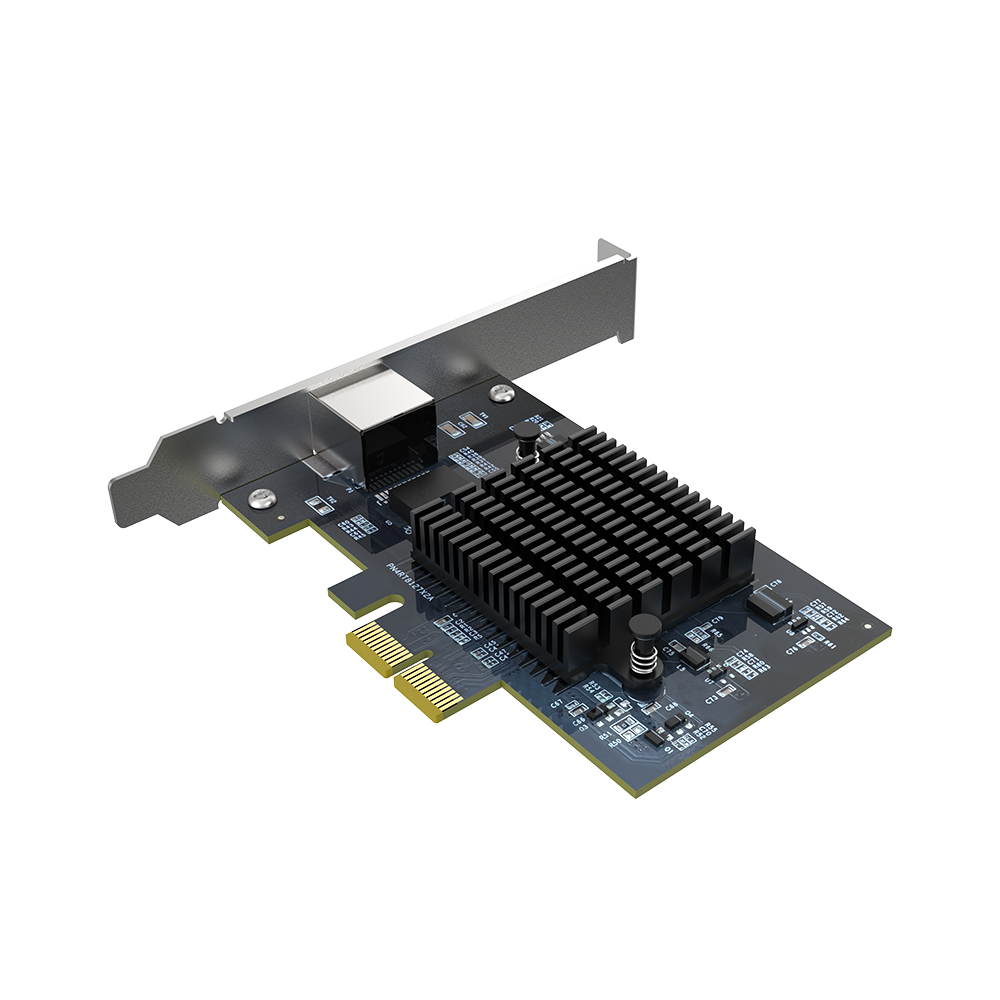

Fitted with an aluminium heatsink for effective heat dissipation. Includes full-height and low-profile brackets, supporting installation in standard ATX, small form-factor and rack-mounted enclosures.
Compliant with IEEE 802.3bz (2.5G/5GBASE-T) and 802.3an (10GBASE-T), with built-in IEEE 802.3az (Energy Efficient Ethernet) support to minimise power consumption during low-traffic periods. Supports Wake-on-LAN (WoL) and jumbo frames up to 16K for reduced CPU overhead on large data transfers.
Compatible with Windows 10, Windows 11 and Windows Server 2003/2008/2022, as well as Linux Kernel 3.10 and later.
A practical network interface card (NIC) ideal for desktops, workstations, servers, embedded systems and communications platforms requiring always-on connectivity with efficient power consumption.
| Application | PCIe 1-Port 10G BASE-T Multi-Gigabit Network Card |
|---|---|
| Chipset | Realtek RTL8127AT |
| Transfer Rate | 10Gb/5Gb/2.5Gb/1Gb /100Mb/10Mb Ethernet |
| Interface | PCI Express 3.0 x2 |
| Ports | RJ45 |
| LED Indicators | Green (Activity) x1, Green and Amber Dual Colour (Speed) x1 |
| Operating Temperature | 0℃–55℃ |
| Storage Temperature | -10℃–70℃ |
| Bracket | Full-height and low-profile options included |
| OS Compatibility | Windows 10/11, Windows Server 2003/2008/2022 Linux 3.10 or later |
| Product Code | AK-PCCE10-01 |
