4U Server Cooler for Intel LGA4677 / 4710
125.5mm height, 92mm Fan, 6 Copper Heatpipes, TDP 350W
High-performance 4U server cooler designed for the LGA4677 / 4710 socket, supporting Intel Xeon CPUs with a 350W TDP. Featuring six copper heatpipes and aluminium fins, this cooler provides efficient heat dissipation, ensuring reliable performance even under heavy server workloads.
Active 4U Cooler for LGA4677 / 4710 Socket (Intel Xeon CPU)
Designed for high-performance Intel Xeon CPUs. This cooler is specifically built for LGA4677 / 4710 socket processors, ideal for security, cloud and edge applications.

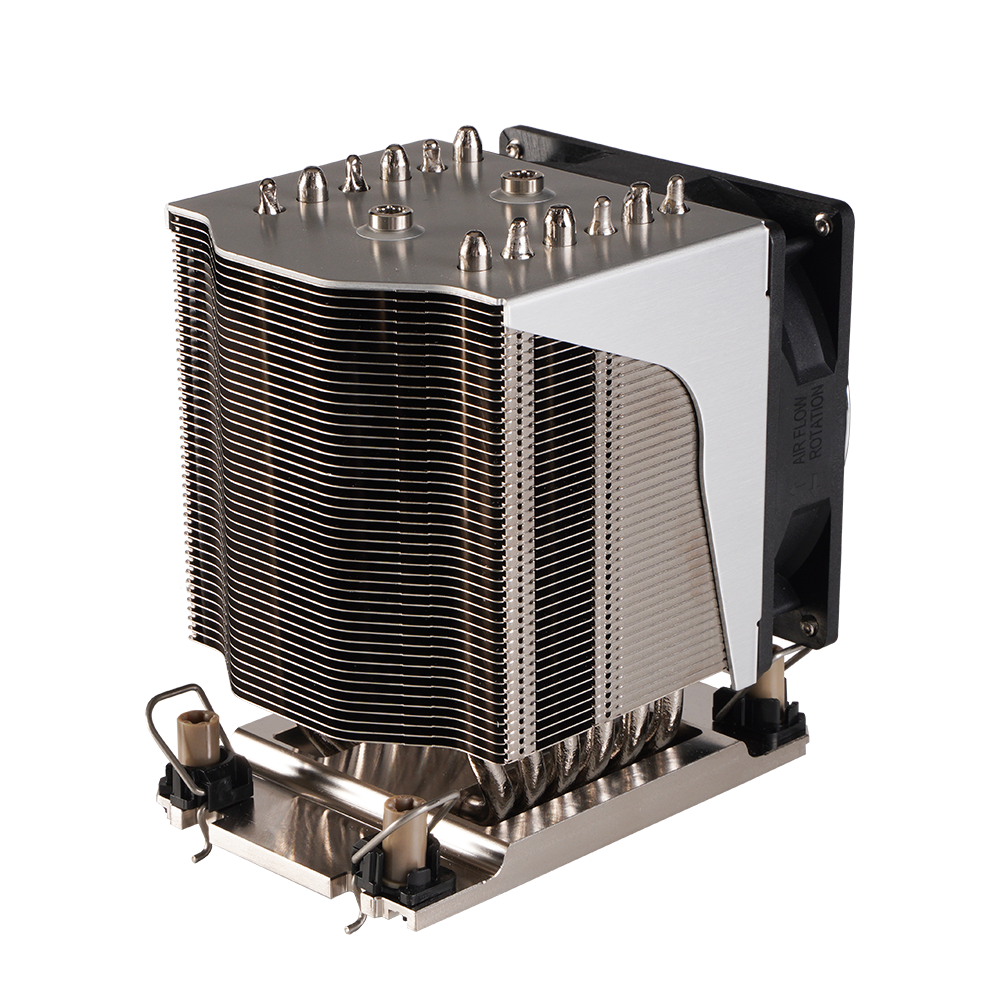

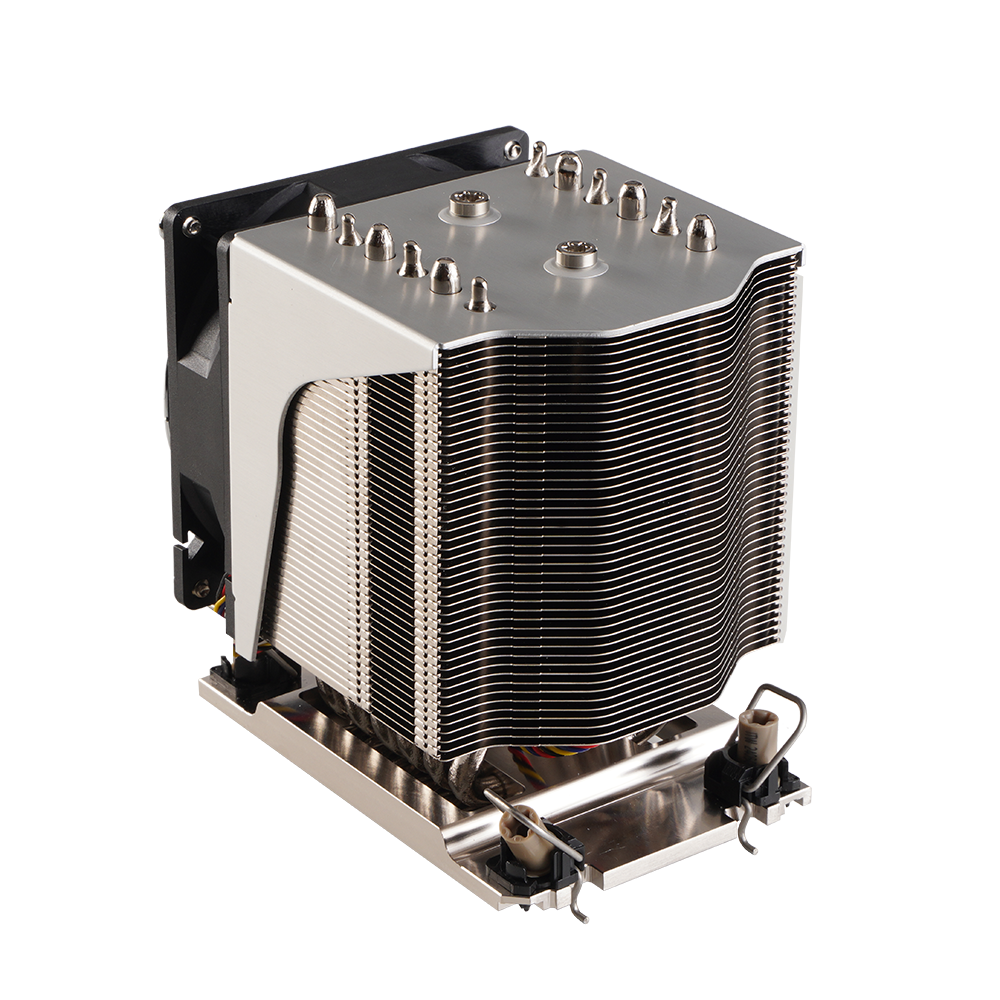

Advanced Aluminium Fins with Six Copper Heatpipes
Optimised heat dissipation. The aluminium fins and six copper heatpipes work together to transfer heat away from the CPU, maximising cooling efficiency even at 350W TDP.
Powerful 350W TDP Support
Ideal for high-demand applications. Capable of handling up to 350W TDP, making it suitable for Intel Xeon processors operating under intense workloads.

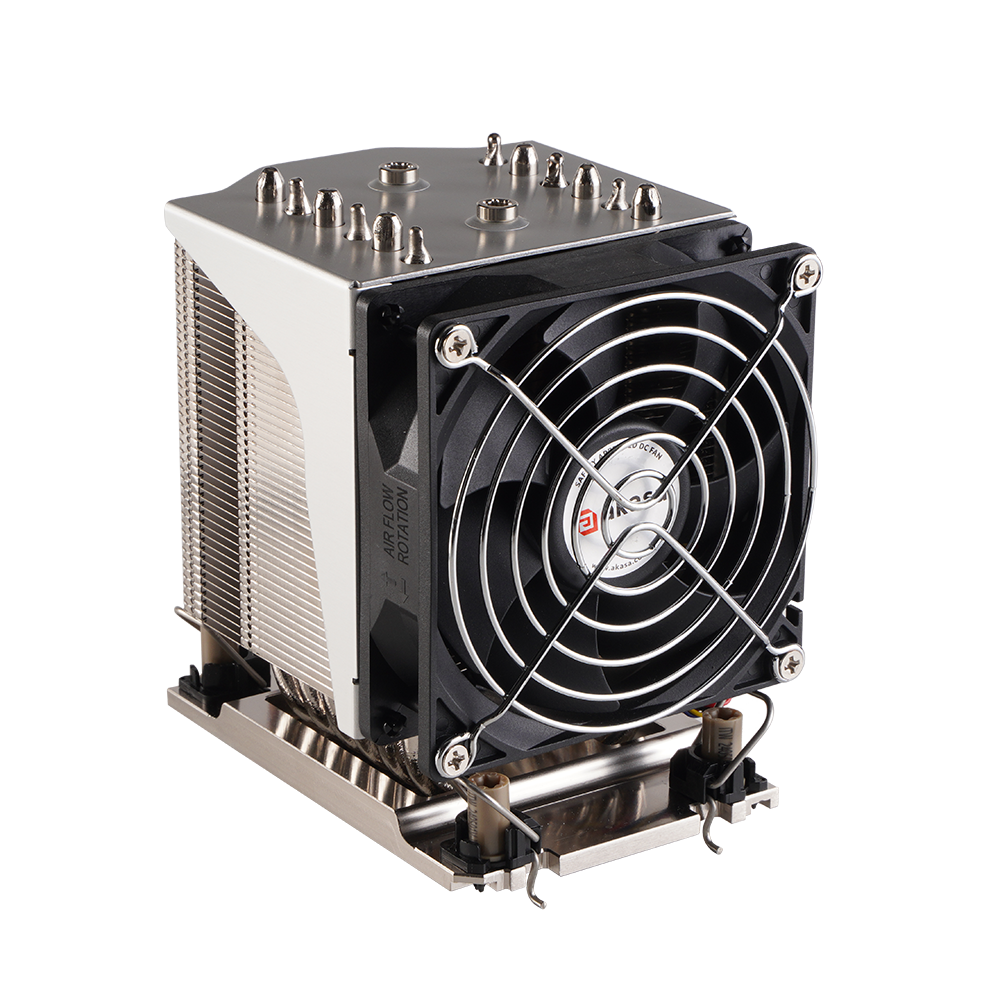

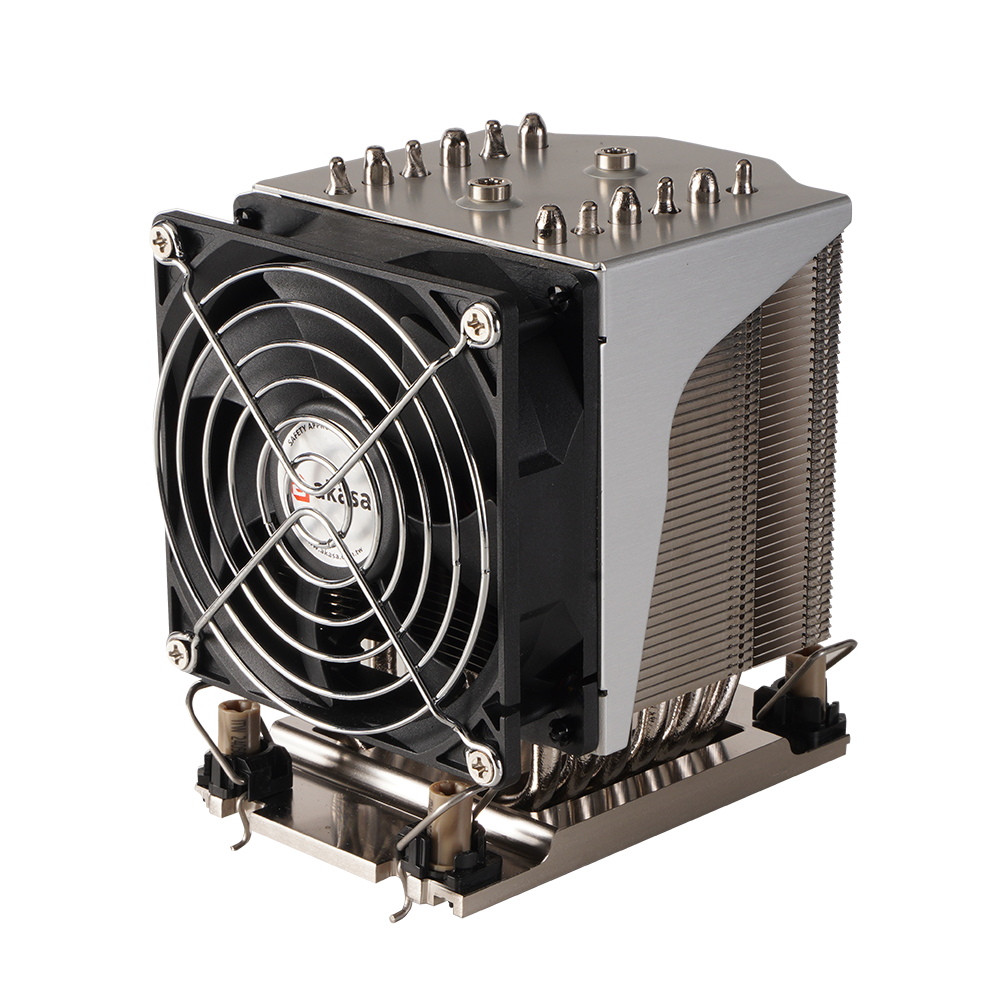

Intelligent 92 mm x 25 mm PWM Fan
Smart, adjustable cooling. The PWM-controlled fan adjusts its speed based on system temperature, delivering efficient cooling. Two ball bearings ensure long-lasting durability.

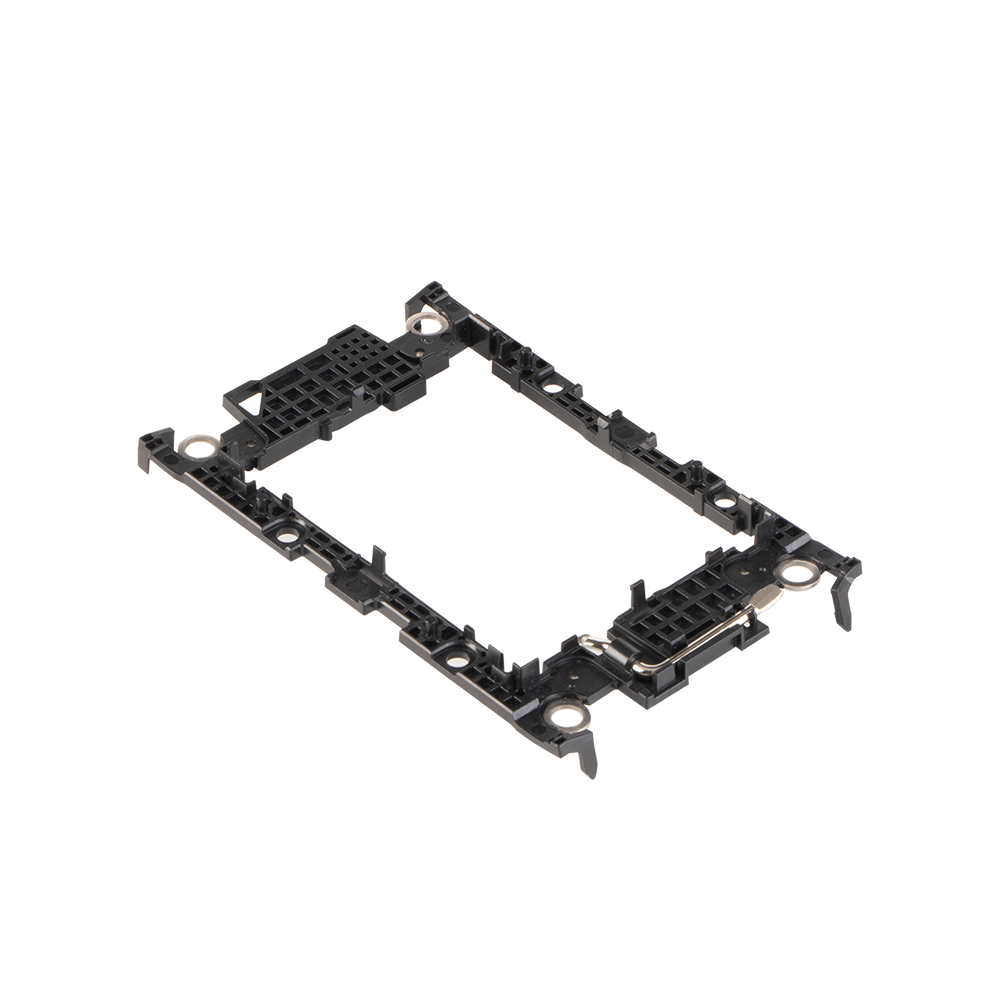

Includes E1B Carrier (LGA4677) for Easy Installation
Quick and secure setup for 4U server systems. Includes mounting screws and an E1B package carrier.
Note: LGA4677 processors with E1A/E1C carriers and LGA4710 processors with E2A/E2B carriers require separate plastic CPU carrier frames for installation (typically included with boxed processors or available separately through Intel® vendors/carrier suppliers for tray processors).
| Socket Type | LGA4677, LGA4710 |
|---|---|
| Solution | 4U Server |
| Suggestion TDP (W) | 350 |
| Cooler Dimensions | 119.2 x 92.5 x 125.5 mm |
| Material | Aluminium fin with six copper heatpipes |
| Installation | Mounting screw (include E1B CPU carrier) |
| Weight | 765g |
| Thermal Interface | Pre-apply |
| Product Code | AK-CC9505BP01 |
| Dimensions | 92 x 92 x 25 mm (Cable Length: 250 mm) |
|---|---|
| Bearing | Two ball bearing |
| Fan Speed | 1900-3800 RPM |
| Max Airflow | 60.5 CFM |
| Max Air Pressure | 5.62 mm-H2O |
| Noise Level | 43.56 dB(A) (Max) |
| Fan Rated Current | 0.26A (Max: 0.29 A) |
| Fan Rated Voltage | DC 12V |
| Connector | 4-Pin PWM (2510 connector) |
| Fan Life Expectancy | 80,000 hours |
| Warranty | 2 years |
