Ashton T
Contemporary styled aluminium fanless case for ASUS Tinker Board 3N series
Ultra-compact 0.5L aluminium fanless case for ASUS Tinker Board 3N series with an array of interface support. Perfect for applications where multiple displays are required, to Internet of Things (IoT) gateway and self-service applications.

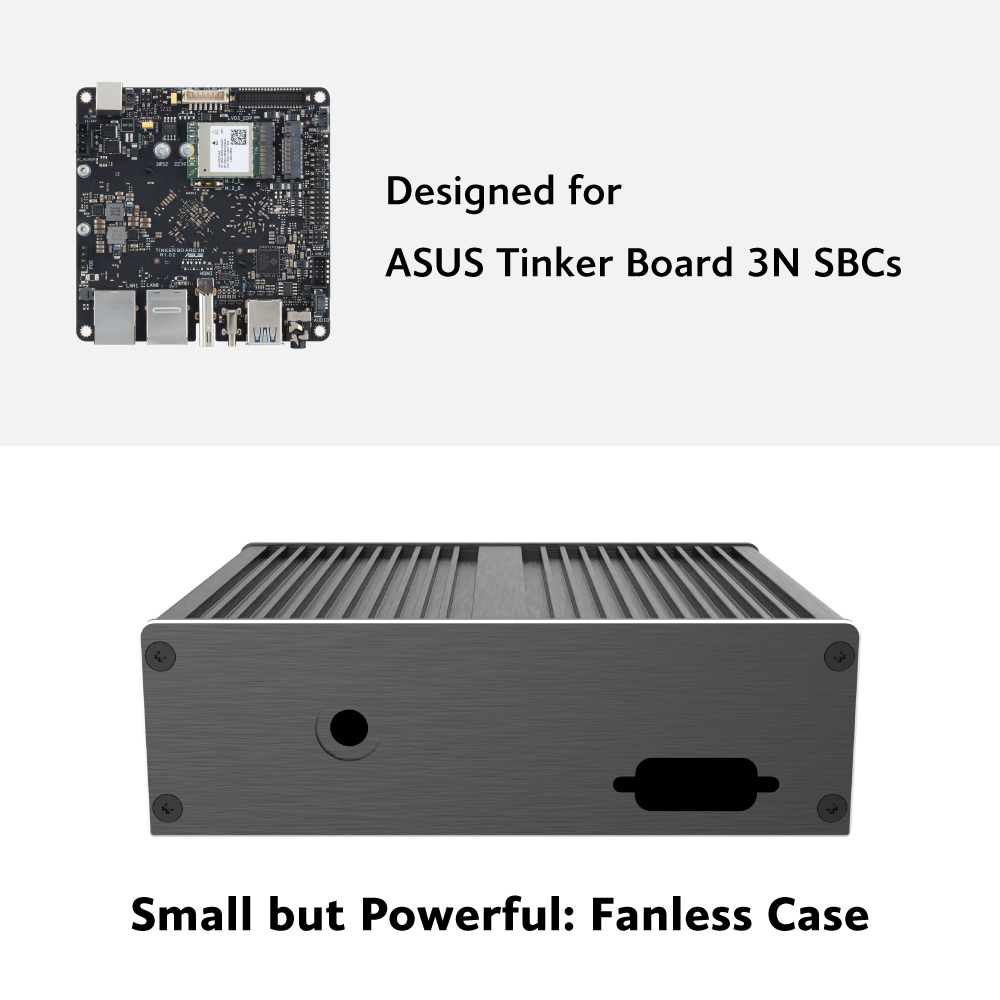

Designed for ASUS Tinker Board 3N single-board computers (SBCs) with 64-bit, quad-core Arm Cortex-A55 processor. The Akasa case can accommodate multiple storage, interface and display combinations. Making it ideal for flexible and comprehensive solutions from digital signage applications or where multiple displays are required, to Internet of Things (IoT) gateway and self-service applications.
Learn more about the ASUS Tinker Board 3N >>

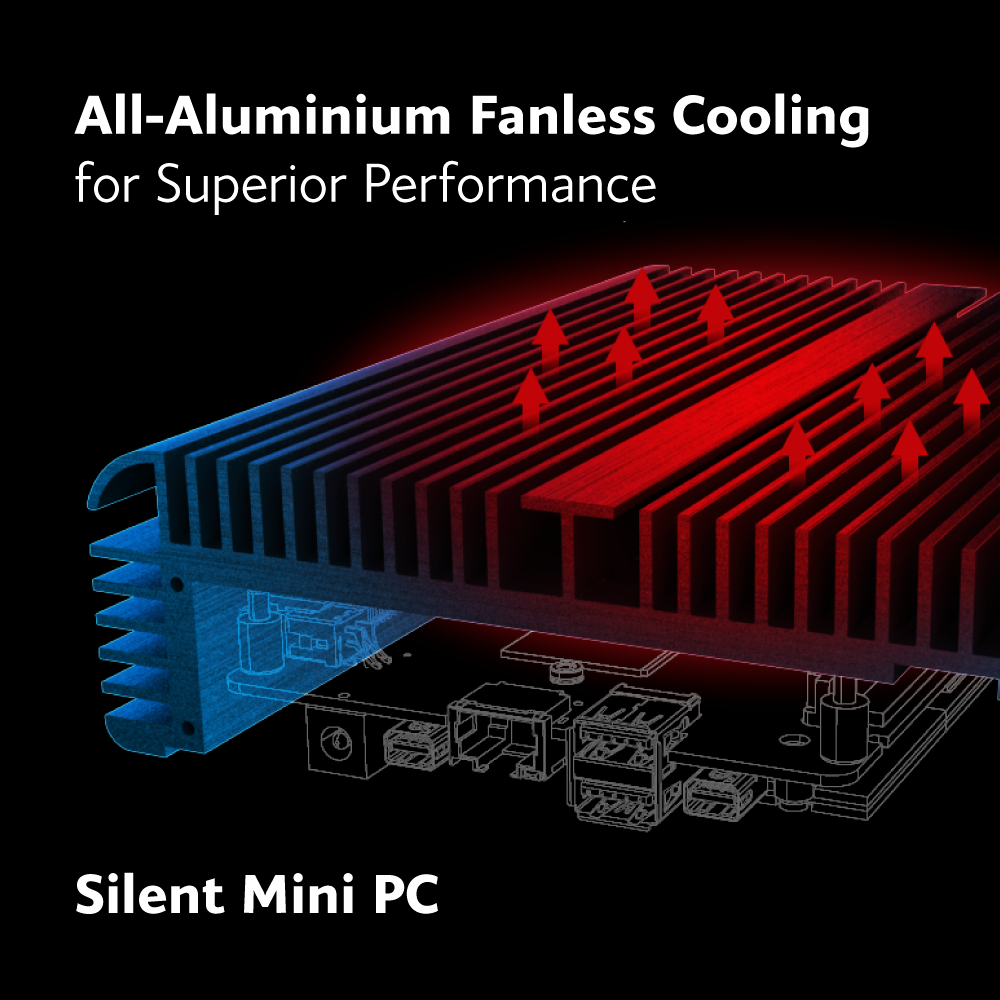

Experience premium-grade fanless CPU cooling engineered from high-quality aluminum for optimal thermal performance and durability.

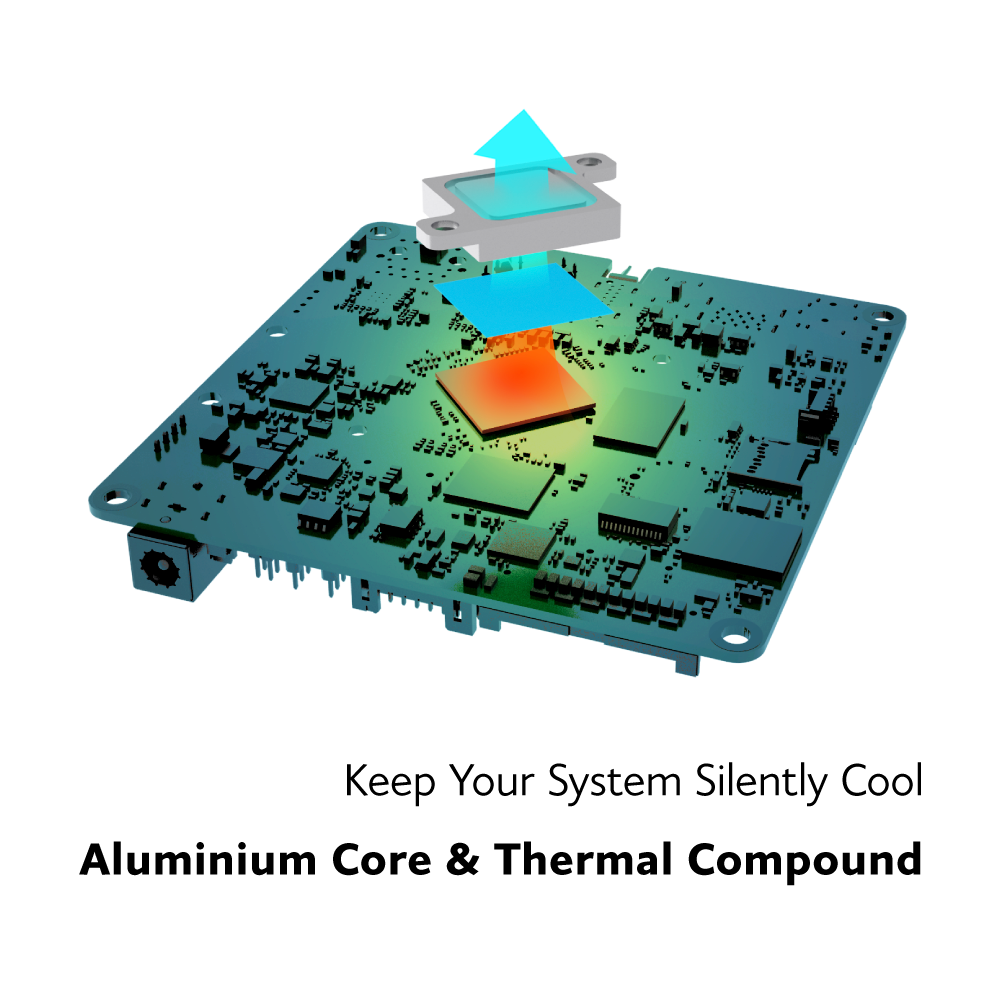

Completely silent mini PC case utilise all aluminium fanless CPU cooling design which acts as a heatsink to dissipate the heat to the surrounding.

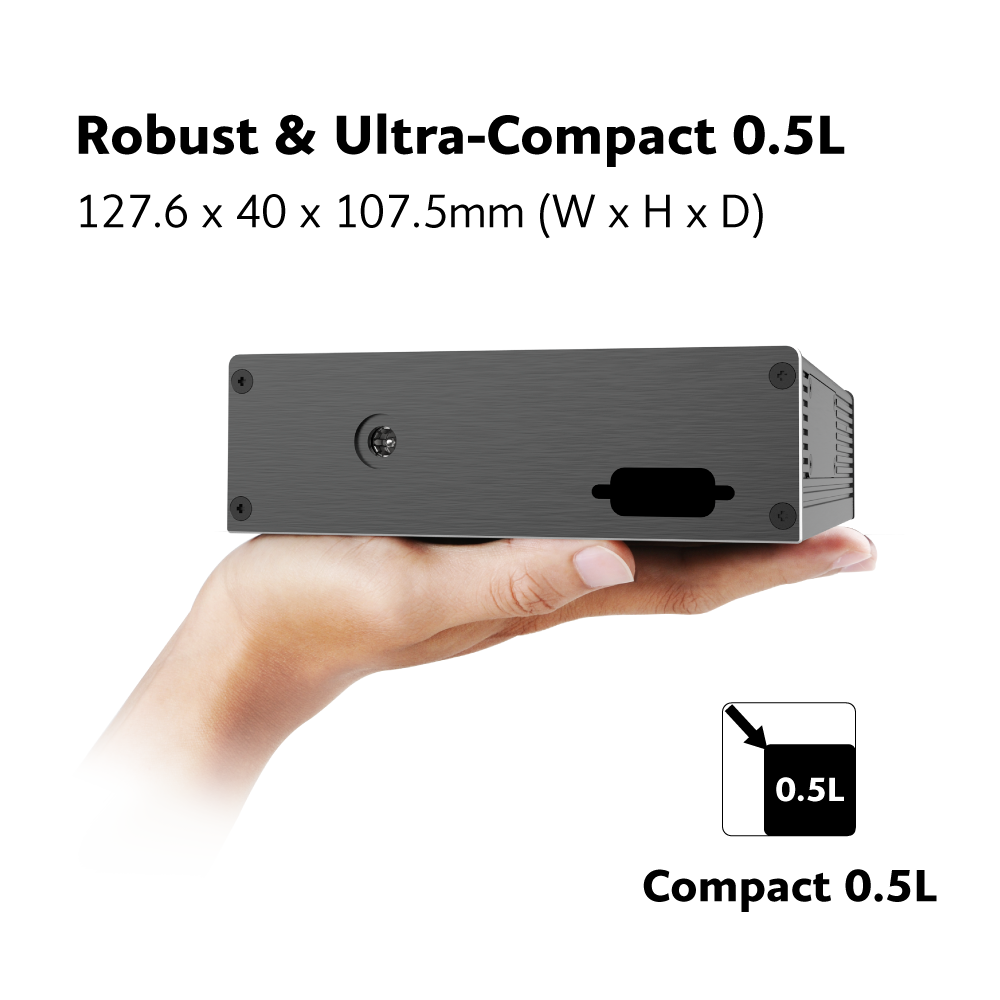

At just 0.5L, the Ashton T is very compact in form factor with no vent holes.

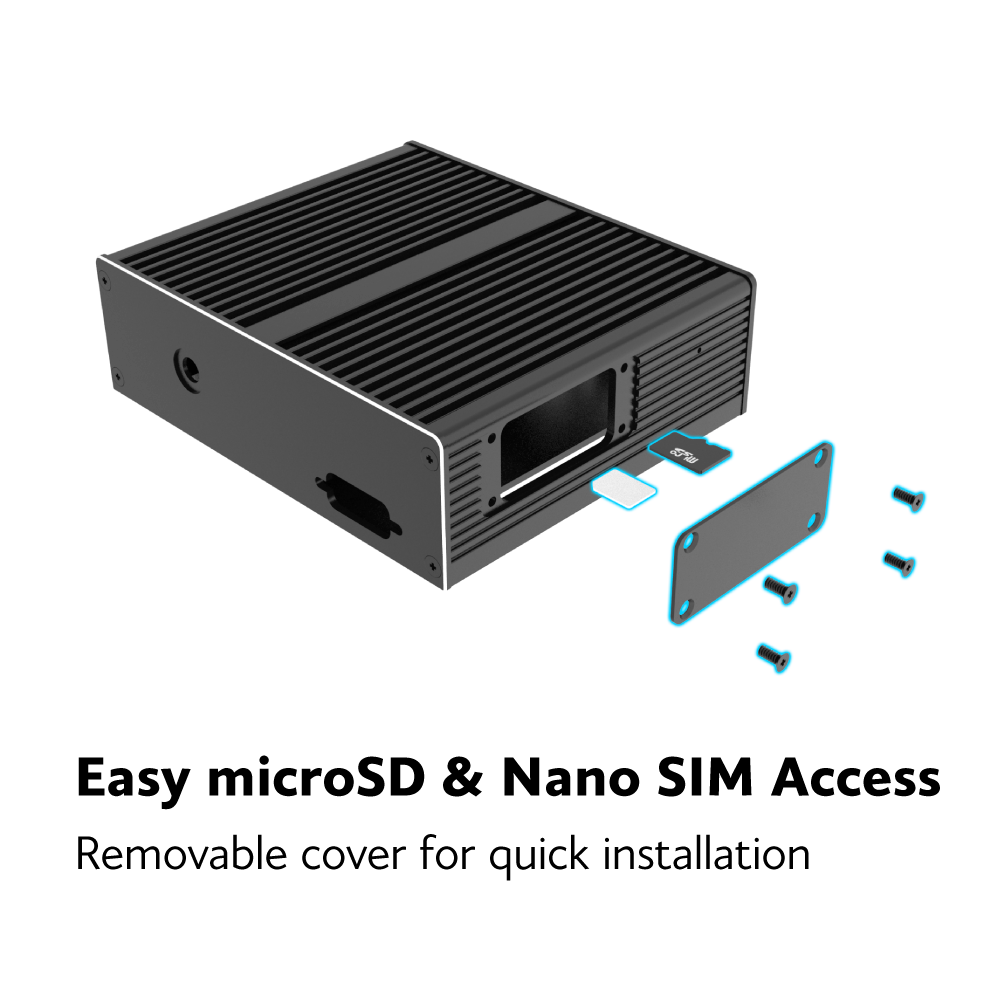

Removable cover designed for effortless microSD card and Nano SIM card installation and access. This user-friendly design ensures quick and convenient upgrades and maintenance, making it ideal for both professional and personal use.
Ideal for an applications in smart manufacturing and smart retail such as IoT gateways, human-machine interfacing (HMI), digital signage, self-service kiosk and more.

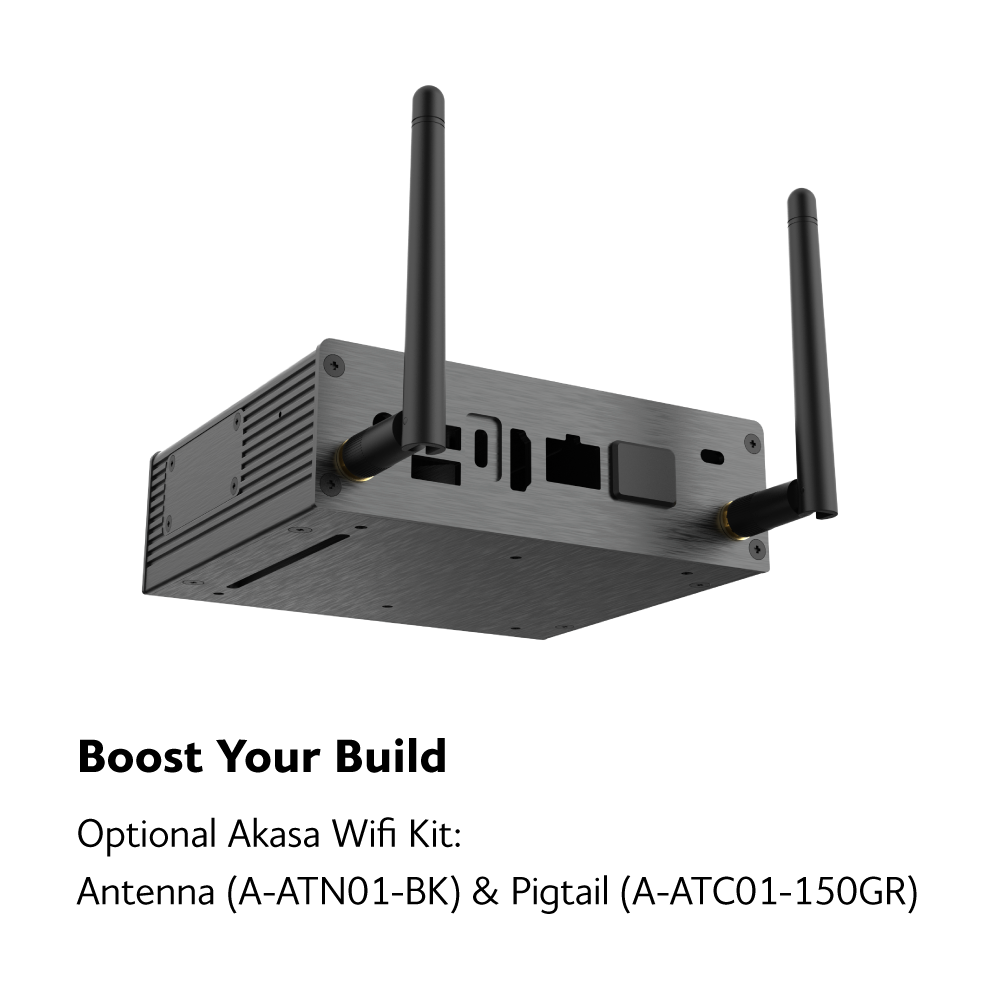

Optional hi-quality external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR) to connect the antenna to the Wi-Fi connector. Perfect additions for your fanless ASUS Tinker Board 3N build should a wireless connection be required.
| Material | Aluminium |
|---|---|
| Motherboard Support | ASUS Tinker Board 3N Series: Tinker Board 3N Lite, Tinker Board 3N, Tinker Board 3N Plus |
| Dimensions | 127.6 x 40 x 107.5 mm (W x H x D) |
| Volume | 0.549L |

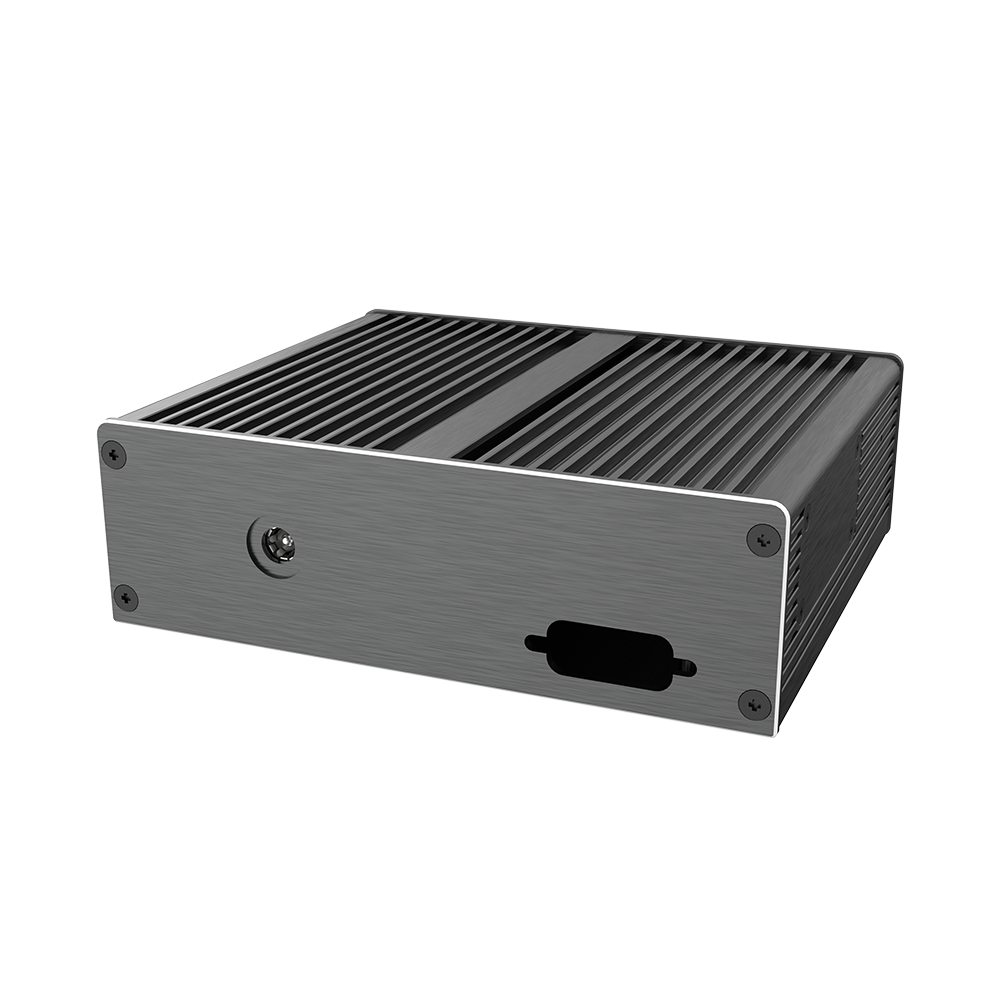

| Front I/O Interfaces | DC-in power jack, COM port |

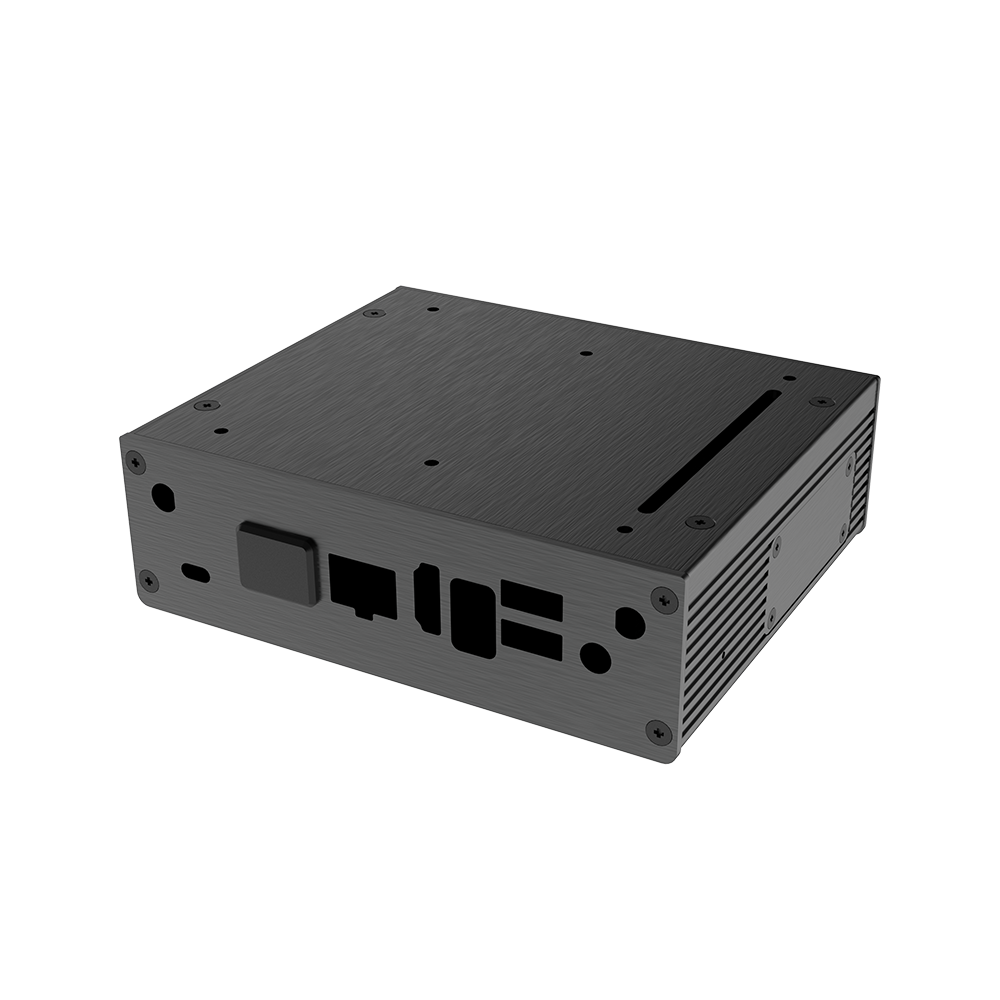

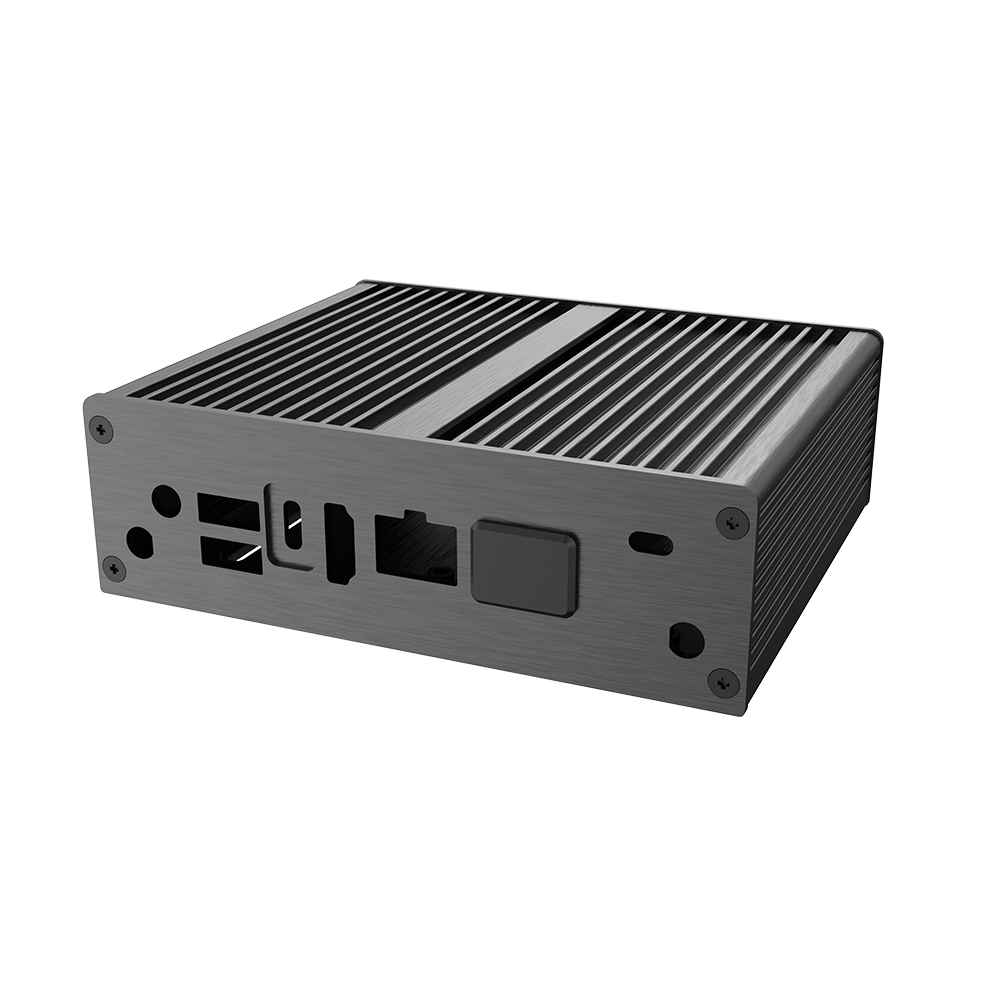

| Rear I/O Interfaces | Audio jack, USB 2.0 x 2, USB 3.2 Gen 1 Type-C OTG, HDMI, LAN x 2*
*Tinker Board 3N Lite only has one LAN port |
| Bottom Panel Interface Opening | GPIO |

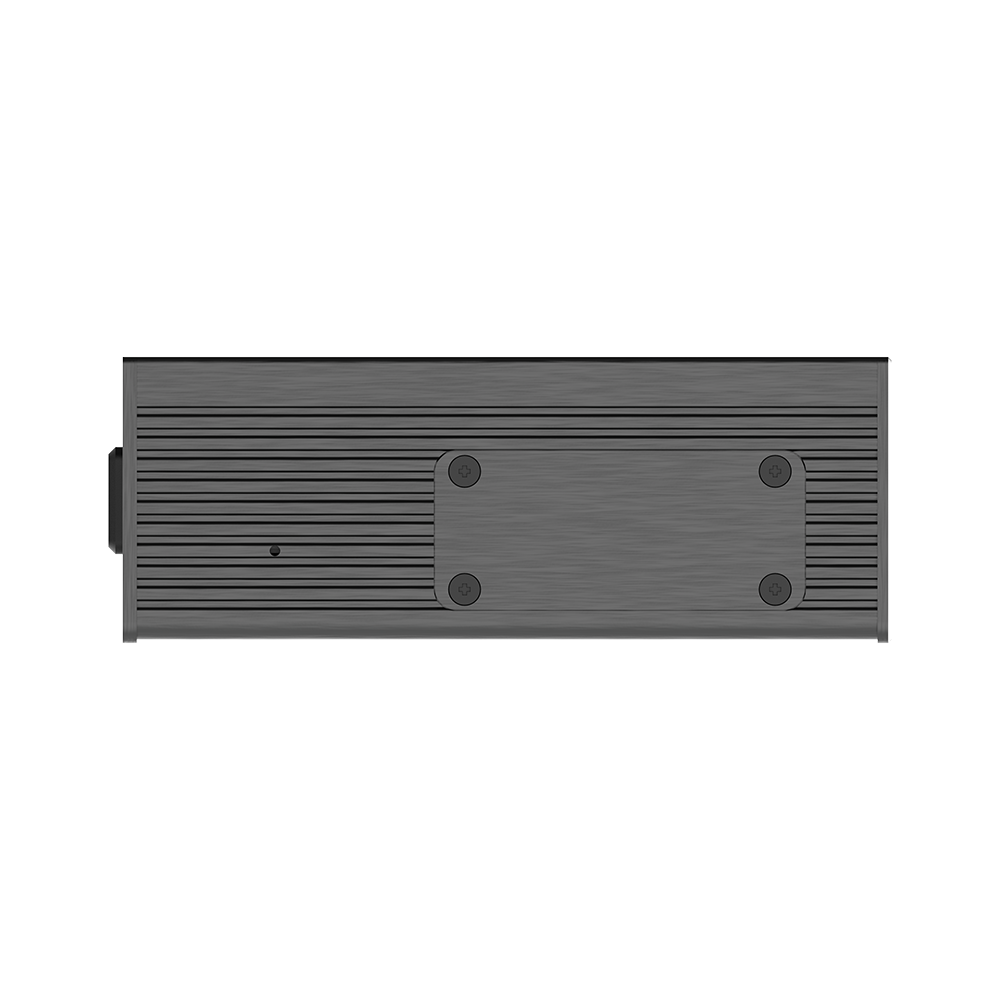

| Side Panel Interface | SD card & SIM slots |
| Antenna Fitting Holes | 2 |
| VESA Mounting | Support |
| Product Code | A-RA15-M2B |
