Ultra compact and low noise cooler for Intel Core 2 Duo, Core i3 and Core i5 (73W) CPU’s. The low profile design with embedded S-Flow fan makes it a perfect solution for mini-ITX, HTPC and SFF systems.

Aluminium heatsink with full height copper core and quiet HDB bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximizes heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on LGA775, LGA115X and LGA1200 platforms without any mounting adjustment, pushpins will automatically slide into correct position. K25 is designed to work with CPU’s up to 73W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.

For Intel LGA775, LGA1150, LGA1155, LGA1156, LGA1200

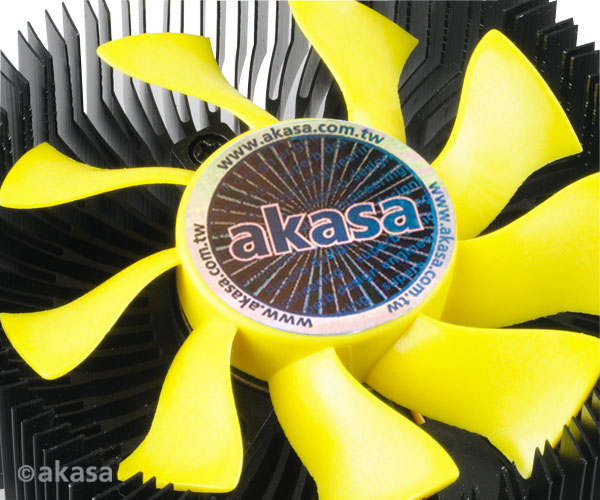

Embedded 8cm PWM fan with S-Flow blades and long life bearing
Intel approved push pins provide maximum compatibility
High performance thermal interface is pre-applied

Socket type Intel LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200
Suggestion TDP (W) 73
Cooler dimension 87.2 x 85.2 x 29.5 mm

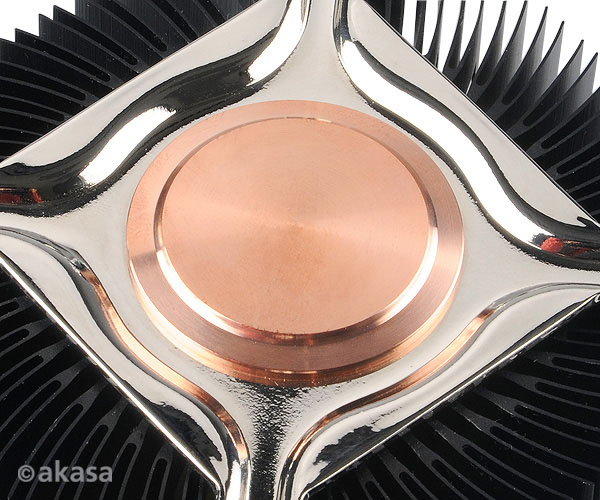

Heatsink material Aluminum with copper insert
Weight 220 g
Installation Push pins
Fan dimension ∅74 x 15 mm
Fan speed 600 - 3000 RPM (PWM controlled)
Max airflow 33.50 CFM
Max air pressure 3.76 mmH2O
Noise level 28.71 dB(A)
Voltage rating DC 12V
Bearing type HDB
Fan life expectancy 50,000 hours
Fan connector 4pin PWM
Product code AK-CC7118HP01

Installation manual

GB, FR, DE, PT, ES

- 2011-06-29
