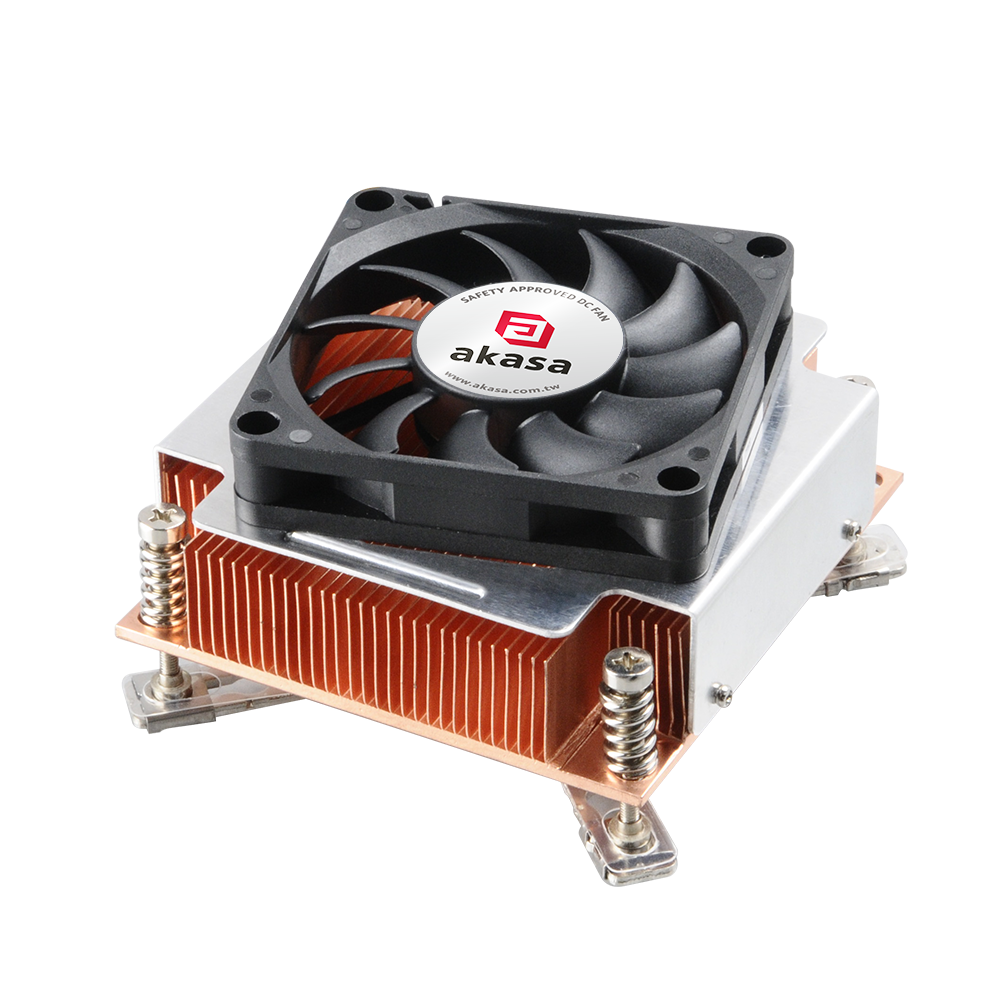

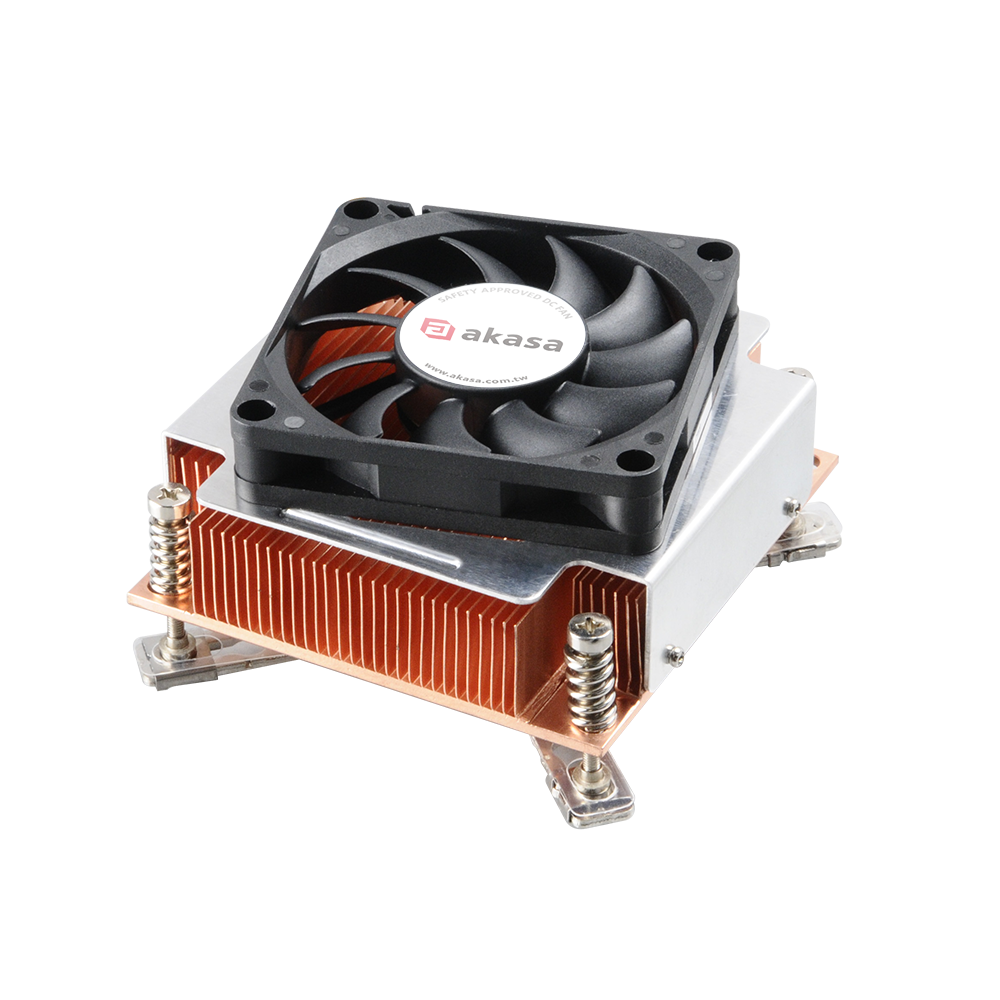

2U Cooler for Intel LGA115X,1200 and 1366
Copper CPU Cooler (42.5mm), 70mm PWM Fan, TDP 130W, Intel, UL Certified
Skived-fin all-copper heatsink with a UL-certified PWM-controlled 7cm two ball bearing fan. Ideal for 2U and higher chassis. Features secure installation with spring-loaded screws.
• 2U Server Cooling Solution for Intel Core i7 & Xeon Processors
• Enhanced Cooling with Solid Copper Heatsink
• Automatic PWM with Two Ball Bearings
• Secure Installation with Spring-Loaded Screws and Backplate
2U Server Cooling Solution for Intel Core i7 & Xeon Processors
This 2U cooler efficiently handles up to 130W TDP, perfect for Intel Core i7 and Xeon processors in tight server setups.
Enhanced Cooling with Solid Copper Heatsink
The solid copper heatsink keeps your CPU cool under heavy workloads.
Automatic PWM with Two Ball Bearings
Smart cooling, long life. The 70mm fan adjusts from 1000 to 5000 RPM, providing 37.24 CFM airflow and lasting up to 65,000 hours.

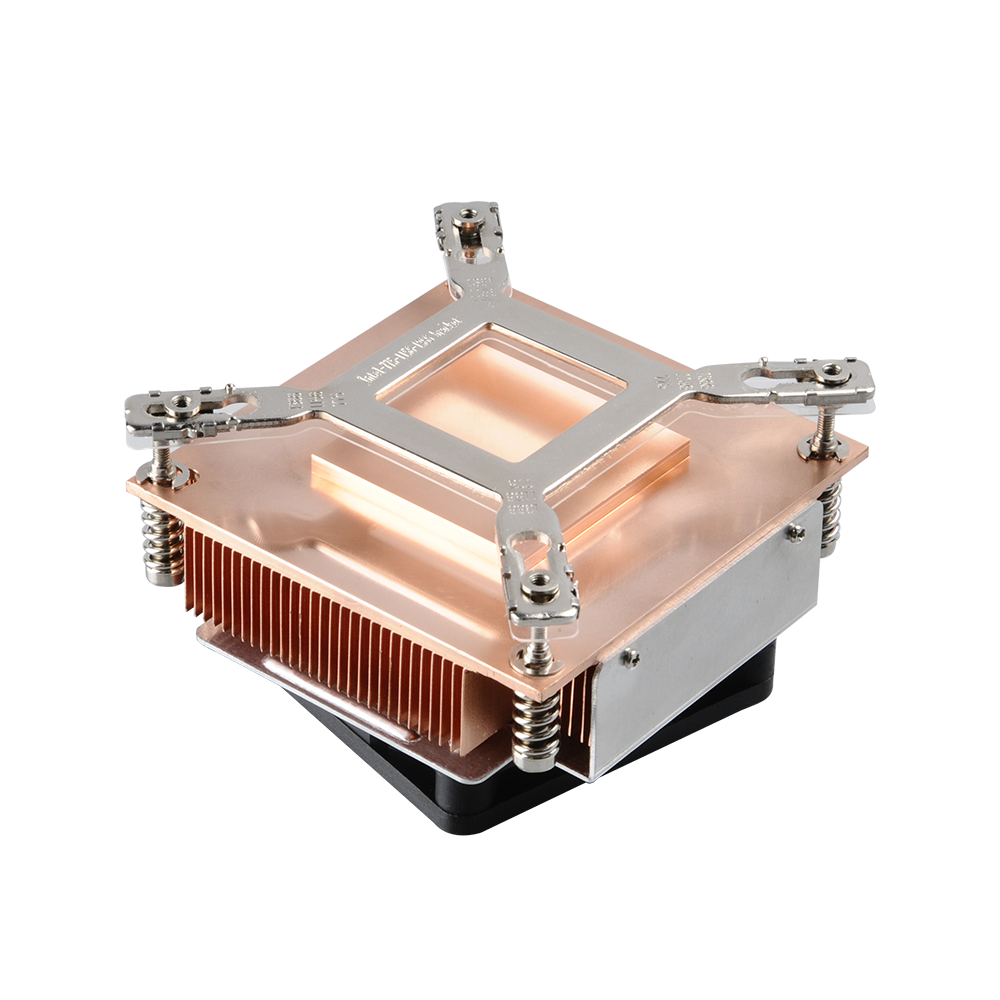

Secure Installation with Spring-Loaded Screws and Backplate

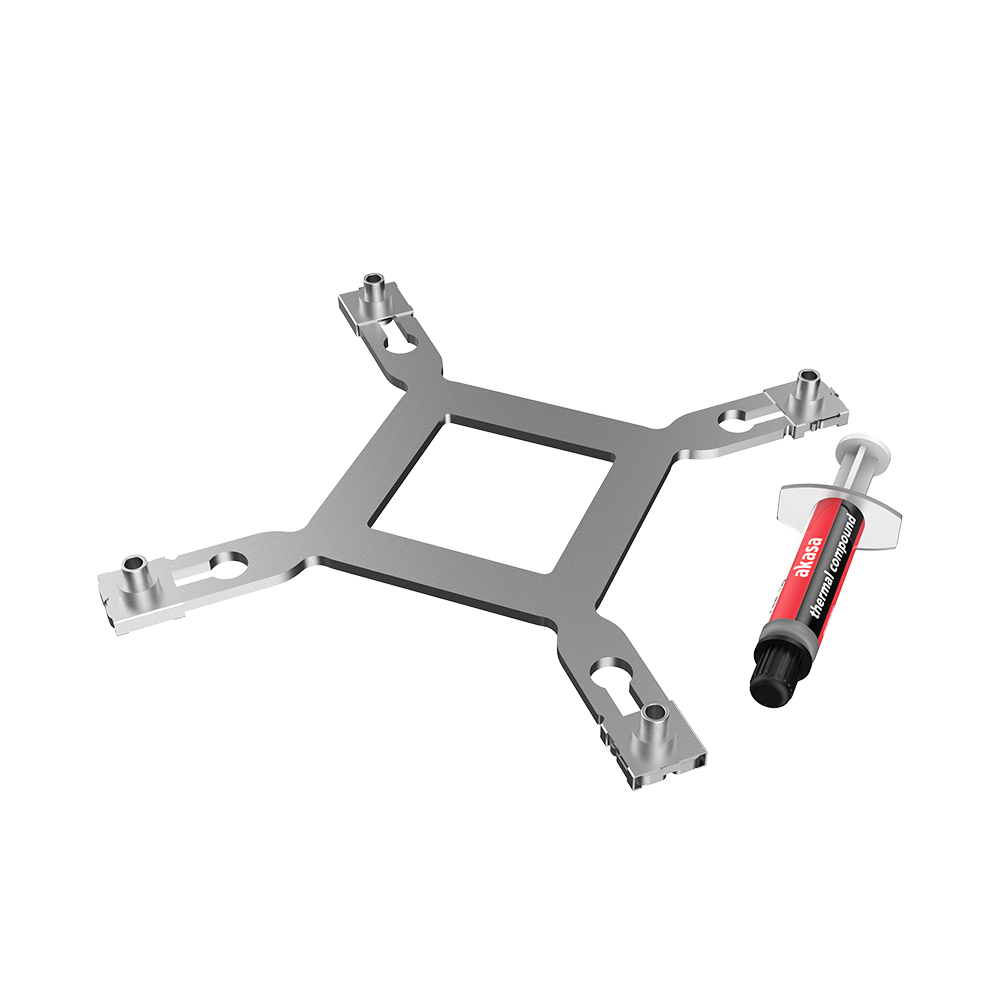

Metal screws and a retention plate make installation straightforward and secure.
| Socket Type | Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1356, LGA1366 |
|---|---|
| Suggested TDP (W) | 130 |
| Cooler Dimensions | 90 x 89 x 42.5 mm |
| Heatsink Material | Copper |
| Installation | Metal screws and retention plate |
| Weight | 612.5g |
| Product Code | AK-CC7302BP03 |
| Dimensions | 70 x 70 x 15 mm |
|---|---|
| Bearing | Two ball bearing |
| Fan Speed | 1000 - 5000 RPM |
| Max Airflow | 37.24 CFM |
| Max Air Pressure | 6.01 mm-H2O |
| Noise Level | 42.4 dB(A) |
| Fan Rated Current | 0.5A |
| Fan Rated Voltage | DC 12V |
| Connector | 4-pin PWM |
| Fan Life Expectancy | 65,000 hours |
| Warranty | 2 years |
