Akasa Thermal Solution

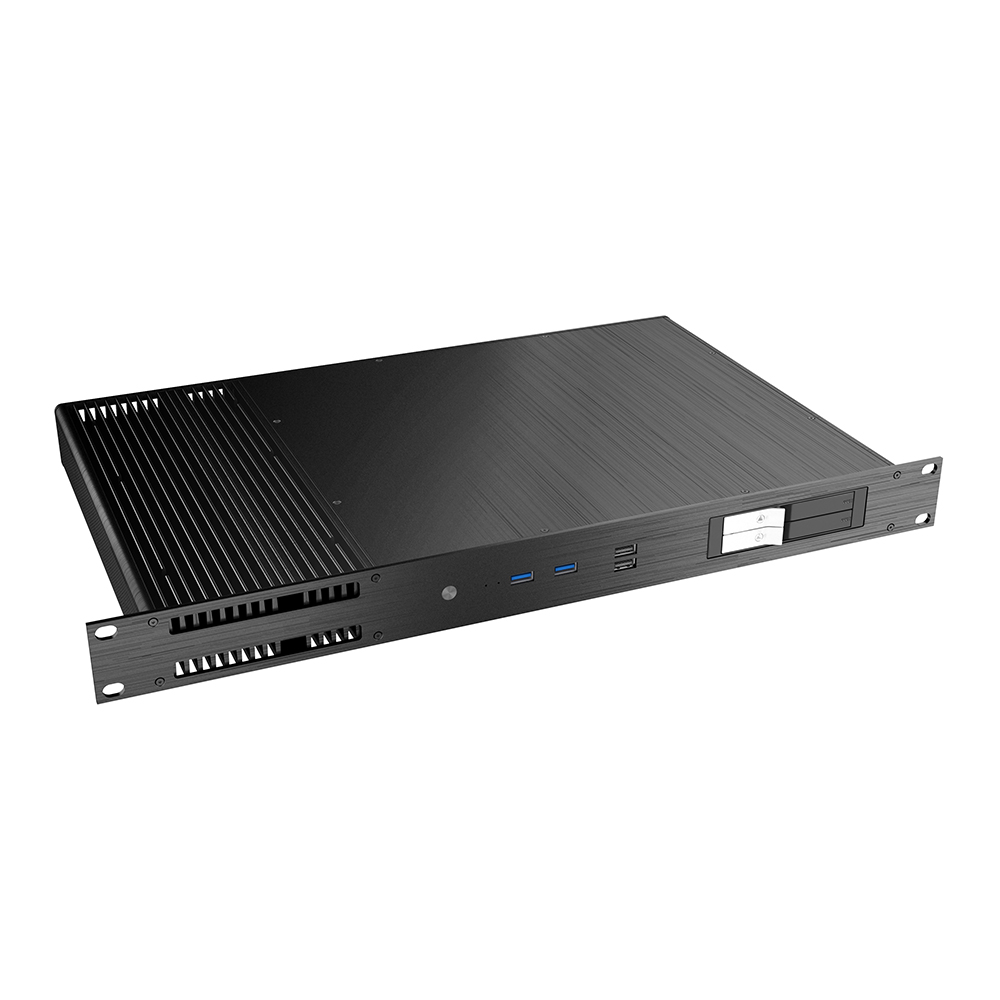

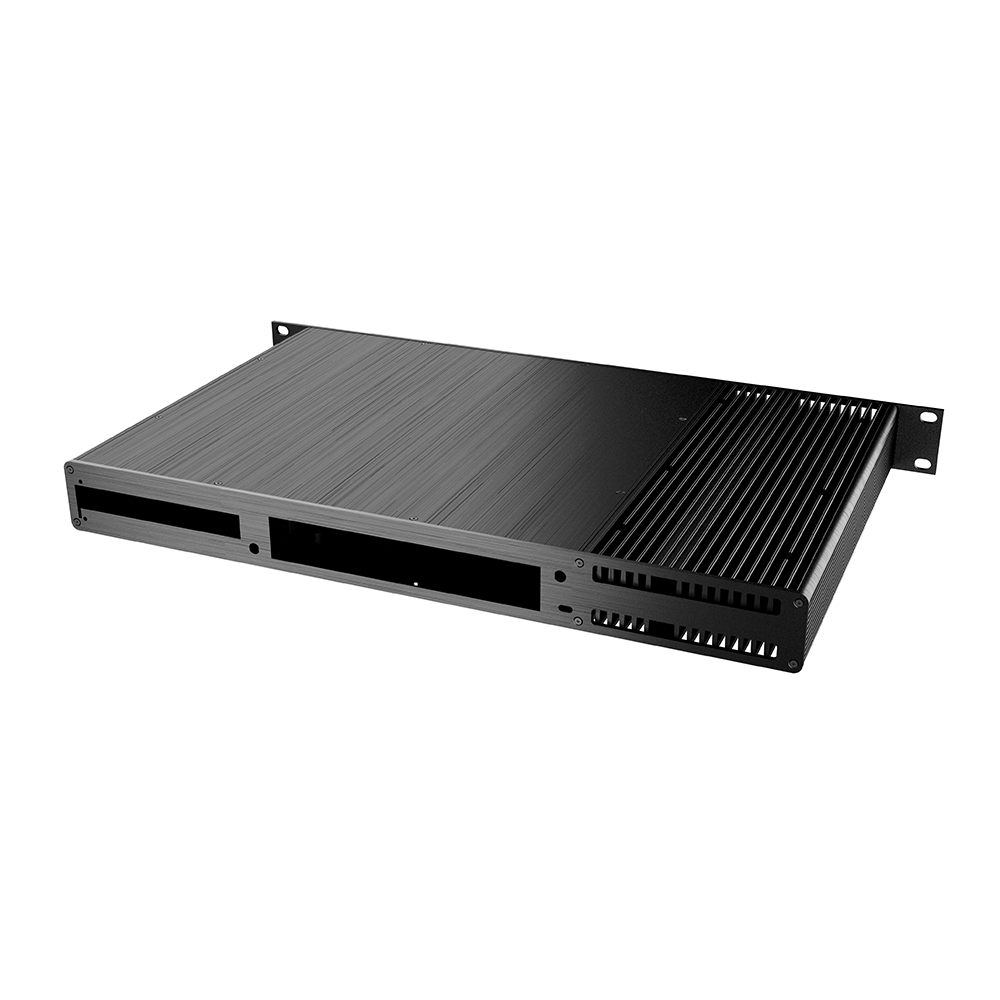

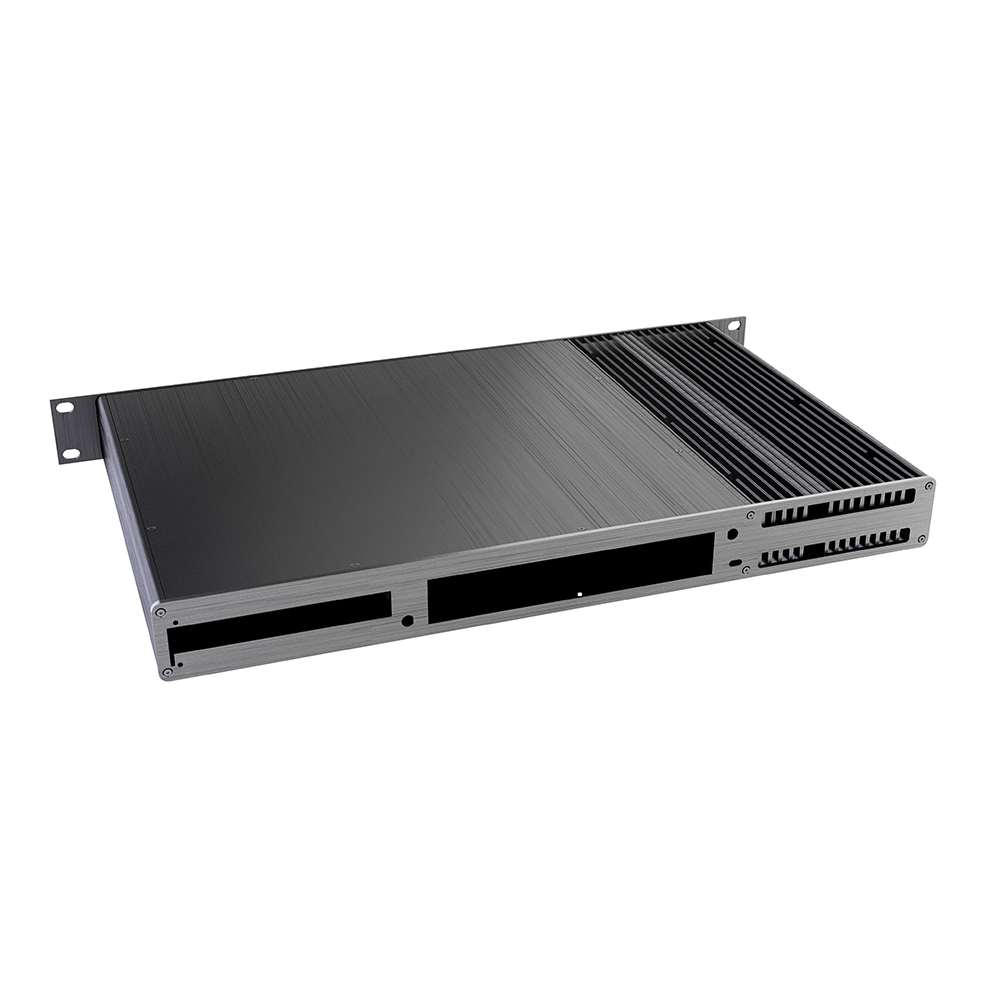

1U fanless Thin Mini-ITX case

• 1U rackmount fanless Thin Mini-ITX case
• Aluminium fanless CPU cooling design
• Two internal 2.5" HDD / SSD bay
• Two bay 2.5" SATA mobile tray
• Support one PCI-E slot (x4)

1U rackmount front panel

Two bay
2.5" SATA mobile tray

Support one PCI-E slot (x4)

Two front panel USB 3.0
& USB 2.0 ports

Fanless
Aluminium fanless CPU cooling design

Material	Aluminium with anodized black
Panel material	Aluminium
Motherboards types	Thin mini-ITX with DC onboard
Dimensions	482.6 x 278 x 43.1 mm (WxDxH)
Drive bays	Two internal 2.5" HDD / SSD bays (max height 9.1 mm) Two bay 2.5" SATA mobile tray (max height 9.1 mm)
Antenna fitting holes	2
VESA mounting	Support
Front panel USB 3.0 ports	2
Front panel USB 2.0 ports	2
Rear I/O Interfaces	Low profile PCI-E slot x1 (x4)
Product code	A-ITX27-A1B A-ITX27-M1B

The key difference is that the "A1B" version is the branded version with the Akasa logo on the front panel of the case. Whereas the "M1B" version is the unbranded version, i.e. without the Akasa logo.

We are aware of this particular issue for this motherboard. We can suggest an optional USB 2.0 extension cable ( Product Code: EXUSBI-40 )

Intel® LGA1700 Mounting Upgrade Kit

For Galileo TU and Maxwell Pro series

A-ITX23-KT1

120W Thin mini-ITX power adapter

AK-PD120-03M

120W 19V power adapter

AK-PD120-04M

General Information

CPU and Motherboard Compatibility List

Contents / Package

I can see two product codes for this case. What is the difference between the product codes ending in - A1B and M1B?

I have the Gigabyte GA-IMB370TN motherboard and wish to install it inside the Galileo TU case. But the USB 2.0 cable does not reach the header on the motherboard. What are my options?
