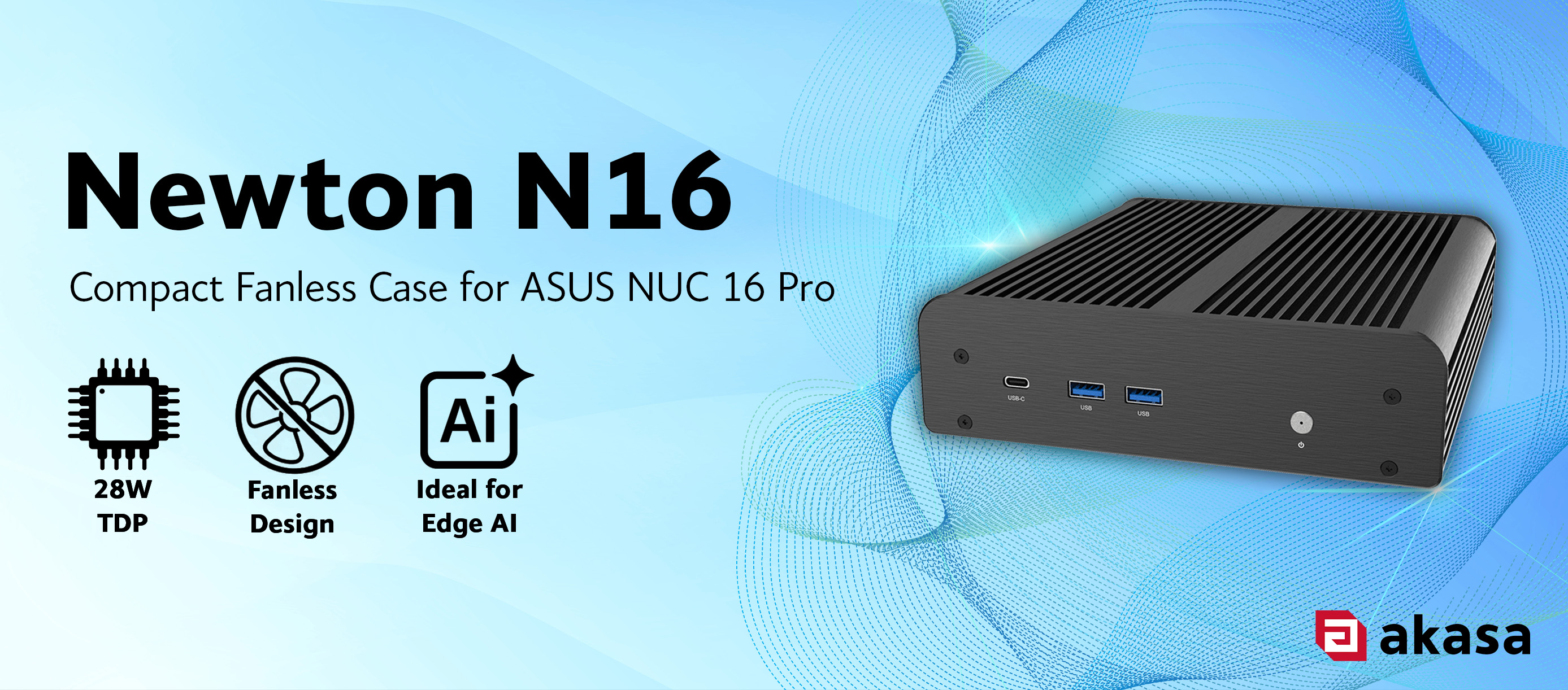

LONDON, ENGLAND, September 17, 2026 – Akasa, a leading provider of thermal solutions, introduces the Newton N16, a compact aluminium fanless case designed for the ASUS NUC 16 Pro. Available in dual HDMI® (A-NUC109-M1B) and dual DisplayPort (A-NUC109-M2B) versions, the Newton N16 includes dedicated passive cooling for the CPU and dual M.2 SSDs. Measuring just 188.6 x 204 x 53.6 mm (W x D x H) with a volume of 2.1L, it provides a compact fanless platform for digital signage, industrial automation, POS, surveillance, AI and embedded computing applications.
Designed for ASUS NUC 16 Pro
Built specifically for the new ASUS NUC 16 Pro AI Mini PC, the Newton N16 keeps access to the board’s native interfaces within an aluminium chassis designed for silent, passive cooling. Supporting Intel® Core™ Ultra Series 3 processors up to 28W TDP, the NUC 16 Pro platform combines integrated Intel® Arc™ graphics with a dedicated NPU for business, industrial and local AI applications.
To match the two ASUS NUC 16 Pro rear interface configurations, the Newton N16 is available in two versions: A-NUC109-M1B provides two openings for HDMI®; and A-NUC109-M2B provides two openings for DisplayPort. Both versions retain dual LAN connectivity and access to the board's native I/O.
Silent Passive Cooling

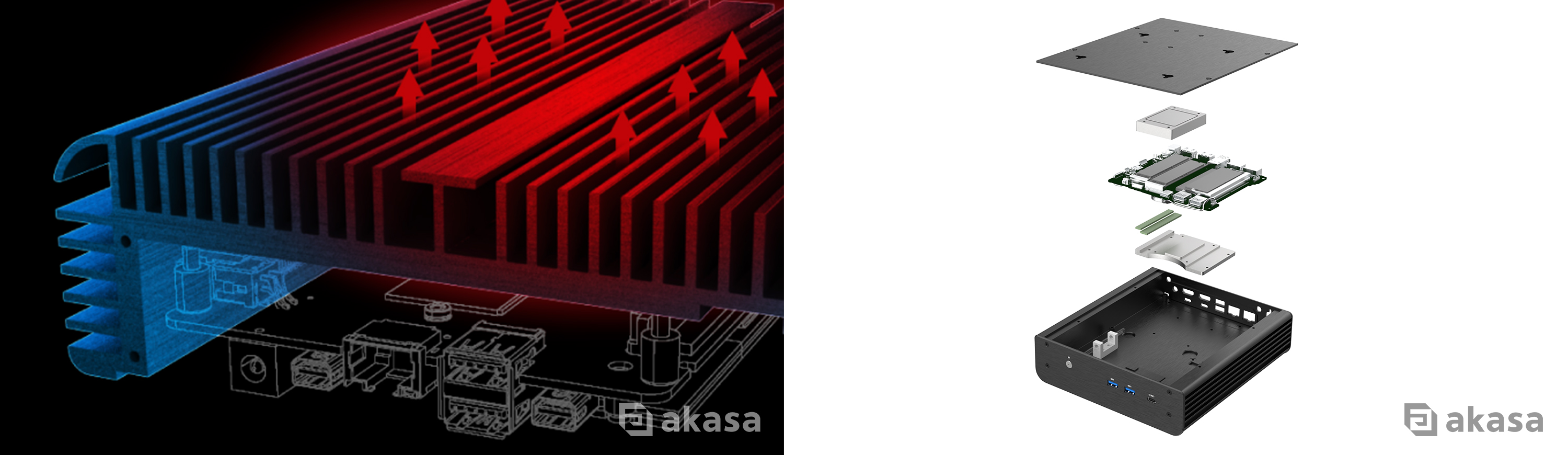

The Newton N16 uses dedicated aluminium thermal modules to transfer heat from the CPU and dual M.2 SSDs into the chassis, where external fins dissipate heat passively. Capable of cooling up to 28W TDP, the system operates silently and is well suited to always-on commercial and embedded applications.
Flexible Installation for Business, Industrial and AI Applications
Combined with the ASUS NUC 16 Pro platform, integrated Intel® Arc™ graphics and a dedicated NPU also provide support for local AI workloads, extending its use across local computing and edge AI applications requiring continuous operation. With VESA mounting support and a compact fanless design, the Newton N16 is suitable for:
- Digital signage
- Industrial automation
- Point-of-sale (POS)
- Kiosks
- Surveillance
- AI mini PCs
- Embedded computing

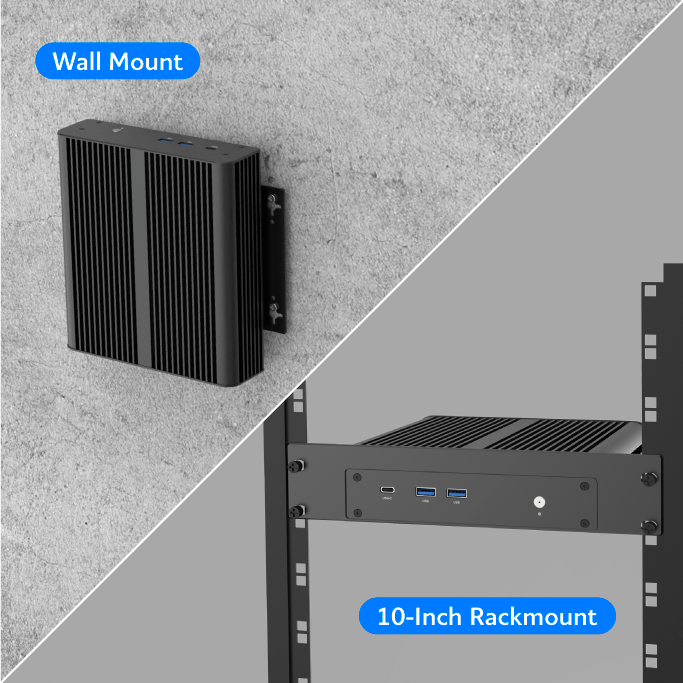

Optional Mounting Accessories
Two mounting accessories are available separately, compatible with both Newton N16 versions. The Wall Mount Bracket Kit (A-NUC109-KT01) enables direct wall mounting to free up desk and counter space in retail, office and industrial settings.
The 10-Inch Rackmount Front Panel (A-NUC109-FP02) enables the Newton N16 to be installed in a 10-inch rack cabinet, providing a compact rack-mountable option for embedded and networking installations.
Specifications
| Material | Aluminium with black anodisation |
| Thermal Module | CPU: aluminium heatsink with thermal compound for CPU M.2 SSD: aluminium heatsink with thermal pad for dual M.2 SSD |
| Motherboard Type | 5" X 4" |
| Motherboard Support | ASUS NUC 16 Pro (Grand Canyon) Mini-PC/Board/Kit - HDMI or DP NUC16GDK, NUC16GDB, NUC16GDK-B |
| Maximum TDP Support | 28W |
| Dimensions | 188.6 x 204 x 53.6 mm (W x D x H) |
| Drive Bays | Only suitable with M.2 SSDs |

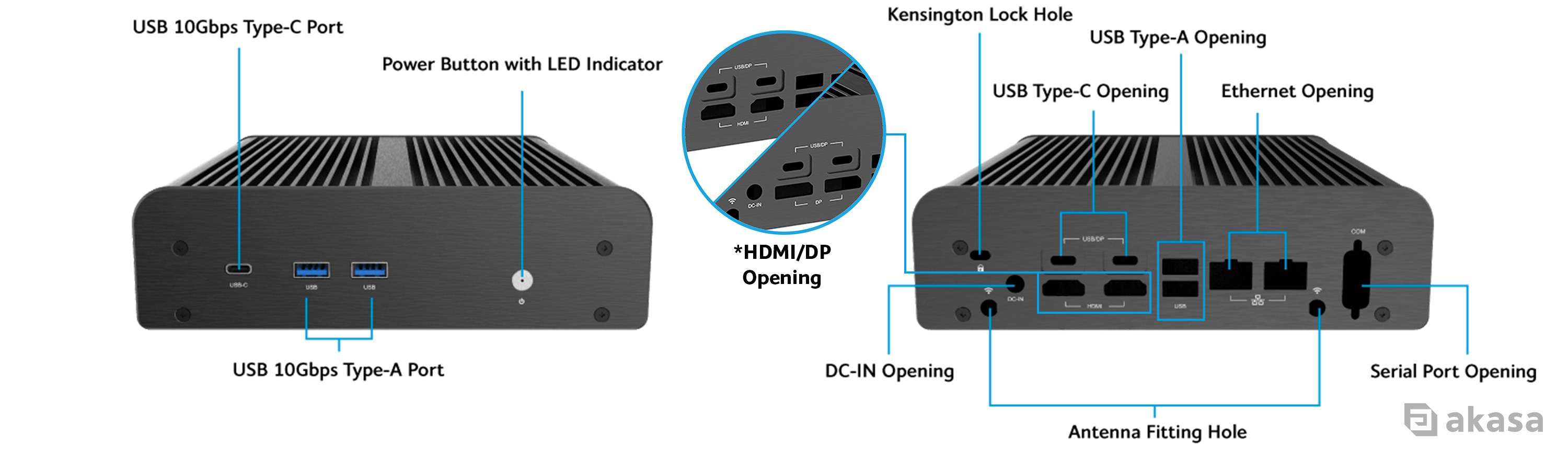

| Front I/O Interfaces | Power button with status LED opening, USB 3.2 Type-A port x2, USB 3.2 Type-C port |
| Rear I/O Interfaces | DC-IN opening, USB Type-C opening x2, HDMI opening x2 (A-NUC109-M1B)/DP opening x2 (A-NUC109-M2B), USB Type-A opening x2, Ethernet opening x2, Antenna fitting hole x2, Serial port opening, Kensington lock hole |
| Product Code | A-NUC109-M1B (HDMI) A-NUC109-M2B (DP) |
Full product specifications are available at www.akasa.co.uk.
Pricing and Availability
The Newton N16 models start at £118.90 / €118.90 (prices may vary by reseller).
The Newton N16 models are available to order throughout the UK, Europe, North America and Asia. Contact the Akasa team to find a reseller near you.
