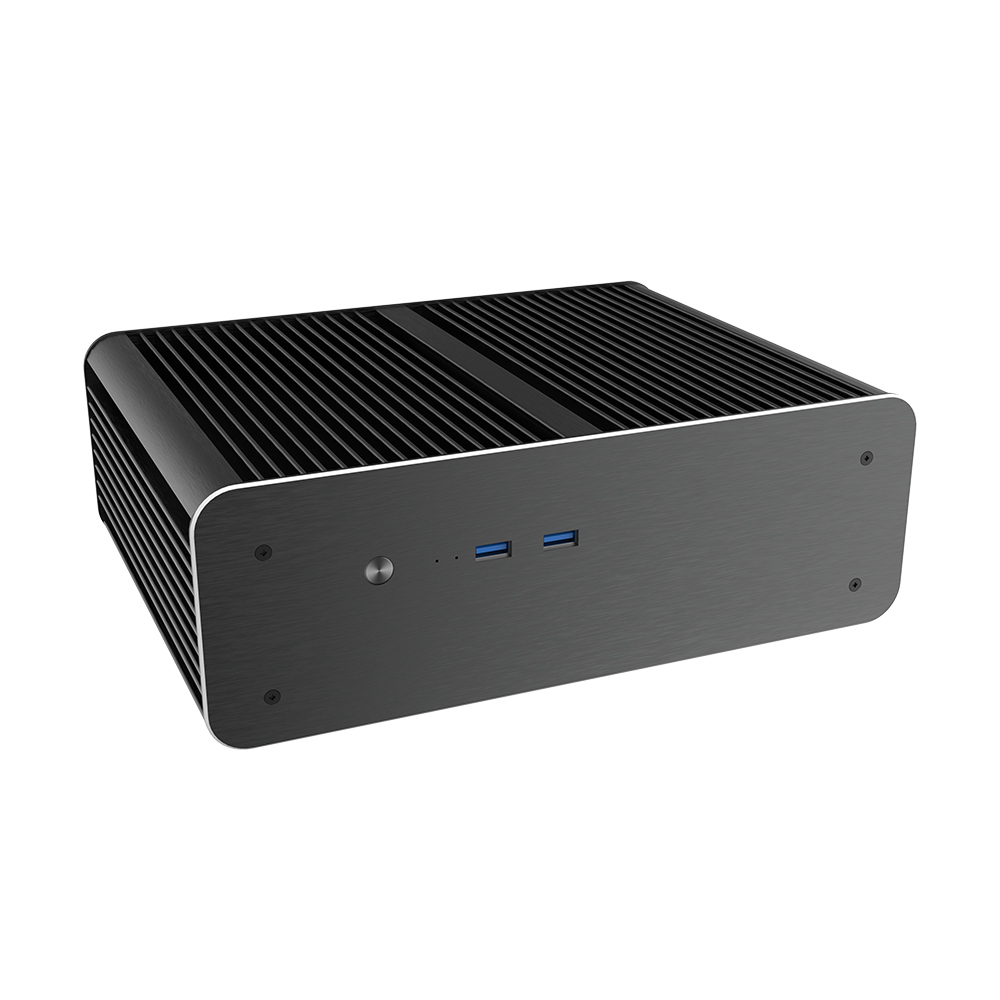

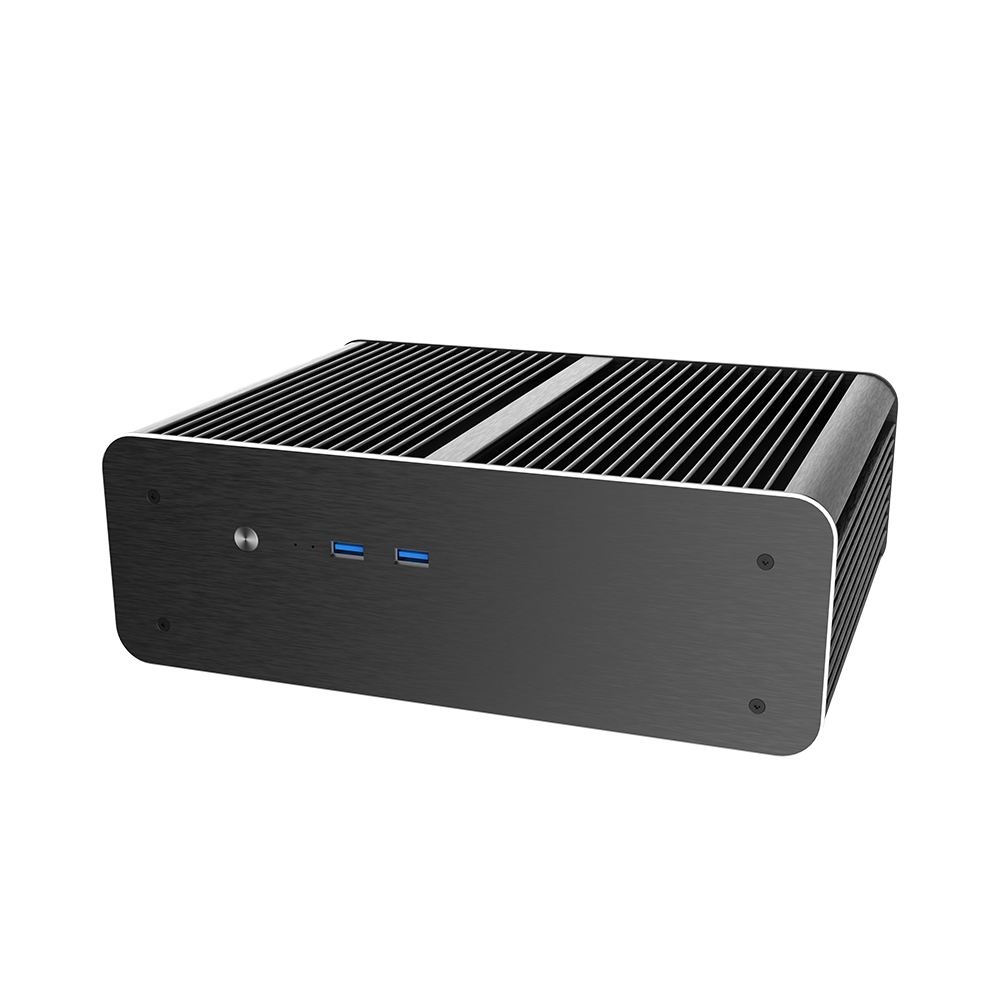

Euler MX2
Fanless Case for Mini-ITX Motherboards

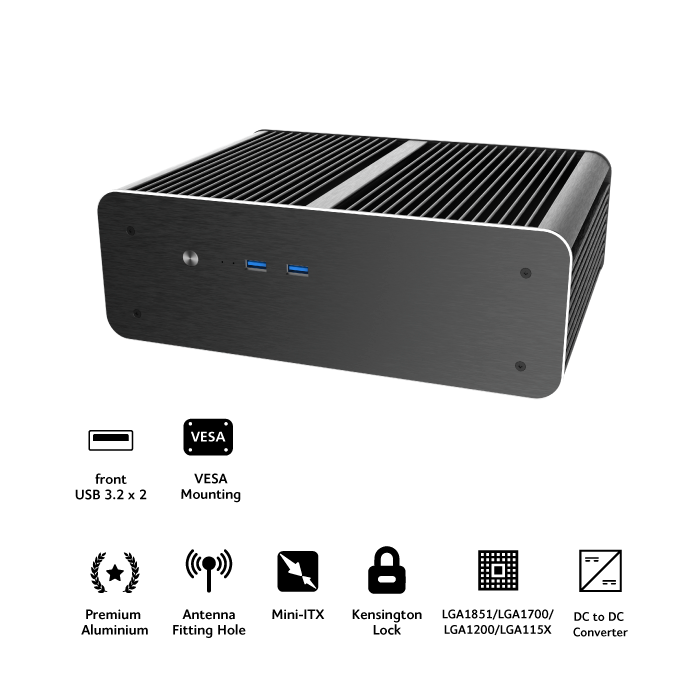

Fanless case for Mini-ITX motherboards with Intel® Core™ and Core™ Ultra processors (8th-15th Gen) up to 35W TDP. Features two USB 3.2 Gen 1 Type-A ports and supports two 2.5" drive bays, with VESA mounting for space-saving installation. Ideal for industrial automation, point-of-sale (POS), digital signage or other long-life applications.

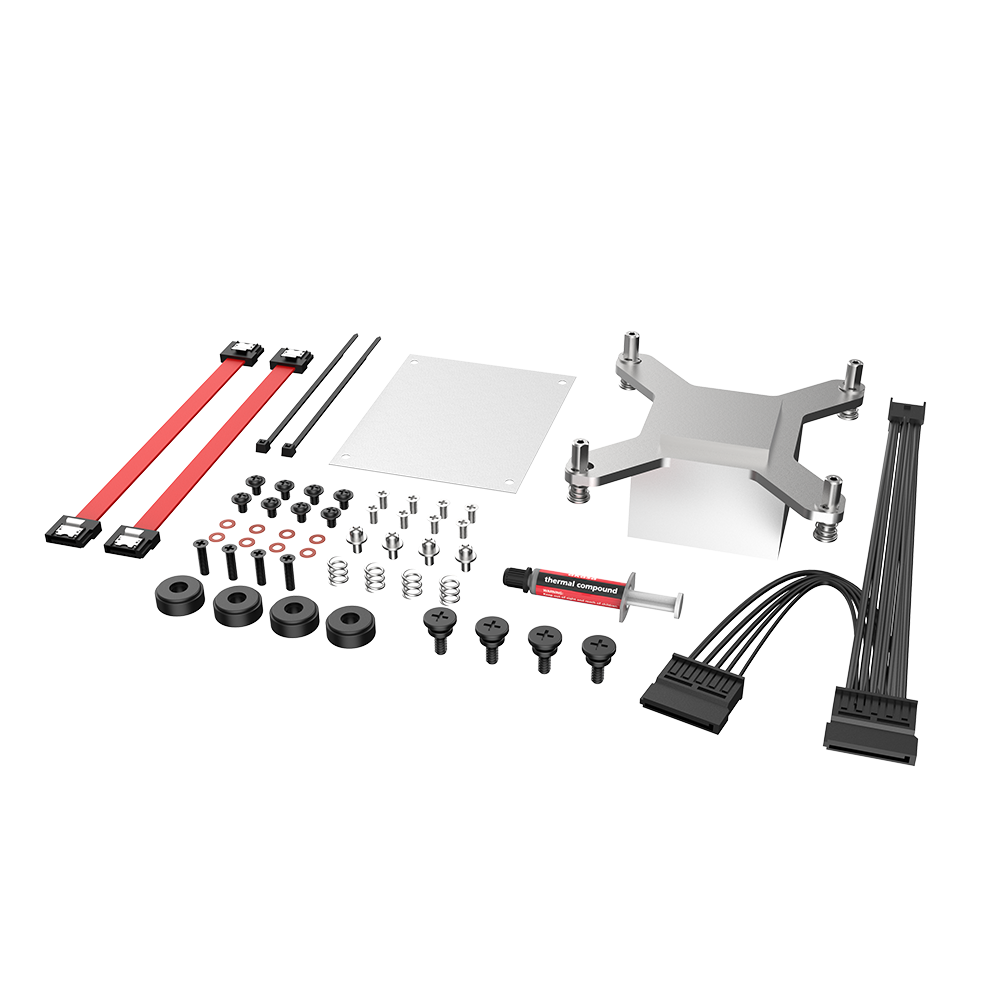

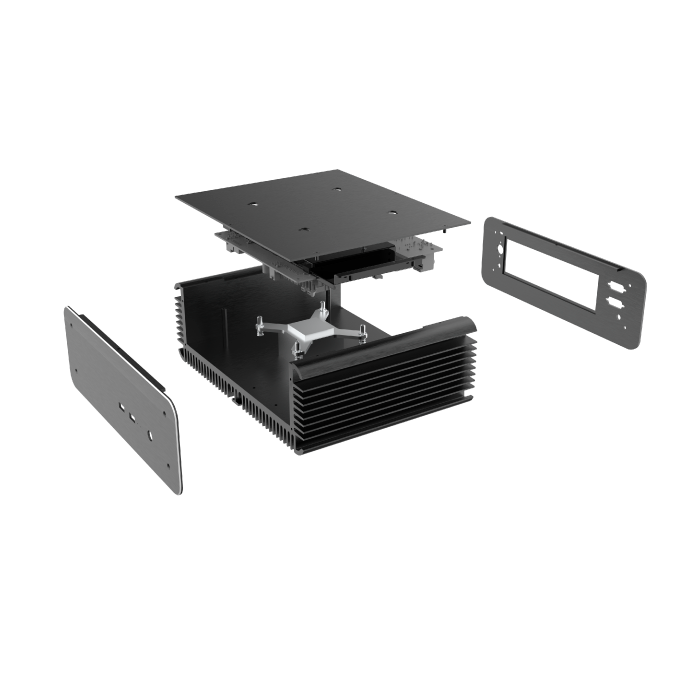

Patented spring mounting system ensures support across a diverse range of Mini-ITX form factor boards across pro-business, industrial and long-life applications.
List of supported motherboard models can be found in the specification.

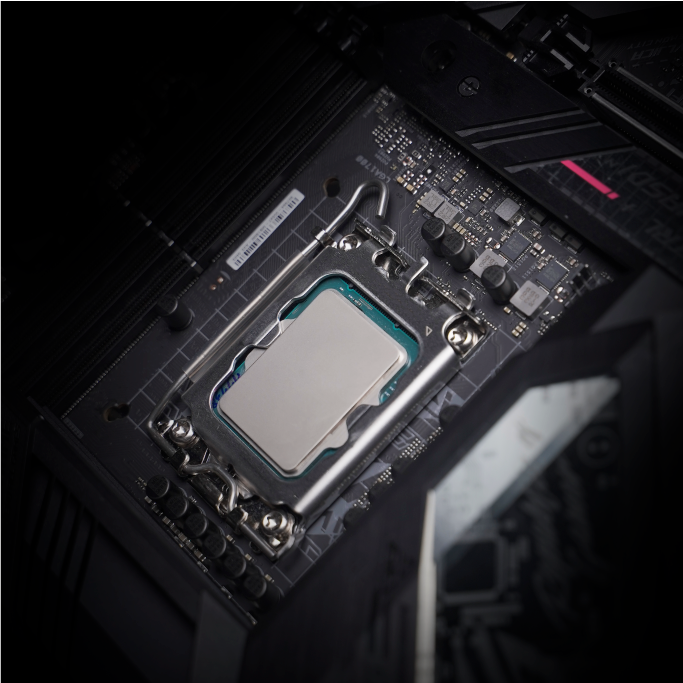

Supports Intel® Core™ (8th-14th Gen) & Core™ Ultra (15th Gen) processors up to 35W TDP.
Compatible with Intel® LGA1851 / LGA1700 / LGA1200 / LGA115X sockets.

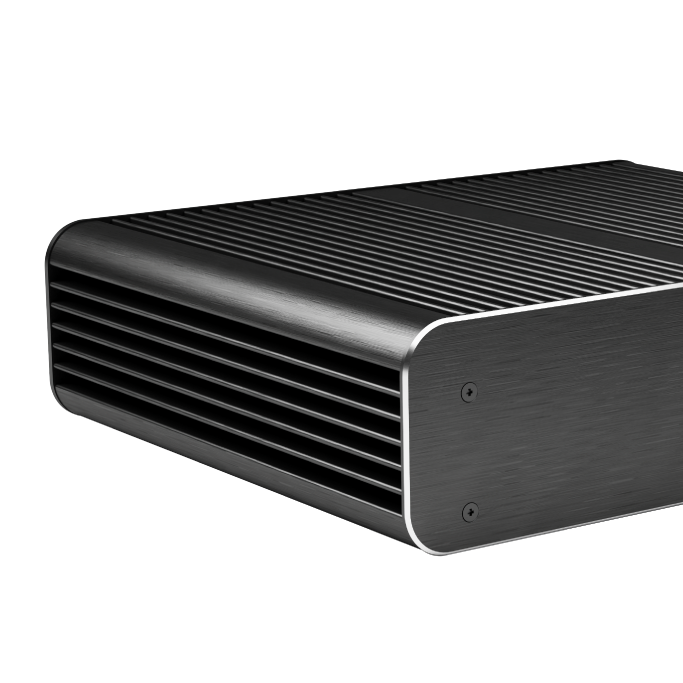

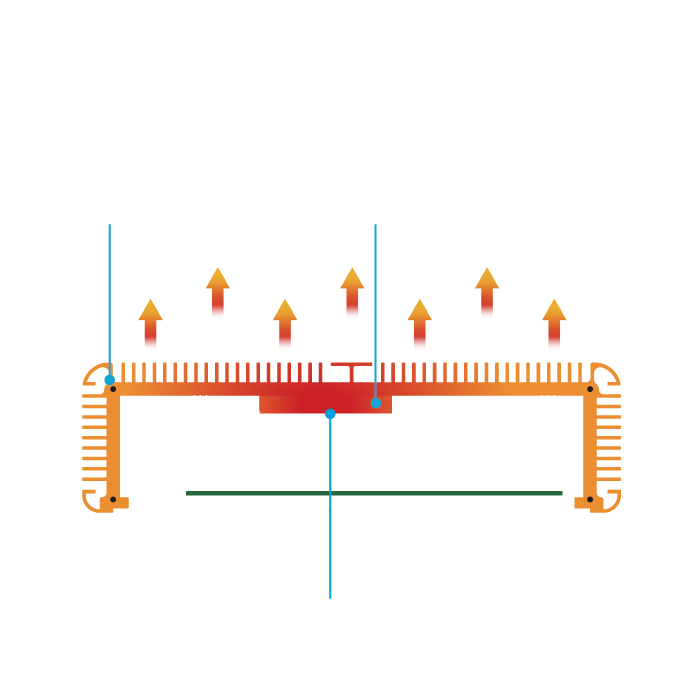

Fanless aluminium design efficiently dissipates heat from the CPU through the chassis fins, while eliminating noise and mechanical failure points, ensuring stable, long-term performance.
Features two USB 3.2 Gen 1 (5 Gbps) Type-A ports and two serial port openings for expanded connectivity.

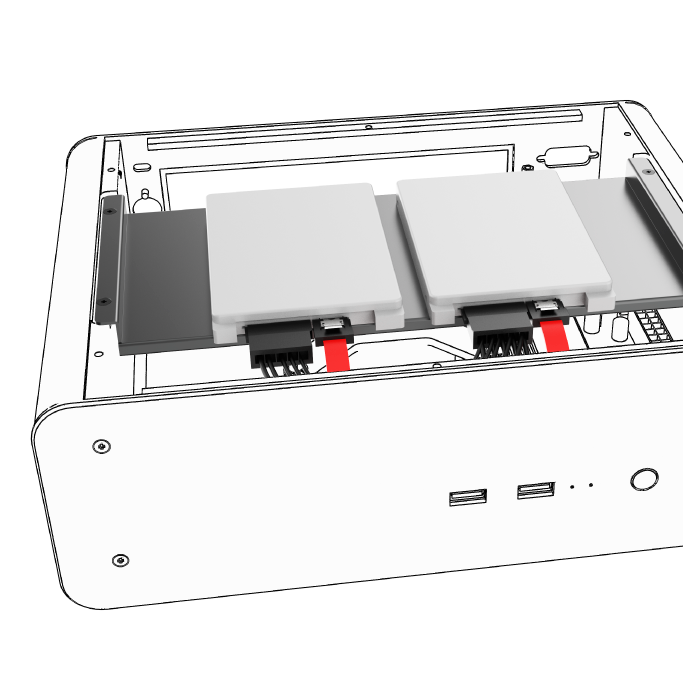

Two internal bays support 2.5" SATA SSDs/HDDs up to 9.5mm in height.

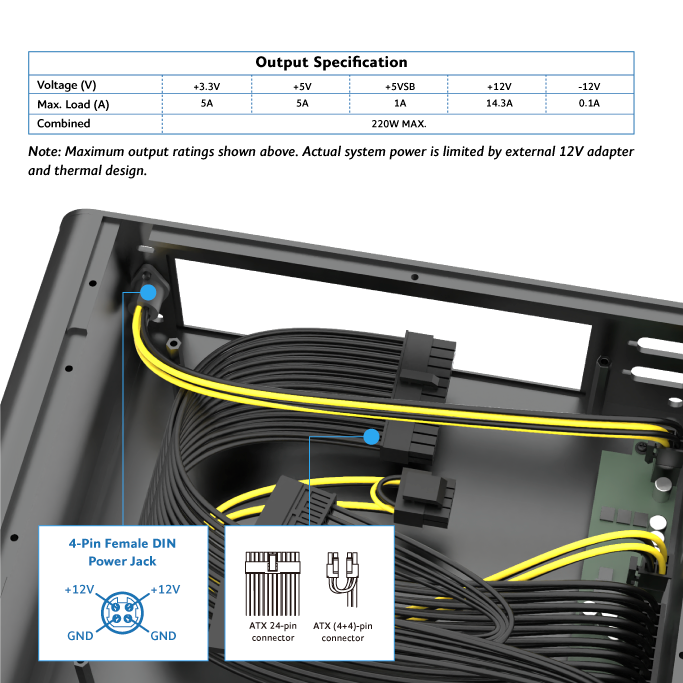

Equipped with an internal 220 W DC-to-DC converter rated for high operating temperatures (-25-70°C) and featuring 4-pin DIN power input.
Includes 24-pin and 4+4-pin ATX power connector cables for seamless integration with standard motherboard ATX power.
Premium aluminium case for effective heat dissipation and increased durability. Brushed finish for a sleek and stylish look.

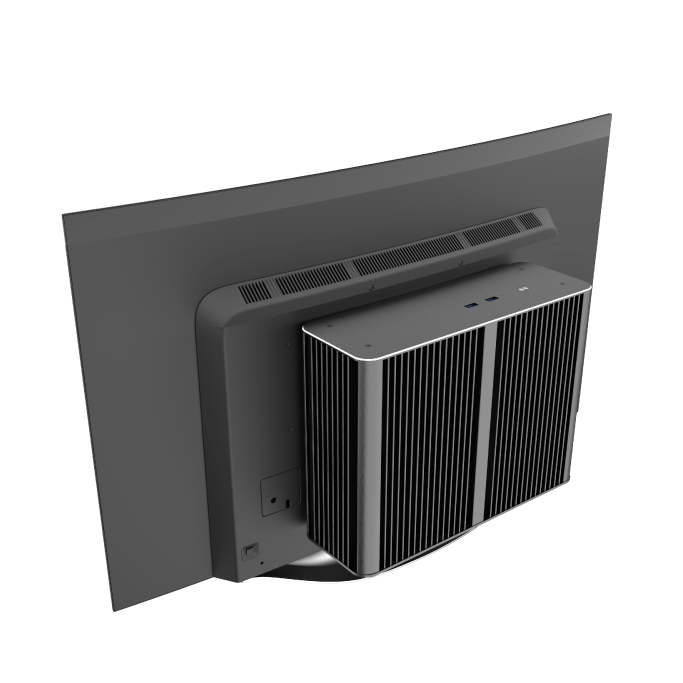

Supports VESA mounting, enabling secure installation and a clutter-free environment.

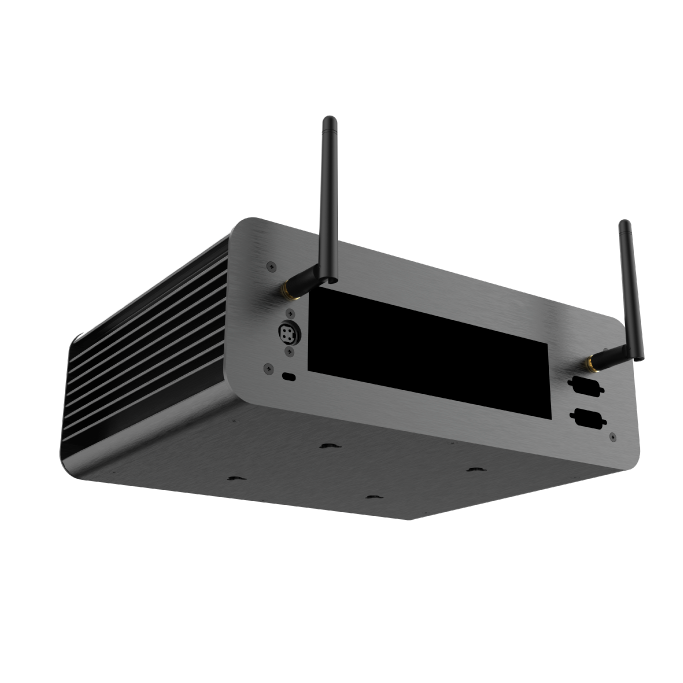

Easily connect your fanless mini-PC to Wi-Fi with optional external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR).

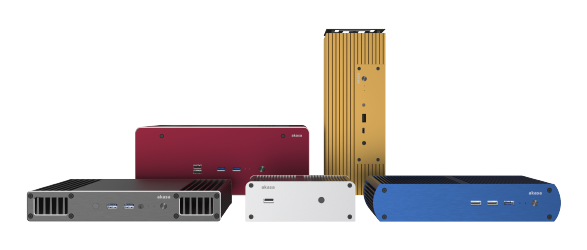

Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Material | Aluminium with anodised black |
|---|---|
| Motherboard Type | Mini-ITX |
| Socket Support | Intel® LGA1851, LGA1700, LGA1200, LGA115X |
| Maximum TDP Support | 35W |
| Dimensions | 272.6 x 205 x 92.6 mm (W x D x H) |
| Volume | 5.2L |
| Drive Bays | 2 x 2.5" SSD/HDD (max height 9.5 mm) |

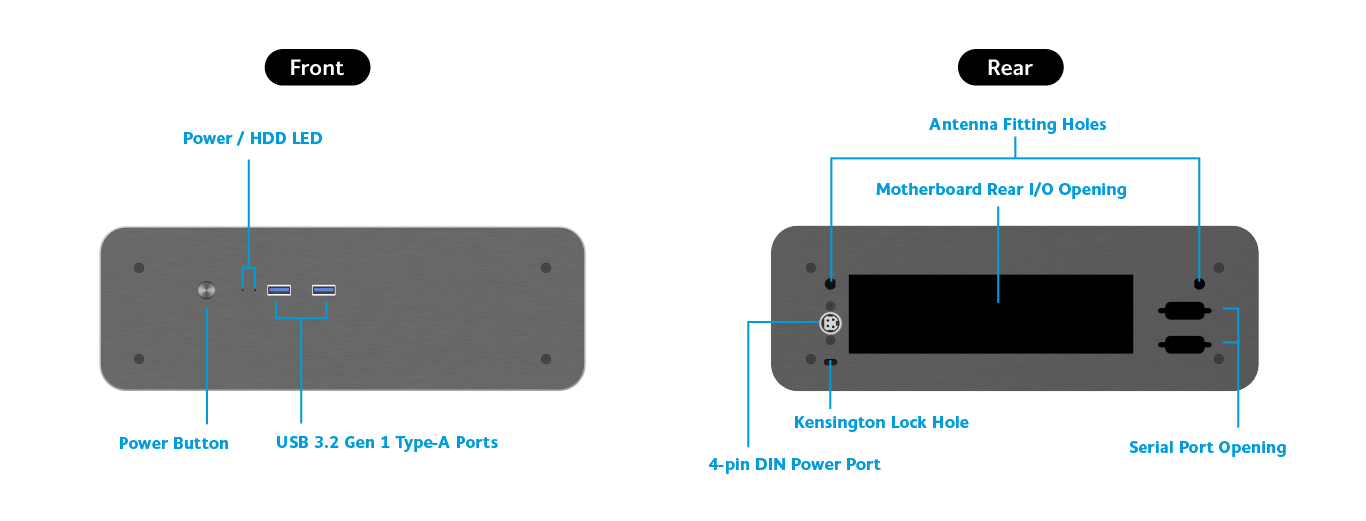

| Front I/O Interfaces | USB 3.2 Gen 1 Type-A x2, power button, power & HDD LED |

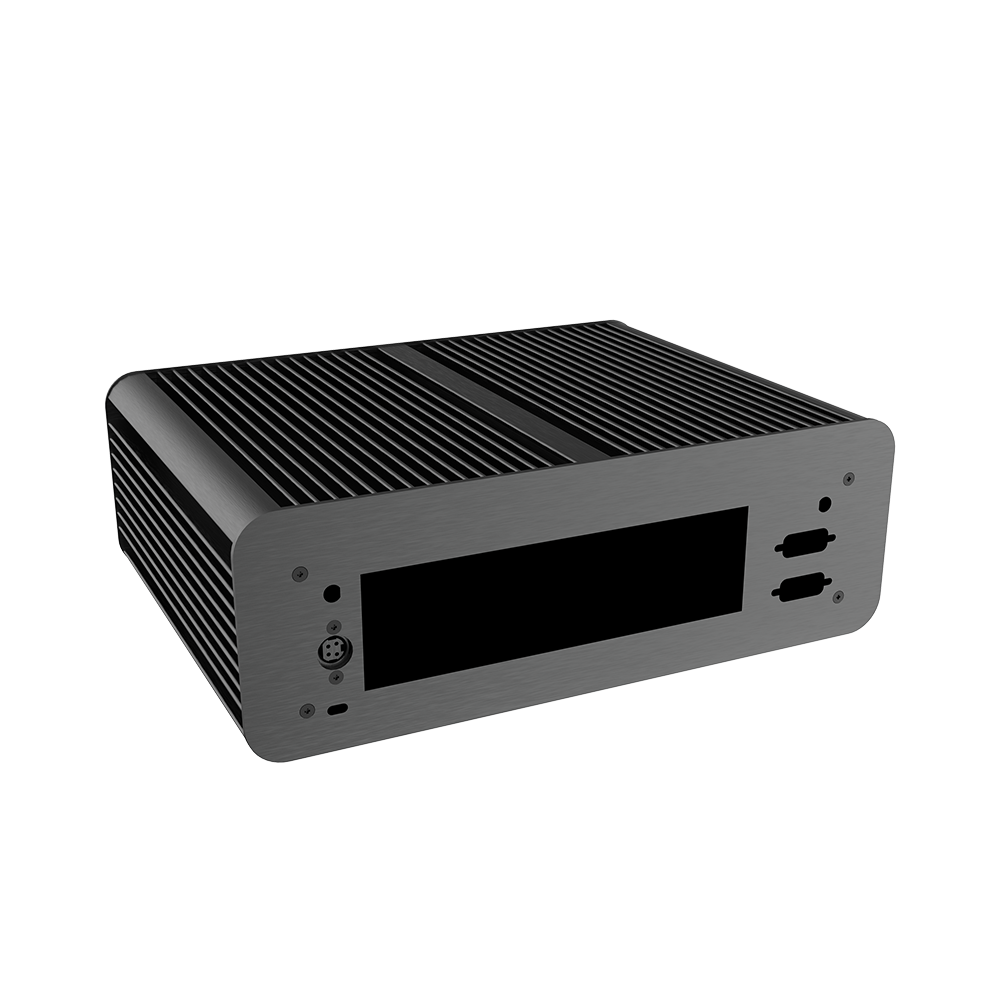

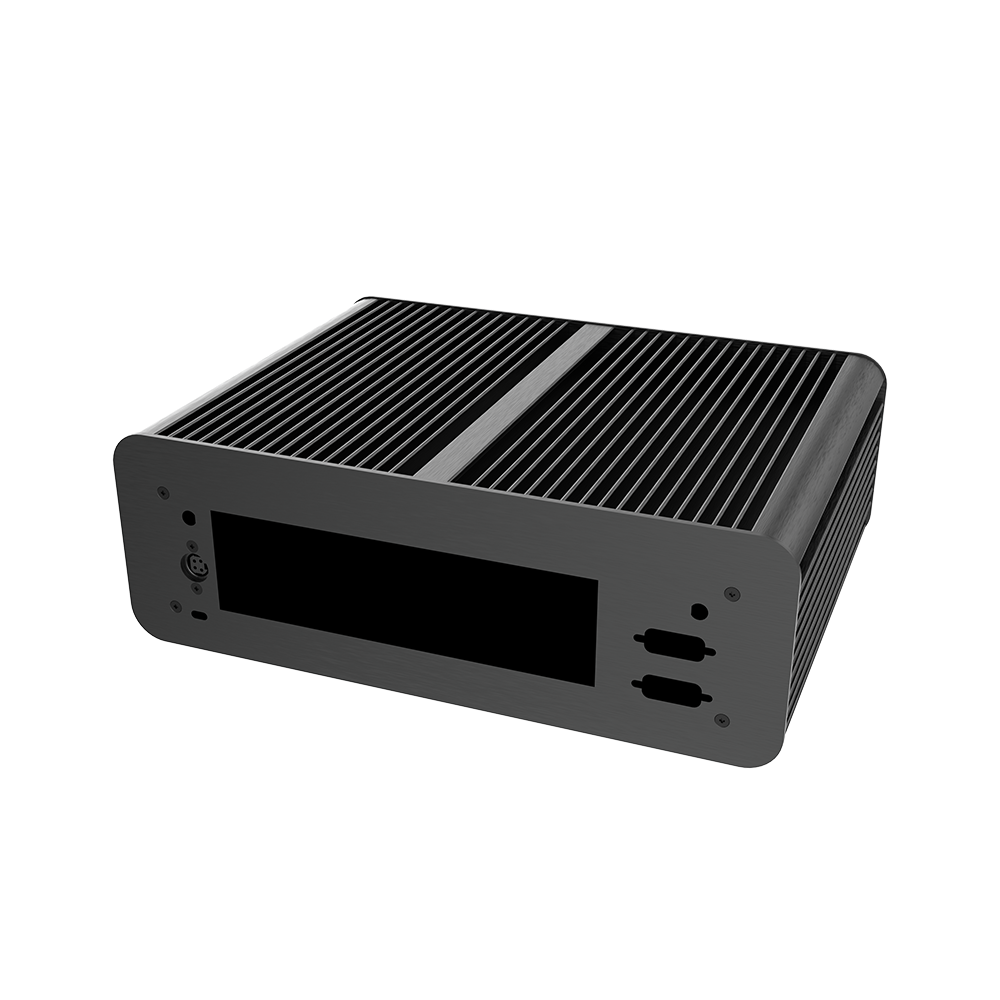

| Rear I/O Interfaces | Motherboard rear I/O opening, serial port opening x2, antenna fitting holes x2, kensington lock hole, 4-pin DIN power port x1 |
| Antenna Fitting Holes | 2 |
| Security | Kensington lock |
| VESA Mounting | Supported |
| Optional External Power Adapter | AC 150W |
| Product Code | A-ITX56-S1B |
| Output Power | 220W |
|---|---|
| Output Voltage | +3.3V, +5V, +5V standby, +12V, -12V |
| Input Voltage | 12V DC-in |
| Input Connector | 4-pin DIN power |
| Operating Temperature | -25°C to 70°C |
| Included Cable(s) | 24-pin ATX power connector cable 4+4-pin ATX power connector cable |
| Protection | Over Voltage Protection Over Power Protection |
