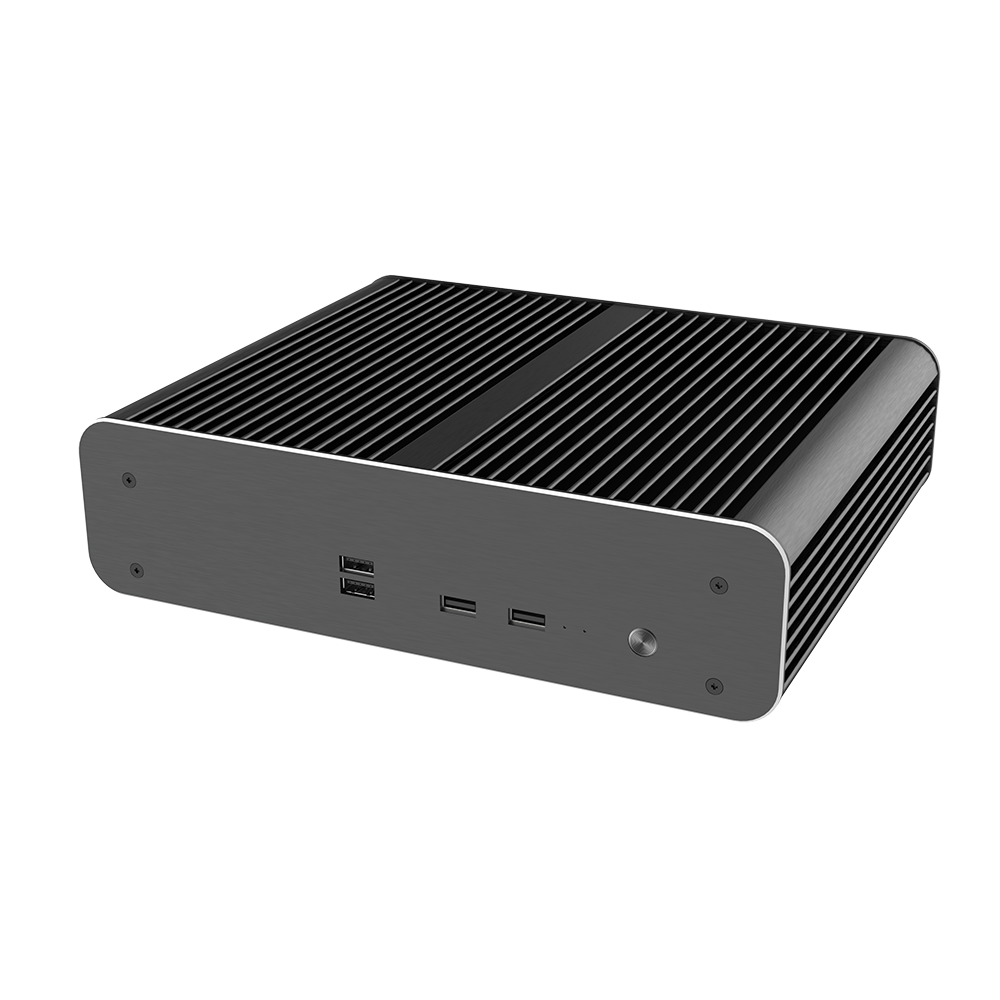

Euler TX3
Fanless Case for Thin Mini-ITX Motherboards
Fanless case for Thin Mini-ITX motherboards with Intel® Core™ and Core™ Ultra processors (8th-15th Gen) up to 35W TDP. Features four USB 2.0 ports and supports one 2.5" drive bay, with VESA mounting for space-saving installation. Ideal for industrial automation, point-of-sale (POS), digital signage or other long-life applications.

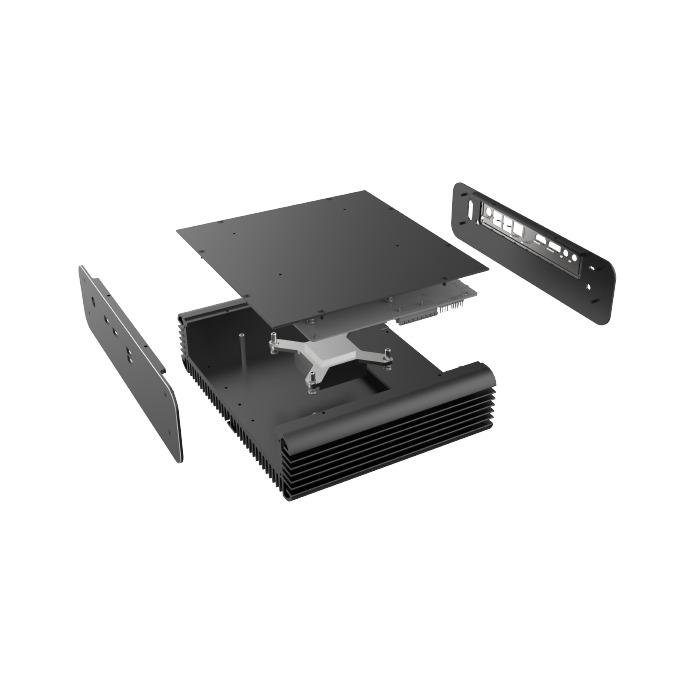

Patented spring mounting system ensures support across a diverse range of Thin Mini-ITX form factor boards across pro-business, industrial and long-life applications.
Ideal for industrial automation, point-of-sale (POS), kiosk, digital signage, education, surveillance or transportation systems.
Supports Intel® Core™ (8th-14th Gen) & Core™ Ultra (15th Gen) processors up to 35W TDP.

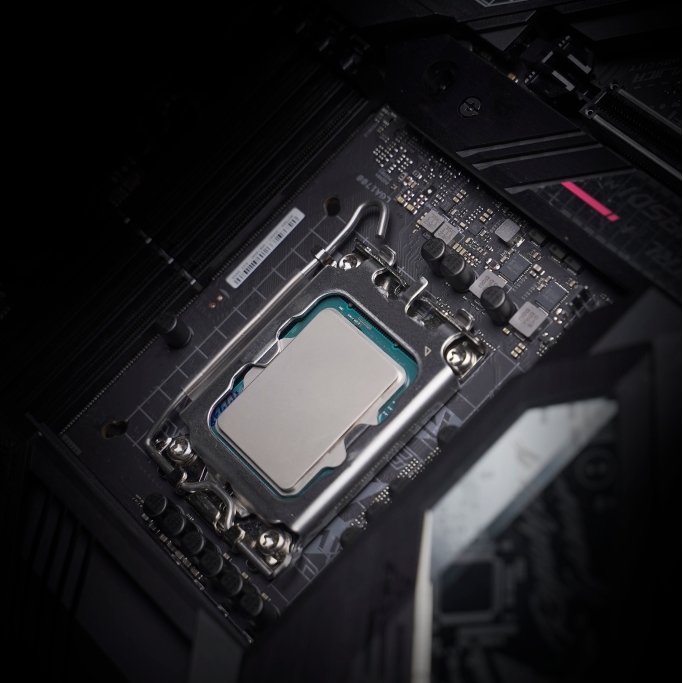

Compatible with Intel® LGA1851 / LGA1700 / LGA1200 / LGA115X sockets.

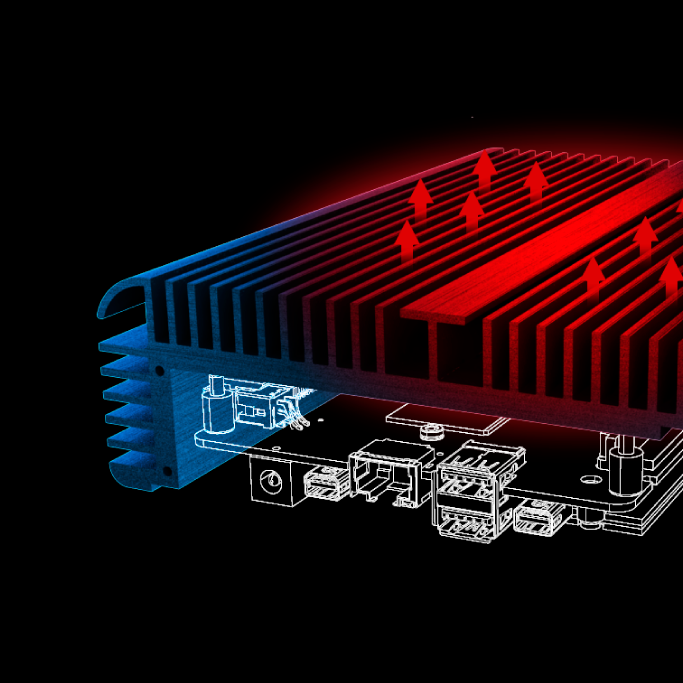

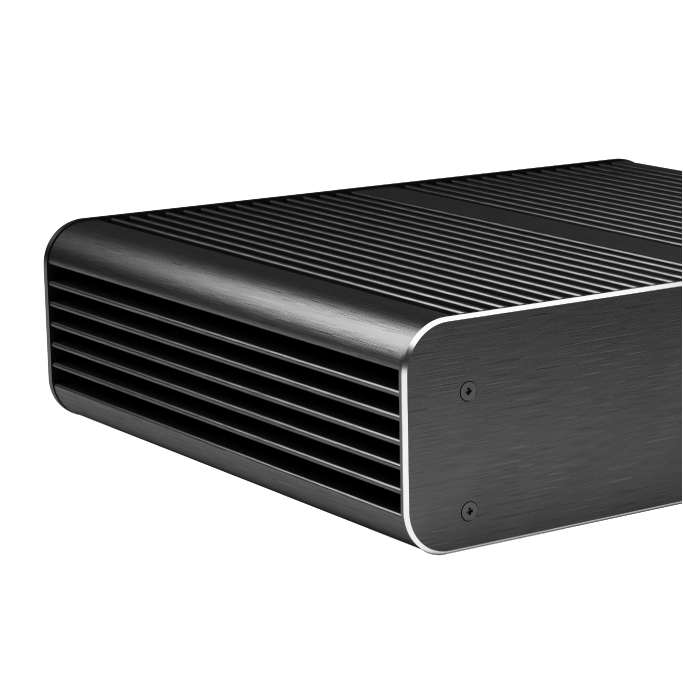

Fanless aluminium design efficiently dissipates heat from the CPU through the chassis fins, while eliminating noise and mechanical failure points, ensuring stable, long-term performance.

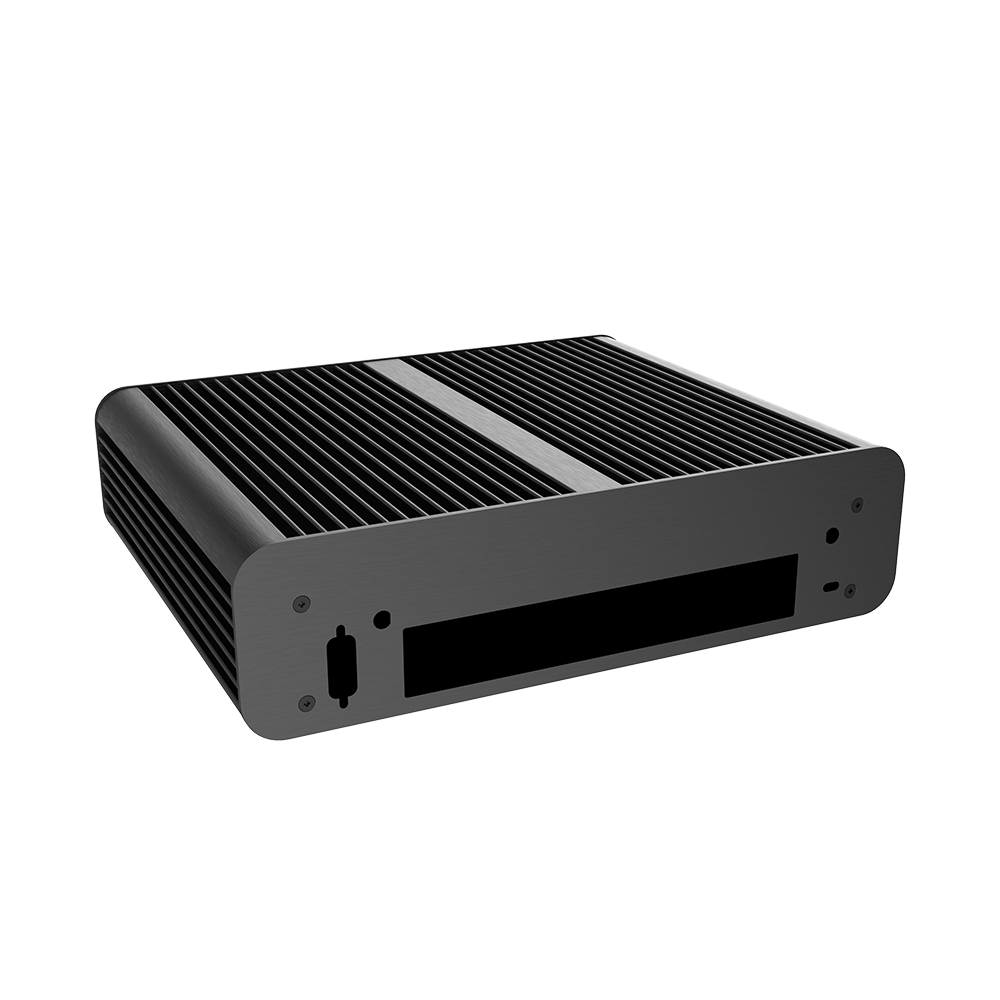

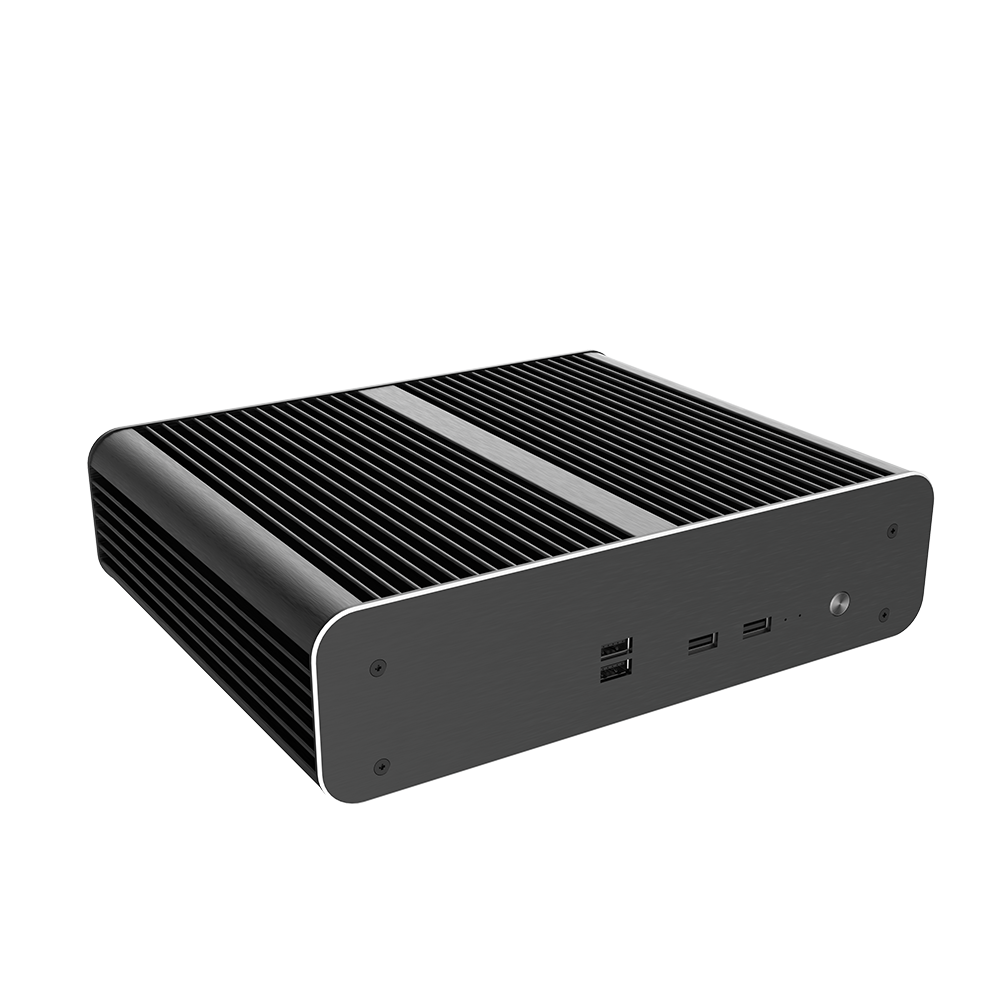

Premium aluminium case for effective heat dissipation and increased durability. Brushed finish for a sleek and stylish look.

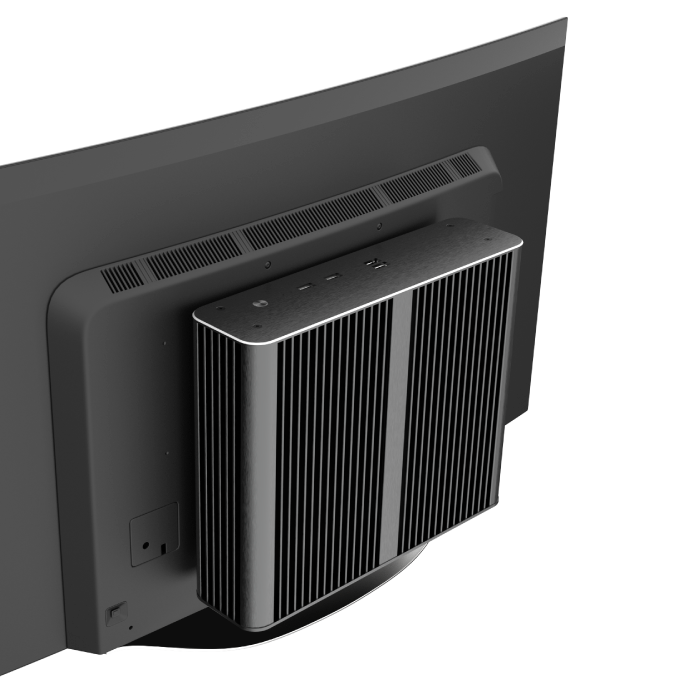

Supports VESA mounting, enabling secure installation and a clutter-free environment.

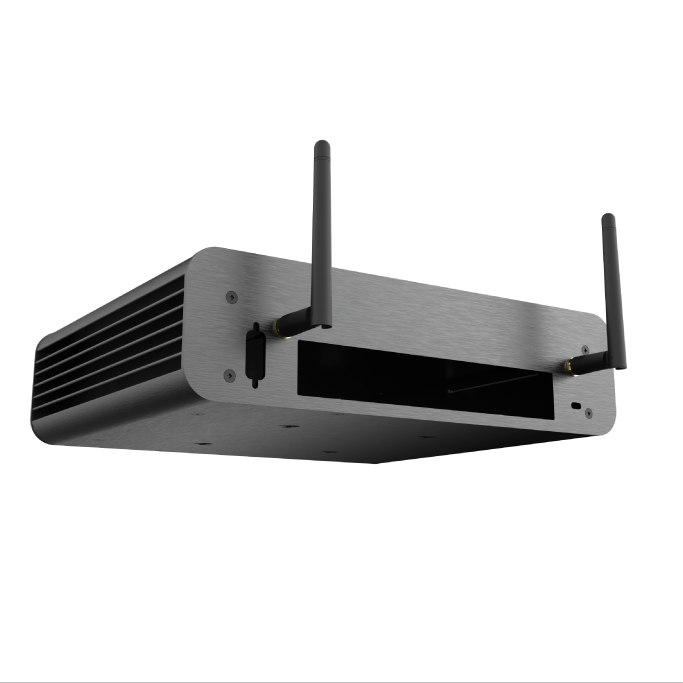

Easily connect your fanless mini-PC to Wi-Fi with optional external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR).

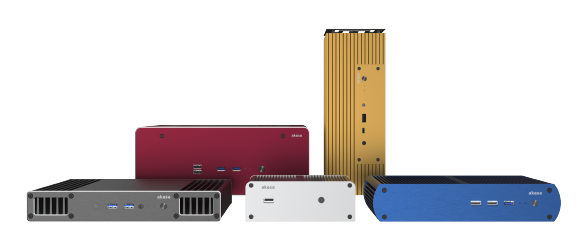

Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Material | Aluminium with anodised black |
|---|---|
| Motherboard Types | Thin Mini-ITX |
| Socket Support | Intel® LGA1851, LGA1700, LGA1200, LGA115X |
| Maximum TDP Support | 35W |
| Dimensions | 262.6 x 215 x 68.5 mm (W x D x H) |
| Volume | 3.9L |
| Drive Bays | 1 x 2.5" HDD (max height 9.1mm) |
| Front I/O Interfaces | USB 2.0 Type-A x4*, power button, power/HDD LED

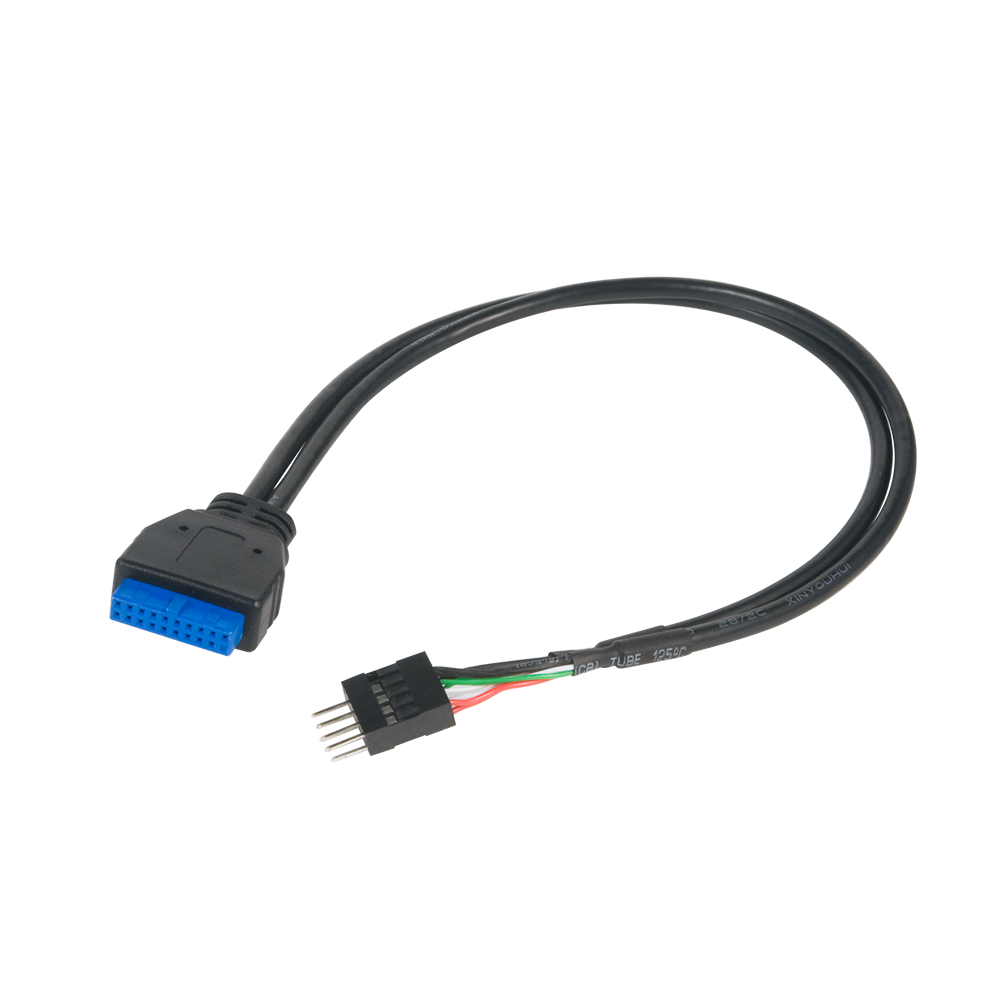

*Note some boards, such as Mitac PH12ADI, only have two native USB 2.0 headers to support 4 x USB 2.0 ports on the front of the case, so an optional USB hub is required: AK-CBUB64-30BK |

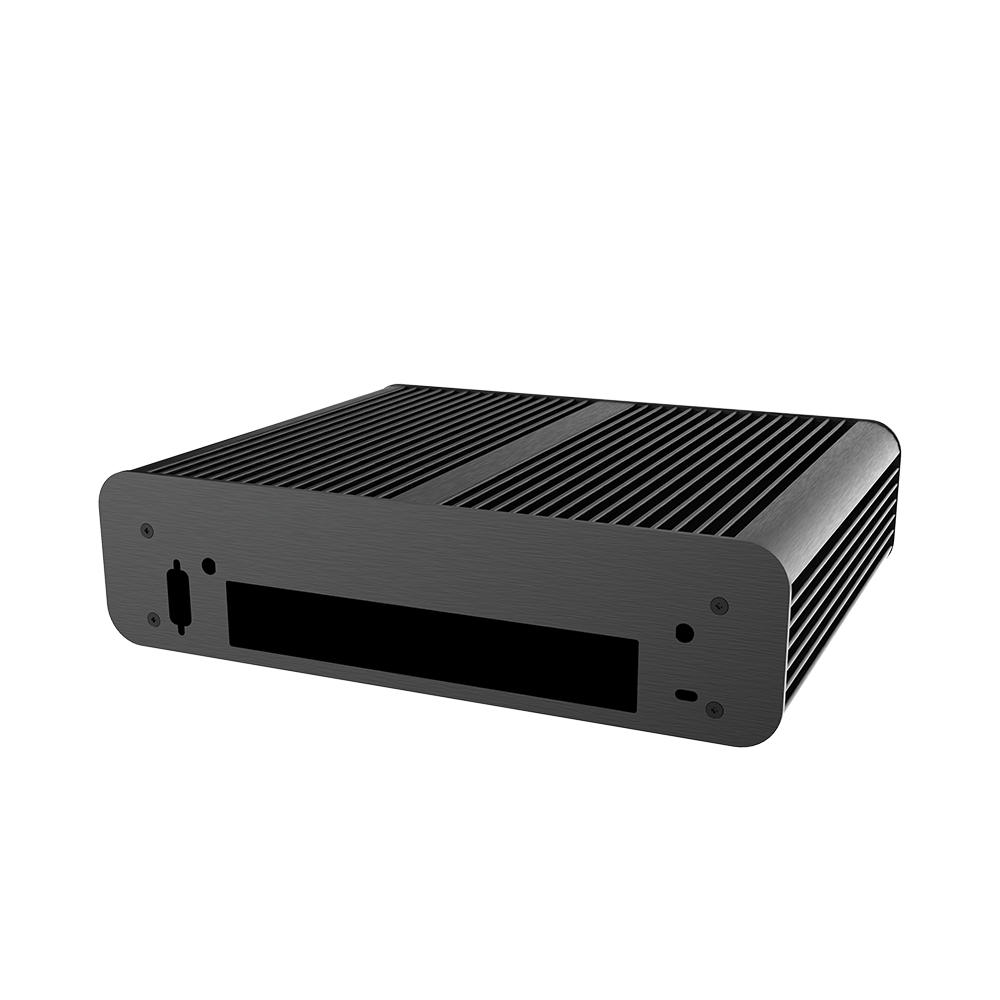

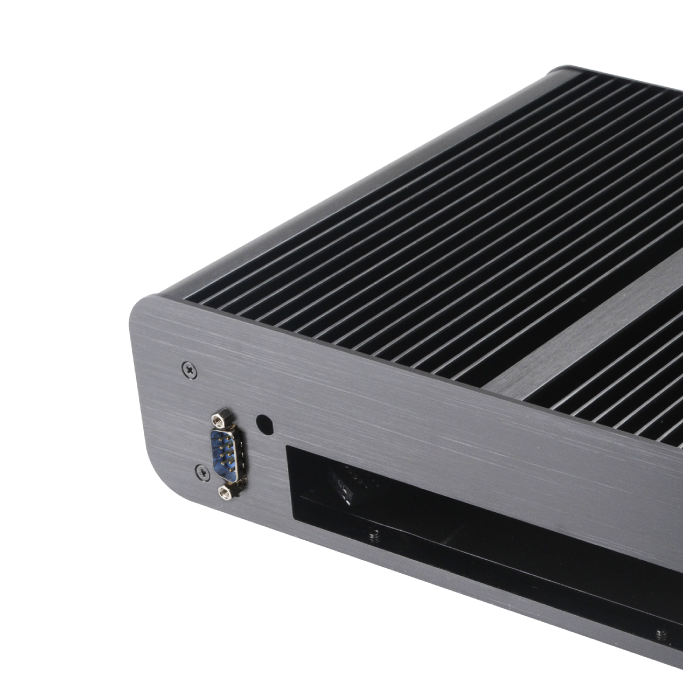

| Rear I/O Interfaces | Serial port opening x1, antenna fitting holes x2, kensington lock hole |
| Antenna Fitting Holes | 2 |
| Security | Kensington lock |
| VESA Mounting | Supported |
| Optional External Power Adapter | AC 120W or 150W |
| Product Code | A-ITX49-S1B |
