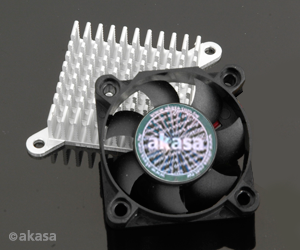

Chipset Cooling Kit
Universal cooling kit with three heatsinks for entry level systems. 3 x heatsink, 4cm fan, thermal tape and compound.
This cooling kit is designed to provide everything you need to ensure stable and efficient operation of your PC. It is a perfect replacement for failing or noisy VGA and motherboards stock coolers. It will also effectively cool motherboard chipsets not equipped with coolers as standard.
Two passive and one active cooler for VGA (up to Radeon 9200Pro, GeForce 4MX), Northbridge and Southbridge chipsets are included. A dual mounting system is supplied, pushpins or thermal adhesive tapes, you choose which is appropriate for you PC. One 1.5g Syringe of hi-grade thermal compound is included.
• Cools GPU and motherboard
• Compatible with legacy ATI & NVIDIA VGA cards
• Easy tool-free installation
• 2 passive heatsinks with thermal adhesive tape pre-applied

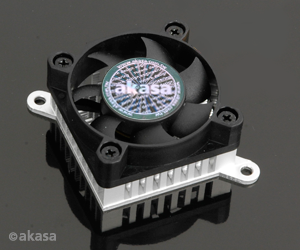

• 1 active heatsink with dual-mounting (pushpins or thermal tape)
• Lo-noise fan with standard 3pin motherboard connector
• Thermal compound included
Application | Graphics card and motherboard cooler |
---|---|
Designed for | Entry-level motherboards and legacy VGA cards |
VGA cooler dimension | 40 x 40 x 20mm |

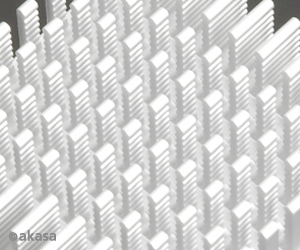

Heatsink material | Aluminium |

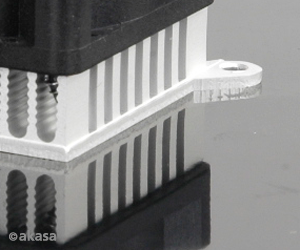

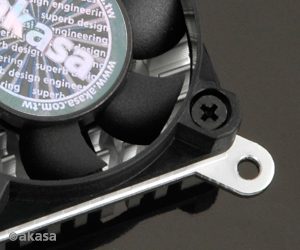

Mounting | Pushpins or thermal adhesive tape (included) |

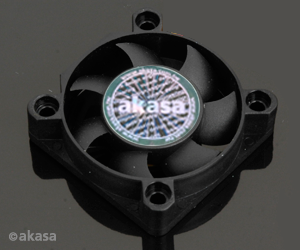

Fan dimension | 40 x 40 x 10mm |
Fan speed | 5000 RPM |
Bearing type | Enter bearing |
Airflow | 5.20 CFM |
Noise level | 23 dB(A) |
Fan connector | 3pin |

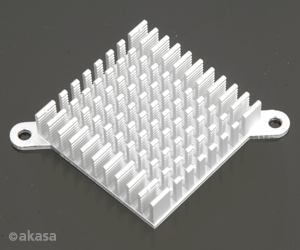

Northbridge heatsink dimension | 37 x 37 x 6mm |
Heatsink material | Aluminium |
Heatsink mounting | Thermal conductive adhesive tape pre-applied |
Southbridge heatsink dimension | 28 x 28 x 9mm |
Heatsink material | Aluminium |
Heatsink mounting | Thermal conductive adhesive tape pre-applied |
Product code | AK-VCX-01 |
Via attached thermally conductive adhesive tape or pushpins (if compatible).
