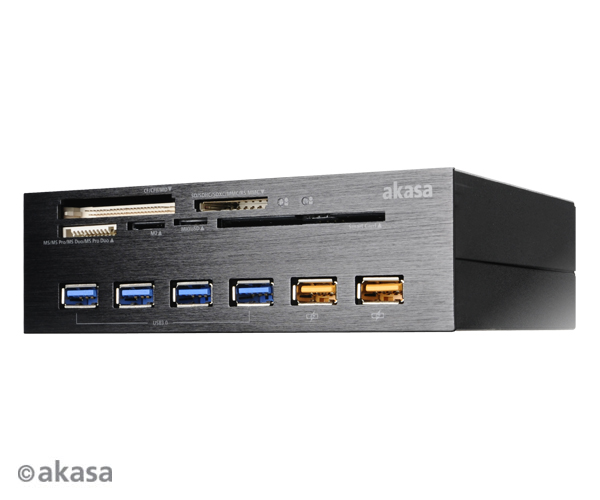

InterConnect EX
USB 3.0 card reader and HUB with smart card reader for 5.25" PC front bay
4 port USB 3.0 HUB gathers all USB data connections in one easy accessible place. Smart card reader for secure 24 / 7 online access to commercial and public services Two charging ports provide up to 2.4 A for smart phone or tablet fast charging. Easy to install.
• Brushed aluminum fascia panel
• 5-slot USB 3.0 card reader
• 4-port USB 3.0 HUB
• USB 2.0 electronic ID and smart card reader
• Two USB charging port provide up to 2.4A
• Charging port support smart phone or tablet fast charging
• High performance USB fast charging controller provide auto detect
and charging
• Meet USB battery charging specification
• Compatible with Microsoft USB-CCID driver
| Application | 5.25" PC bay |
|---|---|
| Function | USB 3.0 port x 4 card reader slot x 5 smart card reader port x 1 charging port x 2 |
| Memory card types | Compact Flash (CF I, CF II, Ultra, Extreme, I-Pro, Ultimate, MD) Memory Stick (MS Pro, MS Pro Duo, Magic Gate, Extreme, Ultra) Secure Digital (SDXC, SDHC, SD, Ultra, Extreme, Elite Pro, High Speed, MMC, MMC Mobile) • 1TB for SDXC • 32GByte for SDHC M2 (Memory Stick Micro M2) microSD (microSDHC, micro SDXC, High Capacity) |
| Smart card types | • T0, T1 protocol • I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM • ISO7816 Class A, B and C (5V/3V/1.8V) card • Military Common Access Card (CAC) |
| Rear connectors | internal motherboard USB 3.0 connector internal motherboard USB 2.0 connector 4-Pin PSU molex connector SATA power connector |
| Cable length | Internal USB 3.0 cable: 650mm Internal USB 2.0 cable: 650mm Molex power cable: 150mm SATA power cable: 150mm |
| Max data transfer rate | 5Gb/s (USB 3.0) and 480Mb/s (USB 2.0) |
| LED indicator | Card In & Data Transfer |
| Power requirement | DC 5V |
| Supported OS | Windows XP / Vista / 7 / 8.X / 10 / 11 |
| Product Code | AK-HC-07BK |
